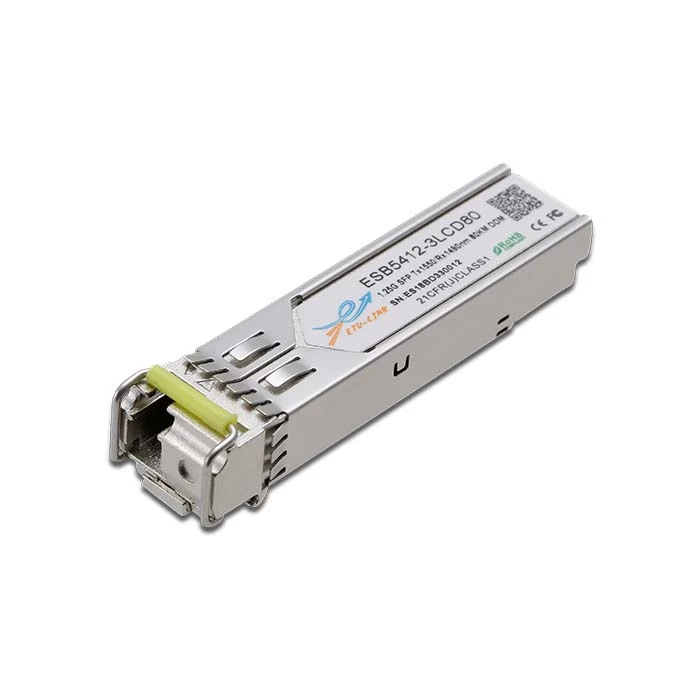

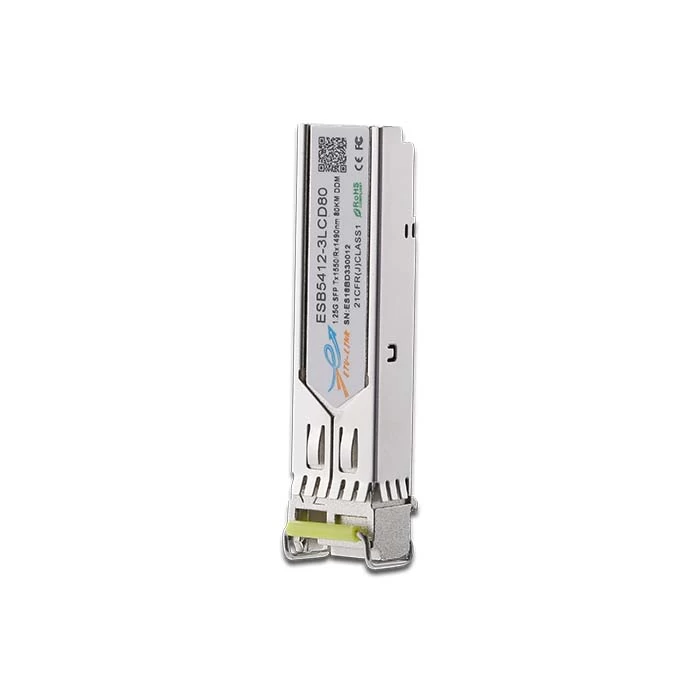

ESB5412-3LCD80
1.25Gbps SFP Bi-Directional Transceiver, 80KM Reach
Tx1550nm/Rx1490nm
Features
Ø Dual data-rate of 1.25Gbps/1.063Gbps operation
Ø 1550nm DFB laser and PIN photodetector for 80KM transmission
Ø Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Ø Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Ø Compatible with SONET OC-24-LR-1
Ø Compatible with RoHS
Ø +3.3V single power supply
Ø Operating case temperature range:
0 °C to +70
°C (Commercial)
-40 °C to
+85 °C (Industrial)
Applications
Ø Gigabit Ethernet
Ø Fiber Channel
Ø Switch to Switch interface
Ø Switched backplane applications
Ø Router/Server interface
Ø Other optical transmission systems
Description
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of
1.25Gbps/1.0625Gbps and 80KM transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
