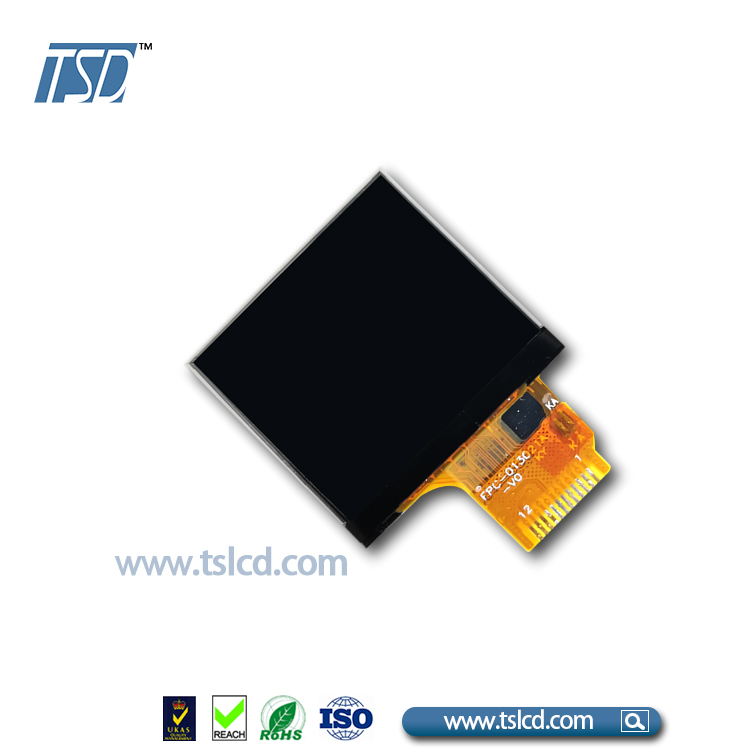

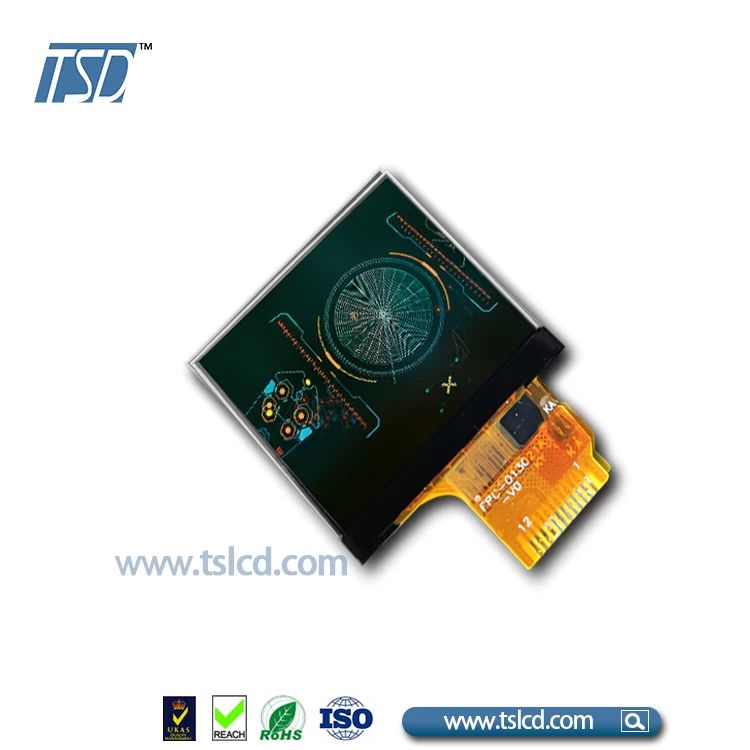

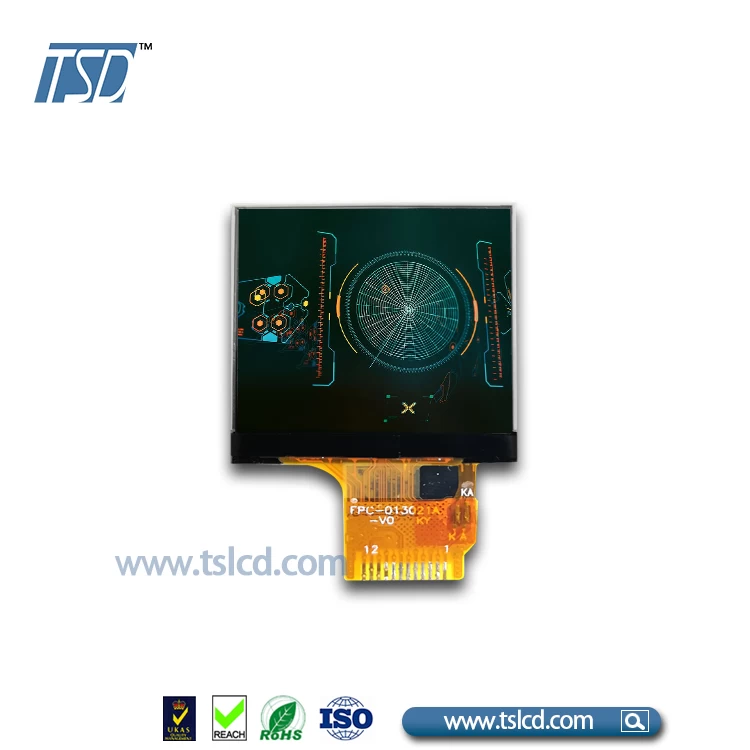

1.3 inch TFT lcd for small watch

Facebook Twitter Pinterest LinkedIn 分享
Main parameters
Item 1.3 inch TFT LCD display
Model name TST013021B
Display Mode Normally White,Transmissive
Resolution 320*320
Technology Type a-Si TFT active matrix
Driver IC ST7789V
Pixel Configuration R.G.B. Vertical Stripe
Outline Dimension 26.85(H) ×29.55(V)×1.5(T)
Active Area(mm) 23.4×23.4
nterface 4-SPI
Viewing Direction ALL  O'clock
Surface treatment: Anti-Glare
Backlight Type 2-LED white color
Operating Temperature -20~70°C
Storage Temperature -30~+80°C
