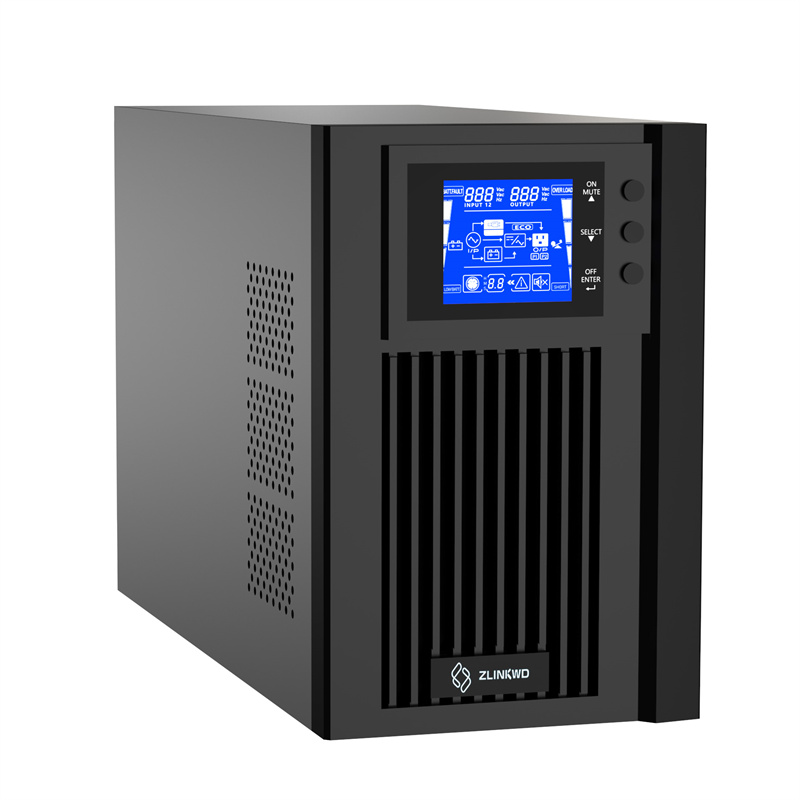

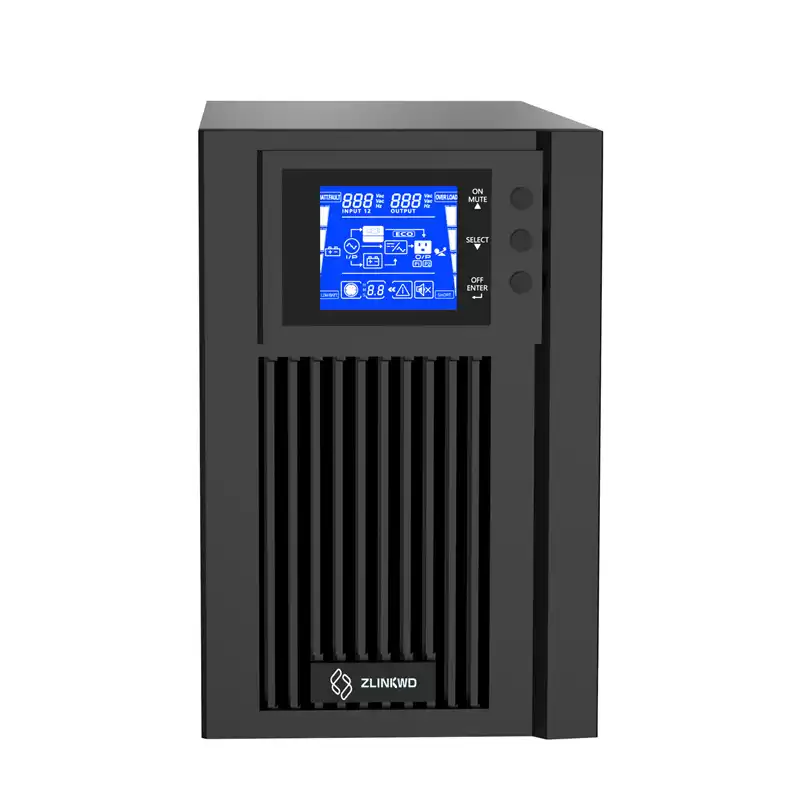

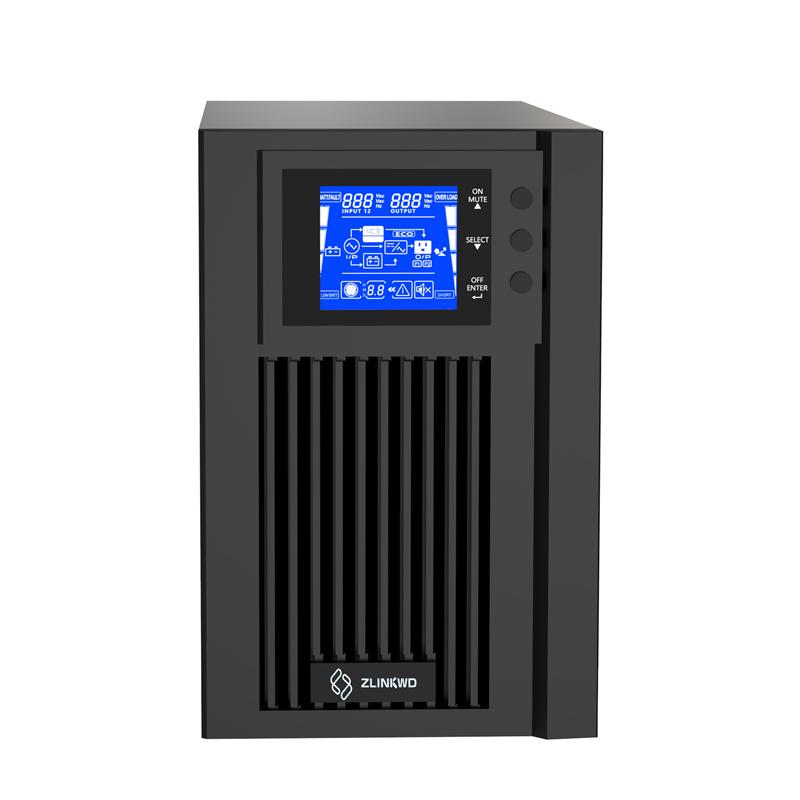

1-3Kva Series High frequency online ups

1-3Kva Series UPS is the ideal solution for small-capacity power supply scenarios, can fully eliminate all kinds of power grid problem. Supports for tower installation, built-in battery. The Z-Power series UPS also provides users with flexibility and safer power planning option to meet the increasing customized application demand during power failure, dangerous power surges and voltage fluctuations.





  Product Overview

Load power factor is 0.8, adaptive for the development trend of electrical
Equipment and the load capacity is more strong
Active input power factor correction (PFC), input power factor is over 0.98
Wide input voltage and frequency range, adaptive for extreme adverse grid
environment of remote areas
It can be connected with generators
Zero transfer time effective ensures the safety and reliability of load operation
Online Interactive Uninterruptible Power Supply Backup Uninterruptible Power Supply Standby Battery

  Application Scenarios

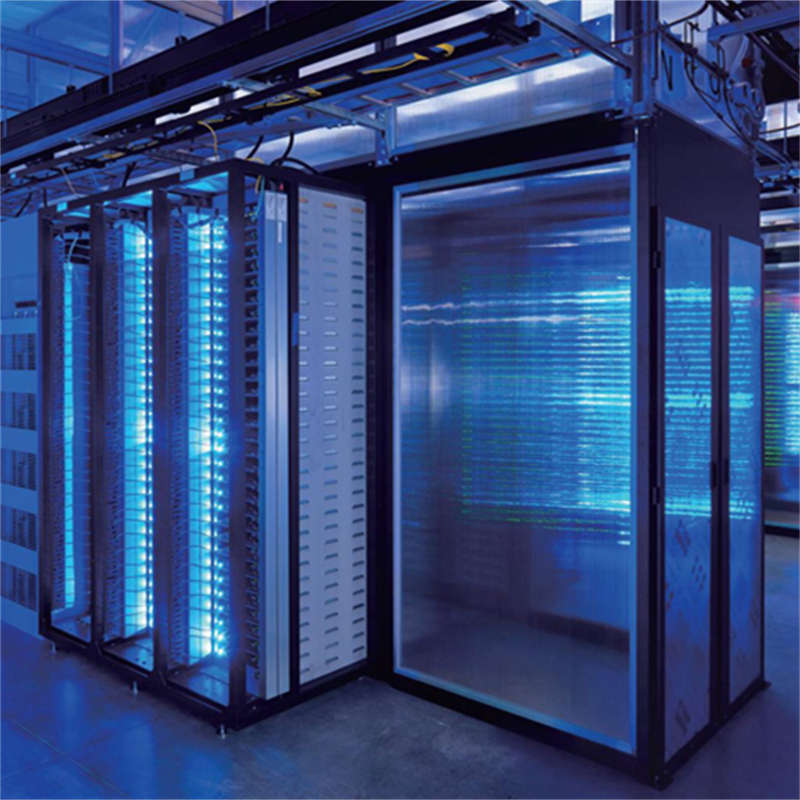

1.Data center
2.Network device
3.Commercial facility
4.Precision instrument
5.Home, Office and other AC power supply



  Technical Specification

 Model

  Technical Data

C1K(R)

C1K(R)L

C2K(R)

C2K(R)L

C3K(R)

C3K(R)L

Nominal Output Capacity

1000VA/800W

2000VA/1600W

3000VA/2400W

AC  INPUT

Input Voltage Range

115~300VAC±5

Input Frequency

(45~55)±0.5Hz

Bypass Voltage

80VAC×(1±5%) ~285VAC×(1±5%)

Battery

Input

Battery Unit Voltage

24V

36V

48V

72V

48V / 72V(R)

96V

Battery Installation

Internal

External

Internal

External

Internal

External

Backup Time (Half / Full)

Half Load ≥ 10mins; Full Load ≥ 5mins (Standard Type)

Maximum Power Input current

<150% of Nominal Current

Battery Charge Time

Long Time UPS Depends On The Capacity of External Battery Packs

AC

Input

Output Voltage

220Vac ±1%(Inverter Output)

Output Frequency

50 ± 5Hz (AC Input Normal) ; 50Hz ± 1% (AC Input Abnormal)

Wave Form

Sine Wave THD < 3% (Linear Load); Sine Wave THD < 8% (Non-Linear Load)

Output Power Factor

0.8

Overload Capability

130% Continuous Load: Not Less Than 30S, Recovery Point: 90% Load

Output Current Crest

3:01

Transfer Time

0ms

Communication & Monitoring Function

RS232 (optional 485), Dry Contact, Intelligent Slot (Expandable SNMP, SMS, And OtherMonitoring

Tower

N. W.(G.W.)(kgs)

8.0 / 9.0

4.5 / 5.5

15.8 / 16.8

 6.8 / 7.8

16.5 / 17.5

 6.8 / 7.8

Unit Size (LxWxH) mm

280x145x225

400x145x225

Marster Carton Size(mm)

315x227x330

442x227x330

Marster Carton

Gross Weight(kgs)

18.6

12.6

19

11.9

24.5

12.5

Qt'y / Marster Carton(pcs)

2pcs

1pcs

Rack

N. W.(G.W.)(kgs)

10.5 / 12.5

 7.7 / 9.7

 17.2 / 19.2

 9.6 / 10.6

 22.2 / 24.2

 10.3 / 12.3

Unit Size (DxWxH) mm

420x440x85

420x440x85

420x440x85

420x440x85

420x440x85

Marster Carton Size(mm)

560x530x180

725x530x180

560x530x180

725x530x180

560x530x180

Qt'y / Marster Carton(pcs)

1pcs
