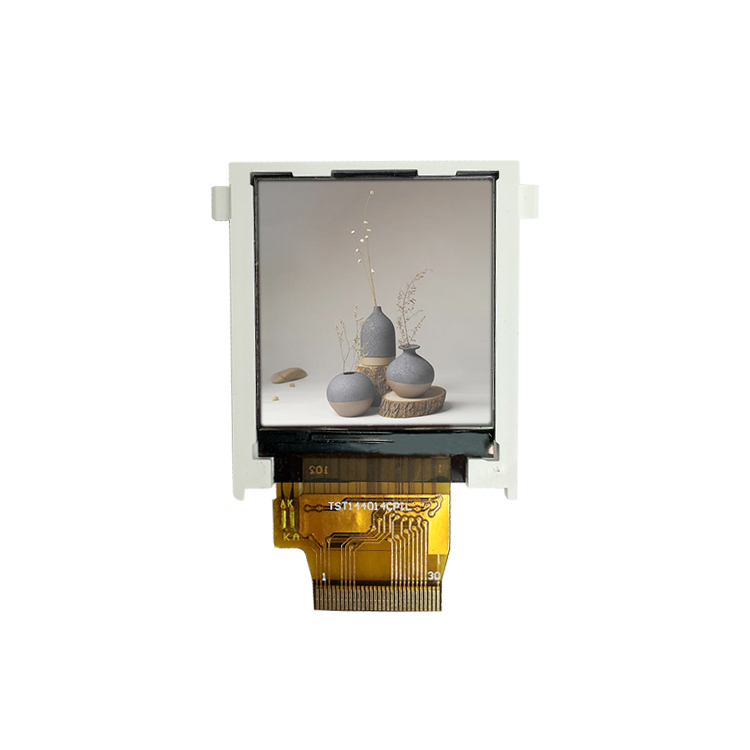

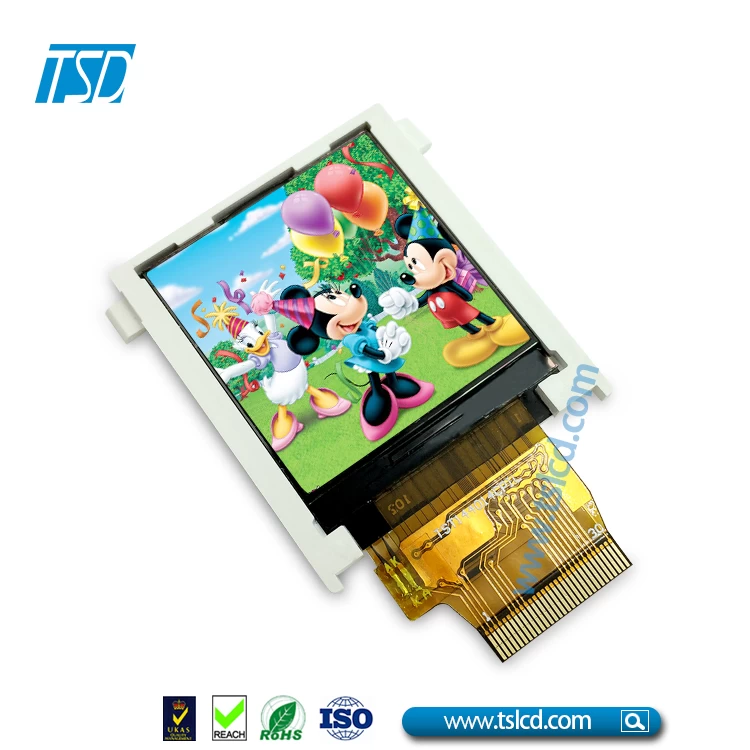

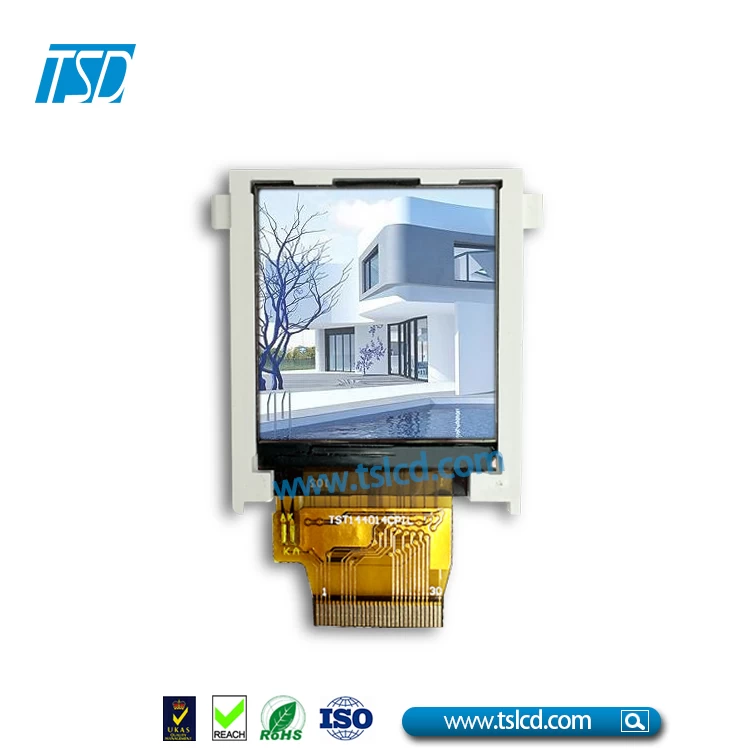

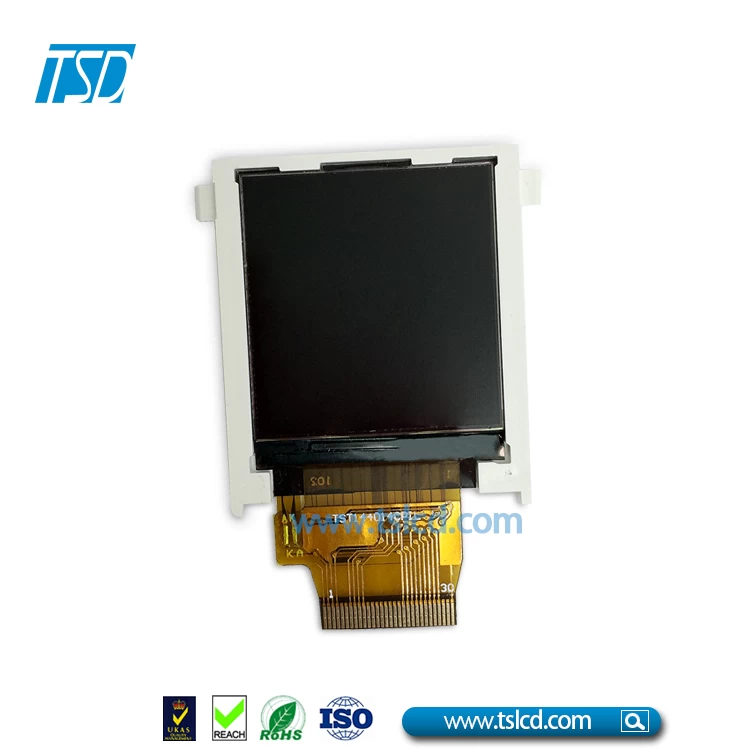

1.44" TFT LCD 128x128 pixels display lcm with high transmittance RTP touch panel

128x128 dot matrix TFT LCD display

1.44" tft lcd display LCM

Facebook Twitter Pinterest LinkedIn 分享

Specification
LCD type TFT,Transmissive
Display type 1.44 inch tft lcd module , 65k color
Driver element a-si TFT Active matrix
Outline Dimension(mm) 32.35x38.0x2.6
A.A.(mm) 25.5X26.5
Driver IC ST7735S
Resolution(dots)_ 128*RGB*128
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 128 x RGB x 128
Operating Volatge vdd=2.8v
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Backlight LED, White
Weight(g) TBD
Interface 8080 system 8 bits parallel interface
Module lifetime(Hours) 50,000-100,000

Next Product
Prev Product
Product Tags 1.44 tft          1.44 inch tft lcd          1.44 inch tft color module          1.44 tft display          arduino 1.44 tft          1.44 tft lcd          adafruit 1.44 tft          1.44" TFT LCD          1.44 inch
