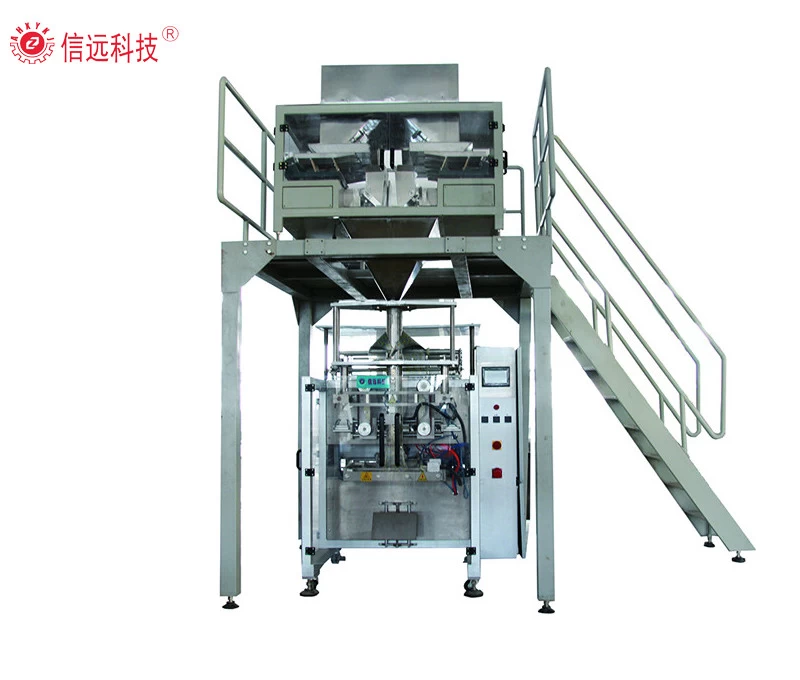

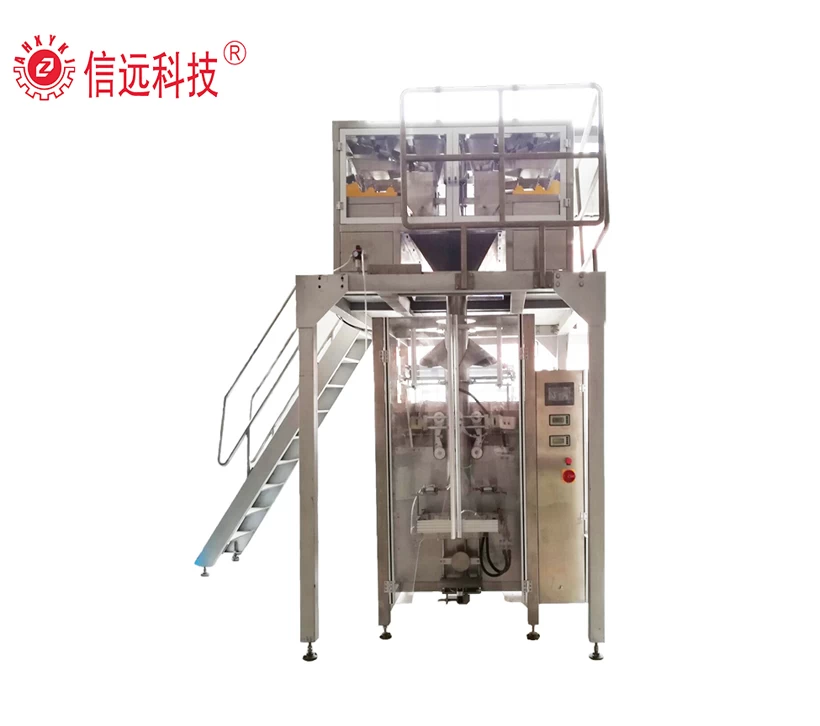

Automatic vertical animal feed packing machine can
achieve automatic bag forming, metering, filling, sealing, transferring, and
counting. Compared with former semi automatic machine, it saves two labors each
batch, and moreover, it has fast metering and even sealing line and reliable
running performance. The method of
vibration feeding can effectively prevent material accumulation and improve
accuracy.
◎Unit configuration: film roller, coder, bag former, vertical heat sealing, horizontal heating and cutting
◎Material: contact parts S.S 304 (or S.S 316L if need)
◎Electric parts brand: Siemens/Schneider/Omron/Delta etc
◎Packing speed: (8-10)bags/min
◎Filling range: 1kg-5kg
◎Applied material: granule form material such as cashew, peanut, sunflower seed, corn, animal feed, potato chips etc
Did you find our machine interesting?
We will help you with selecting the machine, and suggest tailor-made solutions.
notice
1. provide customized design for special requirement
2. Provide optional device as per actual need
Technical Data:
◎Packing specification: 1-5 kg/bag
◎Bag material: PE/PP film (ex-factory, except static electricity; Each roll weighs less than 50kg,
with even tightness and neat section)
◎Machine size: length 4.5* width 2.4* height 4 (m)
◎Speed: 8-16 packs/min (depending on the material)
◎Power supply: 380V/50HZ three-phase five-wire power: 6.5kw
◎Accuracy: 0.2%-- 0.5%
◎Air source: 0.5 ~ 0.6mpa
Transportation&After Service
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
