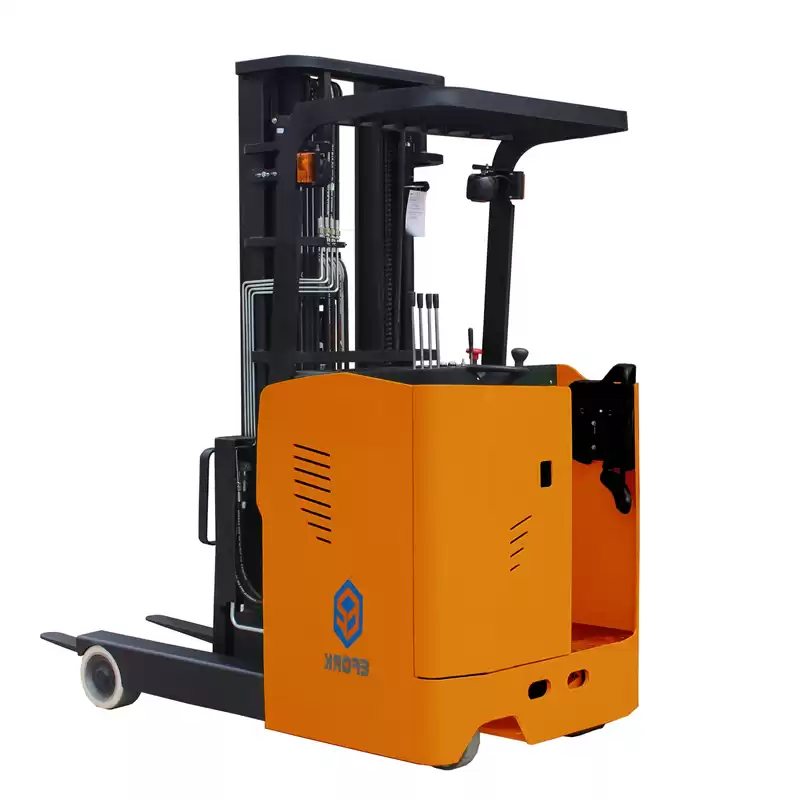

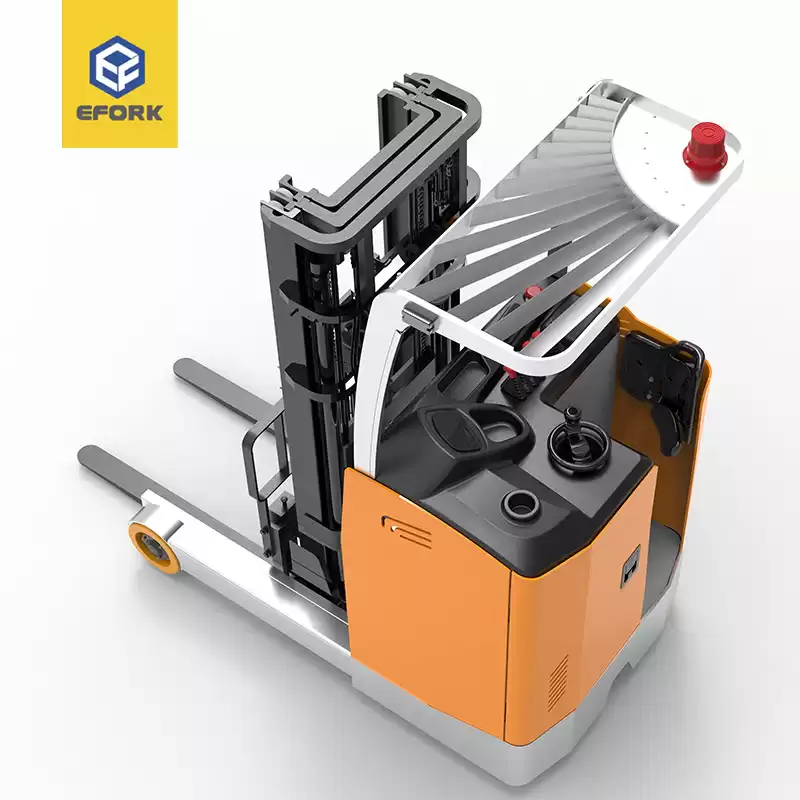

Product Name:CQD15D-30 1.5 Ton 3m 2 Stage Electric Forklift and Reach Truck Jobs
Product high lights
Electric power steering
●Keep the steering more effortless, reduce fatigue strength and improve efficiency while retaining the sense of road
Strong endurance
●AC AC drive motor, some models use AC AC lift motor, which is efficient and energy efficient.
●Meet many job requirements under heavy working conditions.
Specification：
|
Name
|
Electric reach truck（Side standing type 24V）
|
|
Model
|
CQD15D-30
|
|
Capacity
|
1500
|
|
Max. lifting height
|
3000
|
|
Load center
|
500
|
|
Wheel type
|
Polyurethane tire （PU）
|
|
Fork size
|
1070*100*35
|
|
Fork spread
|
210-705
|
|
Overall length include fork
|
2215
|
|
Overall width
|
1090
|
|
Mast reach distance
|
555
|
|
Height--Mast Lowered
|
2100
|
|
Mast height, fork raised(with load-backrest)
|
3965
|
|
Grade ability (Without load/full load)
|
6/8
|
|
Turning radius
|
1600
|
|
The height of overhead guards
|
2280
|
|
Min.stacking.aisle （mm）
|
2620
|
|
Max. travel speed
|
4/5
|
|
Min. ground clearance（mm）
|
70
|
|
Total weight
|
2200
|
|
Driving wheel
|
230*75
|
|
Front wheel
|
210*85
|
|
Balance wheel
|
150*50
|
|
Charger（V/Ah）
|
24/40
|
|
Battery capacity（V/Ah）
|
24/280
|
|
Lifting motor（KW）
|
3.0
|
|
Drive motor（KW）
|
2.5
|
|
Drive Controlling Type
|
2.5（AC）
|
|
Walking Adjustable Type
|
Holzer accelerator
|
|
Breaking
|
Electromagnetic
|
Basic configuration：
1、US CURTIS Control system，Stepless speed regulation；
2、Brand contactor,
3、Brand hydraulic lifting pump station;
4、24V/280AHLead acid battery；
5、24V / 40A external intelligent charger.
6、Imported sealing elements
7、Vertical AC drive motor
8、Vertical transmission gearbox
9、High wear resistant polyurethane wheel（Bearing wheel, driving wheel and balancing wheel）
10、Curve speed limiter
11、Electric Power Steering
12、Multi function electricity meter
13、Electromagnetic brake
