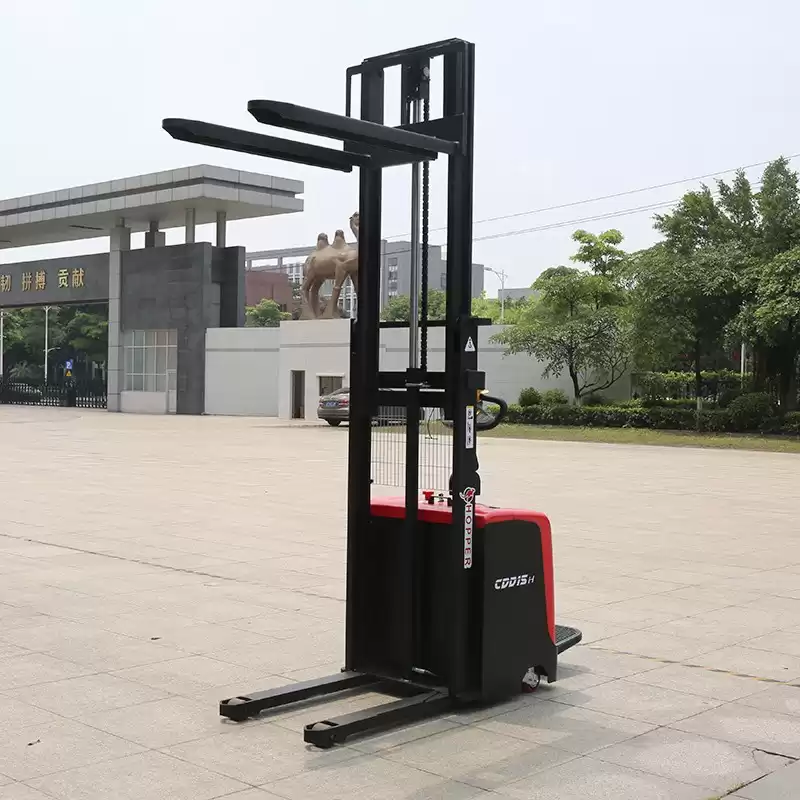

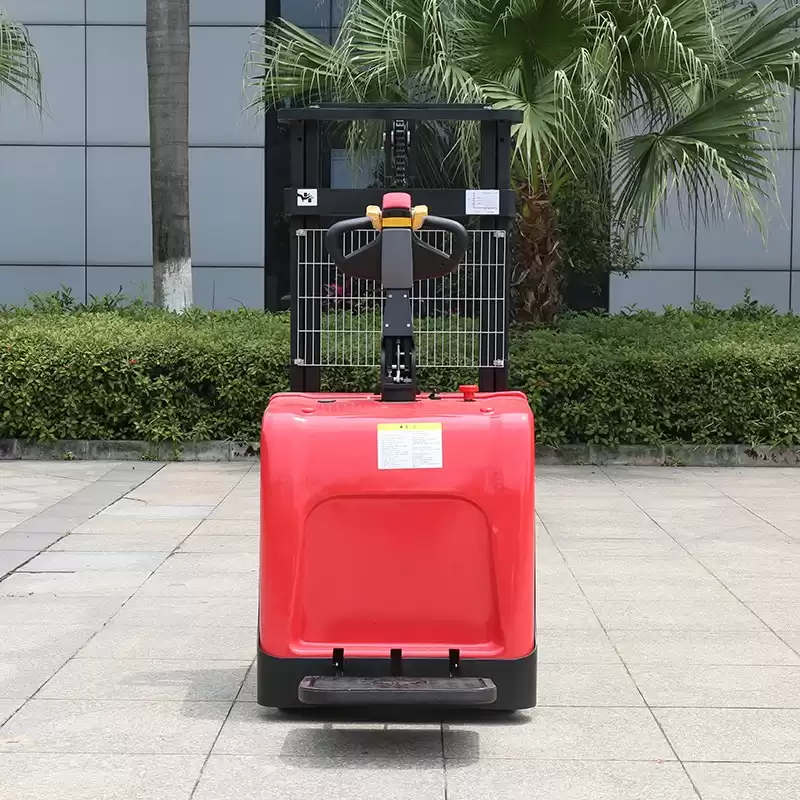

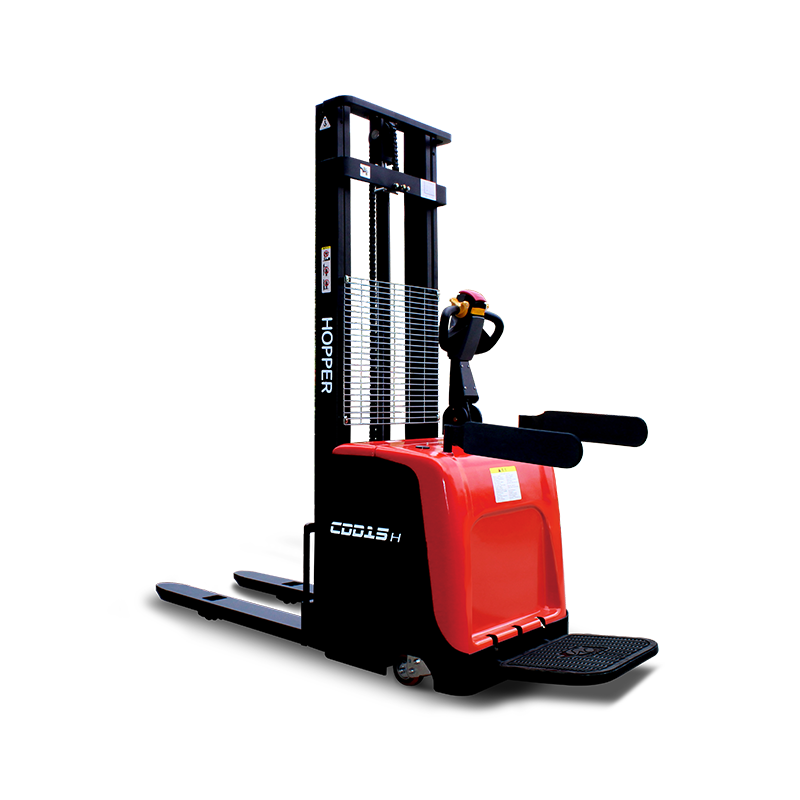

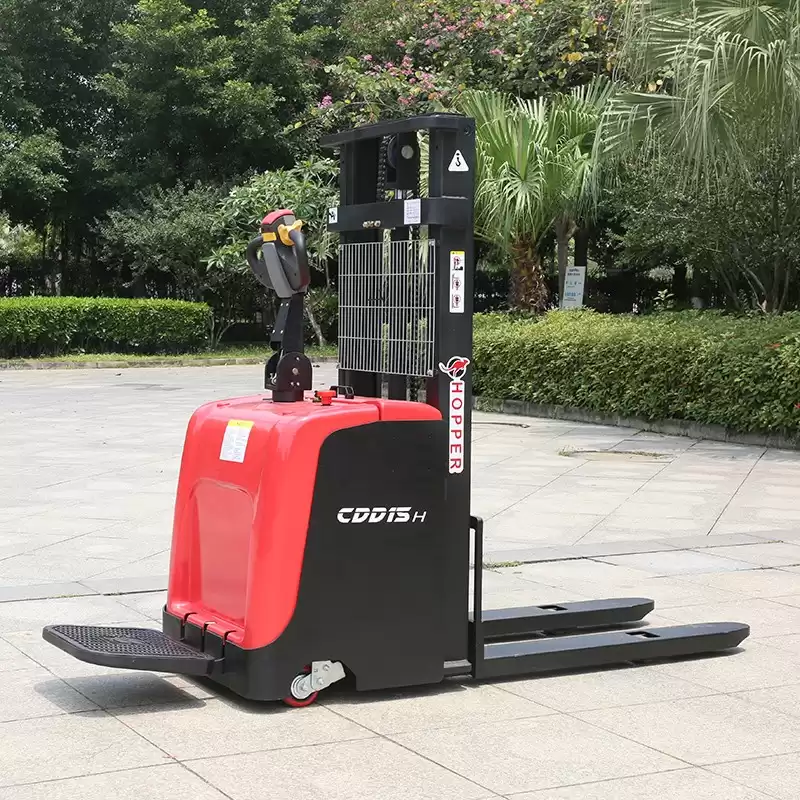

1.5 ton Electric Pallet Stacker Series CDD15H

Small size, light and flexible, simple operation;



Adopting permanent magnet motor with excellent performance and low heat generation;



Built-in charger, colloidal maintenance-free battery,easy to use and maintenance free;



CURTIS control system, control precision, high efficiency and stability;

Facebook Twitter Pinterest LinkedIn 分享
Identification 1.1 Manufacture's type designation                                HOPPER
1.2 M odel 　 　 CDD15H CDD15HE
1.3 Power Type                                  Electric
1.4 Type ofoperation                                Stand-on
1.5 Steering M ode                              Mechanical
1.6 Load capacity/rated load Q kg 1500 1500
1.7 L oad center distance C mm 500 500
1.8 Wheelbase y mm 1235 1235
Weight 2.1 Total Weight(with battery) 　 kg 780 770
2.2 Axle Load(laden):Drive side/Load-bearing side 　 kg 880/1400 880/1390
2.3 Axle Load(unladen):Drive side/Load-bearing side 　 kg 570/210 560/210
Dimension 3.1 Overall Length L1/L2 mm 1950/2415 1950/2415
3.2 Overall Width W1 mm 790 790
3.3 Lift Height h1 mm 3000 3000
3.4 Lowered mast height h2 mm 2035 2035
3.5 Extended mast height h4 mm 3505 3505
3.6 Fork Dimension l/e/s mm 1150×160×60 1150×160×60
3.7 Width ofFork b2 mm 550/685 550/685
3.8 Min Fork Height h3 mm 85 85
3.9 Ground Clearance at center of wheelbase (Min) m1 mm 30 30
3.1 Height of Operating Handlebar(Min./Max) h14 mm 1000/1450 1000/1450
3.11 Turning Radius Wa mm 1580/2010 1580/2010
3.12 Ase width for lethasisle 21001 qmci rtracte/epand  Ast mm 　 2445/2880 2445/2880
3.13 Aisle width foenlehthsalpsles:a80200Peca rtraced/expanded)  Ast mm 　 2380/2810 2380/2810
Tyre 4.1 Tyre Type 　 　 Polyurethane Polyurethane
4.2 Tyre: Size(Front) 　 mm φ85x70 φ85x70
4.3 Tyre Sizel(Auilary wheel) 　 mm φ130x50 φ130x50
4.4 Tyre Size(Driving Wheel) 　 mm φ250x80 φ210x70
4.5 Wheels Quantity, front/rear (x=drivingwheels) 　 　 2/1x+2 2/1x+2
5.1 Traveling Speed(laden/unladen) 　 Km/h 5/5.5 3月4日
5.2 Lifting Speed(aden/unladen) 　 mm/s 80/125 80/125
5.3 Lowering Speed(laden/unladen) 　 mm/s 150/90 150/90
5.4 M ax.Gradient performance(laden/unladen) 　 % 44691 44626
5.5 Service Brake Type 　 　 Electromagnetic Electromagnetic
5.6 Parking Brake Type 　 　 Electromagnetic Electromagnetic
PowerUnit 6.1 Drive Motor rating(AC) S2 -60min 　 kW 1.5(AC) 0.75(DC)
6.2 Lift Motor rating(DC) S3- 15% 　 kW 2.2 2.2
6.3 _Battery Voltage/Capacity K5 　 V/Ah 24/100 24/100
6.4 Battery Weight 　 kg 60 60
Others 7.1 Controller Brand 　 　 ZAPI CURTIS
7.2 Controller Model 　 　 AC0 1212P
7.3 Sound level atdriver sear according to EN 12053 　 dB 70 70

CDD15H/CDD15HE Mast parameters
Designation Lift height Lowered mast height Extended mast height load capacity/rated load
mm mm mm kg
One-stage 1600 2040 2040 1500
Two-stage 2500 1785 3005 1500
3000 2035 3505 1000
3500 2285 4005 800
