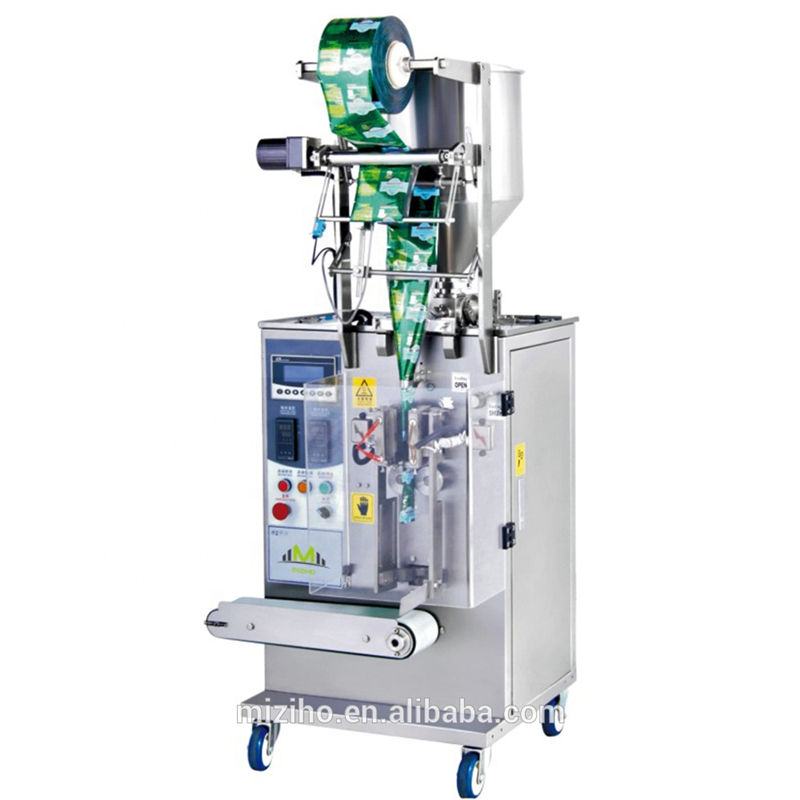

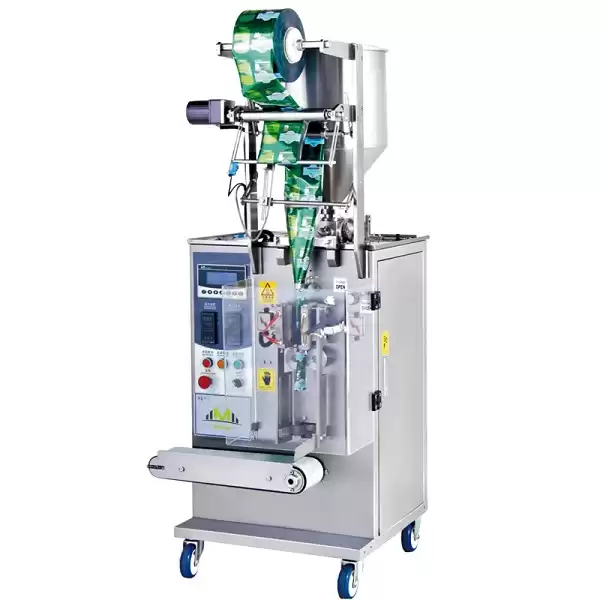

1-50ml Automatic liquid/Paste Filling and Packaging Machine
Customized And OEM Service Available
I.DESCRIPTION
Our Automatic paste filling and sealing machine has finish the processes of pouch forming, filling, sealing, cutting, date printing for pillow pouch packaging. Two types suit for single PE film and laminated film .With PLC controller and A pattern calibration photoelectric control device ensure the patterns will be complete and beautiful.
II.STANDARD FEATURES
1.For Products dosing, Filling, Laminate heat sealable pouch making and sealing.
2.this liquid filling and packaging machine of Stainless steel 304 structure and surface
3.Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting
4.Simple changing of pouch former, to adapt different pouch size requirement
5.Intelligent temperature controlling configuration, ensure the artistic and neat sealing
6.Configure with packaging film pre-pulling device, to enable stable pouch making
7.No film no filling, and easy to change the packaging film
III. TECHNICAL SPECIFICATIONS
|
Model
|
MZH-50
|
|
Product Type
|
Paste & liquid
|
|
Capacity
|
40-80 bags/min
|
|
Measuring Range
|
1-50 g
|
|
Bag Size
|
L:20-150mm W:30-100 mm
|
|
Bag Type
|
Four sides sealing
|
|
Control Way
|
PLC control Chinese and English screen
|
|
Total Power
|
1.1KW
|
|
Voltage
|
220V-50-60Hz
|
|
Bag Material
|
PE/aluminum foil/nylon/tea filter paper
|
|
Grass Weight
|
220kg
|
|
Overall Dimension
|
625X750X1550mm(L*W*H)
|
