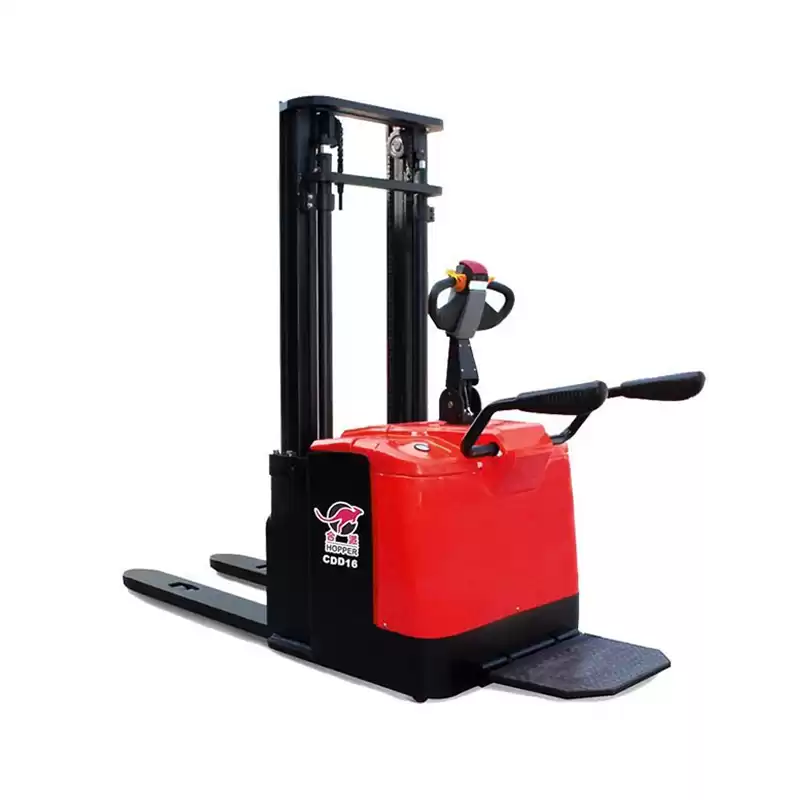

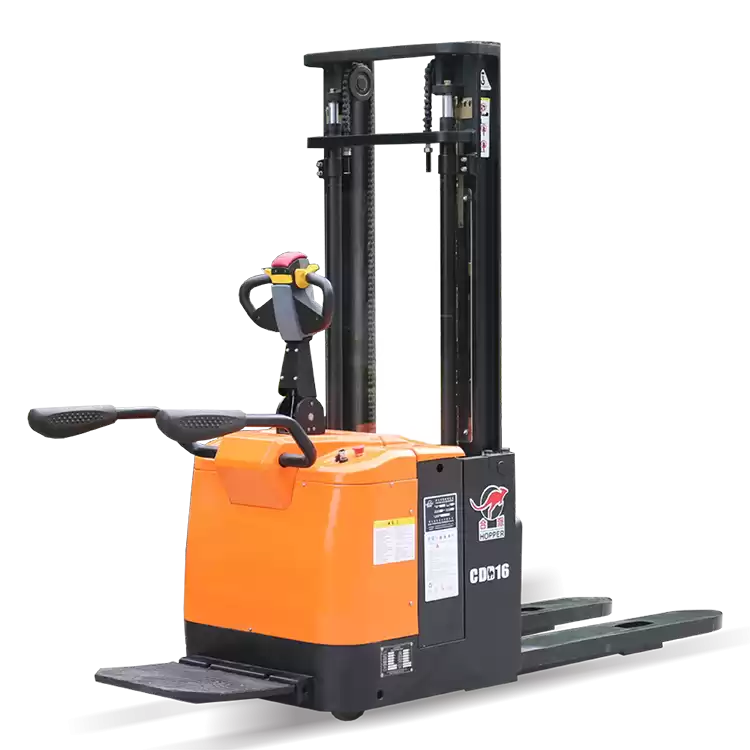

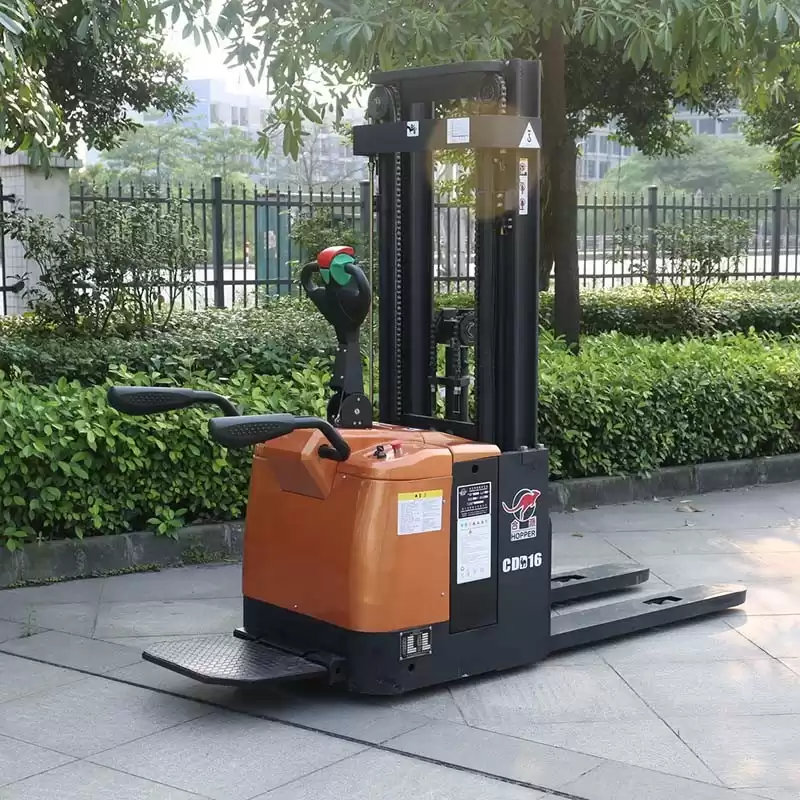

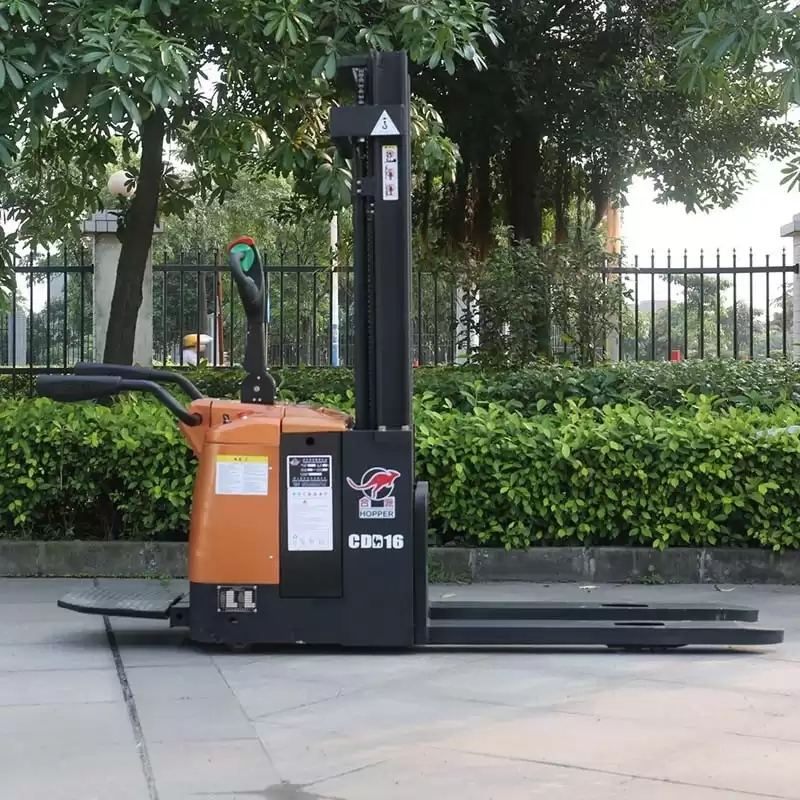

1.5T-2.0T Stand-on Full Electric Pallet Stacker CDD16

The AC brushless drive motor is powerful and maintenance-free;



CURTIS AC control system, precise control and higher efficiency;



High-performance hydraulic lift motor, with high efficiency, low noise and vibration.



EPS electric steering system, driving lighter and more flexible;



The mast adopts H-shaped channel steel, which has strong stability and good rigidity;

Facebook Twitter Pinterest LinkedIn 分享
Identification 1.1 Manufacture's type designation                            HOPPER
1.2 Model 　 　 CDD16 CDD20
1.3 Power Type                           Electric
1.4 Type of operation                          Stand-on
1.5 Steering Mode                     ElectricPowerSteering
1.6 Load capacity/rated load Q kg    1600   2000
1.7 L oad center distance C mm    600   600
1.8 Wheelbase y mm    1500   1500
Weight 2.1 Total Weight(withbattery) 　 kg    1300   1350
2.2 Axle Load(laden):Drive side/Load-bearing side 　 kg 1115/1785 1285/2065
2.3 Axle Load(unladen):Drive side/Load -bearing side 　 kg 947/353 985/365
Dimension 3.1 OverallLength(Pedal retracted/expanded) L1/L2 mm 2210/2645 2210/2645
3.2 Overall Width W1 mm 880 880
3.3 Lift Height h1 mm Refertomastparametertable
3.4 Lowered mast height h2 mm Refertomastparametertable
3.5 Extended mast height h4 mm Refertomastparametertable
3.6 Free lift height h5 mm Refertomastparametertable
3.7 Fork Dimension l/e/s mm 1220×185×55 1220×185×55
3.8 Width ofFork b2 mm 560/685 560/685
3.9 Min.Fork Height h3 mm 85 85
3.1 Ground Clearance atcenter of wheelbase (Min) m1 mm 30 30
3.11 Height of OperatingHandlebar(Min./Max) h14 mm 1000/1550 1000/1550
3.12 Turning Radius Wa mm 1755/2200 1755/2200
3.13 Aislewidfrorlenethasysalletsize 10100/da’retracted expanded 　 　 2630/3085 2630/3085
3.14 Aisle width fonrlthgthy(alelei820 Pededretracted expanded 　 　 2555/3010 2555/3010
Tyre 4.1 Tyre Type 　 　 Polyurethane Polyurethane
4.2 TyreSize(Front) 　 mm φ80x60 φ80x60
4.3 Tyre Size(Auxiliary wheel) 　 mm φ115x55 φ115x55
4.4 Tyre Size(Driving Wheel) 　 mm φ230x75 φ230x75
4.5 Wheels Quantity, front/rear (x=drivingwheels) 　 　 4/1x+2 4/1x+2
Performance 5.1 Traveling Speed (laden/unladen) 　 Km/h 5/5.5 5/5.5
5.2 Lifting Speed(laden/unladen) 　 mm/s 95/135 95/135
5.3 Lowering Speed(laden/unladen) 　 mm/s 100/130 100/130
5.4 Max.Gradient performance(laden/unladen) 　 % 44689 44689
5.5 Service Brake Type 　 　        Electromagnetic
5.6 Parking Brake Type 　 　        Electromagnetic
PowerUnit 6.1 Drive Motor rating(AC) S2 -60min 　 kW 1.5 1.5
6.2 Lit Motor rating(DC) S3-15% 　 kW 3 3
6.3 Battery Voltage/Capacity K5 　 V/Ah 24/210 24/210
6.4 Battery Weight 　 kg 188 188
Others 7.1 Controller Brand 　 　 CURTIS CURTIS
7.2 Controller Model 　 1232E 1232E 　
7.3 Sound level atdriver's ear according to EN 12 053 　 dB 70 70

CDD16 Mast parameters
Designation Liftheight Lowered mast height Extended mastheight Freeliftheight loadcapacity/ratedload
mm mm mm mm kg
One-stage 1600 2070 2070 1600 1600
Two-stage 2500 1820 3055 / 1600
3000 2070 3555 / 1600
3500 2320 4055 / 1200
4000 2570 4555 / 1000
 Three-  stage full free mast 3500 1740 4040 1170 1200
4000 1905 4540 1335 1000
4500 2070 5040 1500 700
5000 2240 5540 1670 500
CDD20 Mast parameters
Designation Liftheight Loweredmastheight Extended mastheight Freeliftheight loadcapacity/ratedload
mm mm mm mm kg
One-stage 1600 2070 2070 1600 2000
Two-stage 2500 1820 3055 / 2000
3000 2070 3555 / 2000
3500 2320 4055 / 1600
4000 2570 4555 / 1000
Three-stage    full free mast 3500 1740 4040 1170 1600
4000 1905 4540 1335 1000
4500 2070 5040 1500 800
5000 2240 5540 1670 600
5500 2400 6040 1840 300
