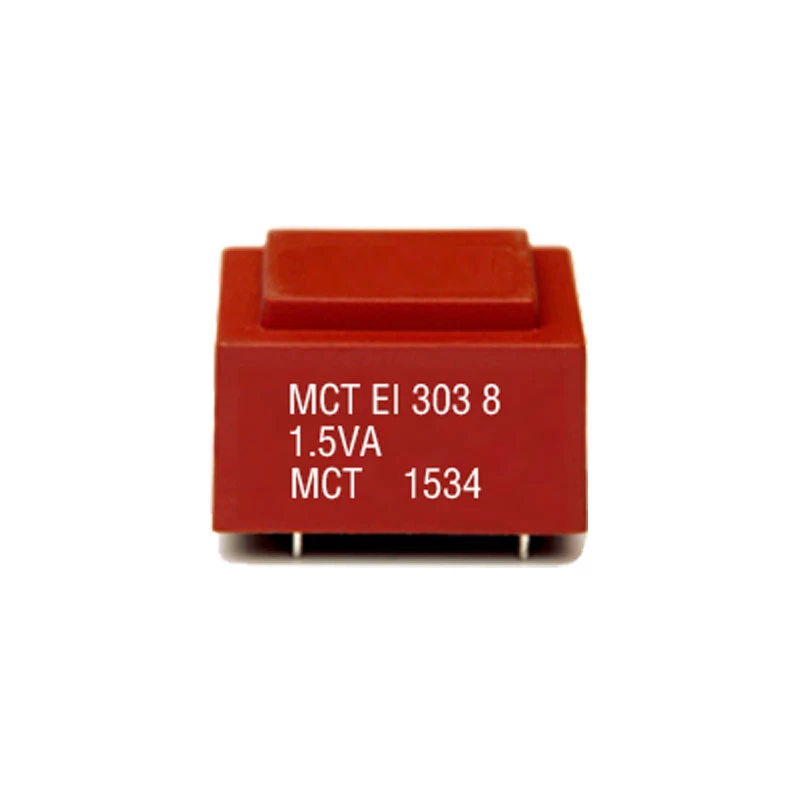

High quality EI30 electronic encapsulated transformer from MCT, with RoHS Certification. Our Factory is made up of 500 people, huge output can be finished every day. We accept custom design.
Quick Details
|
Part No: EI30 0.5-3.6VA
|
Brand name: MCT
|
|
Primary voltages from 12 V to 250 V
|
Custom made: Available
|
|
Output Power up to 3.6VA
|
Logo: Can be customized
|
|
Temperature class ta 70 °C/B
|
Packing: Carton, can custom
|
|
Bobbin type: Dual chamber windings
|
MOQ: Any quantity
|
|
Certification: ISO9001,ROHS,CE
|
OEM: Available
|
|
Lead time: 25 days after payment
|
Shipping: Air, Ship, etc
|
Part Information
Product Name: 1.5VA Output Power PCB Mount Encapsulated Transformer
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Household appliances, printed circuit boards, low power industrial control products, meters and other industries.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
Product Part Number
|
Frame size/
Core height
|
Output Power
To 40°C/F
|
Output Power
To 70°C/F
|
Output Power
To 70°C/F
With thermo-fuse
|
Height(h)
|
Weight
|
Packaging
unit
|
|
MCT EI 301/5.5mm
|
0.6V/A
|
0.5/0.7V/A
|
0.65V/A
|
15.2mm
|
0.044kg
|
50 pieces
|
|
MCT EI 302/10.5mm
|
1.8V/A
|
1.5V/A
|
1.8V/A
|
21.8mm
|
0.070kg
|
50 pieces
|
|
MCT EI 307/11.5mm
|
2.2V/A
|
1.8V/A
|
1.8V/A
|
22.1mm
|
0.076kg
|
50 pieces
|
|
MCT EI 303/12.5mm
|
2.3V/A
|
1.9V/A
|
2.3V/A
|
23.8mm
|
0.081kg
|
50 pieces
|
|
MCT EI 304/15.5mm
|
2.6V/A
|
2.1V/A
|
2.4V/A
|
26.8mm
|
0.099kg
|
50 pieces
|
|
MCT EI 305/18.0mm
|
3.0V/A
|
2.3V/A
|
2.7V/A
|
29.5mm
|
0.111kg
|
50 pieces
|
|
MCT EI 306/23.0mm
|
3.6V/A
|
3.0V/A
|
3.4V/A
|
34.0mm
|
0.135kg
|
50/40 pieces
|
|
Order No.
|
Primary
Voltage V
|

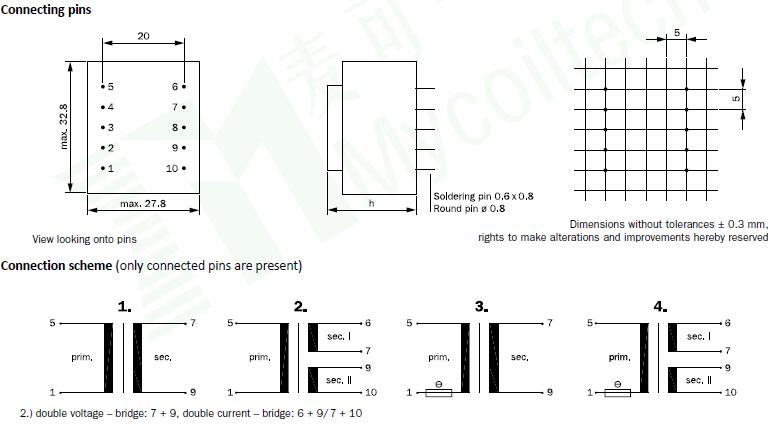

Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 301 3005
|
230
|
1-5
|
1×6
|
83
|
7-9
|
1×10.2
|
1
|
|
MCT EI 301 3538
|
230
|
1-5
|
2×6
|
41
|
6-7/9-10
|
2×10.1
|
2
|
|
MCT EI 301 3017
|
230
|
1-5
|
1×7.5
|
67
|
7-9
|
1×12.2
|
1
|
|
MCT EI 301 3970
|
230
|
1-5
|
2×7.5
|
33
|
6-7/9-10
|
2×11.7
|
2
|
|
MCT EI 301 2911
|
230
|
1-5
|
1×9
|
56
|
7-9
|
1×14.7
|
1
|
|
MCT EI 301 3172
|
230
|
1-5
|
2×9
|
28
|
6-7/9-10
|
2×13.3
|
2
|
|
MCT EI 301 2824
|
230
|
1-5
|
1×12
|
42
|
7-9
|
1×18.0
|
1
|
|
MCT EI 301 3971
|
230
|
1-5
|
2×12
|
21
|
6-7/9-10
|
2×18.7
|
2
|
|
MCT EI 301 2845
|
230
|
1-5
|
1×15
|
33
|
7-9
|
1×22.8
|
1
|
|
MCT EI 301 2741
|
230
|
1-5
|
2×15
|
17
|
6-7/9-10
|
2×23.3
|
2
|
|
MCT EI 301 2967
|
230
|
1-5
|
1×18
|
28
|
7-9
|
1×26.0
|
1
|
|
MCT EI 301 3020
|
230
|
1-5
|
1×21
|
24
|
7-9
|
1×30.6
|
1
|
|
MCT EI 301 2807
|
230
|
1-5
|
1×24
|
21
|
7-9
|
1×35.5
|
1
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 301 3582
|
230
|
1-5
|
1×6
|
117
|
7-9
|
1×10.3
|
1
|
|
MCT EI 301 3583
|
230
|
1-5
|
2×6
|
58
|
6-7/9-10
|
2×10.5
|
2
|
|
MCT EI 301 3584
|
230
|
1-5
|
1×7.5
|
94
|
7-9
|
1×12.7
|
1
|
|
MCT EI 301 3585
|
230
|
1-5
|
2×7.5
|
47
|
6-7/9-10
|
2×12.7
|
2
|
|
MCT EI 301 3586
|
230
|
1-5
|
1×9
|
78
|
7-9
|
1×14.6
|
1
|
|
MCT EI 301 3587
|
230
|
1-5
|
2×9
|
39
|
6-7/9-10
|
2×14.6
|
2
|
|
MCT EI 301 3588
|
230
|
1-5
|
1×12
|
58
|
7-9
|
1×19.5
|
1
|
|
MCT EI 301 3589
|
230
|
1-5
|
2×12
|
29
|
6-7/9-10
|
2×19.5
|
2
|
|
MCT EI 301 3590
|
230
|
1-5
|
1×15
|
47
|
7-9
|
1×24.5
|
1
|
|
MCT EI 301 3591
|
230
|
1-5
|
2×15
|
23
|
6-7/9-10
|
2×24.5
|
2
|
|
MCT EI 301 3592
|
230
|
1-5
|
1×18
|
39
|
7-9
|
1×28.3
|
1
|
|
MCT EI 301 3593
|
230
|
1-5
|
1×21
|
33
|
7-9
|
1×32.9
|
1
|
|
MCT EI 301 3594
|
230
|
1-5
|
1×24
|
29
|
7-9
|
1×37.8
|
1
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 301 7002
|
230
|
1-5
|
1×6
|
108
|
7-9
|
1×10.5
|
3
|
|
MCT EI 301 7003
|
230
|
1-5
|
2×6
|
54
|
6-7/9-10
|
2×10.5
|
4
|
|
MCT EI 301 7004
|
230
|
1-5
|
1×7.5
|
87
|
7-9
|
1×13.0
|
3
|
|
MCT EI 301 7005
|
230
|
1-5
|
2×7.5
|
43
|
6-7/9-10
|
2×13.0
|
4
|
|
MCT EI 301 7006
|
230
|
1-5
|
1×9
|
72
|
7-9
|
1×15.4
|
3
|
|
MCT EI 301 7007
|
230
|
1-5
|
2×9
|
36
|
6-7/9-10
|
2×15.4
|
4
|
|
MCT EI 301 7008
|
230
|
1-5
|
1×12
|
54
|
7-9
|
1×20.4
|
3
|
|
MCT EI 301 7009
|
230
|
1-5
|
2×12
|
27
|
6-7/9-10
|
2×20.4
|
4
|
|
MCT EI 301 7010
|
230
|
1-5
|
1×15
|
43
|
7-9
|
1×24.9
|
3
|
|
MCT EI 301 7011
|
230
|
1-5
|
2×15
|
21
|
6-7/9-10
|
2×24.9
|
4
|
|
MCT EI 301 7012
|
230
|
1-5
|
1×18
|
36
|
7-9
|
1×30.1
|
3
|
|
MCT EI 301 7013
|
230
|
1-5
|
1×21
|
31
|
7-9
|
1×35.1
|
3
|
|
MCT EI 301 7014
|
230
|
1-5
|
1×24
|
27
|
7-9
|
1×40.0
|
3
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 302 2000
|
230
|
1-5
|
1×6
|
300
|
7-9
|
1×8.8
|
1
|
|
MCT EI 302 2005
|
230
|
1-5
|
2×6
|
150
|
6-7/9-10
|
2×8.8
|
2
|
|
MCT EI 302 3021
|
230
|
1-5
|
1×7.5
|
240
|
7-9
|
1×10.7
|
1
|
|
MCT EI 302 3562
|
230
|
1-5
|
2×7.5
|
120
|
6-7/9-10
|
2×11.0
|
2
|
|
MCT EI 302 2001
|
230
|
1-5
|
1×9
|
200
|
7-9
|
1×12.6
|
1
|
|
MCT EI 302 2006
|
230
|
1-5
|
2×9
|
100
|
6-7/9-10
|
2×13.0
|
2
|
|
MCT EI 302 2002
|
230
|
1-5
|
1×12
|
150
|
7-9
|
1×16.9
|
1
|
|
MCT EI 302 2007
|
230
|
1-5
|
2×12
|
75
|
6-7/9-10
|
2×18.3
|
2
|
|
MCT EI 302 2003
|
230
|
1-5
|
1×15
|
120
|
7-9
|
1×21.2
|
1
|
|
MCT EI 302 2008
|
230
|
1-5
|
2×15
|
60
|
6-7/9-10
|
2×21.8
|
2
|
|
MCT EI 302 2004
|
230
|
1-5
|
1×18
|
100
|
7-9
|
1×25.4
|
1
|
|
MCT EI 302 3022
|
230
|
1-5
|
1×21
|
86
|
7-9
|
1×30.4
|
1
|
|
MCT EI 302 2990
|
230
|
1-5
|
1×24
|
75
|
7-9
|
1×34.5
|
1
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 302 2020
|
230
|
1-5
|
1×6
|
250
|
7-9
|
1×8.2
|
1
|
|
MCT EI 302 2025
|
230
|
1-5
|
2×6
|
125
|
6-7/9-10
|
2×8.4
|
2
|
|
MCT EI 302 3058
|
230
|
1-5
|
1×7.5
|
200
|
7-9
|
1×10.5
|
1
|
|
MCT EI 302 3561
|
230
|
1-5
|
2×7.5
|
100
|
6-7/9-10
|
2×10.5
|
2
|
|
MCT EI 302 2021
|
230
|
1-5
|
1×9
|
166
|
7-9
|
1×12.1
|
1
|
|
MCT EI 302 2026
|
230
|
1-5
|
2×9
|
83
|
6-7/9-10
|
2×12.4
|
2
|
|
MCT EI 302 2022
|
230
|
1-5
|
1×12
|
125
|
7-9
|
1×16.6
|
1
|
|
MCT EI 302 2027
|
230
|
1-5
|
2×12
|
62
|
6-7/9-10
|
2×16.6
|
2
|
|
MCT EI 302 2023
|
230
|
1-5
|
1×15
|
100
|
7-9
|
1×20.7
|
1
|
|
MCT EI 302 2028
|
230
|
1-5
|
2×15
|
50
|
6-7/9-10
|
2×20.7
|
2
|
|
MCT EI 302 2024
|
230
|
1-5
|
1×18
|
83
|
7-9
|
1×24.5
|
1
|
|
MCT EI 302 2029
|
230
|
1-5
|
1×18
|
41
|
6-7/9-10
|
2×24.8
|
2
|
|
MCT EI 302 2059
|
230
|
1-5
|
1×21
|
71
|
7-9
|
1×28.6
|
1
|
|
MCT EI 302 2989
|
230
|
1-5
|
1×24
|
62
|
7-9
|
1×33.5
|
1
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 302 7015
|
230
|
1-5
|
1×6
|
300
|
7-9
|
1×9.8
|
3
|
|
MCT EI 302 7016
|
230
|
1-5
|
2×6
|
150
|
6-7/9-10
|
2×10.6
|
4
|
|
MCT EI 302 7017
|
230
|
1-5
|
1×7.5
|
240
|
7-9
|
1×12.2
|
3
|
|
MCT EI 302 7018
|
230
|
1-5
|
2×7.5
|
120
|
6-7/9-10
|
2×13.4
|
4
|
|
MCT EI 302 7019
|
230
|
1-5
|
1×9
|
200
|
7-9
|
1×14.6
|
3
|
|
MCT EI 302 7020
|
230
|
1-5
|
2×9
|
100
|
6-7/9-10
|
2×15.9
|
4
|
|
MCT EI 302 7021
|
230
|
1-5
|
1×12
|
150
|
7-9
|
1×19.4
|
3
|
|
MCT EI 302 7022
|
230
|
1-5
|
2×12
|
75
|
6-7/9-10
|
2×20.9
|
4
|
|
MCT EI 302 7023
|
230
|
1-5
|
1×15
|
120
|
7-9
|
1×24.3
|
3
|
|
MCT EI 302 7024
|
230
|
1-5
|
2×15
|
60
|
6-7/9-10
|
2×24.8
|
4
|
|
MCT EI 302 7025
|
230
|
1-5
|
1×18
|
100
|
7-9
|
1×29.2
|
3
|
|
MCT EI 302 7026
|
230
|
1-5
|
1×21
|
86
|
7-9
|
1×34.1
|
3
|
|
MCT EI 302 7027
|
230
|
1-5
|
1×24
|
75
|
7-9
|
1×38.8
|
3
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 307 3842
|
230
|
1-5
|
1×6
|
300
|
7-9
|
1×9.7
|
1
|
|
MCT EI 307 3843
|
230
|
1-5
|
2×6
|
150
|
6-7/9-10
|
2×9.4
|
2
|
|
MCT EI 307 3844
|
230
|
1-5
|
1×7.5
|
240
|
7-9
|
1×12.7
|
1
|
|
MCT EI 307 3845
|
230
|
1-5
|
2×7.5
|
120
|
6-7/9-10
|
2×12.4
|
2
|
|
MCT EI 307 3846
|
230
|
1-5
|
1×9
|
200
|
7-9
|
1×14.5
|
1
|
|
MCT EI 307 3847
|
230
|
1-5
|
2×9
|
100
|
6-7/9-10
|
2×14.3
|
2
|
|
MCT EI 307 3801
|
230
|
1-5
|
1×12
|
150
|
7-9
|
1×18.7
|
1
|
|
MCT EI 307 3848
|
230
|
1-5
|
2×12
|
75
|
6-7/9-10
|
2×18.9
|
2
|
|
MCT EI 307 3849
|
230
|
1-5
|
1×15
|
120
|
7-9
|
1×24.5
|
1
|
|
MCT EI 307 3850
|
230
|
1-5
|
2×15
|
60
|
6-7/9-10
|
2×24.5
|
2
|
|
MCT EI 307 3851
|
230
|
1-5
|
1×18
|
100
|
7-9
|
1×28.4
|
1
|
|
MCT EI 307 3852
|
230
|
1-5
|
1×21
|
86
|
7-9
|
1×33.4
|
1
|
|
MCT EI 307 3853
|
230
|
1-5
|
1×24
|
75
|
7-9
|
1×37.9
|
1
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 307 7079
|
230
|
1-5
|
1×6
|
300
|
7-9
|
1×9.8
|
3
|
|
MCT EI 307 7080
|
230
|
1-5
|
2×6
|
150
|
6-7/9-10
|
2×9.8
|
4
|
|
MCT EI 307 7081
|
230
|
1-5
|
1×7.5
|
240
|
7-9
|
1×12.9
|
3
|
|
MCT EI 307 7082
|
230
|
1-5
|
2×7.5
|
120
|
6-7/9-10
|
2×13.2
|
4
|
|
MCT EI 307 7083
|
230
|
1-5
|
1×9
|
200
|
7-9
|
1×14.7
|
3
|
|
MCT EI 307 7084
|
230
|
1-5
|
2×9
|
100
|
6-7/9-10
|
2×15.2
|
4
|
|
MCT EI 307 7085
|
230
|
1-5
|
1×12
|
150
|
7-9
|
1×19.4
|
3
|
|
MCT EI 307 7086
|
230
|
1-5
|
2×12
|
75
|
6-7/9-10
|
2×20.1
|
4
|
|
MCT EI 307 7087
|
230
|
1-5
|
1×15
|
120
|
7-9
|
1×24.1
|
3
|
|
MCT EI 307 7088
|
230
|
1-5
|
2×15
|
60
|
6-7/9-10
|
2×24.1
|
4
|
|
MCT EI 307 7089
|
230
|
1-5
|
1×18
|
100
|
7-9
|
1×28.9
|
3
|
|
MCT EI 307 7090
|
230
|
1-5
|
1×21
|
86
|
7-9
|
1×34.8
|
3
|
|
MCT EI 307 7091
|
230
|
1-5
|
1×24
|
75
|
7-9
|
1×38.5
|
3
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 303 2010
|
230
|
1-5
|
1×6
|
383
|
7-9
|
1×8.5
|
1
|
|
MCT EI 303 2015
|
230
|
1-5
|
2×6
|
191
|
6-7/9-10
|
2×9.4
|
2
|
|
MCT EI 303 3611
|
230
|
1-5
|
1×7.5
|
307
|
7-9
|
1×11.4
|
1
|
|
MCT EI 303 3612
|
230
|
1-5
|
2×7.5
|
153
|
6-7/9-10
|
2×12.4
|
2
|
|
MCT EI 303 2011
|
230
|
1-5
|
1×9
|
255
|
7-9
|
1×12.9
|
1
|
|
MCT EI 303 2016
|
230
|
1-5
|
2×9
|
127
|
6-7/9-10
|
2×14.6
|
2
|
|
MCT EI 303 2012
|
230
|
1-5
|
1×12
|
191
|
7-9
|
1×17.4
|
1
|
|
MCT EI 303 2017
|
230
|
1-5
|
2×12
|
95
|
6-7/9-10
|
2×18.7
|
2
|
|
MCT EI 303 2013
|
230
|
1-5
|
1×15
|
153
|
7-9
|
1×21.6
|
1
|
|
MCT EI 303 2018
|
230
|
1-5
|
2×15
|
76
|
6-7/9-10
|
2×23.5
|
2
|
|
MCT EI 303 2014
|
230
|
1-5
|
1×18
|
127
|
7-9
|
1×25.8
|
1
|
|
MCT EI 303 3563
|
230
|
1-5
|
1×21
|
110
|
7-9
|
1×30.2
|
1
|
|
MCT EI 303 2991
|
230
|
1-5
|
1×24
|
96
|
7-9
|
1×34.3
|
1
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 303 2030
|
230
|
1-5
|
1×6
|
316
|
7-9
|
1×8.6
|
1
|
|
MCT EI 303 2035
|
230
|
1-5
|
2×6
|
158
|
6-7/9-10
|
2×9.3
|
2
|
|
MCT EI 303 3060
|
230
|
1-5
|
1×7.5
|
253
|
7-9
|
1×11.0
|
1
|
|
MCT EI 303 2095
|
230
|
1-5
|
2×7.5
|
126
|
6-7/9-10
|
2×12.3
|
2
|
|
MCT EI 303 2031
|
230
|
1-5
|
1×9
|
211
|
7-9
|
1×12.9
|
1
|
|
MCT EI 303 2036
|
230
|
1-5
|
2×9
|
105
|
6-7/9-10
|
2×13.9
|
2
|
|
MCT EI 303 2032
|
230
|
1-5
|
1×12
|
158
|
7-9
|
1×17.2
|
1
|
|
MCT EI 303 2037
|
230
|
1-5
|
2×12
|
79
|
6-7/9-10
|
2×18.5
|
2
|
|
MCT EI 303 2033
|
230
|
1-5
|
1×15
|
126
|
7-9
|
1×21.5
|
1
|
|
MCT EI 303 2038
|
230
|
1-5
|
2×15
|
63
|
6-7/9-10
|
2×22.0
|
2
|
|
MCT EI 303 2034
|
230
|
1-5
|
1×18
|
105
|
7-9
|
1×25.8
|
1
|
|
MCT EI 303 3013
|
230
|
1-5
|
1×21
|
90
|
7-9
|
1×30.0
|
1
|
|
MCT EI 303 2100
|
230
|
1-5
|
1×24
|
79
|
7-9
|
1×35.5
|
1
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 303 7028
|
230
|
1-5
|
1×6
|
383
|
7-9
|
1×9.4
|
3
|
|
MCT EI 303 7029
|
230
|
1-5
|
2×6
|
191
|
6-7/9-10
|
2×9.7
|
4
|
|
MCT EI 303 7030
|
230
|
1-5
|
1×7.5
|
306
|
7-9
|
1×11.3
|
3
|
|
MCT EI 303 7031
|
230
|
1-5
|
2×7.5
|
153
|
6-7/9-10
|
2×12.2
|
4
|
|
MCT EI 303 7032
|
230
|
1-5
|
1×9
|
256
|
7-9
|
1×13.8
|
3
|
|
MCT EI 303 7033
|
230
|
1-5
|
2×9
|
128
|
6-7/9-10
|
2×14.3
|
4
|
|
MCT EI 303 7034
|
230
|
1-5
|
1×12
|
191
|
7-9
|
1×17.4
|
3
|
|
MCT EI 303 7035
|
230
|
1-5
|
2×12
|
96
|
6-7/9-10
|
2×19.1
|
4
|
|
MCT EI 303 7036
|
230
|
1-5
|
1×15
|
153
|
7-9
|
1×22.3
|
3
|
|
MCT EI 303 7037
|
230
|
1-5
|
2×15
|
76
|
6-7/9-10
|
2×23.7
|
4
|
|
MCT EI 303 7038
|
230
|
1-5
|
1×18
|
128
|
7-9
|
1×26.4
|
3
|
|
MCT EI 303 7039
|
230
|
1-5
|
1×21
|
110
|
7-9
|
1×30.5
|
3
|
|
MCT EI 303 7040
|
230
|
1-5
|
1×24
|
96
|
7-9
|
1×34.0
|
3
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 304 2040
|
230
|
1-5
|
1×6
|
434
|
7-9
|
1×10.4
|
1
|
|
MCT EI 304 2045
|
230
|
1-5
|
2×6
|
217
|
6-7/9-10
|
2×10.8
|
2
|
|
MCT EI 304 3564
|
230
|
1-5
|
1×7.5
|
346
|
7-9
|
1×12.5
|
1
|
|
MCT EI 304 2840
|
230
|
1-5
|
2×7.5
|
173
|
6-7/9-10
|
2×12.5
|
2
|
|
MCT EI 304 2041
|
230
|
1-5
|
1×9
|
289
|
7-9
|
1×15.9
|
1
|
|
MCT EI 304 2046
|
230
|
1-5
|
2×9
|
145
|
6-7/9-10
|
2×16.2
|
2
|
|
MCT EI 304 2042
|
230
|
1-5
|
1×12
|
217
|
7-9
|
1×21.7
|
1
|
|
MCT EI 304 2047
|
230
|
1-5
|
2×12
|
108
|
6-7/9-10
|
2×22.4
|
2
|
|
MCT EI 304 2043
|
230
|
1-5
|
1×15
|
174
|
7-9
|
1×27.4
|
1
|
|
MCT EI 304 2044
|
230
|
1-5
|
1×18
|
145
|
7-9
|
1×30.9
|
1
|
|
MCT EI 304 2995
|
230
|
1-5
|
1×21
|
123
|
7-9
|
1×32.1
|
1
|
|
MCT EI 304 2992
|
230
|
1-5
|
1×24
|
108
|
7-9
|
1×41.7
|
1
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 304 2080
|
230
|
1-5
|
1×6
|
350
|
7-9
|
1×10.5
|
1
|
|
MCT EI 304 2085
|
230
|
1-5
|
2×6
|
175
|
6-7/9-10
|
2×11.2
|
2
|
|
MCT EI 304 2889
|
230
|
1-5
|
1×7.5
|
280
|
7-9
|
1×13.7
|
1
|
|
MCT EI 304 2773
|
230
|
1-5
|
2×7.5
|
140
|
6-7/9-10
|
2×14.2
|
2
|
|
MCT EI 304 2081
|
230
|
1-5
|
1×9
|
234
|
7-9
|
1×16.0
|
1
|
|
MCT EI 304 2086
|
230
|
1-5
|
2×9
|
117
|
6-7/9-10
|
2×16.2
|
2
|
|
MCT EI 304 2082
|
230
|
1-5
|
1×12
|
175
|
7-9
|
1×21.5
|
1
|
|
MCT EI 304 2087
|
230
|
1-5
|
2×12
|
88
|
6-7/9-10
|
2×22.0
|
2
|
|
MCT EI 304 2083
|
230
|
1-5
|
1×15
|
140
|
7-9
|
1×26.5
|
1
|
|
MCT EI 304 2084
|
230
|
1-5
|
1×18
|
117
|
7-9
|
1×30.0
|
1
|
|
MCT EI 304 2843
|
230
|
1-5
|
1×21
|
100
|
7-9
|
1×33.4
|
1
|
|
MCT EI 304 2868
|
230
|
1-5
|
1×24
|
88
|
7-9
|
1×37.3
|
1
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 304 7041
|
230
|
1-5
|
1×6
|
400
|
7-9
|
1×10.6
|
3
|
|
MCT EI 304 7042
|
230
|
1-5
|
2×6
|
200
|
6-7/9-10
|
2×10.1
|
4
|
|
MCT EI 304 7043
|
230
|
1-5
|
1×7.5
|
320
|
7-9
|
1×13.2
|
3
|
|
MCT EI 304 7044
|
230
|
1-5
|
2×7.5
|
160
|
6-7/9-10
|
2×13.2
|
4
|
|
MCT EI 304 7045
|
230
|
1-5
|
1×9
|
266
|
7-9
|
1×16.3
|
3
|
|
MCT EI 304 7046
|
230
|
1-5
|
2×9
|
133
|
6-7/9-10
|
2×16.9
|
4
|
|
MCT EI 304 7047
|
230
|
1-5
|
1×12
|
200
|
7-9
|
1×21.8
|
3
|
|
MCT EI 304 7048
|
230
|
1-5
|
2×12
|
100
|
6-7/9-10
|
2×21.8
|
4
|
|
MCT EI 304 7049
|
230
|
1-5
|
1×15
|
160
|
7-9
|
1×26.7
|
3
|
|
MCT EI 304 7095
|
230
|
1-5
|
2×15
|
80
|
6-7/9-10
|
2×24.7
|
4
|
|
MCT EI 304 7050
|
230
|
1-5
|
1×18
|
133
|
7-9
|
1×32.6
|
3
|
|
MCT EI 304 7051
|
230
|
1-5
|
1×21
|
114
|
7-9
|
1×37.2
|
3
|
|
MCT EI 304 7052
|
230
|
1-5
|
1×24
|
100
|
7-9
|
1×42.3
|
3
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 305 2050
|
230
|
1-5
|
1×6
|
500
|
7-9
|
1×10.7
|
1
|
|
MCT EI 305 2055
|
230
|
1-5
|
2×6
|
250
|
6-7/9-10
|
2×10.7
|
2
|
|
MCT EI 305 3565
|
230
|
1-5
|
1×7.5
|
400
|
7-9
|
1×13.7
|
1
|
|
MCT EI 305 2922
|
230
|
1-5
|
2×7.5
|
200
|
6-7/9-10
|
2×13.7
|
2
|
|
MCT EI 305 2051
|
230
|
1-5
|
1×9
|
334
|
7-9
|
1×17.3
|
1
|
|
MCT EI 305 2056
|
230
|
1-5
|
2×9
|
167
|
6-7/9-10
|
2×15.7
|
2
|
|
MCT EI 305 2052
|
230
|
1-5
|
1×12
|
250
|
7-9
|
1×20.3
|
1
|
|
MCT EI 305 2057
|
230
|
1-5
|
2×12
|
125
|
6-7/9-10
|
2×20.3
|
2
|
|
MCT EI 305 2053
|
230
|
1-5
|
1×15
|
200
|
7-9
|
1×26.7
|
1
|
|
MCT EI 305 2054
|
230
|
1-5
|
1×18
|
167
|
7-9
|
1×32.5
|
1
|
|
MCT EI 305 2188
|
230
|
1-5
|
1×21
|
143
|
7-9
|
1×35.7
|
1
|
|
MCT EI 305 2993
|
230
|
1-5
|
1×24
|
125
|
7-9
|
1×42.0
|
1
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 305 2878
|
230
|
1-5
|
1×6
|
383
|
7-9
|
1×11.6
|
1
|
|
MCT EI 305 2882
|
230
|
1-5
|
2×6
|
192
|
6-7/9-10
|
2×10.9
|
2
|
|
MCT EI 305 2893
|
230
|
1-5
|
1×7.5
|
307
|
7-9
|
1×15.2
|
1
|
|
MCT EI 305 2894
|
230
|
1-5
|
2×7.5
|
153
|
6-7/9-10
|
2×13.0
|
2
|
|
MCT EI 305 2879
|
230
|
1-5
|
1×9
|
255
|
7-9
|
1×17.6
|
1
|
|
MCT EI 305 2866
|
230
|
1-5
|
2×9
|
127
|
6-7/9-10
|
2×16.1
|
2
|
|
MCT EI 305 2800
|
230
|
1-5
|
1×12
|
192
|
7-9
|
1×21.4
|
1
|
|
MCT EI 305 2847
|
230
|
1-5
|
2×12
|
96
|
6-7/9-10
|
2×21.5
|
2
|
|
MCT EI 305 2805
|
230
|
1-5
|
1×15
|
153
|
7-9
|
1×28.2
|
1
|
|
MCT EI 305 2844
|
230
|
1-5
|
2×15
|
76
|
6-7/9-10
|
2×24.5
|
2
|
|
MCT EI 305 2851
|
230
|
1-5
|
1×18
|
128
|
7-9
|
1×32.4
|
1
|
|
MCT EI 305 2772
|
230
|
1-5
|
1×21
|
110
|
7-9
|
1×38.4
|
1
|
|
MCT EI 305 2874
|
230
|
1-5
|
1×24
|
96
|
7-9
|
1×45.4
|
1
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 305 7053
|
230
|
1-5
|
1×6
|
450
|
7-9
|
1×10.9
|
3
|
|
MCT EI 305 7054
|
230
|
1-5
|
2×6
|
225
|
6-7/9-10
|
2×10.3
|
4
|
|
MCT EI 305 7055
|
230
|
1-5
|
1×7.5
|
360
|
7-9
|
1×13.7
|
3
|
|
MCT EI 305 7056
|
230
|
1-5
|
2×7.5
|
180
|
6-7/9-10
|
2×13.4
|
4
|
|
MCT EI 305 7057
|
230
|
1-5
|
1×9
|
300
|
7-9
|
1×16.2
|
3
|
|
MCT EI 305 7058
|
230
|
1-5
|
2×9
|
150
|
6-7/9-10
|
2×16.8
|
4
|
|
MCT EI 305 7059
|
230
|
1-5
|
1×12
|
225
|
7-9
|
1×20.7
|
3
|
|
MCT EI 305 7060
|
230
|
1-5
|
2×12
|
112
|
6-7/9-10
|
2×22.1
|
4
|
|
MCT EI 305 7061
|
230
|
1-5
|
1×15
|
180
|
7-9
|
1×26.6
|
3
|
|
MCT EI 305 7062
|
230
|
1-5
|
2×15
|
90
|
6-7/9-10
|
2×24.6
|
4
|
|
MCT EI 305 7063
|
230
|
1-5
|
1×18
|
150
|
7-9
|
1×33.0
|
3
|
|
MCT EI 305 7064
|
230
|
1-5
|
1×21
|
128
|
7-9
|
1×37.6
|
3
|
|
MCT EI 305 7065
|
230
|
1-5
|
1×24
|
112
|
7-9
|
1×42.9
|
3
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 306 3595
|
230
|
1-5
|
1×6
|
600
|
7-9
|
1×10.8
|
1
|
|
MCT EI 306 3596
|
230
|
1-5
|
2×6
|
300
|
6-7/9-10
|
2×10.8
|
2
|
|
MCT EI 306 3597
|
230
|
1-5
|
1×7.5
|
480
|
7-9
|
1×13.3
|
1
|
|
MCT EI 306 3598
|
230
|
1-5
|
2×7.5
|
240
|
6-7/9-10
|
2×13.3
|
2
|
|
MCT EI 306 3599
|
230
|
1-5
|
1×9
|
400
|
7-9
|
1×15.7
|
1
|
|
MCT EI 306 3600
|
230
|
1-5
|
2×9
|
200
|
6-7/9-10
|
2×15.7
|
2
|
|
MCT EI 306 3601
|
230
|
1-5
|
1×12
|
300
|
7-9
|
1×21.0
|
1
|
|
MCT EI 306 3602
|
230
|
1-5
|
2×12
|
150
|
6-7/9-10
|
2×21.0
|
2
|
|
MCT EI 306 3603
|
230
|
1-5
|
1×15
|
240
|
7-9
|
1×24.5
|
1
|
|
MCT EI 306 3604
|
230
|
1-5
|
2×15
|
120
|
6-7/9-10
|
2×24.5
|
2
|
|
MCT EI 306 3605
|
230
|
1-5
|
1×18
|
200
|
7-9
|
1×31.4
|
1
|
|
MCT EI 306 3606
|
230
|
1-5
|
1×21
|
171
|
7-9
|
1×35.5
|
1
|
|
MCT EI 306 3607
|
230
|
1-5
|
1×24
|
150
|
7-9
|
1×42.0
|
1
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 306 3359
|
230
|
1-5
|
1×6
|
500
|
7-9
|
1×10.5
|
1
|
|
MCT EI 306 3360
|
230
|
1-5
|
2×6
|
250
|
6-7/9-10
|
2×10.5
|
2
|
|
MCT EI 306 3361
|
230
|
1-5
|
1×7.5
|
400
|
7-9
|
1×12.7
|
1
|
|
MCT EI 306 3362
|
230
|
1-5
|
2×7.5
|
200
|
6-7/9-10
|
2×12.7
|
2
|
|
MCT EI 306 3363
|
230
|
1-5
|
1×9
|
333
|
7-9
|
1×15.9
|
1
|
|
MCT EI 306 3364
|
230
|
1-5
|
2×9
|
167
|
6-7/9-10
|
2×15.9
|
2
|
|
MCT EI 306 3365
|
230
|
1-5
|
1×12
|
250
|
7-9
|
1×20.3
|
1
|
|
MCT EI 306 3366
|
230
|
1-5
|
2×12
|
125
|
6-7/9-10
|
2×20.3
|
2
|
|
MCT EI 306 3367
|
230
|
1-5
|
1×15
|
200
|
7-9
|
1×23.8
|
1
|
|
MCT EI 306 3368
|
230
|
1-5
|
2×15
|
100
|
6-7/9-10
|
2×24.0
|
2
|
|
MCT EI 306 3369
|
230
|
1-5
|
1×18
|
167
|
7-9
|
1×29.2
|
1
|
|
MCT EI 306 3371
|
230
|
1-5
|
1×21
|
143
|
7-9
|
1×34.3
|
1
|
|
MCT EI 306 3372
|
230
|
1-5
|
1×24
|
125
|
7-9
|
1×38.4
|
1
|
|
Order No.
|
Primary
Voltage V
|
Connecting pins prim.
|
Secondary voltage V
|
Current sec.mA
|
Connecting pins sec.
|
No-load
Voltage V
|
Connection
scheme
|
|
MCT EI 306 7066
|
230
|
1-5
|
1×6
|
566
|
7-9
|
1×11.0
|
3
|
|
MCT EI 306 7067
|
230
|
1-5
|
2×6
|
283
|
6-7/9-10
|
2×10.7
|
4
|
|
MCT EI 306 7068
|
230
|
1-5
|
1×7.5
|
453
|
7-9
|
1×13.6
|
3
|
|
MCT EI 306 7069
|
230
|
1-5
|
2×7.5
|
226
|
6-7/9-10
|
2×12.4
|
4
|
|
MCT EI 306 7070
|
230
|
1-5
|
1×9
|
378
|
7-9
|
1×16.0
|
3
|
|
MCT EI 306 7071
|
230
|
1-5
|
2×9
|
189
|
6-7/9-10
|
2×16.8
|
4
|
|
MCT EI 306 7072
|
230
|
1-5
|
1×12
|
283
|
7-9
|
1×21.0
|
3
|
|
MCT EI 306 7073
|
230
|
1-5
|
2×12
|
141
|
6-7/9-10
|
2×22.1
|
4
|
|
MCT EI 306 7074
|
230
|
1-5
|
1×15
|
226
|
7-9
|
1×26.0
|
3
|
|
MCT EI 306 7075
|
230
|
1-5
|
2×15
|
113
|
6-7/9-10
|
2×24.6
|
4
|
|
MCT EI 306 7076
|
230
|
1-5
|
1×18
|
189
|
7-9
|
1×32.2
|
3
|
|
MCT EI 306 7077
|
230
|
1-5
|
1×21
|
162
|
7-9
|
1×37.5
|
3
|
|
MCT EI 306 7078
|
230
|
1-5
|
1×24
|
141
|
7-9
|
1×43.1
|
3
|
All models can be designed to meet customer's requirement!
If you have any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
TEL: +86 551 6619 6829
