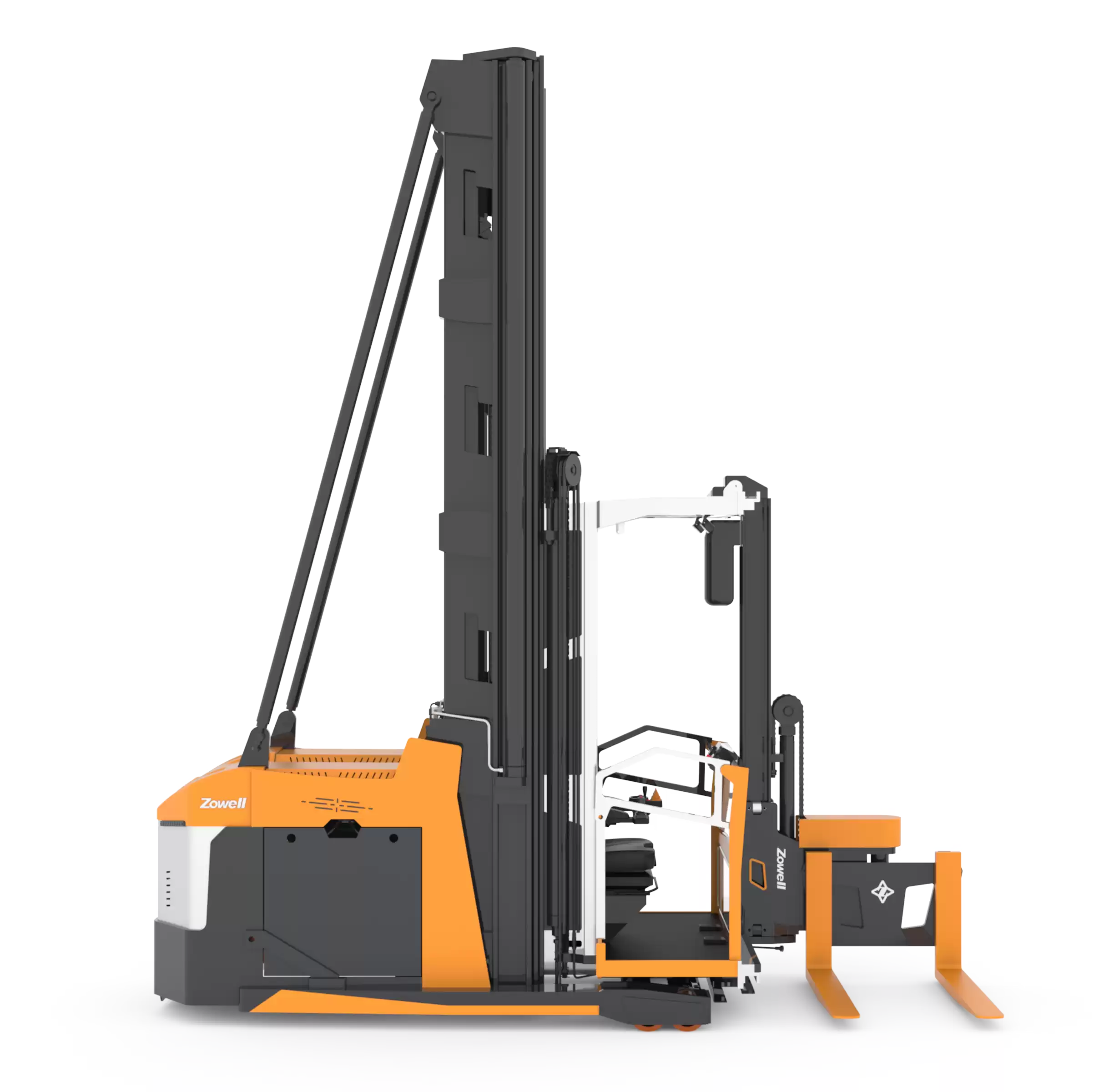

1.6 ton Magnetic guidance Electric Turret Truck

The VUE turret truck from Zowell Forklifts enables high turnaround capacity for order picking and handling processes in high rack warehouses. The powerful drive trains make this possible, as the truck can move and lift at the same time. Also, even at high lift levels the speed remains high and a high level of residual lift capacity is available.
Adaptable to fit your space, load and operator needs precisely, Zowell VUE man-up turret trucks optimise stacking and order picking efficiency in very narrow aisles (VNA) and high racking. Each turret truck is uniquely specified and custom-built, following a detailed study and measurement of your operation by our Zowell VNA sales consultants.



Zowell 1.6 ton Man up Electric Turret Truck




Model VUE116-70 VUE116-105S
Basic Specifications Mast type Double Mast Triple Mast
Drive type Electric Electric
Operation type three way stacking three way stacking
Load Capacity Q(kg) 1600 1600
Load Center C(mm) 600 600
Driving type y(mm) Sitting Sitting
Truck weightInclude battery kg 7850 8800
Tyres Tyres type Front wheel/Rear wheel PU PU
Rear driving wheelDiameter×width) mm φ400×160 φ400×160
Front load wheelsDiameter×width) mm φ165×145 φ165×145
Tyres quantity (x= drive wheels) pcs 1X/4 1X/4
dimensions Height with mast closed 4218 4320
Sub Lifting height mm 1500 1500
Lifting height ° 7000 10500
Height with mast extended 8165 11665
Seat height h1(mm) 485 485
Overall length fork in side position l1(mm) 3820 3820
Overall widthwithout guide wheels b1(mm) 1500 1500
Fork dimensions l/e/s(mm) 1200/122/50 1200/122/50
Fork class/type b2(mm) 2/A 2/A
Fork width b5(mm) 297-750 297-750
Wheelbase center height from the ground 80 80
Min turning radidus(go straight) Wa(mm) 2356 2356
Pallet width 1000 1000
Pallet length 1200 1200
Aisle width 1750 1750
Min main aisle width mm 5000 5000
Performance Driving speed loaded/unloaded km/h 8.5/9 8.5/9
Lifting speed loaded/unloaded mm/s 300/320 300/320
Lowering speed Loaded/unloaded mm/s 350 350
Driving Brake Electromagnetic brake / recycled brake Electromagnetic brake / recycled brake
Parking Brake Electromagnetic brake Electromagnetic brake
Electric Motor Drive motor power kw 7 7
Driving motor type AC AC
Lifting motor power (S2-60min) kw 20 20
Lifting motor type AC AC
Battery voltage and capacity V/Ah 48/1000 48/1000
Battery weight 1550±5% 1550±5%
