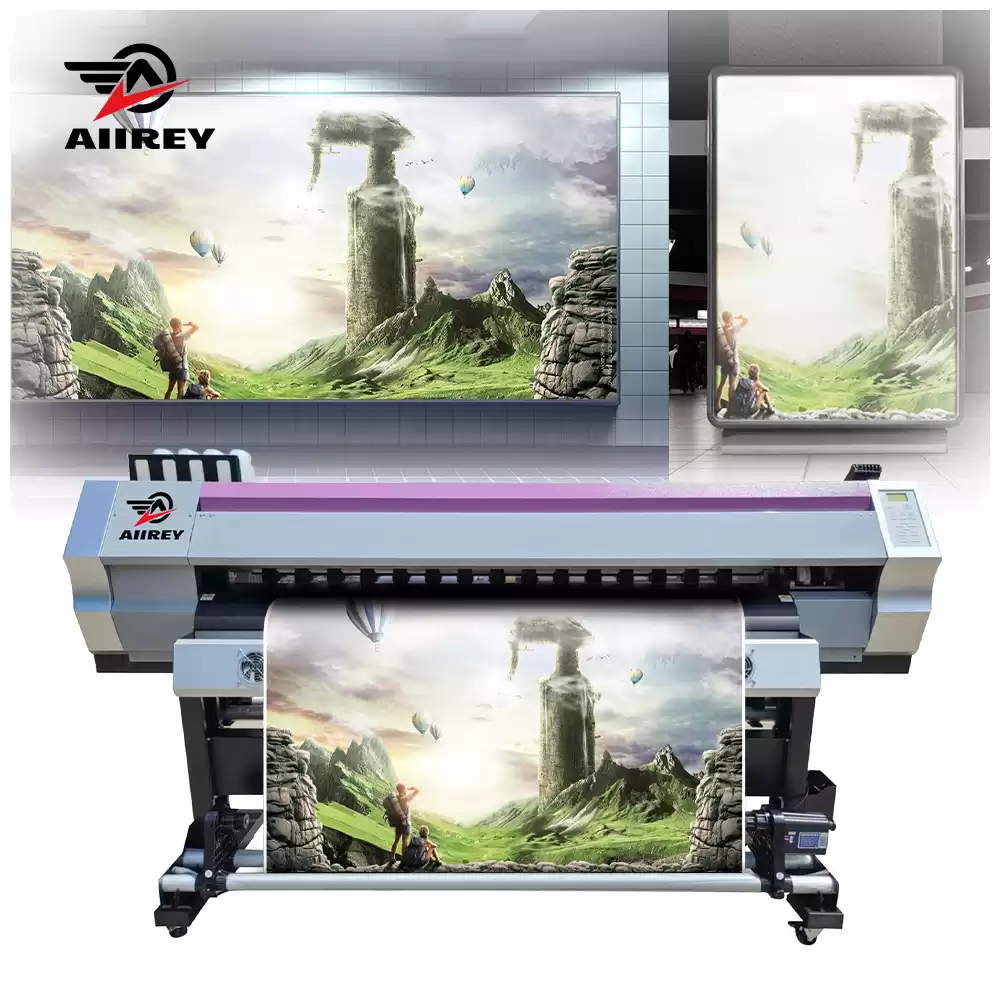

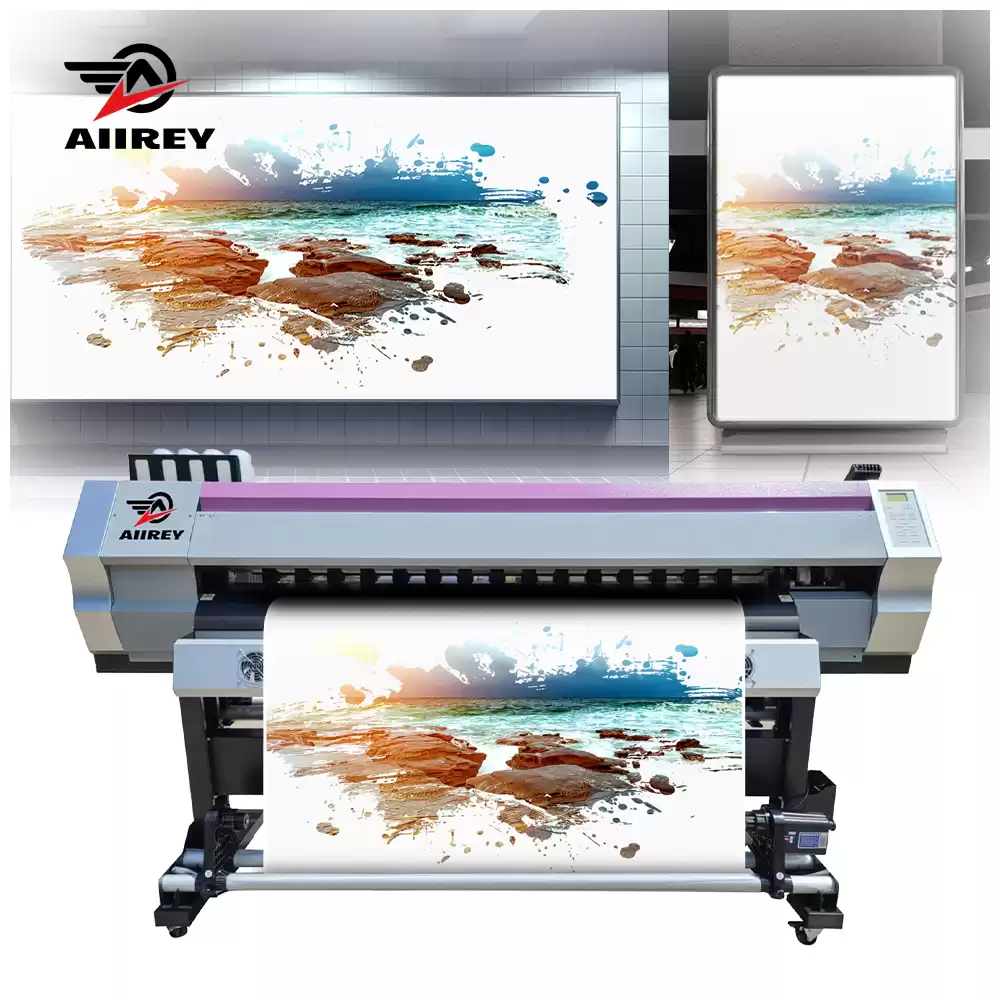

1.6m xp600 print head plotter Large format canvas vinyl banner poster inkjet eco solvent printer
Introducing the magnificent 1.6m Eco-Solvent Printer, a true masterpiece that weaves technology and aesthetics together seamlessly. With its sleek design and advanced functionality, this exceptional device sets a new standard in printing excellence. Experience a harmonious blend of precision and beauty as your creativity comes to life in vibrant colors and intricate details. The 1.6m Eco-Solvent Printer is your gateway to a world of endless possibilities, where elegance and innovation converge.
This reflective vinyl printer is compact so it can be installed and operated in tight spaces. This vinyl printer offers better ink absorption and precise print quality. The vacuum bed of this vinyl press ensures consistent print quality with low waste and keeps media flat and wrinkle-free to avoid media head strikes. The take-up and feed system provides easy media loading for high productivity and long unattended printing operations.

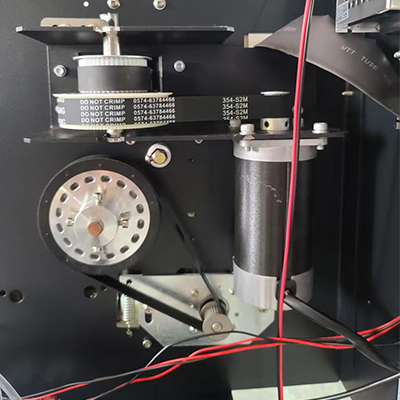

01.Brushless DC Motor
The motor-driven carriage plate not only ensures high-precision printing but also reflects the long life of the motor, and the motion system is stable and durable.

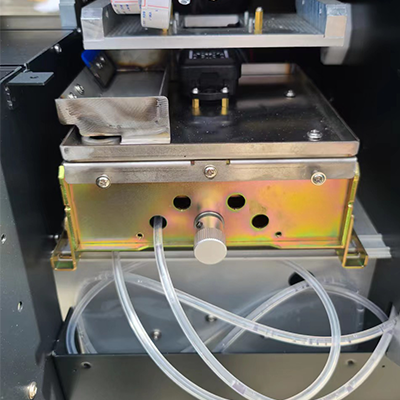

02.Sprinkler Maintenance Station
The newly designed maintainance station with a protective cap and a moisturizing fluid injection system can moisturize the print head well and prolong the life of the print head. The fully sealed cap can also improve the cleaning effect.

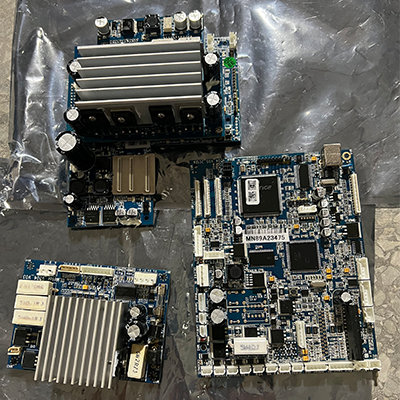

03.Independent research and development board
Because we are not a pure board manufacturer,we cannot compare to other board manufacturers in terms of operability and aesthetics,but our algorithm is developed in cooperation with Epson, so we have more advantages in terms of printing effects.

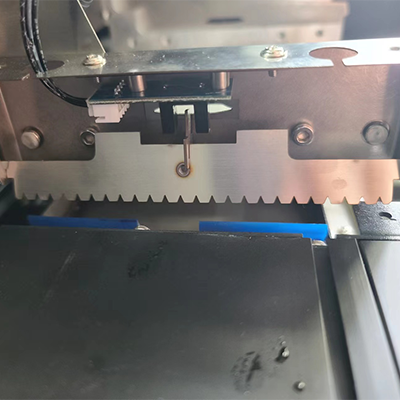

04.The anti-scratch blade
The anti-scratch blade can make the machine stop moving when it receives any printing resistance, which can prevent the printhead from contacting the printing material, and can prevent the printhead from being blocked and damaging the printhead.
AF-1601
|
Nozzle Type
|
3200-A1,3200-E1,3200-U1,XP600,EPSON five generations
|
Printing Speed
|
4 pass High speed mode 28m²/hour
6 pass High speed mode 24m²/hour
|
Color Mode
|
CMYK（XP600 printer head can be installed LC/LM）
|
Ink Type
|
Eco-solvent ink/water-based ink/paint ink/UV ink, etc.
|
RIP software
|
Maintop, photoprint optional
|
Print Format
|
1610mm
|
Media Transfer
|
USB2.0
|
Media Type
|
All kinds of indoor and outdoor advertising decoration materials / high-gloss photo paper / PP paper / adhesive / light film / car sticker / oil canvas / PVC film / light film / double-sided spray / knife scraping cloth / mesh cloth / glass stickers, etc.
|
Media Transmission
|
Indoor and outdoor: automatic damping feeding system
|
Heating Equipment
|
Front, middle and back three-stage heating
|
Power Supply
|
AC110v(±10%）50/60HZ:AC220v(±10%）50/60HZ
|
Power
|
600w
|
Working Environment
|
Temperature 15℃-30℃ Humidity 45%RH-80%RH
|
Ink supply method
|
Continuous ink supply system
|
Weight
|
140KG
|
Package Dimensions
|
2920*685*625mm
|
