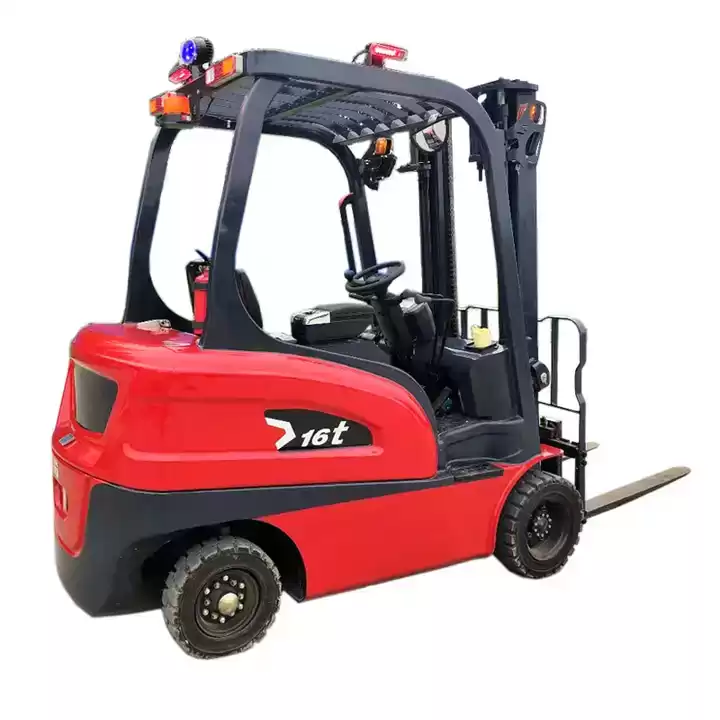

1.6T Couter balanced warehouse material handling forklift stacker CPD-16A

Lithium battery powered 1.6T high efficience electric  forklifts for material handling



As the development of New Energy,We expand our business arrange,not only in lithium battery, but also to its relative electric forklifts,we have build our technical team.As a leader of lithium, we can provide comprehensively solutions for lithium battery and material handling

We have large scale factory for material handling forklifts in Anhui,China .We not only have A grade modern facilitities and automated production line

We cooperate with our factory to attend numerous fairs in China every year,such as : Carton fair in Guangzhou,Bauma fair in Shanghai and Beijing fairs

Our factory loates at Anhui,China,which is about 2-4H to us by airplane ,high speed train and car from Shanghai City,welcome to visit us.


Quick details

  Features
1.1 model     CPD16F
1.2 power type     electric
1.3 operation     sit down
1.4 load  Q kg 1600
1.5  load center distance C mm 500
1.6 front overhang X mm 300
1.7 wheel distance y mm 1500
  weight
2.1 dead load(battery included)   kg 2200
  tyre,underpan
3.1 tyre type     solid tyre
3.2 driving wheel size(dia*width)   mm 18X7-10
3.3 steering wheel size(dia*width)   mm 500-8
3.4 (x= driving wheel)driving,steering wheel qty   mm 2X/2
3.5 driving wheel distance b10 mm 950
3.6 steering wheel distance b11 mm 920
  size
4.1 mast,fork tilt α/ β (°)   5/9
4.2 mast height after falling h1 mm 2130
4.3 standard mast max lfiting height h3 mm 3000
4.4 mast height at its highest lifting h4 mm 4000

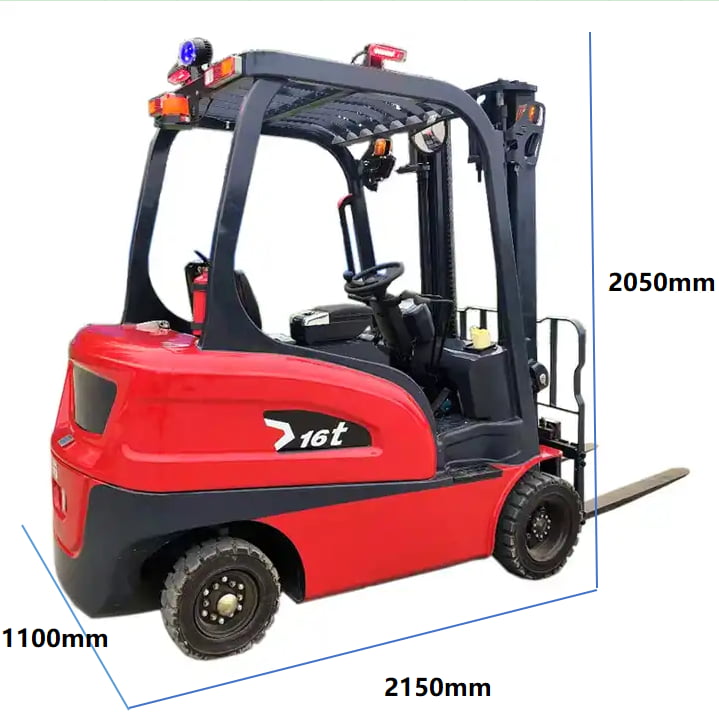

4.5 cockpit height h6 mm 2050
4.6 seat height h7 mm 1050
4.7 traction pin height h10 mm 460
4.8 overall length l1 mm 3260
4.9 length to fork vertical l2 mm 2150
4.10 overall width b1/ b2 mm 1100

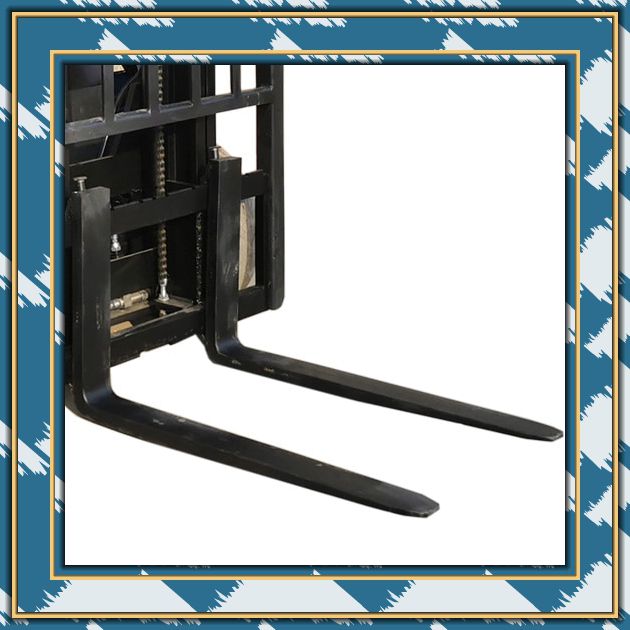

4.11 fork size s/ e/ l mm 40X100X1070
4.12 fork with b3 mm 1040
4.13 full load mast clearance m1 mm 110
4.14 min body clearance m2 mm 100
4.15 aisle width for tray 1200(W)*1000(L) Ast mm 3360
4.16 aisle width for tray 800(W)*1200(L) Ast mm 3560
4.17 radius of turning circle Wa mm 1860
  performance
5.1 walking speed,full load/empty load   km/ h 10/12
5.2 lifting speed,full load/empty load   m/ s 0.24/0.3
5.3 falling speed.full load/empty load   m/ s 0.4/ 0.36
5.4 max climbing speed,full load/empty load   % 14/15
5.5 working brake type     hydraumatic+machanical
5.6 parking brake type     mechanical
  motor,power
6.1 driving motor rate power S2 60min   kW 5
6.2 lifting motor rate power S3 15%    kW 5
6.3 battery volt/nominal capacity K5   Ah 48V260
6.4 driving control type     AC



Qianhang forklift manufacturer 1.2t,1.6t,2t,2.5t,3t 3.5t 4t,5t new lithium battery forklift truck electric forklift/folklift

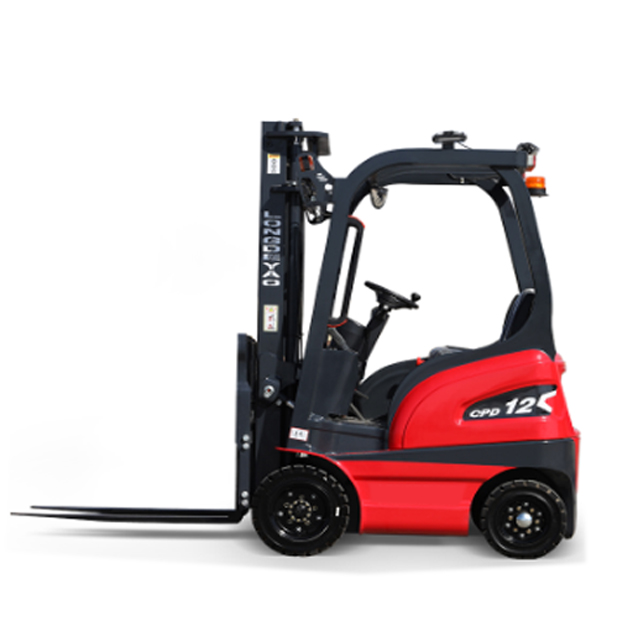

1.6T counter balanced forklift





Brief introduction for our material handling forklift

1-----With advanced technology and design;
2----- High quality steel for frame and mast, not easy to deform
3----- LED lights for all working lights, easy to see in night
4----- Thickened height guard

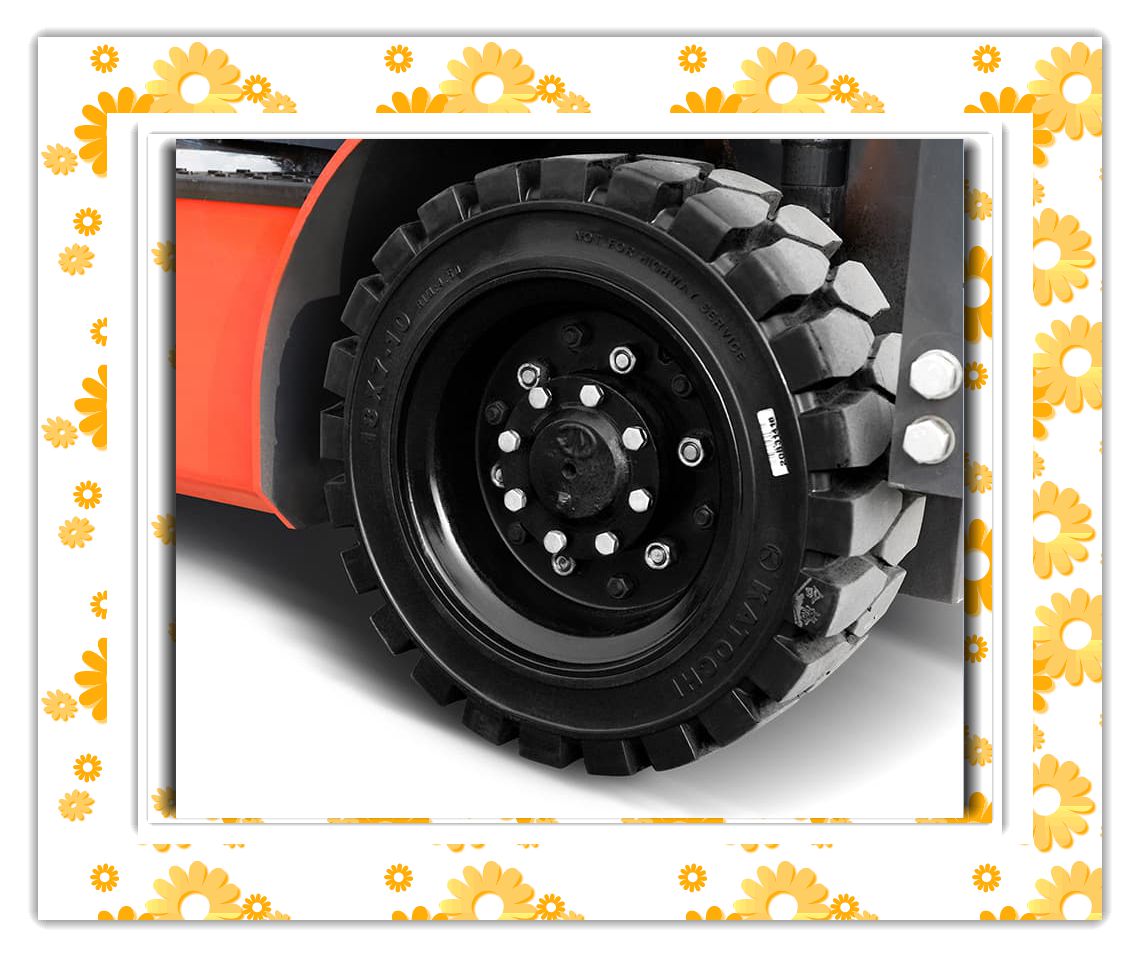

5-----Wear-resisting solid tire
6----- AC motor , less noise
7-----powerful branded batterym,optional for lead acid battery, lithium battery and traction battery
8-----High voltage ,low current design , prolong the lifespan of electric components
9-----Powerful in climbing to climp slop, with gradeability over 30%.
10----Comfortable seat with safety belts,with large operation space.
11----All use lithium battery, charging efficiency is higher, more lightweight, only takes 2.5 hours to recharge



Main features


1)Environmentally friendly,zero emission,certificates available

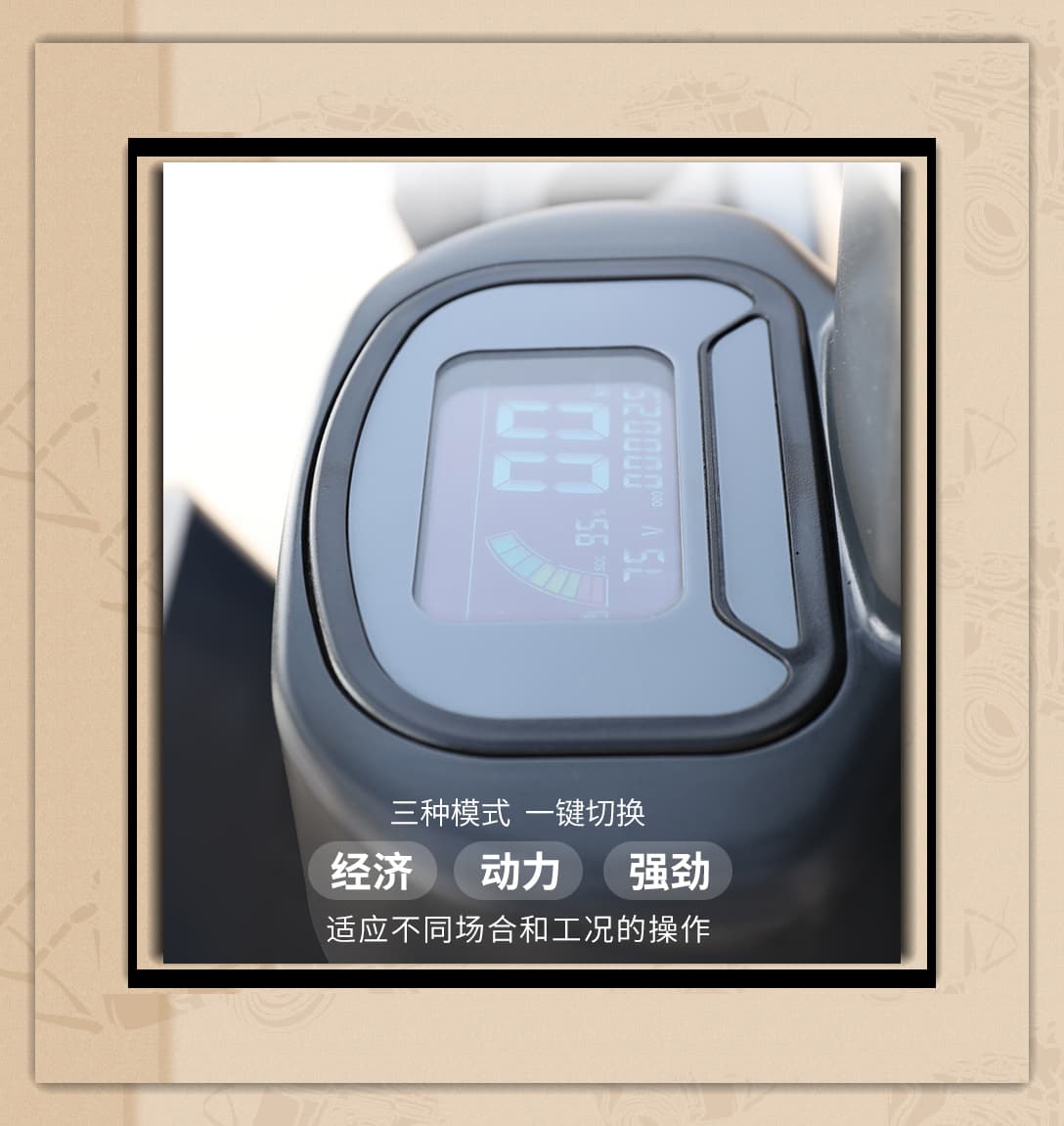

2)World famous controller, to achieve high precision walking and upgrade control, high working effect

3)Powerful lithium battery,work for 6H or more

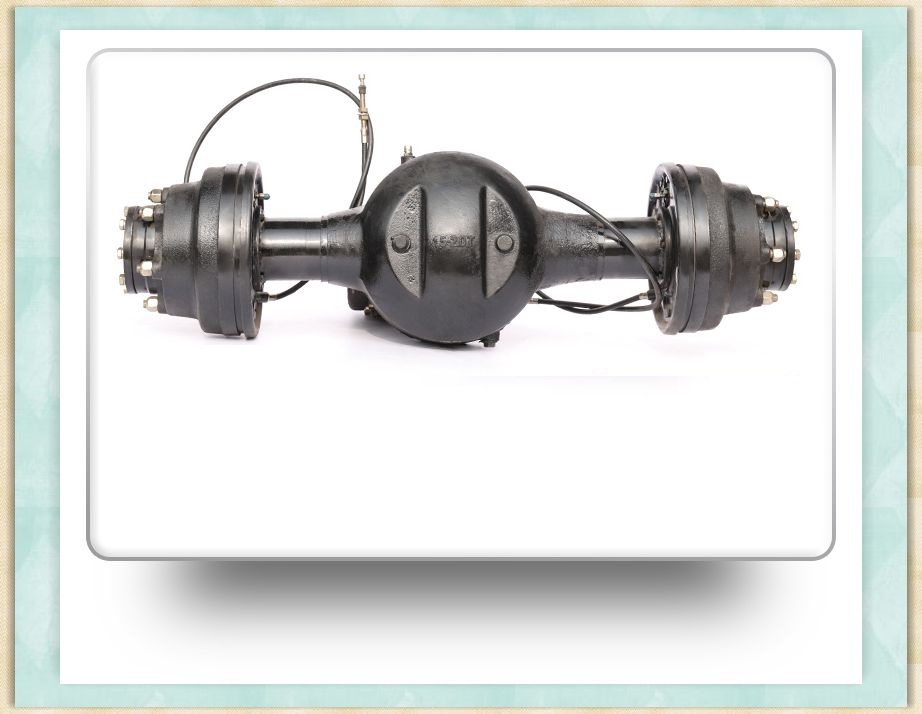

4)Advanced remote drive unit, compact structure, lower center of gravity, more reasonable layout, more stable drive

5) Lifepo4 battery for your choice, Large capacity battery, strong endurance

6)  Dynamic load-sensitive priority steering system for faster steering response and smoother ride.



Our details for your refer


After sales service




  • #
    Warranty
    We grants our customers a 12-months period warranty for any forklifts purchased from us.duriing the period of warranty,in case of defect of material or workmanship,defective parts will be replaced for free charge as compensation at our discretion
  • #
    Spare parts
    We are delicated to provide our customer high genuine spare parts with high quality,exact fitness and appropriate function.No matter where you are,pls submit your spare request, we promised to send you our fast and appopreciate
  • #
    Installation
    We are able to provide you with overall installation instructions ,allowing you to start a proper operation of our forklifts. If necessary,engineers can send to you to give face to face installation and instructions
  • #
    Training
    We promised to provide training to our buyers from any areas.our training includes: product training ,operation training and maintaince know-how and technical trainings.All of which are tailored to meet with your individual needs

--
