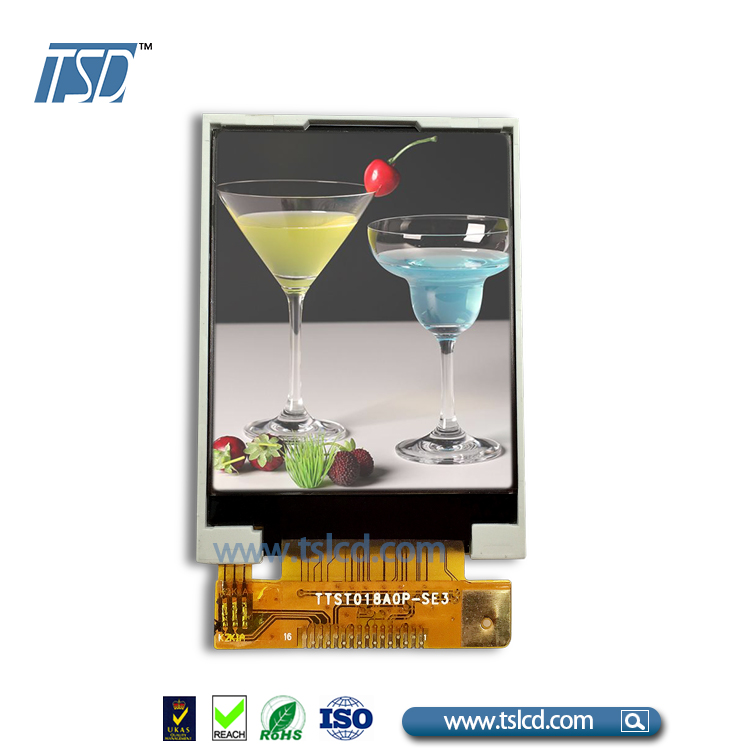

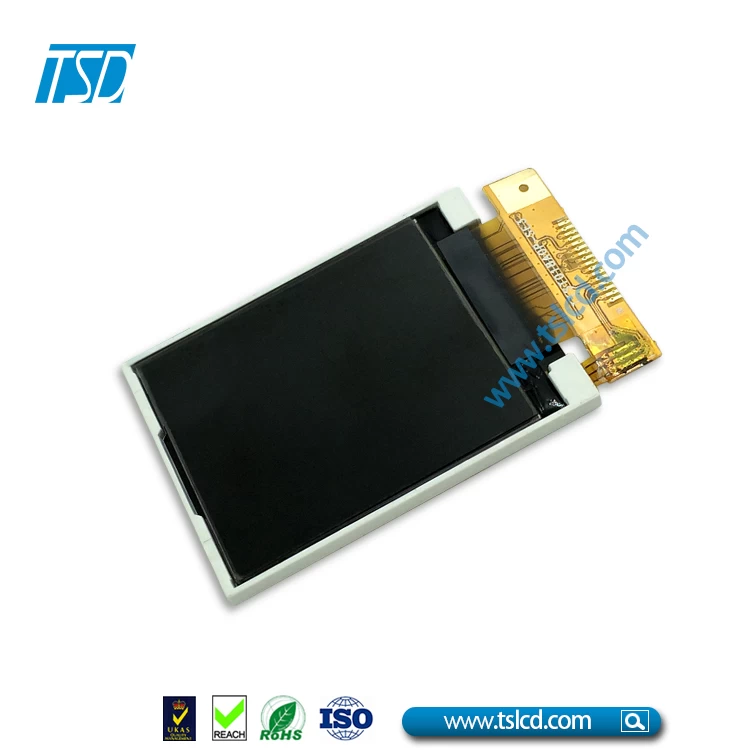

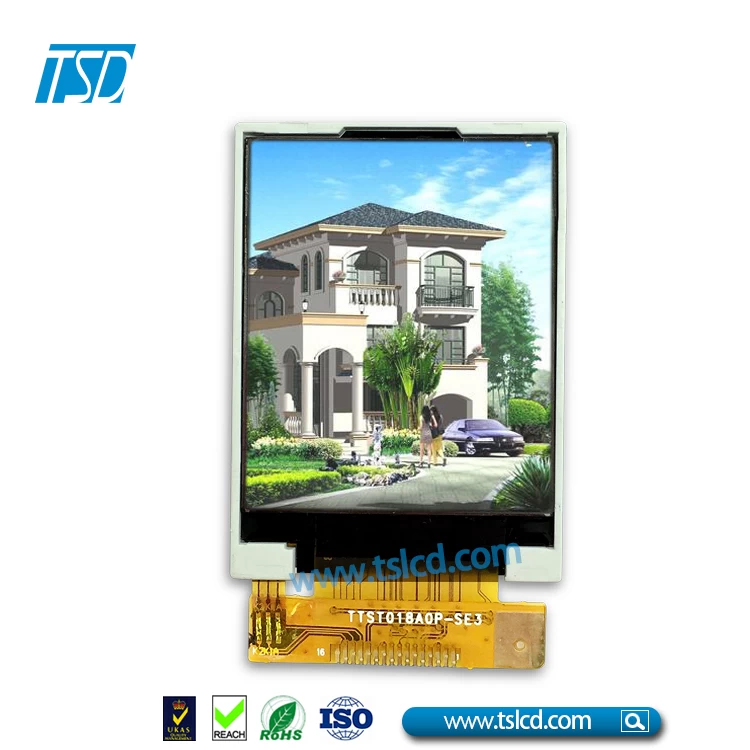

1.77“ color tft lcd module with SPI interface
|
Specification
|
|
LCD type
|
TFT,Transmissive
|
|
Display type
|
1.8 inch TFT, 262k color, normal white
|
|
Description
|
1.77" tft lcd module with SPI interface
|
|
Driver element
|
a-si TFT Active matrix
|
|
Outline Dimension(mm)
|
46.7x34.7x2.5
|
|
A.A.(mm)
|
35.04x28.03
|
|
Driver IC
|
ILI9163C
|
|
Resolution(dots)_
|
128*RGB*160
|
|
Viewing Direction
|
12H
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Logic Volatge
|
3.0v
|
|
Pixel arrangement
|
RGB Vertical Stripe
|
|
Display mode
|
Normally white
|
|
Surface treatment
|
Antiglare, Hard-Coating(3H)
|
|
Weight(g)
|
TBD
|
|
Backlight
|
2 LEDs, White
|
|
Weight(g)
|
TBD
|
|

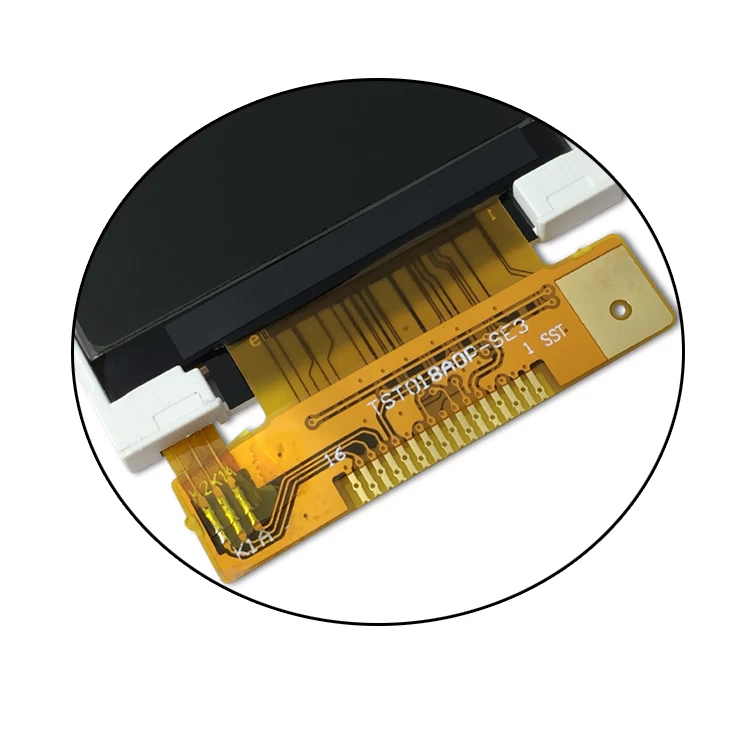

Interface connector
|
SPI interface
|
|
Module lifetime(Hours)
|
50,000-100,000
|
