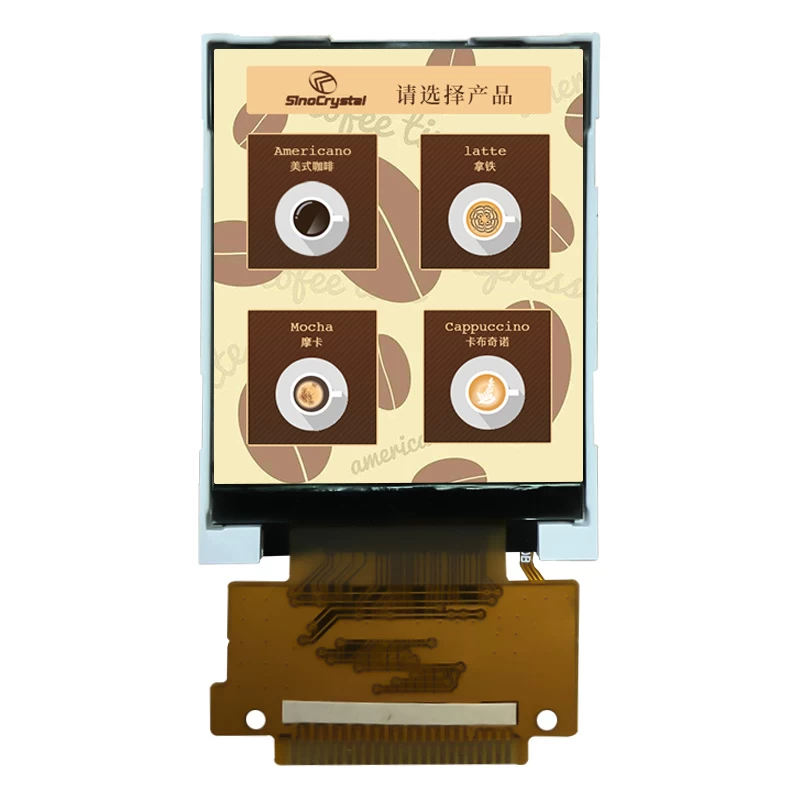

1.77 inch Sunlight readable TFT LCD Module with 8bit MCU interface ILI9163V IC

SCT018005-V01 is a 1.77'' TFT LCD Display with 128x160 resolution, it built in with ILI9163V IC, and it supports 8bit MCU interface, 24 PIN, 12 o'clock View direction.



  • Touch ScreenNo
  • IC Part No.ILI9163V
  • Interface8bit MCU
  • View Direction12
  • Active Area (mm)28.032*35.040
  • Viewing Area (mm)31.832*41.420
  • Brightness (cd/m²)300
  • Outline Dimension (mm)34.00*45.83*2.75
  • Resolution128*160
  • Temperature (℃)-20°C~70°C

Basic Information


Resolution:                    128x160

Outline Dimension:        34.00*45.83*2.75

Active Area:                  28.032*35.040

View area:                     31.832*41.420

Interface:                      8bit MCU

Driver IC:                       ILI9163V

View Direction:              12 o'clock

PIN:                                24

Backlight:                      White LED

Touch Screen:               No touch screen with standard module, But can be added if customer needed.

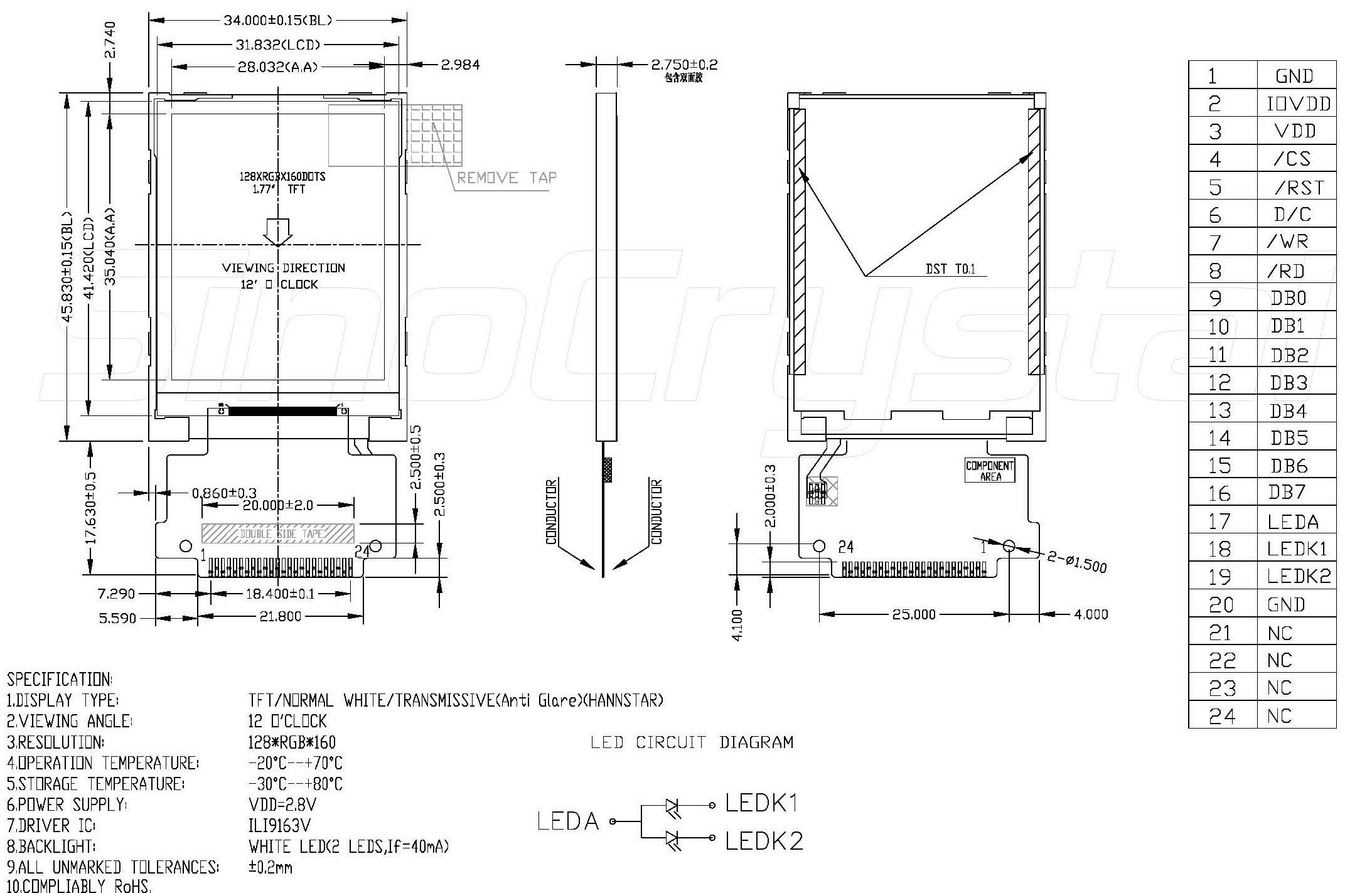

Drawing



General Specification


Item Nominal Dimension Unit
  Dot Matrix 128 x RGB x 160 Dots
  Module Size ( W×H×T ) 34.0 x 45.83 x 2.75 mm.
  Active Area ( W×H ) 28.032 x 35.040 mm.
  Pixel arrangement RGB Stripe mm.
  Dot Pitch ( W×H ) 0.219 x 0.219 mm.
  Color depth 262K(MAX) colors
  Interface 8 bit MCU -
  Driving IC Package COG -
  Operating temperature -20 ~70 ºC
  Storage temperature -30~80 ºC
  LCD Type a-Si TFT -
  LCD Mode TN/Normal White -
  Backlight Type LED x 2 PCS



Interface Definition


Pin No Pin Symbol Level Description
1 GND 0V Ground
2 IOVDD 1.8-3.3V Power supply for logic
3 VDD 2.5-3.6V Power supply for digital
4 /CS H/L Chip Select signal
5 /RESET H/L Chip reset signal
6 RS H/L Register select signal. 0:index register; 1: data register
7 /WR H/L Write signal
8 /RD H/L Read signal
9 DB0 H/L data bus 0
10 DB1 H/L data bus 1
11 DB2 H/L data bus 2
12 DB3 H/L data bus 3
13 DB4 H/L data bus 4
14 DB5 H/L data bus 5
15 DB6 H/L data bus 6
16 DB7 H/L data bus 7
17 LEDA - LED light, anode
18 LEDK1 - LED light, cathode.
19 LEDK1 - LED light, cathode.
20 GND 0V Ground
21 NC - Dummy
22 NC - Dummy
23 NC - Dummy
24 NC - Dummy
