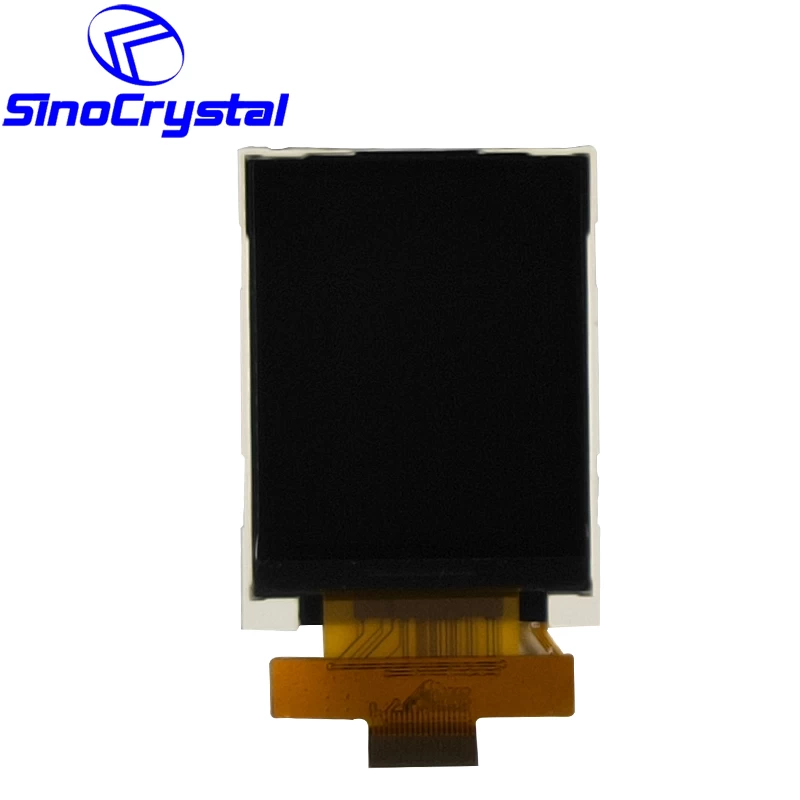

Basic Information
Resolution: 128x160
Outline Dimension: 34.00*45.83*2.75
Active Area: 28.032*35.040
View area: 31.832*41.420
Interface: 8bit MCU
Driver IC: ST7735S
View Direction: 12 o'clock
PIN: 20
Backlight: White LED
Touch Screen: No touch screen with standard module, But can be added if customer needed.
General Specification
|
Item
|
Nominal Dimension
|
Unit
|
|
Dot Matrix
|
128 x RGB x 160
|
Dots
|
|
Module Size ( W×H×T )
|
34.0 x 45.83 x 2.75(max)
|
mm.
|
|
Active Area ( W×H )
|
28.032 x 35.040
|
mm.
|
|
Pixel arrangement
|
RGB Stripe
|
mm.
|
|
Dot Pitch ( W×H )
|
0.219 x 0.219
|
mm.
|
|
Color depth
|
262K(MAX)
|
colors
|
|
Interface
|
8 bit MCU
|
-
|
|
Driving IC Package
|
COG
|
-
|
|
Operating temperature
|
-20 ~70
|
ºC
|
|
Storage temperature
|
-30~80
|
ºC
|
|
LCD Type
|
a-Si TFT
|
-
|
|
LCD Mode
|
TN/Normal White
|
-
|
|
Backlight Type
|
LED x 2
|
PCS
|
Interface Definition
|
Pin No
|
Pin Symbol
|
Level
|
Description
|
|
1
|
LED-
|
-
|
LED light, cathode.
|
|
2
|
LED+
|
-
|
LED light, anode
|
|
3
|
GND
|
0V
|
Ground
|
|
4
|
VDD
|
2.3-3.6V
|
Power supply
|
|
5
|
NC
|
-
|
|
|
6
|
NC
|
-
|
Dummy
|
|
7
|
/CS
|
H/L
|
Chip Select signal
|
|
8
|
/RESET
|
H/L
|
Chip reset signal
|
|
9
|
RS
|
H/L
|
Register select signal. 0:index register; 1: data register
|
|
10
|
/WR
|
H/L
|
Write signal
|
|
11
|
/RD
|
H/L
|
Read signal
|
|
12
|
DB7
|
H/L
|
data bus 7
|
|
13
|
DB6
|
H/L
|
data bus 6
|
|
14
|
DB5
|
H/L
|
data bus 5
|
|
15
|
DB4
|
H/L
|
data bus 4
|
|
16
|
DB3
|
H/L
|
data bus 3
|
|
17
|
DB2
|
H/L
|
data bus 2
|
|
18
|
DB1
|
H/L
|
data bus 1
|
|
19
|
DB0
|
H/L
|
data bus 0
|
|
20
|
GND
|
0V
|
Ground
|
