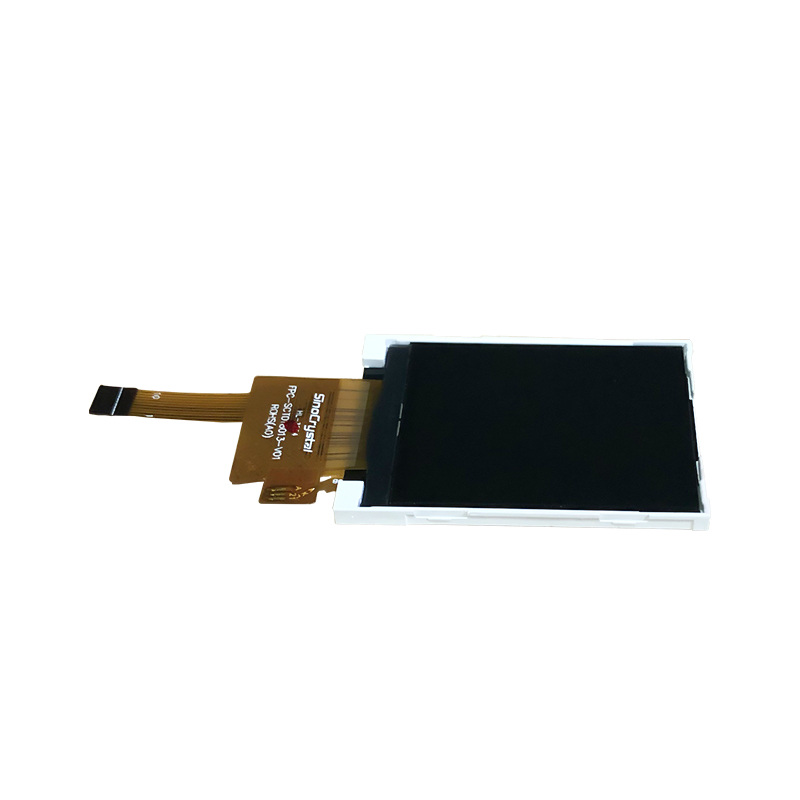

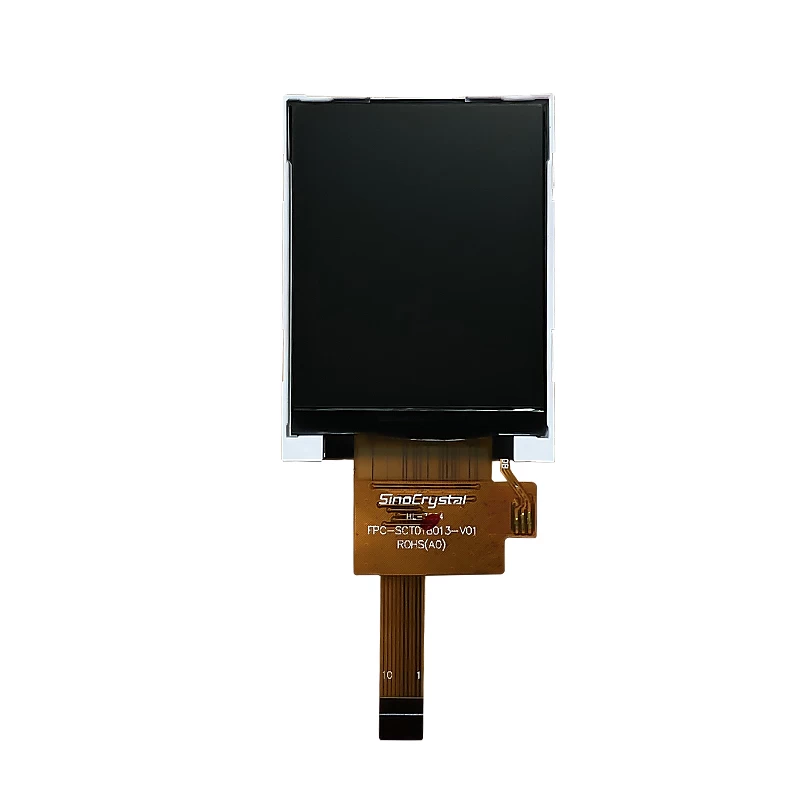

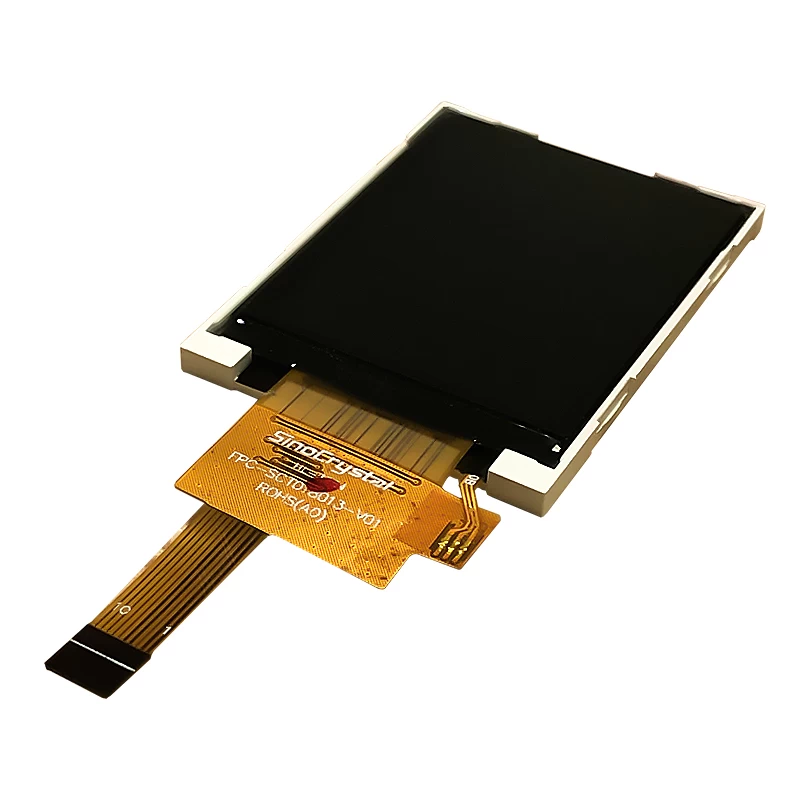

1.8'' SPI interface LCD Display with 128*160 ST7735S IC

SCT018013-V01 is a 1.77'' TFT LCD Display with 128x160 resolution, it built in with ST7735S IC, and it supports SPI interface, 10 PIN, 12 o'clock View direction.

  • Temperature (℃)-20°C~70°C
  • Touch ScreenNo
  • Brightness (cd/m²)300
  • IC Part No.ST7735S
  • InterfaceSPI
  • View Direction12
  • Viewing Area (mm)31.83*41.42
  • Active Area (mm)28.032*35.040
  • Outline Dimension (mm)34.00*45.83*2.60
  • Resolution128*160
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


Resolution:                    128x160

Outline Dimension:        34.00*45.83*2.75

Active Area:                  28.032*35.040

View area:                     31.832*41.420

Interface:                      SPI

Driver IC:                       ST7735S

View Direction:              12 o'clock

PIN:                                10

Backlight:                      White LED

Touch Screen:               No touch screen with standard module, But can be added if customer needed.

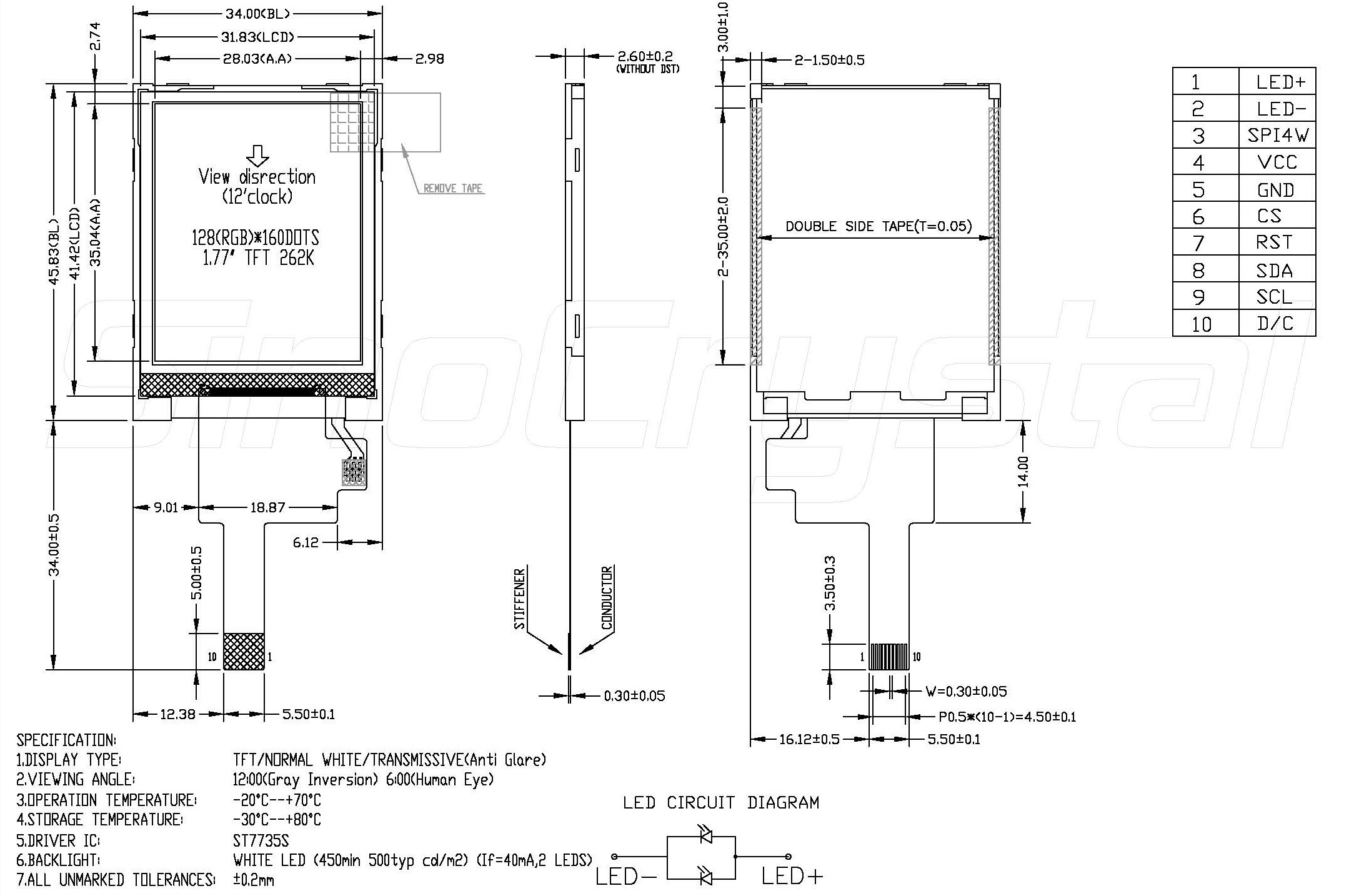

Drawing





General Specification


Item Nominal Dimension Unit
Dot Matrix 128 x RGB x 160 Dots
Module Size ( W×H×T ) 34.0 x 45.83 x 2.60 mm.
Active Area ( W×H ) 28.032 x 35.040 mm.
Pixel arrangement RGB Stripe mm.
Dot Pitch ( W×H ) 0.219 x 0.219 mm.
Color depth 262K(MAX) colors
Interface SPI -
Driving IC ST7735S -
Operating temperature -20 ~70 ºC
Storage temperature -30~80 ºC
LCD Type a-Si TFT -
LCD Mode TN / Normal White -
Backlight Type LED x 2 PCS




Interface Definition



Pin No Pin Symbol Type Description
1 LED+ P LED light, anode
2 LED- P LED light, cathode.



-  SPI4W='0', 3-line SPI Enable.
3 SPI4W I -  SPI4W='1', 4-line SPI Enable.
4 VCC P Power supply
5 GND P Ground
6 CS I Chip Select
7 RESET I Chip reset signal
8 SDA I/O Serial data input/output signal
9 SCL I Serial clock input signal
10 D/C I In 4-line SPI:
-D/CX='1': Display Data or Parameter.
-D/CX='0': Command Data. In 3-line SPI: no used
If not used, please fix this pin at GND level
