1.8'' TFT LCD Display with 128x160 resolution, ST7735S and 8bit MCU interface

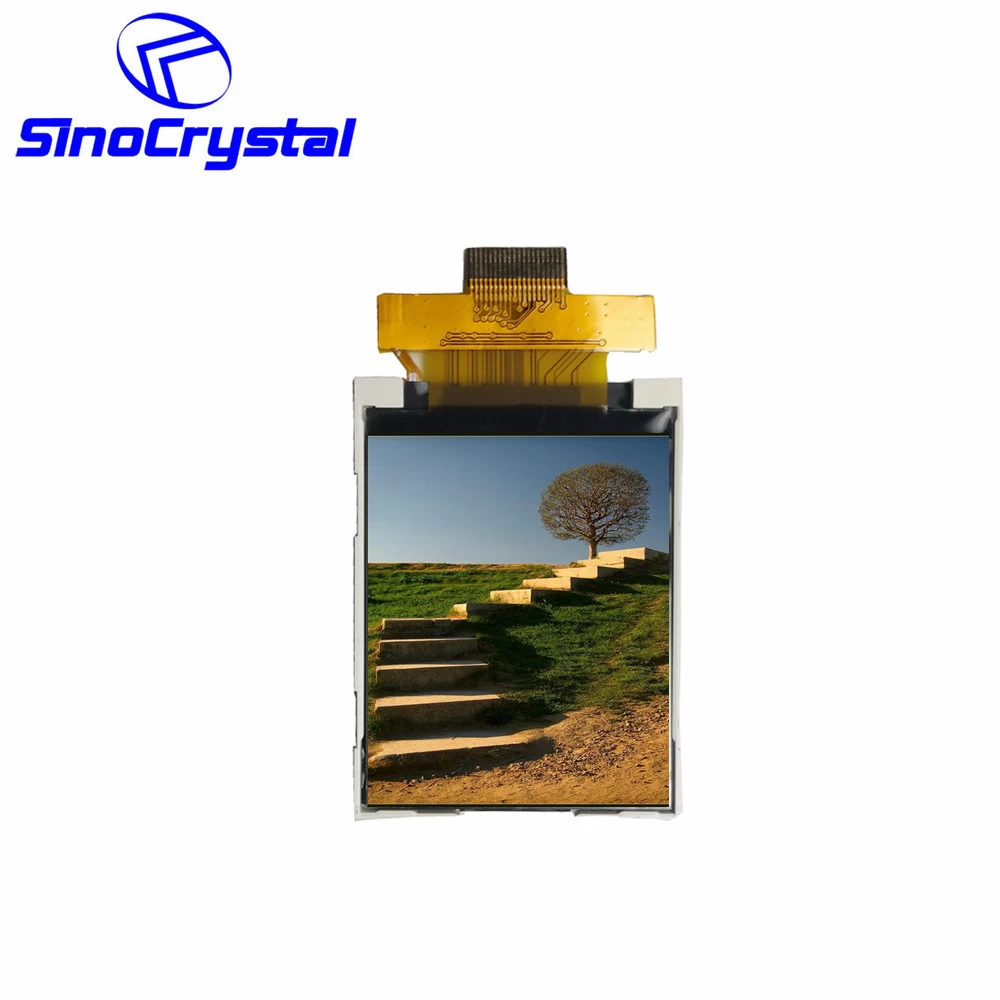

SCT018001-V01 is a color TFT 128x160 LCD display module, diagonal size 1.77 inch. This module is built in with ST7735S-G4 IC; it supports 8bit MCU interface. And view direction is 12 o'clock.


  • Temperature (℃)-20°C~70°C
  • Touch ScreenNo
  • Brightness (cd/m²)300
  • IC Part No.ST7735S
  • Interface8bit MCU
  • Active Area (mm)28.032*35.040
  • View Direction12
  • Outline Dimension (mm)34.00*45.83*2.75
  • Viewing Area (mm)31.832*41.420
  • Resolution128*160

Basic Information


Resolution:                    128x160

Outline Dimension:       34.00*45.83*2.75

Active Area:                  28.032*35.040

View area:                     31.832*41.420

Interface:                      8bit MCU

Driver IC:                       ST7735S-G4

View Direction:              12 o'clock

PIN:                                20

Backlight:                      White LED

Touch Screen:              No touch screen for standard. If you need touch, click for a inquiry

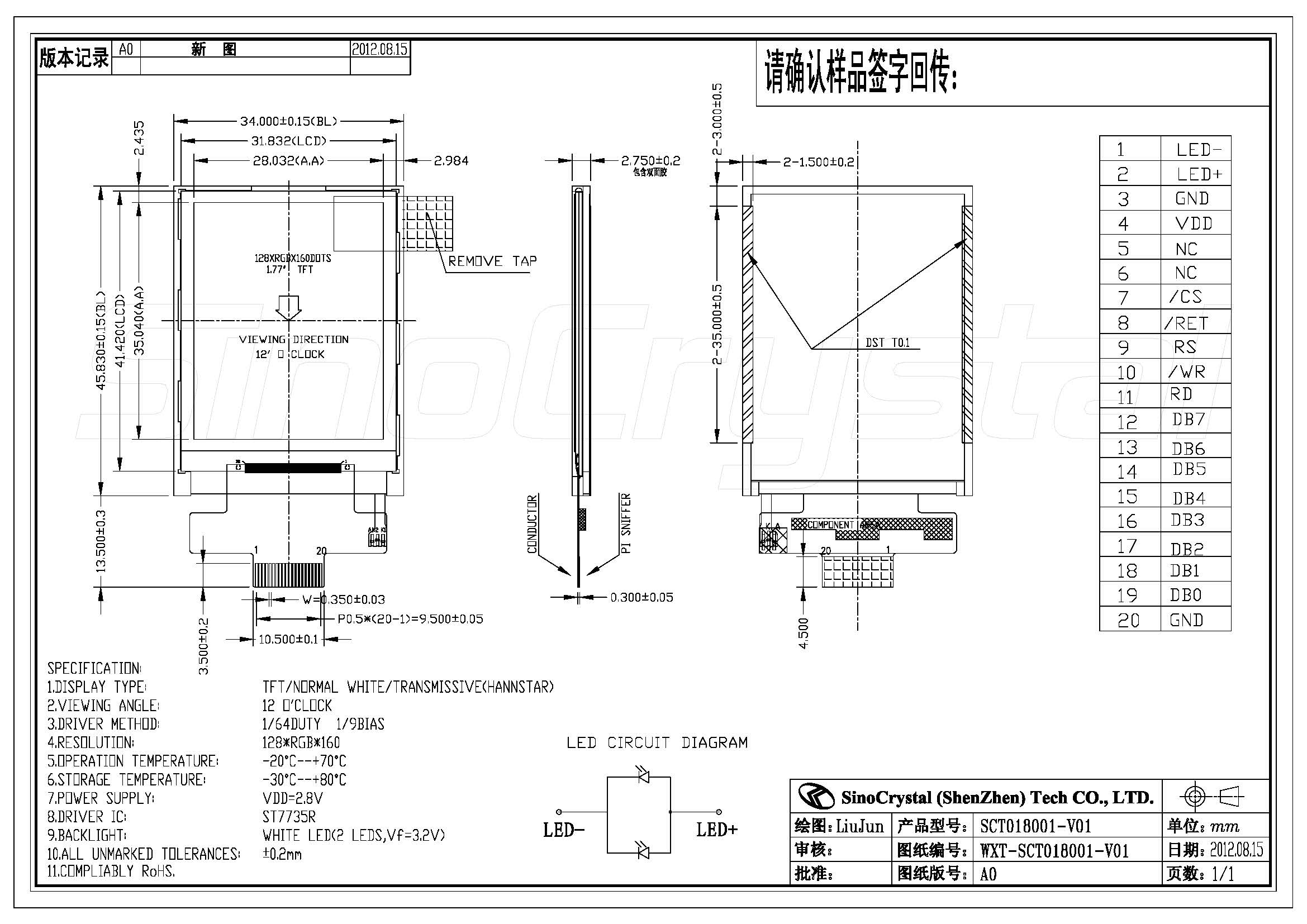

Drawing




General Specification

Item Nominal Dimension Unit
 Dot Matrix 128 x RGB x 160 Dots
 Module Size ( W×H×T ) 34.0 x 45.83 x 2.75(max) mm.
 Active Area ( W×H ) 28.032 x 35.040 mm.
 Pixel arrangement RGB Stripe mm.
 Dot Pitch ( W×H ) 0.219 x 0.219 mm.
 Color depth 262K(MAX) colors
 Interface 8 bit MCU -
 Driving IC Package COG -
 Operating temperature -20 ~70 ºC
 Storage temperature -30~80 ºC
 LCD Type a-Si TFT -
 LCD Mode TN/Normal White -
 Backlight Type LED x 2 PCS


Interface Definition

Pin No Pin Symbol Level Description
1 LED- - LED light, cathode.
2 LED+ - LED light, anode
3 GND 0V Ground
4 VDD 2.3-3.6V Power supply
5 NC - Dummy
6 NC - Dummy
7 /CS H/L Chip Select signal
8 /RESET H/L Chip reset signal
9 RS H/L Register select signal. 0:index register; 1: data register
10 /WR H/L Write signal
11 /RD H/L Read signal
12 DB7 H/L data bus 7
13 DB6 H/L data bus 6
14 DB5 H/L data bus 5
15 DB4 H/L
data bus 4
16 DB3 H/L data bus 3
17 DB2 H/L data bus 2
18 DB1 H/L data bus 1
19 DB0 H/L data bus 0
20 GND 0V Ground
