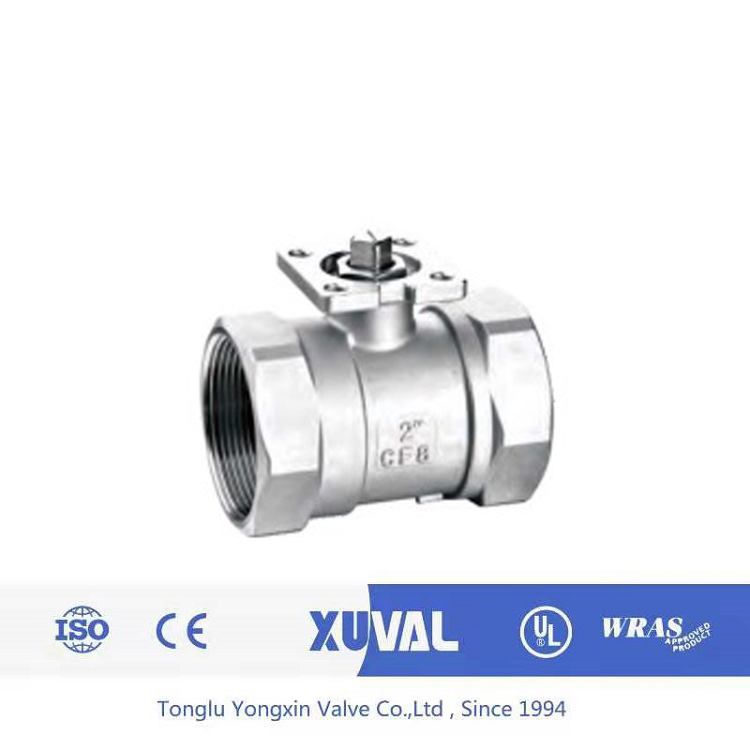

1-PC Ball valve thread end direct mounting pad

1-PC Ball valve thread end direct mounting pad

Advantages:

1. the fluid resistance is small, the resistance coefficient is equal to the pipe section of the same length.

2. simple structure, small size and light weight.

3. tight and reliable, the sealing surface material of ball valve is widely used in plastic, good sealing, and has been widely used in vacuum system.

4. operation is convenient, open and close quickly, from full open to full close as long as 90° rotation, easy to remote control.

5. maintenance is convenient, ball valve structure is simple, sealing ring is generally active, disassembly and replacement are more convenient.

 6. when fully open or closed, the sealing surface of the ball and seat is isolated from the medium, and when the medium passes, it will not cause erosion of the sealing surface of the valve.

Applications:

One piece ball valve is a new type of ball valve. It has some advantages unique to its own structure, such as no friction on switch, easy wear of seal and small opening and closing torque. This reduces the size of the actuator. With multi-rotating electric actuator, the medium can be adjusted and tightly cut off. Widely used in petrochemical city water supply and drainage requirements strictly cut off the working conditions.

Features:

Reduced port,3/8"~2"(DN10~DN50)

W.P.:1000WOG(PN63)

W.T.:-20℃~180℃

Investment casting

Blow-out proof stem(1-1/4"~2")

ISO 5211 Direct mounting pad

Automation accessories(option)

Thread type:ASME B1.20.1(NPT)

                 DIN 259/DIN 2999,BS 21.

                 ISO 288-1,ISO 7-1

Unit:mm
