Applications:
10CBM Vacuum Suction Truck Beiben (also called Sewage suction truck Beiben, Beiben Sewege Cleaning Truck, new Sewage sucking tanker, Beiben Sewage tank vehicle, 10,000Litres Sewage treatment truck) is used to collect, transport and discharge liquid such as dirty water,
sludge, septic, crude oil, and solid stuff such as small stones, bricks
as well. It is suitable for cleaning the sewer, cesspit, cesspool,
gully, etc. It is widely used in environment and sanitation field.
CEEC TRUCKS Kitchen
garbage truck truck which use WEILONG or Italy BP vacuum pump, for 10CBM
or more recommend Double Pump for efficiently working.
The septic pump truck can be equipped with cabin Pneumatic Control for easy operation.
Key Features:
---- Beiben chassis, perfect performance
---- WEICHAI engine, super powerful, no overhaul within 100,000 km.
---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
|

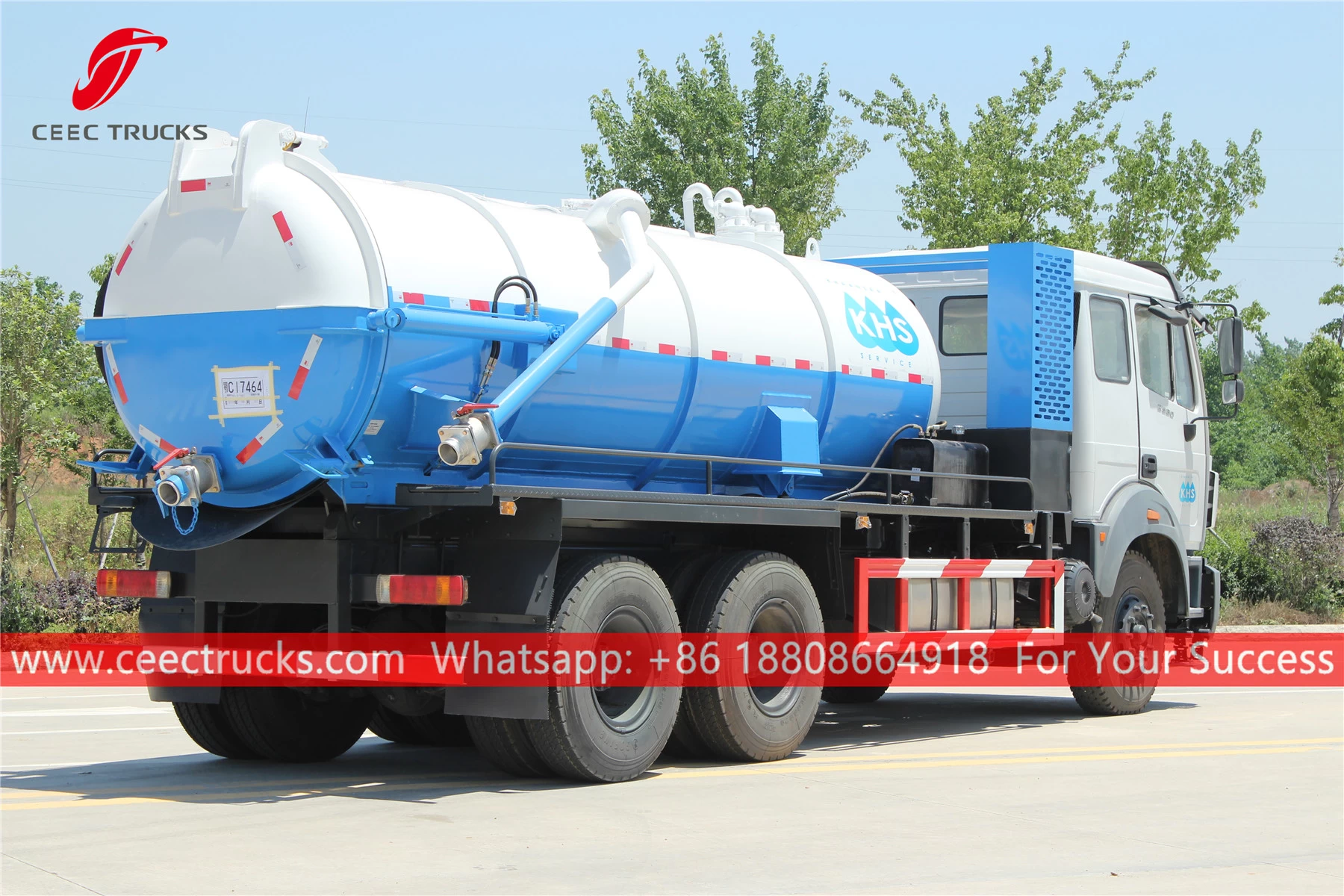

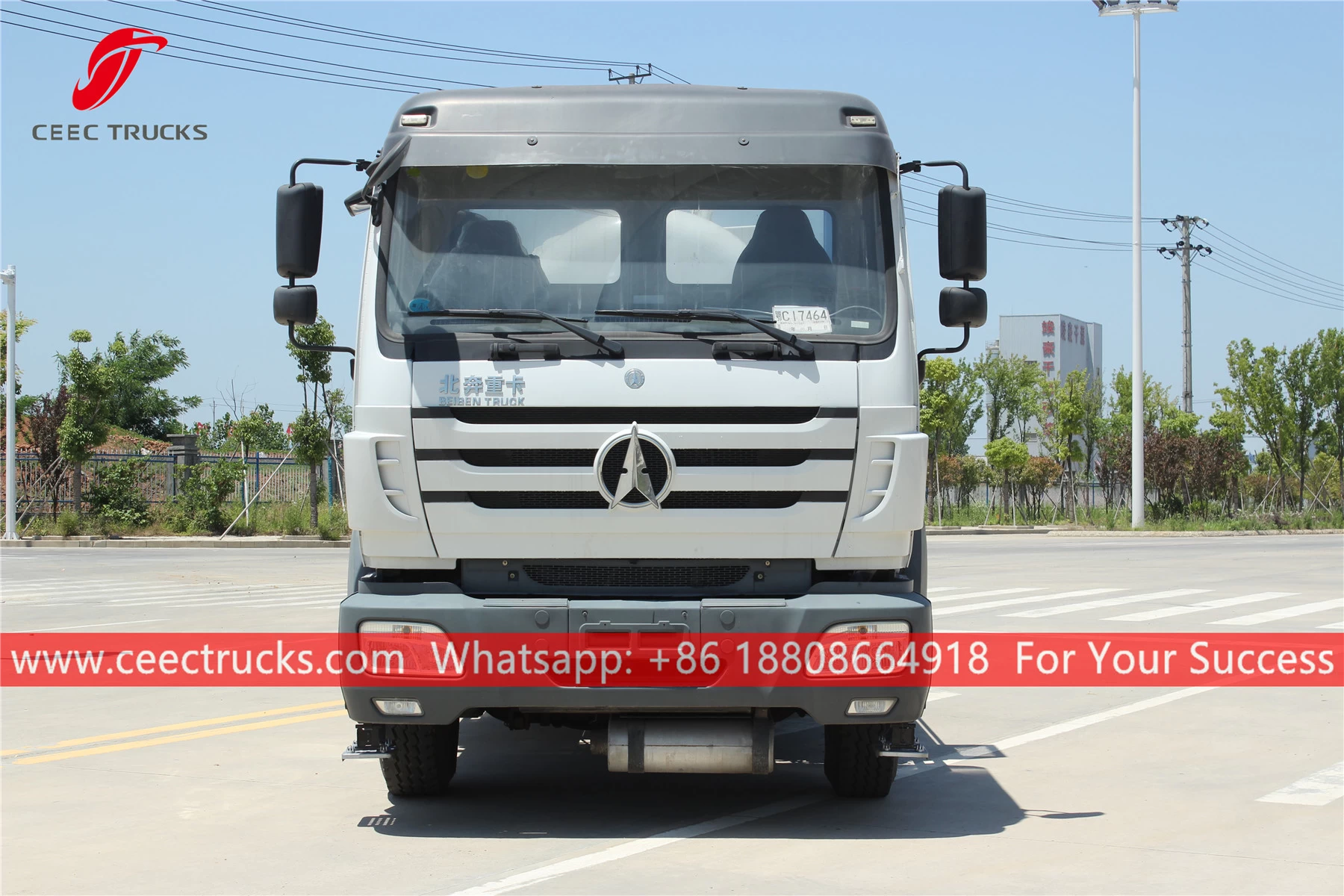

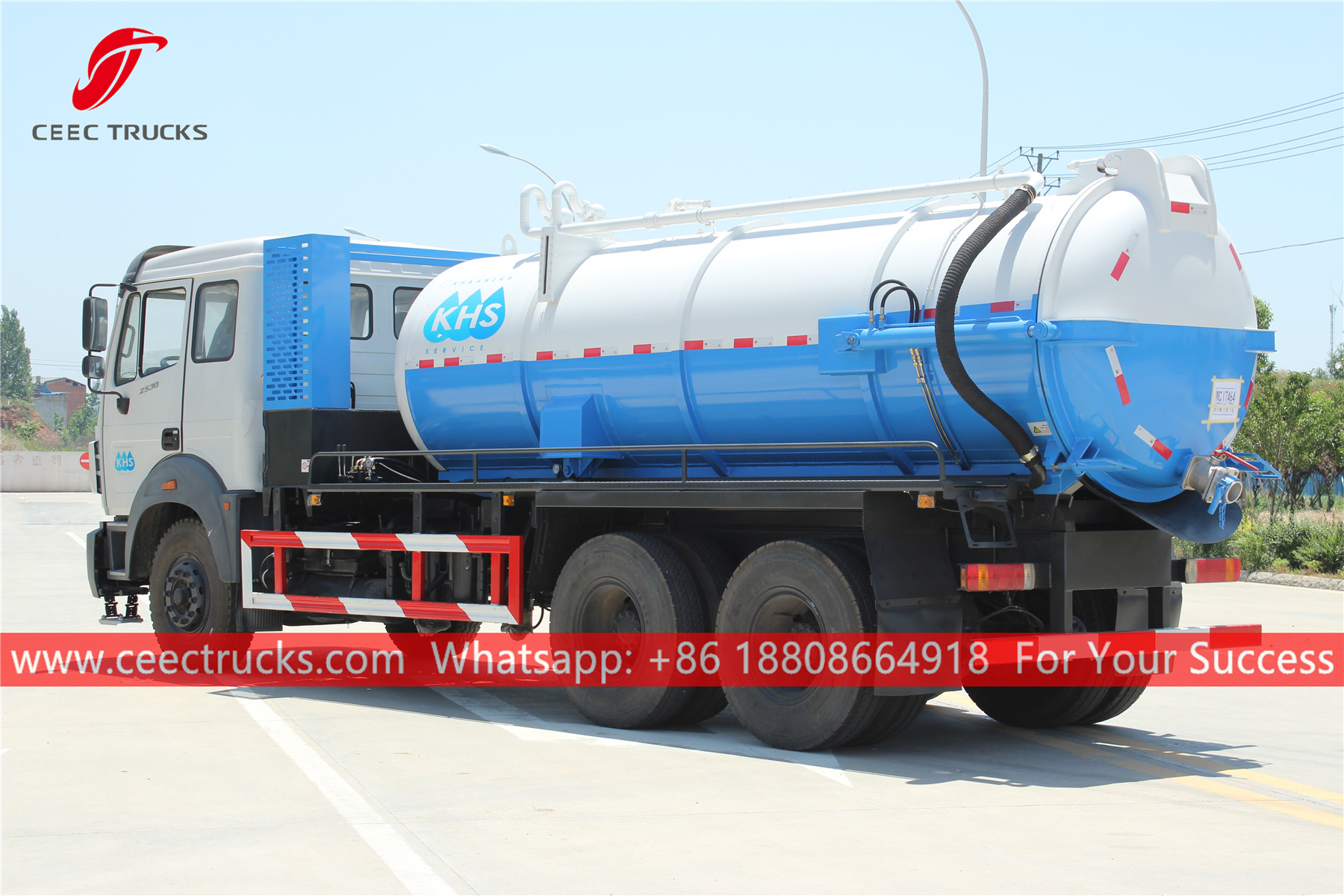

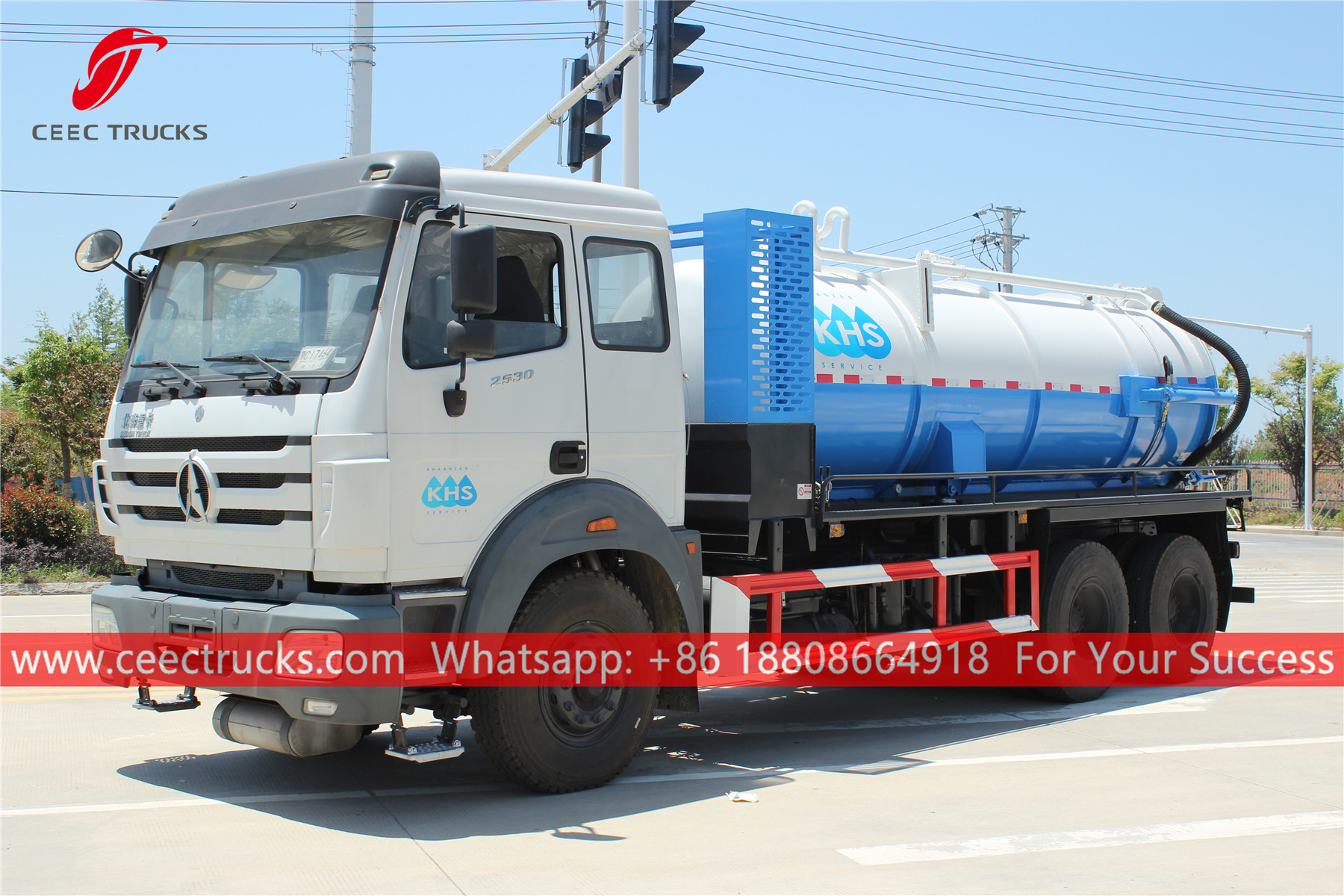

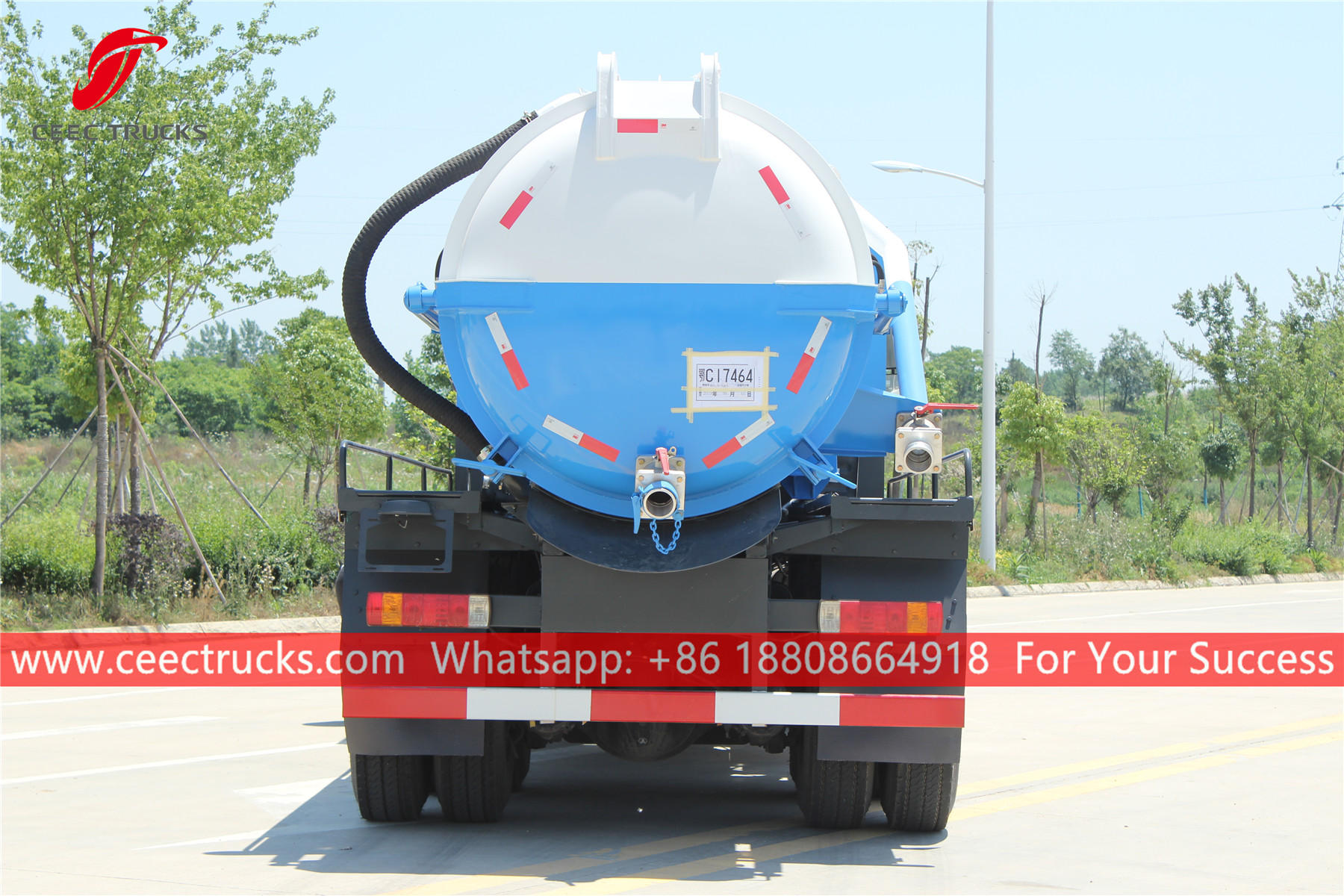

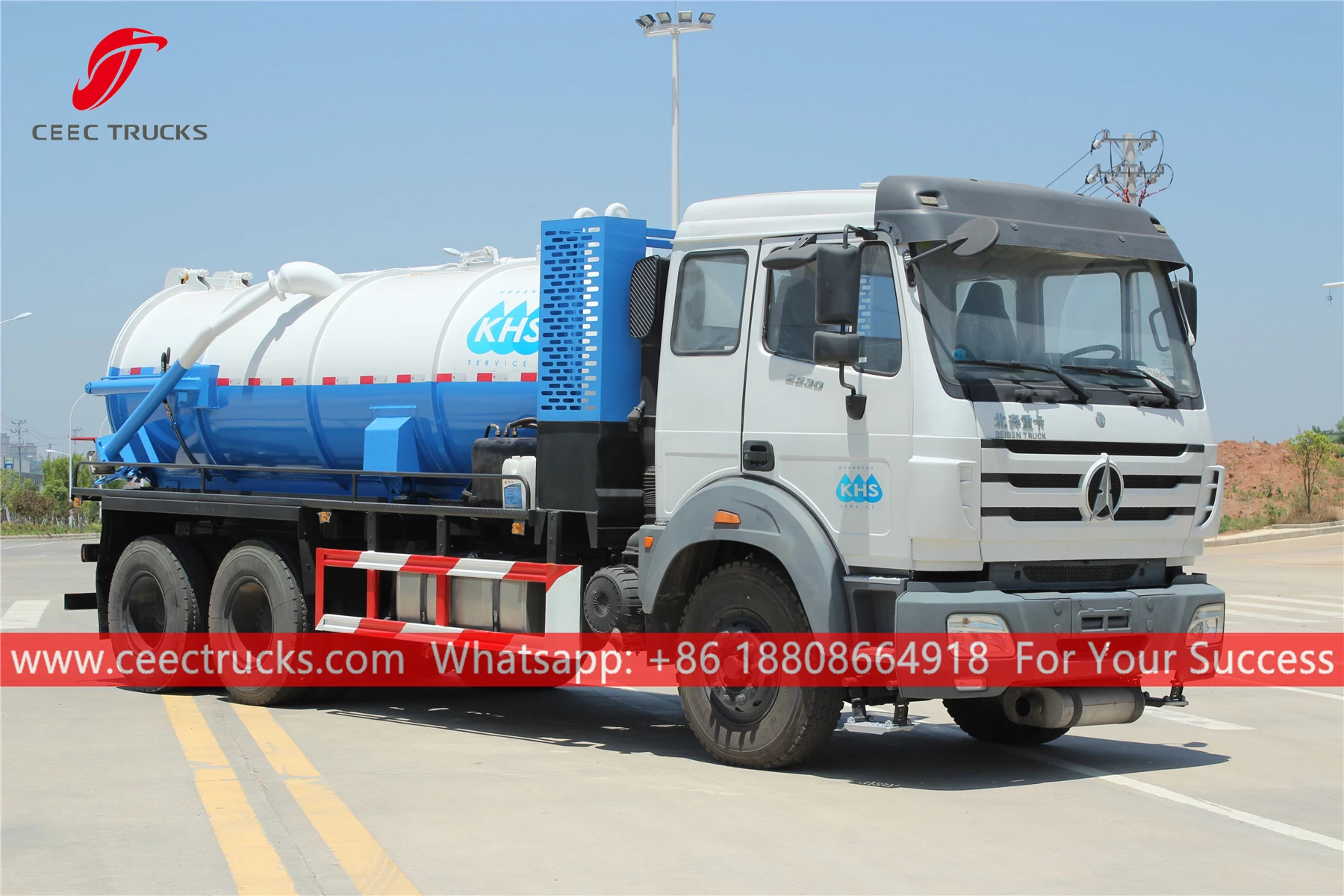

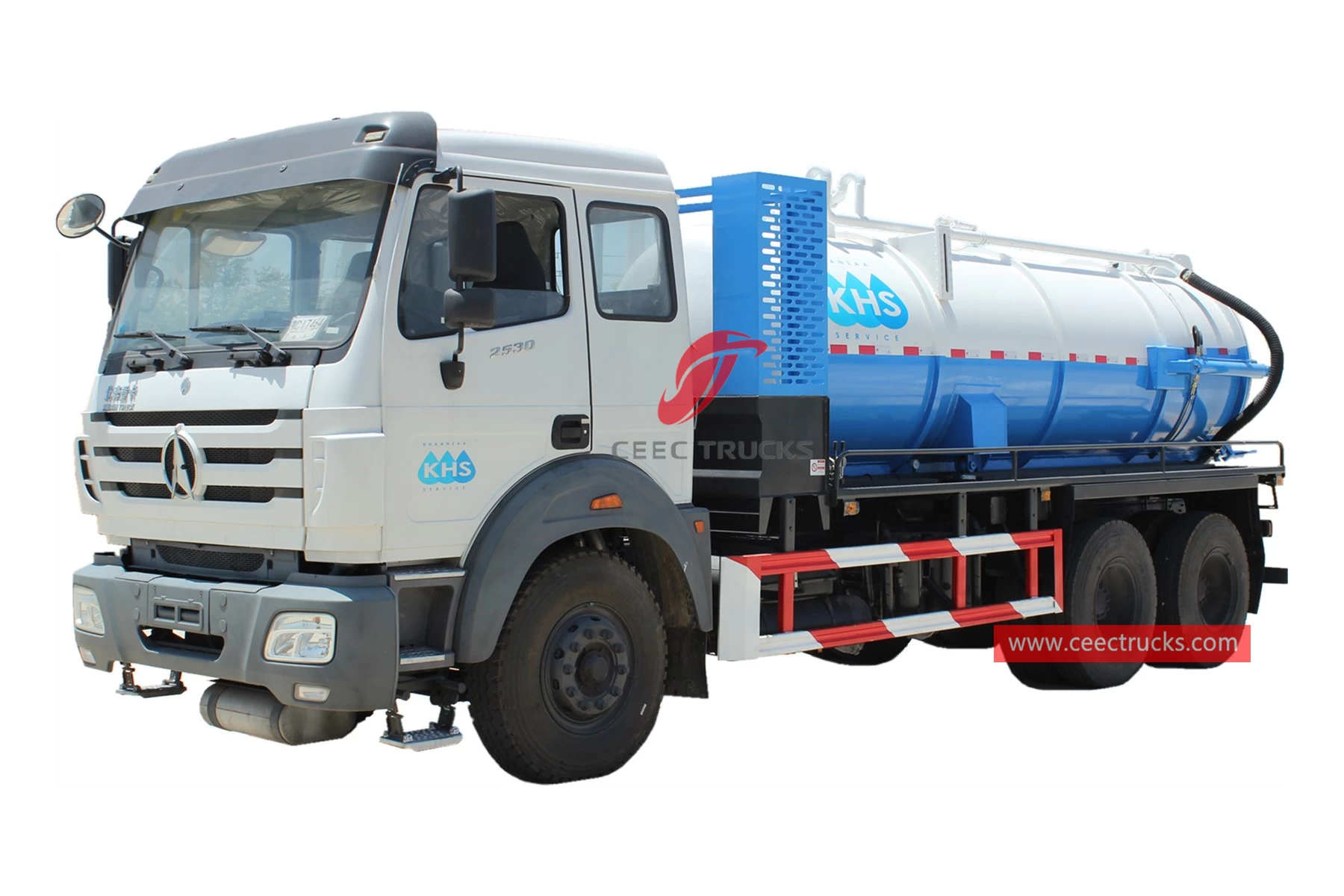

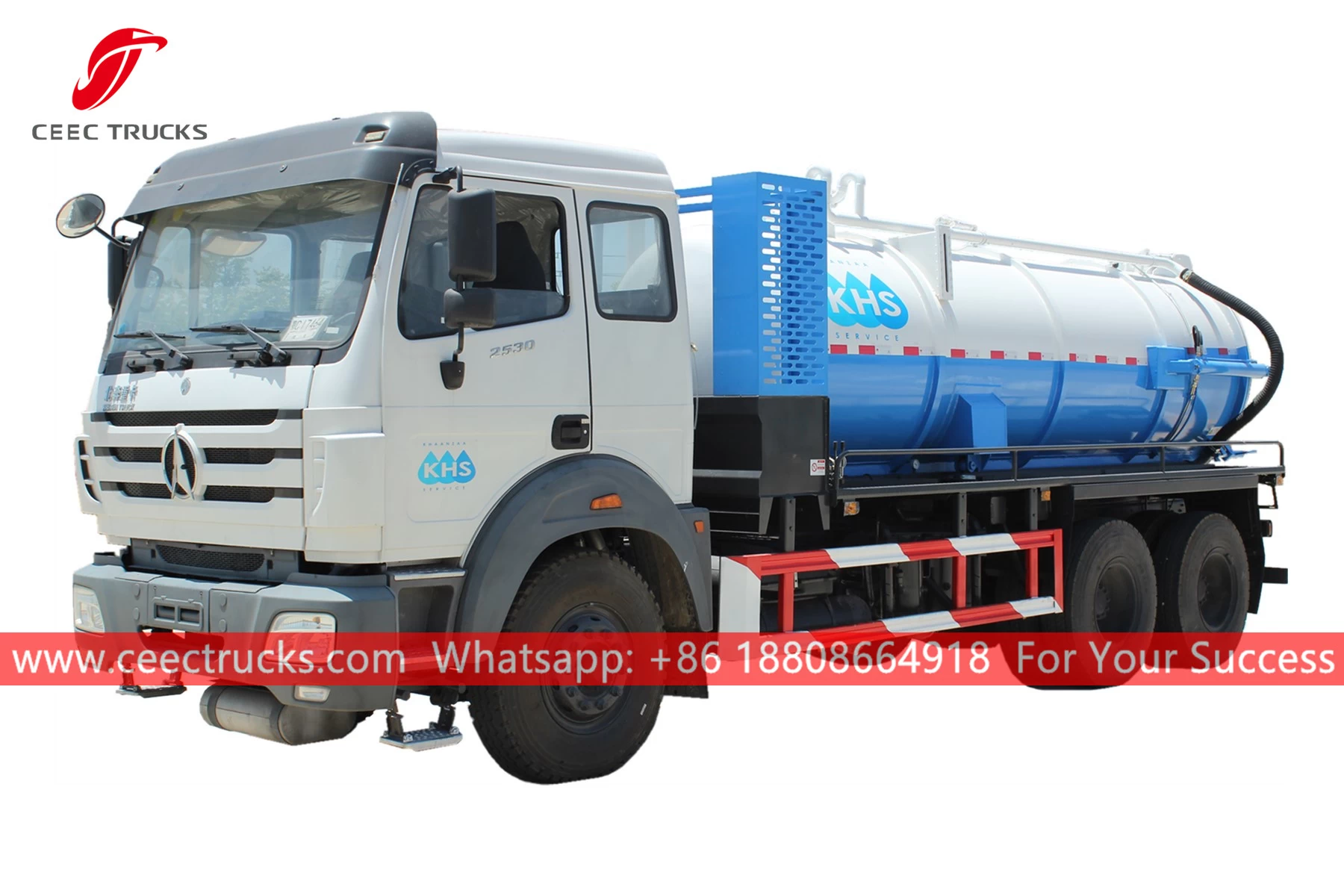

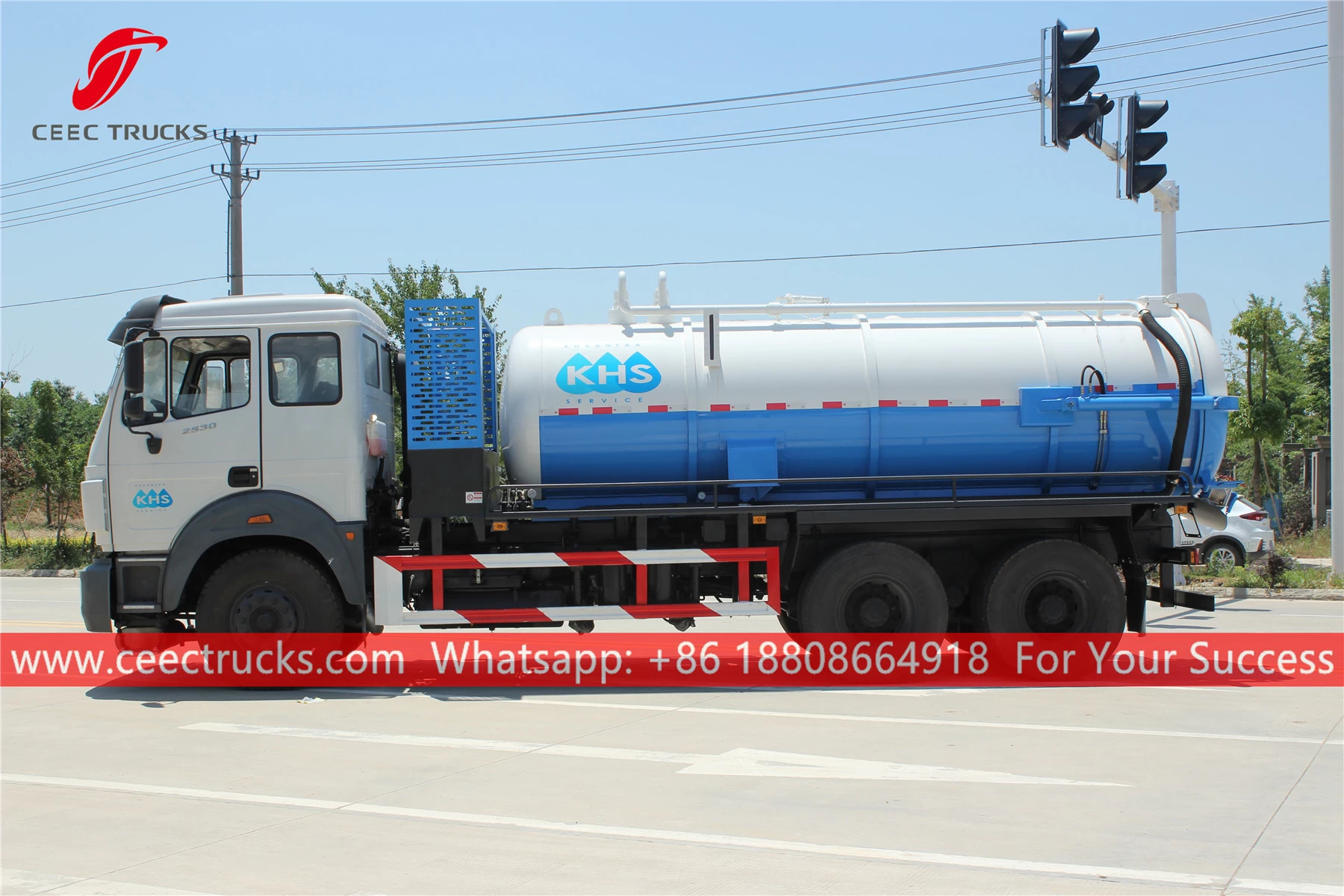

Vacuum Sewage Suction Truck Beiben (10 cbm)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
Beiben
|
|
Overall Dimension
|
8900 * 2500 * 3600 mm
|
|
GVW / Kerb Weight
|
18,000kg / 9,405kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
WEICHAI
|
|
Power
|
300 HP (220 KW)
|
|
Displacement
|
9726 ml
|
|
Emission Standard
|
Euro 3 or 4
|
|
Chassis
|
Drive Type
|
6X4, (left / right hand drive)
|
|
Transmission
|
6-shift speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
4350+1300 mm / 3
|
|
Tire Specification
|
11.00-20
|
|
Tire Number
|
10 tires and 1 spare tire
|
|
Max Speed
|
100 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Body capacity
|
10,000 Litres
|
|
Tanker Material
|
Carbon Steel
|
|

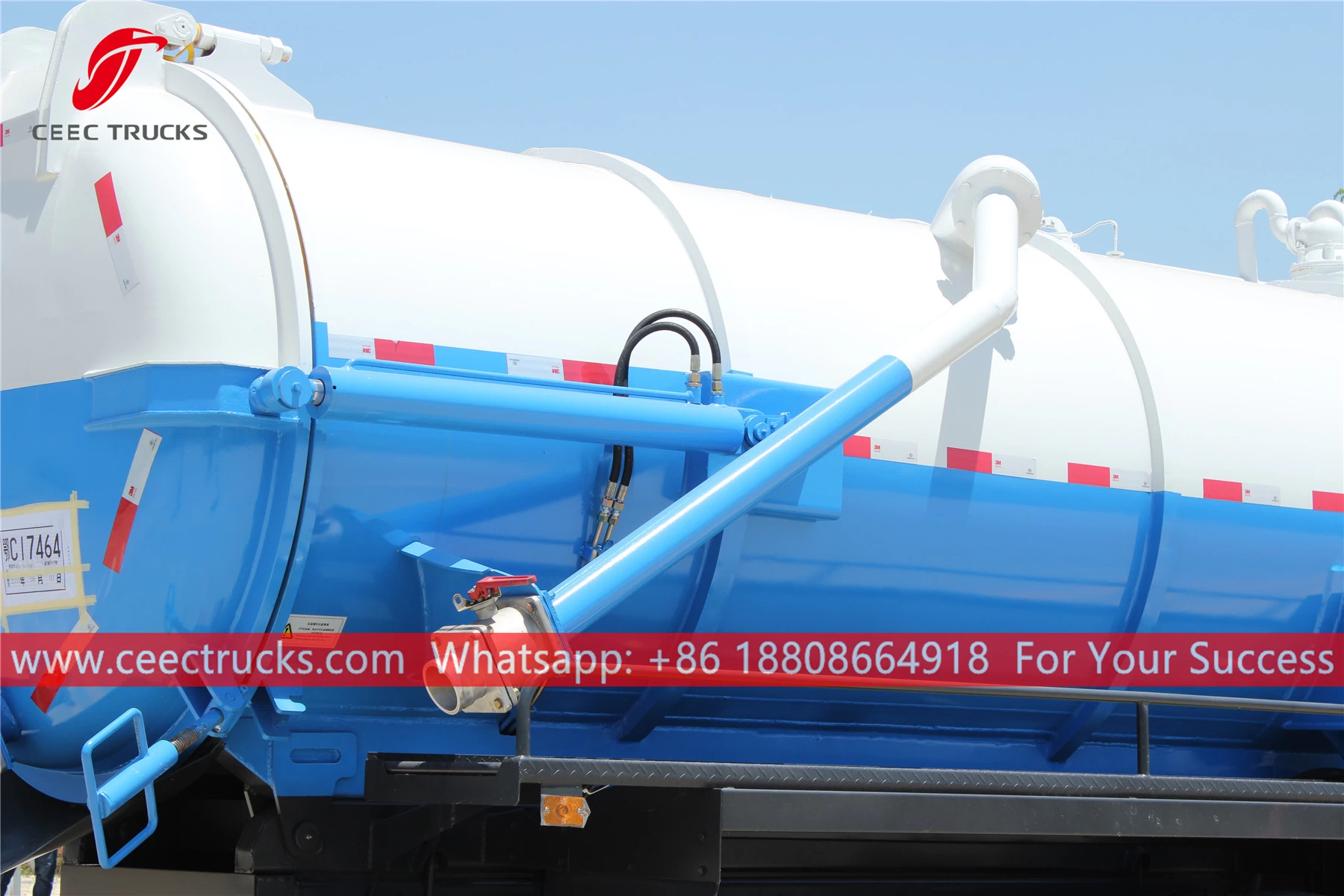

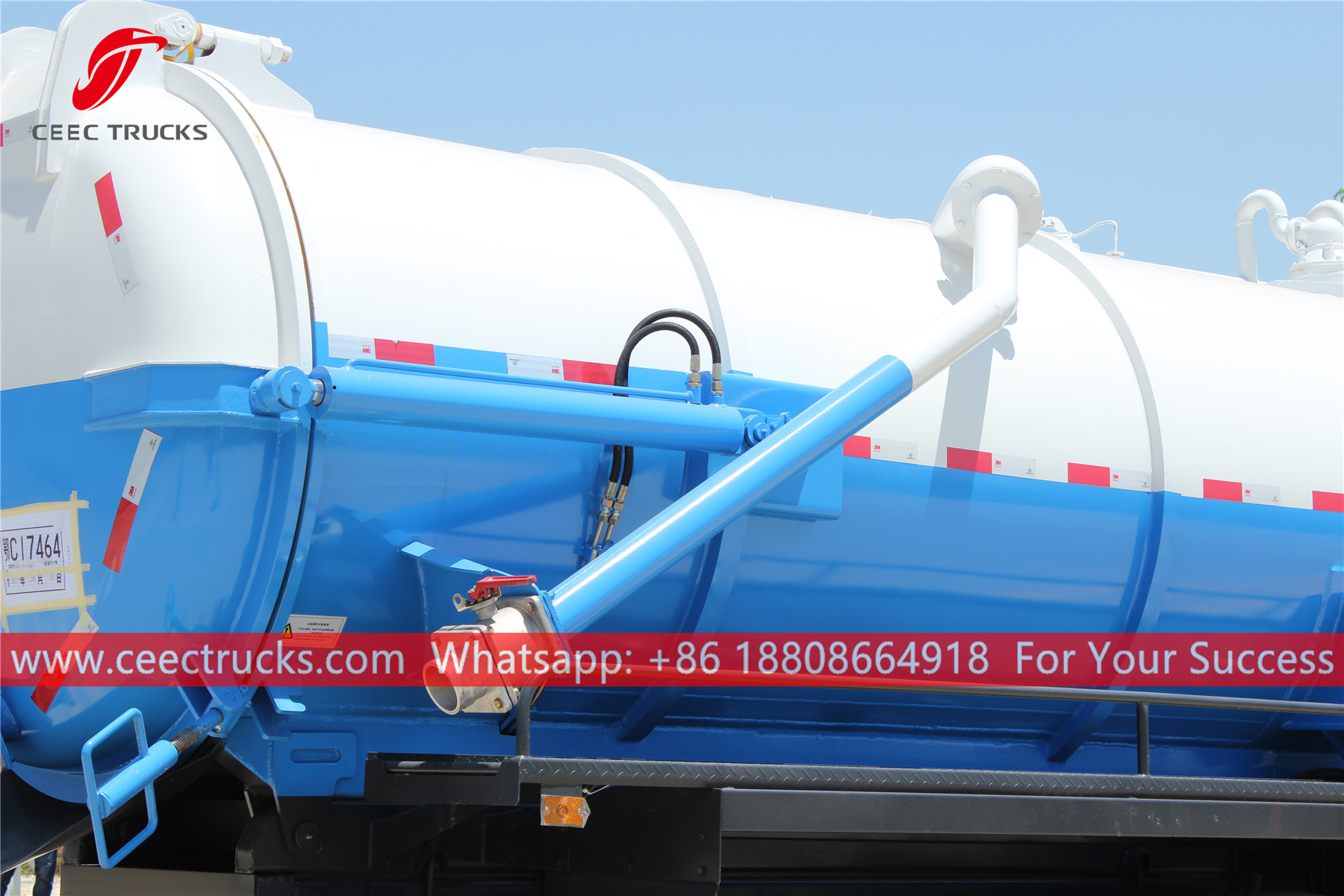

Suction Head pipeline
|
7 m
|
|
Vacuum Pump brand
|
WEILONG / Italy BP / Domestic Pump
|
|
Vacuum Pump advantage
|
High efficient, vacuum rate 93%,
quick suction and discharge, suction lift 6m
|
|
Hose
|
High quality, wire strengthened hose
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual……
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Standard carbon steel, stainless steel optional.
** Standard WEILONG vacuum pump, Italy vacuum pump optional
|
