10.1" Android Industrial Panel PC RK3568 Main Chip Bulk Buy
Product Introduction
Industrial Panel PCs Built for Long-Term Operation in the Most Demanding Work Environments
Built to reliably withstand the rigors of long term operation in even the most extreme work environments, this 10.1" industrial touchscreen panel PCs easily handle vibration, moisture, water, shock, and dust. Thanks to a fanless cooling system, these panel mountable pcs deliver reliable and quiet productivity 24/7. The interior of each industrial touchscreen PC is comprised of industrial-grade components designed to stand the test of time operating in harsh environments.
With our Panel PCs, we offer customers innovative complete solutions consisting of specially developed embedded components, displays designed for industrial use, state-of-the-art operating technology and customised software packages. Whether as an open frame/chassis or standalone solution, our Panel PCs are available in a wide variety of designs and, thanks to their compact design, suitable for easy integration in many application areas - from industrial HMI applications to medical applications.
| Specifications |
Optional configurations |
| Front Panel |
Aluminium panel, brushed oxidised black |
Available in natural or other colours, with optional sandblasted finish |
| Back chassis |
1.2mm Steel sheet, black |
Available in silver, or other colours |
| Adaptive Motherboard |
RK3568 Dedicated motherboard |
Optional RK3128/RK3288 motherboard |
| LCD Screen |
10.1” TFT，LED Backlighting；Resolution 1280*800；Dot Matrix：0.1695*0.1695；Max colour：16.7M；Brightness：350cd/㎡；Contrast ratio：1300：1；Response time：25ms；MTBF：30，000h Viewing angle：(+85° ~ -85°) (+85° ~ -85°)； |
| Touch Screen |
Capacitive screen |
|
| CPU/GPU |
RK3568 1.8GHz Cortex-A55 Quad-core Mali-G52-2EE GPU with NPU supporting 0.8T calculation power |
| Memory |
2G |
Up to 8G |
| Hard Disk |
16G |
Up to 256G |
| Interface |

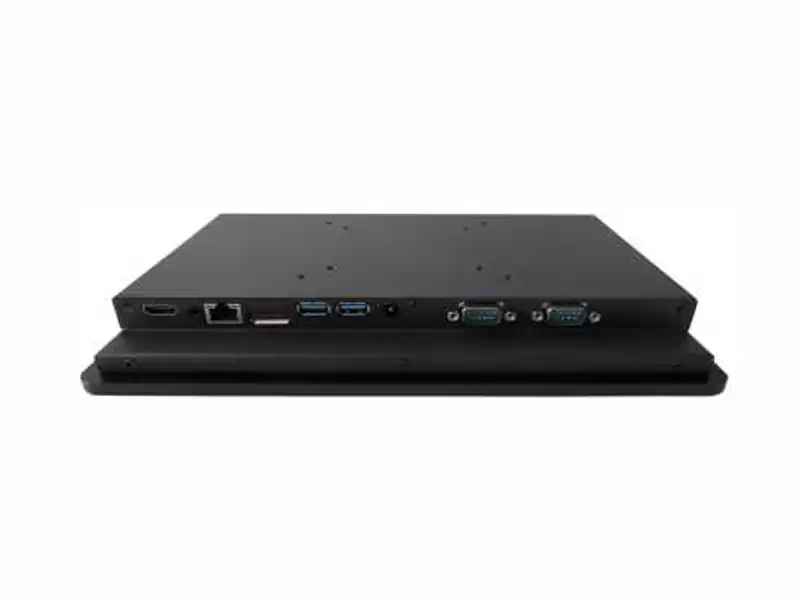

HDMI,Audio output；RJ45(Gigabit networl）；SIM card slot；TF card slot；2USB；DC12V；2COM |
Up to 4COM, 6USB, 4GPIO can be OEM |
| Wireless module |
WIFI; Optional 4G module |
|
| Size |
274mm（lenth）* 191.6mm（width）* 36mm(thickness） |
Weight |
1.5/2KG |
| Power Supply |
12V@3A adapter |
DC9V-36V input can be OEM |
| Installation mode |
Recessed screw mount; Recessed hook mount; VISA wall mount |
| Work and Environment |
| Working temperature |
0～60℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| IP rating |
Panel IP65 |
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |
Product Features
■ Android industrial Panel PC
■ Brushed aluminum panel, panel IP65 waterproof rating
■ Soldered on Board RK3568 main chip, optional RK3128/3288
■ Standard 2G memory and 16G Flash hard disk, OEM available
■ Standard 1LAN 2COM 2USB, OEM available 4COM 6USB, 4 bits GPIO
■ Built-in WIFI, optional 4G module
■ Multiple mounting options available
■ Capacitive touch screen

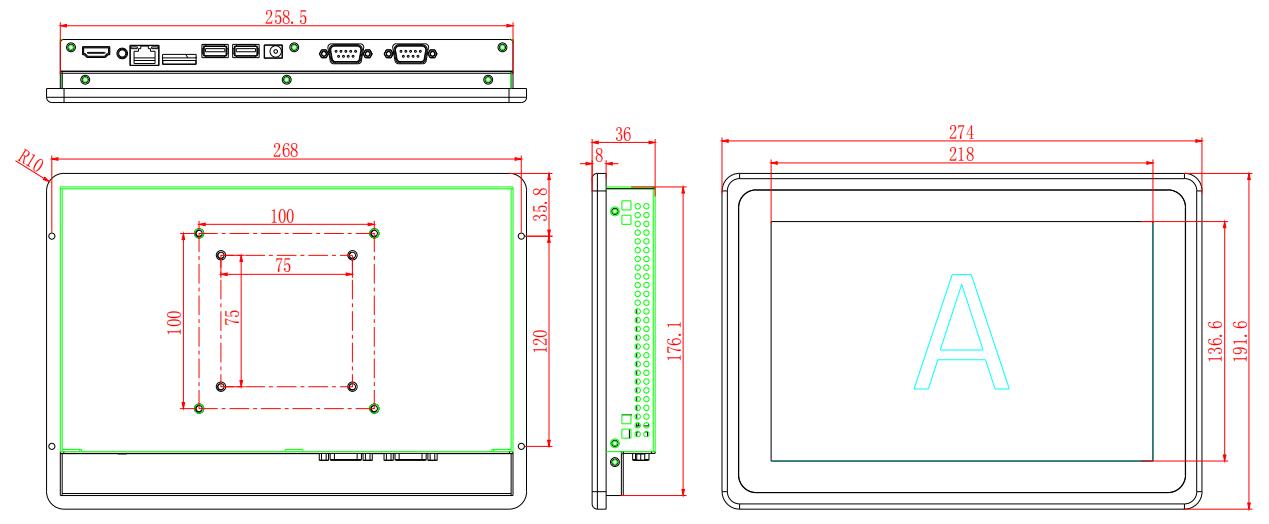

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
