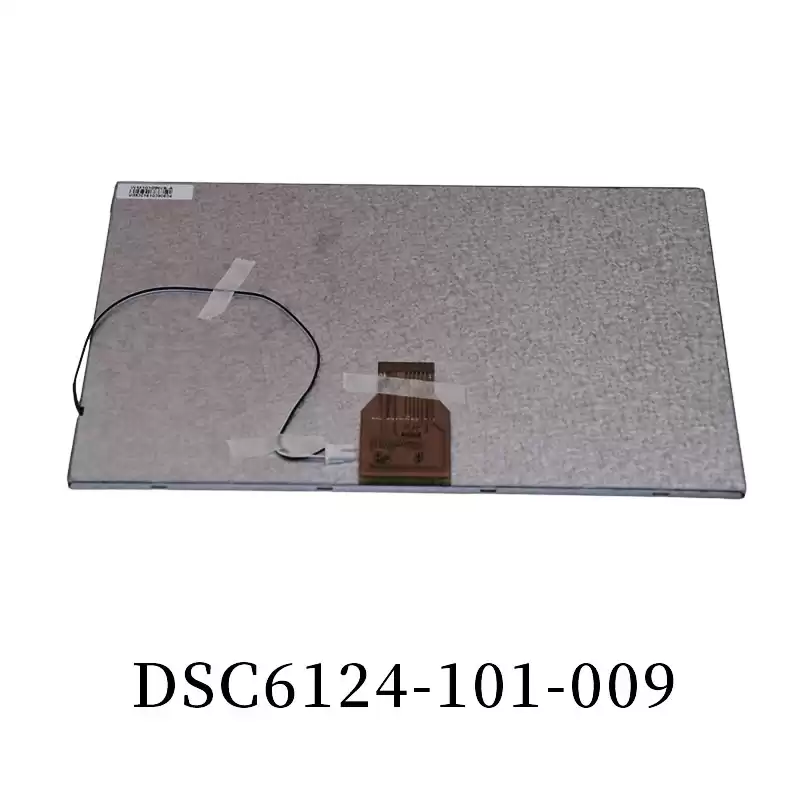

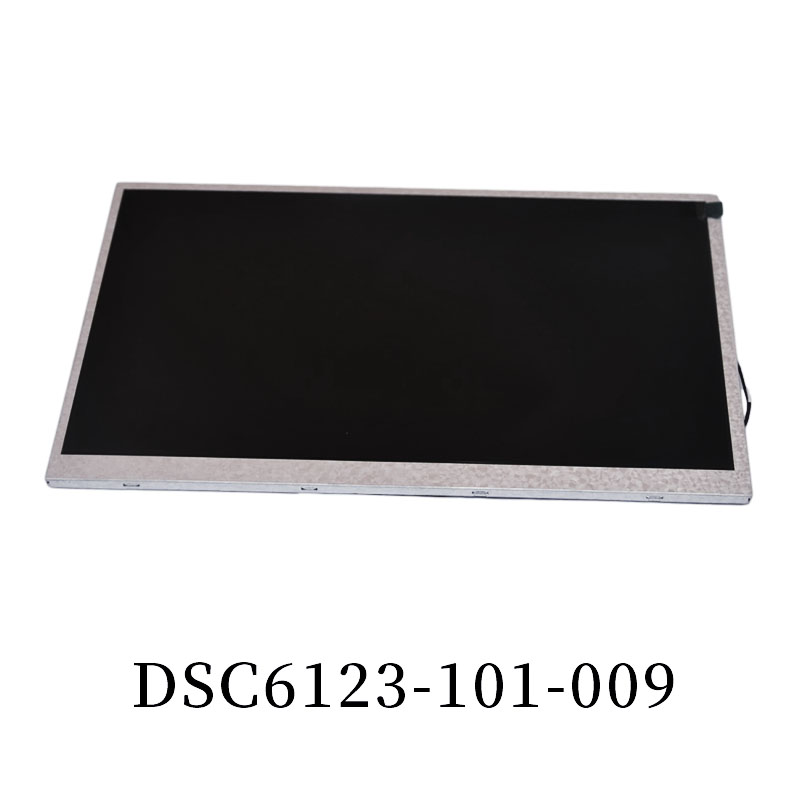

10.1 Inch IPS 1024(RGB)*600 LCD screen

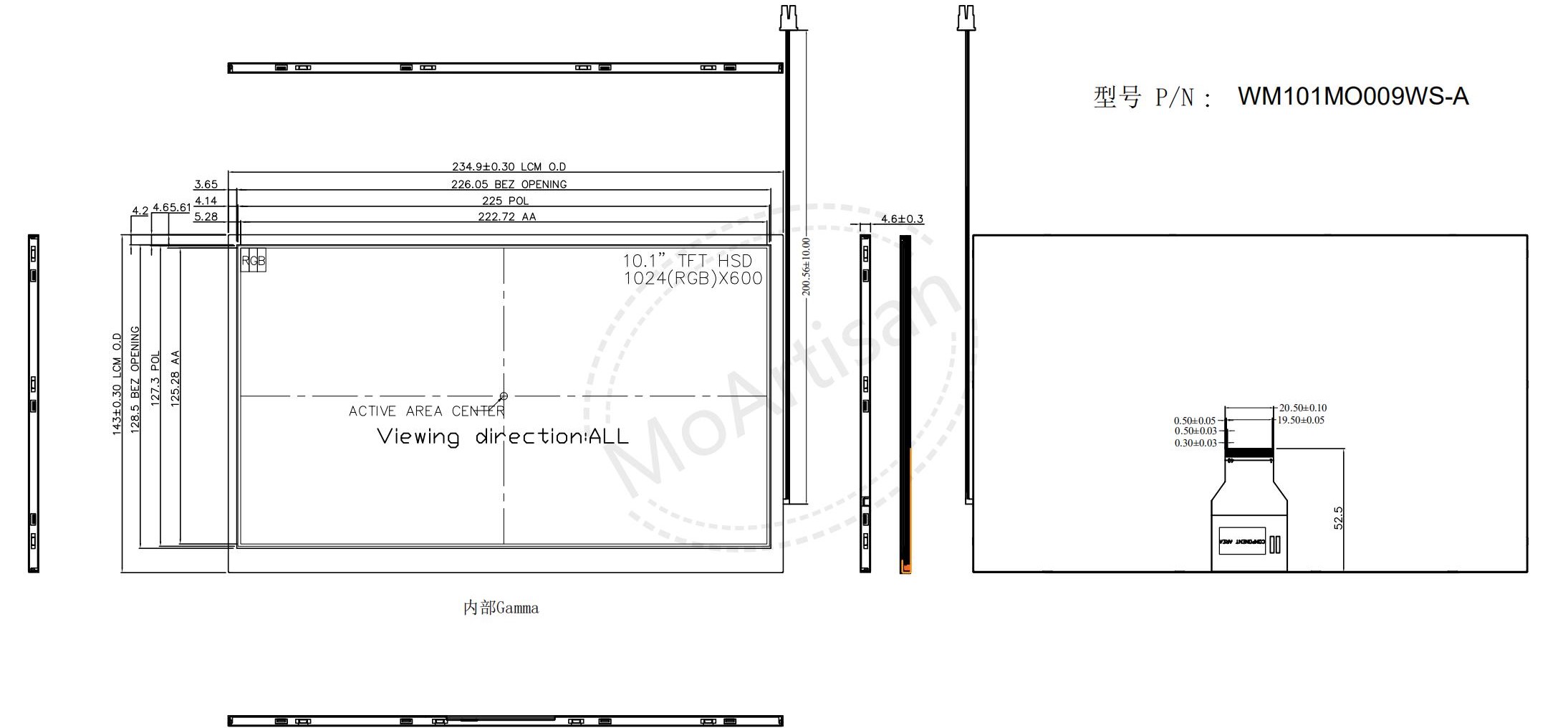

Production Drawings

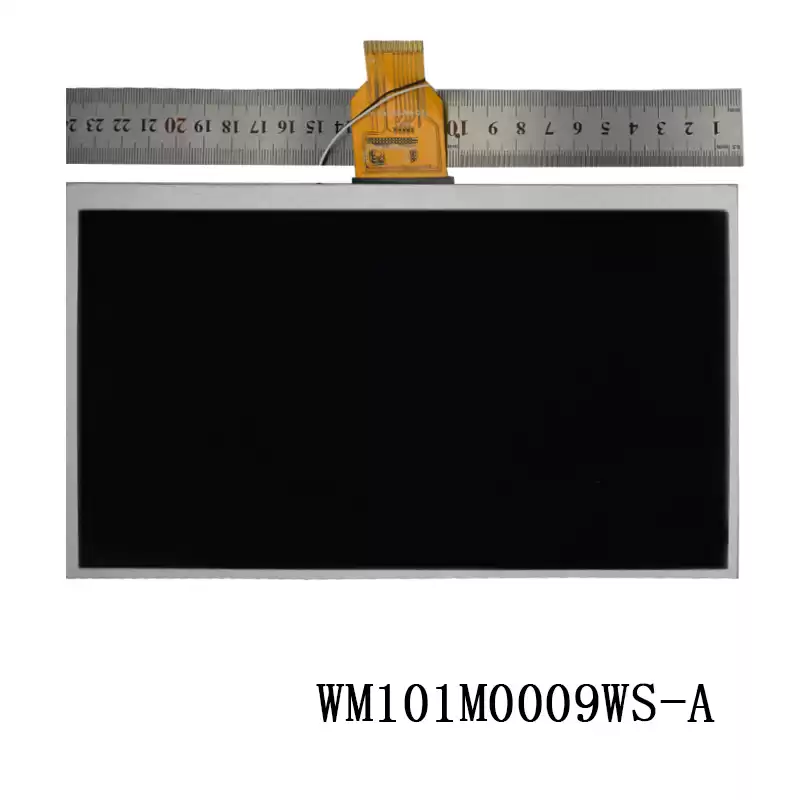

WM101MO009WS-A and WM101MO023WS-B Introduction
-
10.1 (16:9) inch
diagonally measured active display area.
-
WSVGA (1024 horizontal by 600
vertical pixel) resolution.
-
10.1 inch IPS LCD module, with 550 nits and 1000 nits brightness for each.
-
40 PIN FPC, LVDS and 60 PIN FPC, LVDS for each.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
10.1
|
WSVGA, 1024RGB*600,
IPS, Landscape view Screen
|
235.0*143.0*4.6
235.0*143.0*3.6
|
14X3 LED (50K)
|
40 PIN FPC, 8-Bit, LVDS;
60 Pin FPC
8-bit LVDS
|
550 nits/800
1000 nits/800
|
Topa: -20~+70
Tstg: -30~+80
|
85/85/85/85
|
WM101MO009WS-A
WM101MO023WS-B
|
Production Applications
Mobile Terminal, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
FAQ:
What is the difference between WM101MO009WS-A and WM101MO023WS-A?
ANSWER:
Both are the same COG part IPS cell but the difference in FPC interface and LED backlight brightness.
