10.1 Inch IPS 1920(RGB)*1200 LCD screen with PCAP

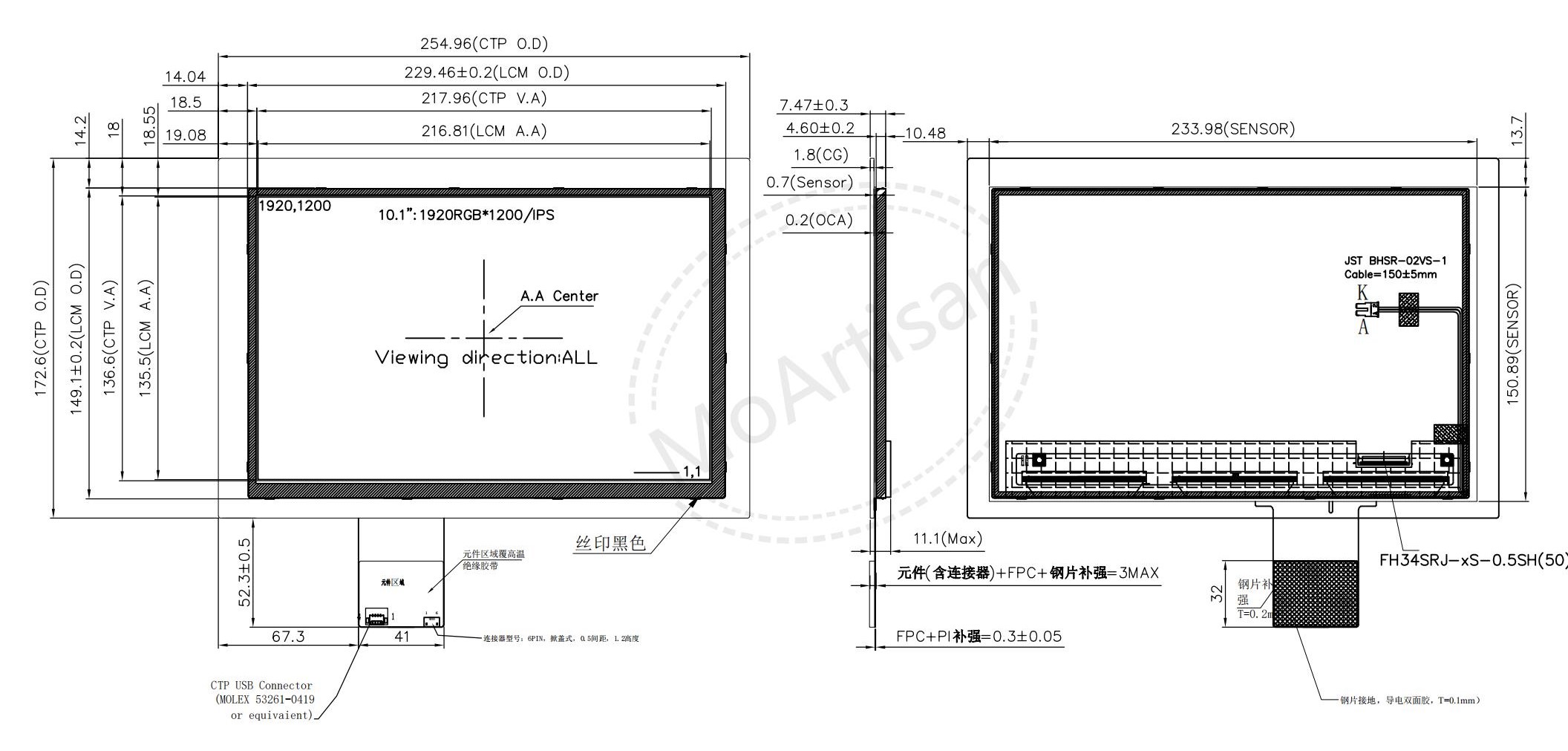

Production Drawings
WM101MC030FH-A Introduction
-
A 10.1 (16:10) inch
diagonally measured active display area.
-
WUSGA (1920 horizontal by 1200
vertical pixel) resolution.
-
This module is with 1250 nits brightness and 900 contrast ratio.
-
It can be customized with/out bezel, cover, etc.
-
It is suitable for camera auxiliary display, personal photo frame, or a monitor.
-
The lcm is laminated a PCAP with OCA.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
10.1
|
WUSGA, 1920RGB*1200, IPS, landscape screen, without Up Bezel, with USB CTP
|
254.96*172.6*7.67
|
9X5 LED (50K)
|
40 PIN Con, 8-Bit, LVDS
|
1250 nits/900
|
Topa: -20~+70
Tstg: -30~+80
|
85/85/85/85
|
WM101MC030FH-A
|
Production Applications
Mobile Terminal, Machine, Automotive, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4 weeks.
Notes:
Due to its high resolution, high brightness and high contrast, this model is very popular for customers.
Pcap with USB interface brings convenience to users.
