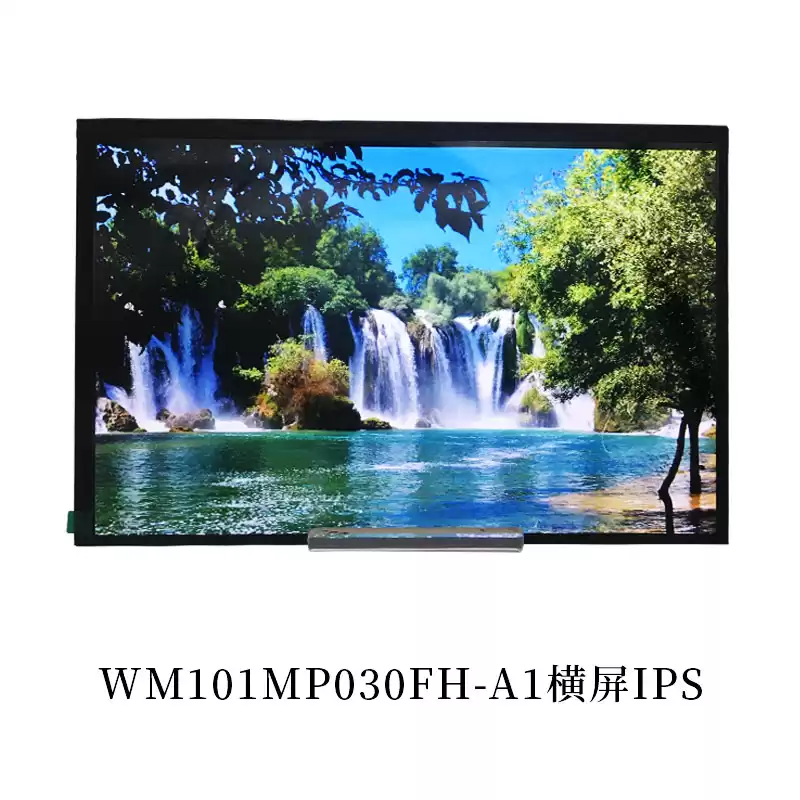

10.1 Inch IPS 1920(RGB)*1200 module with/out up bezel

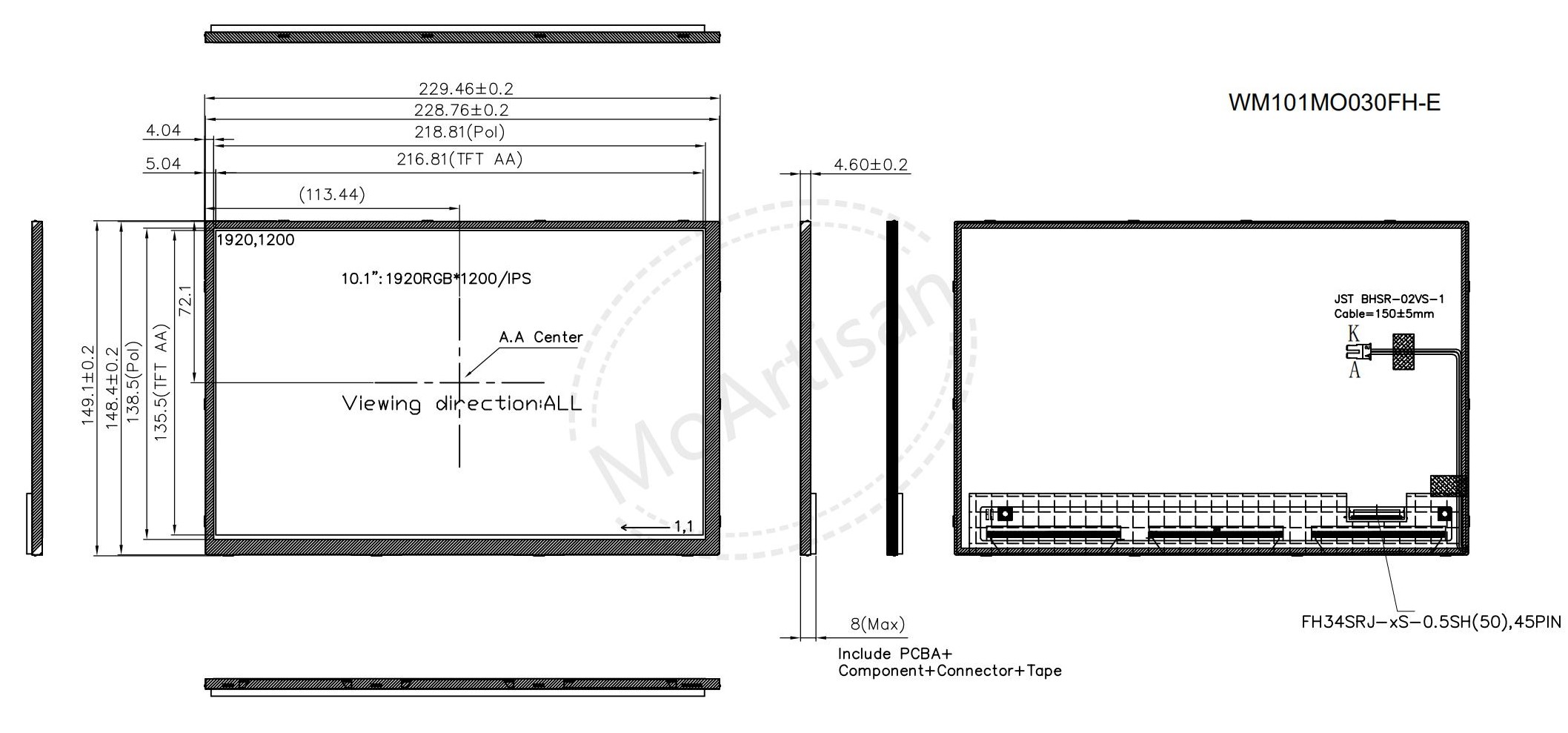

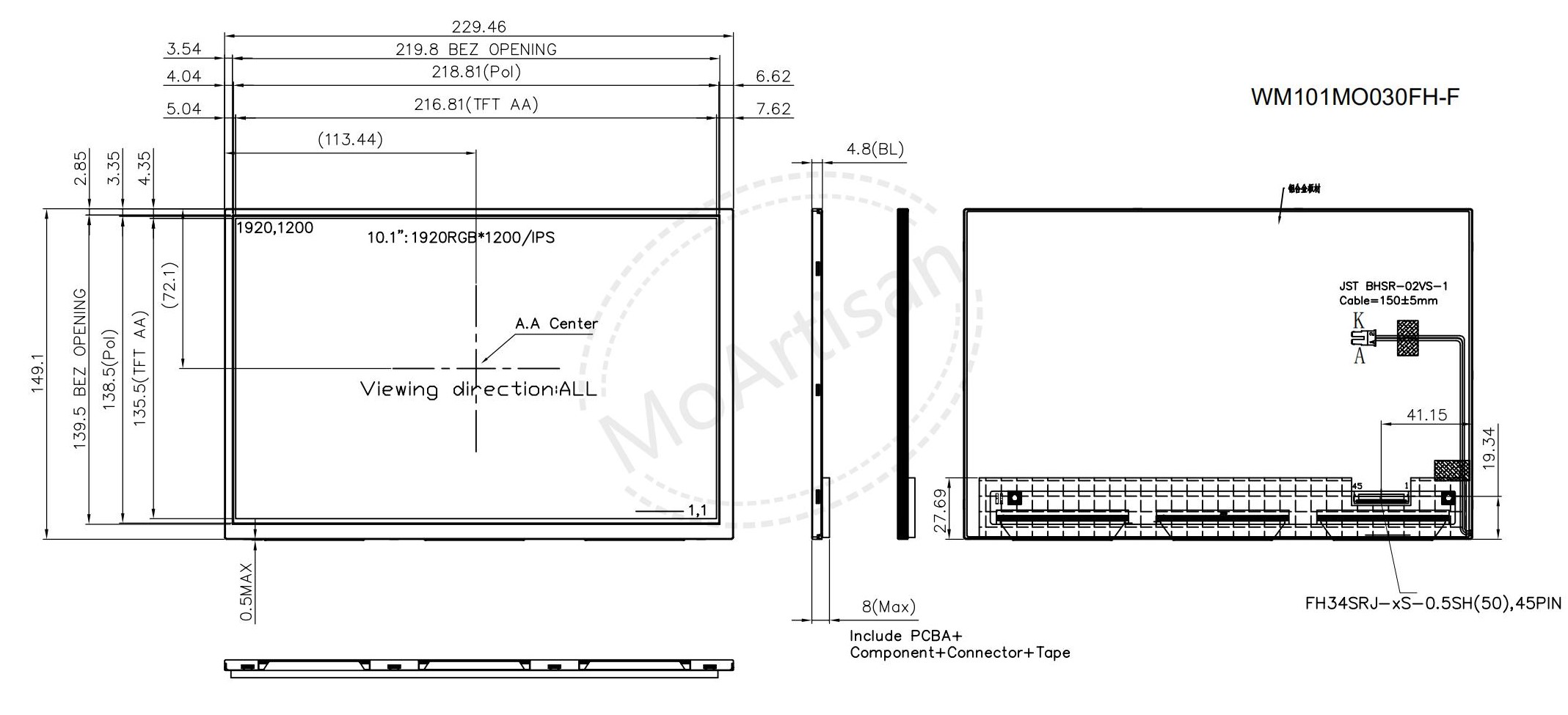

Production Drawings
WM101MO030FH-E/F Introduction
-
10.1 (16:10) inch
diagonally measured active display area.
-
WUSGA (1920 horizontal by 1200
vertical pixel) resolution.
-
Those are high resolution and high brightness TFT LCD module.
-
it is suitable for camera auxiliary display, personal photo frame, or as a monitor.
-
45 PIN CON, LVDS interface.
-
E ver. is without up bezel.
-
F ver. is with up bezel.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
10.1
|
WUSGA, 1920RGB*1200, IPS, landscape screen.
E-Ver. : without Up Bezel
F-Ver. : with Up Bezel
|
229.46*149.1*4.6
229.46*149.1*4.8
|
9X5 LED (50K)
|
45 PIN Con, 8-Bit, LVDS
|
1000 nits/900
|
Topa: -20~+70
Tstg: -30~+80
|
85/85/85/85
|
WM101MO030FH-E
WM101MO030FH-F
|
Production Applications
Mobile Terminal, Machine, Automotive, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
It can be modified according to customer requirements.
Lead time for samples: 3~4 weeks.
Notes:
This product is high resolution, high brightness and high contrast, and it is very popular for customers, you can choose to do without the iron frame, that is easy to fully fit.
