10.1 Inch TFT 1024(RGB)*600 LCD screen with PCAP, or RTP

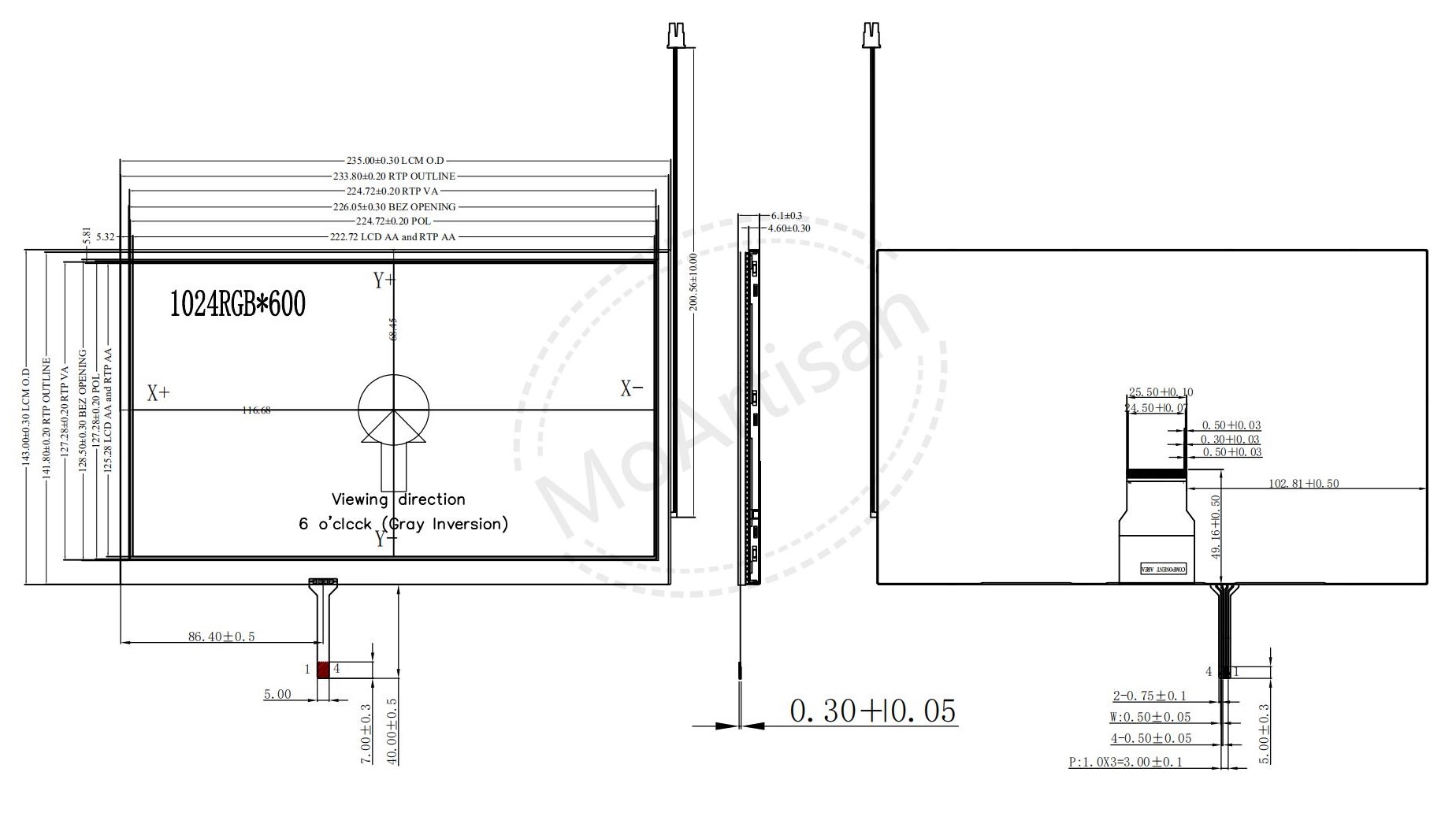

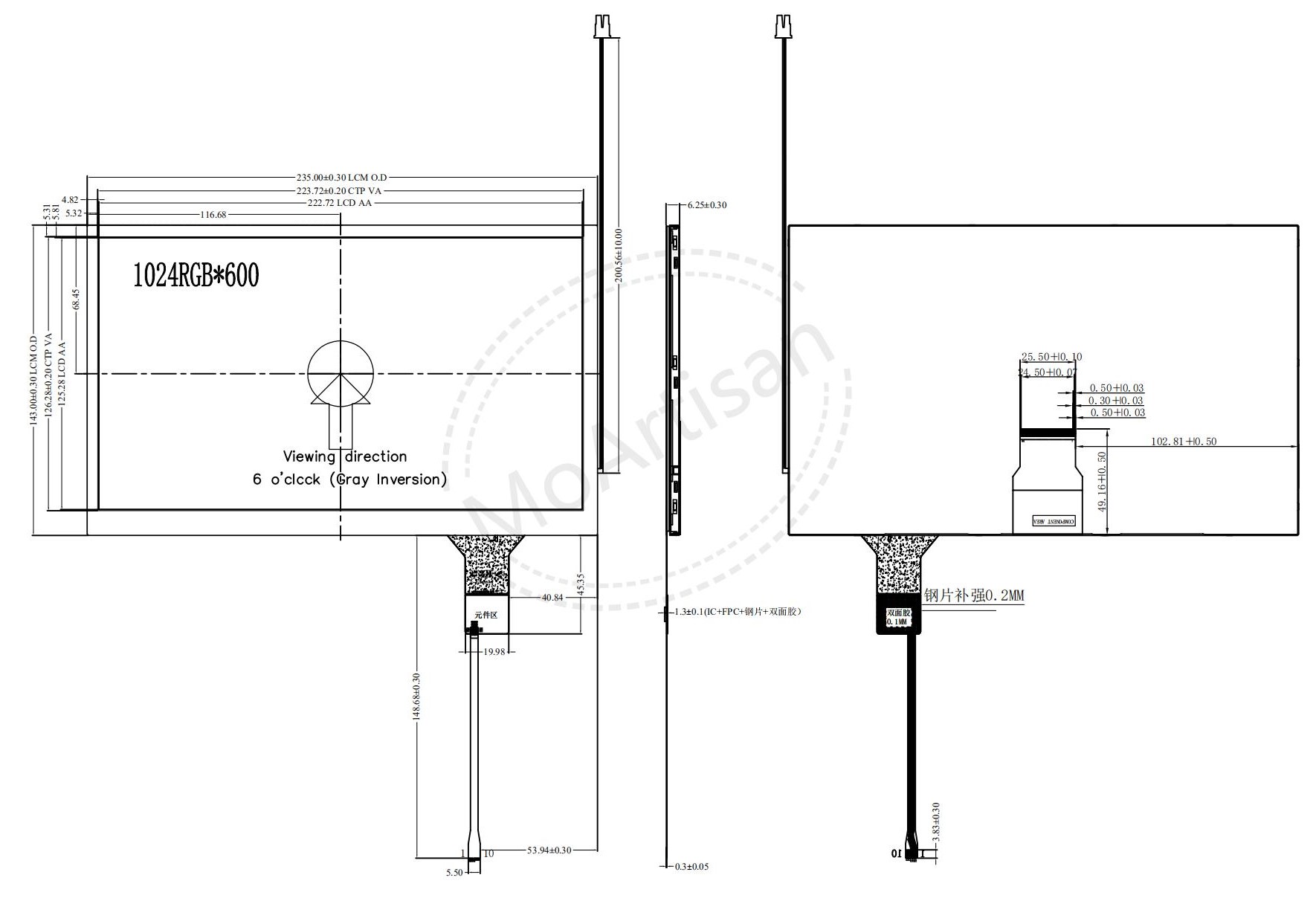

Production Drawings
WM101MC006WS-A Introduction
-
10.1 (16:9) inch
diagonally measured active display area.
-
WSVGA (1024 horizontal by 600
vertical pixel) resolution.
-
10.1 inch TN 6 O'clock module with 480 nits brightness.
-
The lcm is laminated a PCAP module with OCA.
-
50 PIN FPC, RGB interface.
-
WM101MR006WS-A is this lcm laminated a RTP module with double-sided adhesive.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
10.1
|
WSVGA, 1024RGB*600, TN, 6 O'clock, landscape view screen, PCAP, or RTP
|
235.0*143.0*6.25
|
14X3 LED
(50K)
|
50 PIN FPC, 24-bit, RGB
|
480 nits/500
|
Topa: -20~+70
Tstg: -30~+80
|
70/80/80/80
|
WM101MC006WS-A
WM101MR006WS-A
|
Production Applications
Mobile Terminal, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for sample: 3~4
weeks.
Notes:
You can choose a Pcap to repalce a RTP without changing machine structure, and vice versa.
