10.1 Inch TFT 1024(RGB)*600 LCD screen

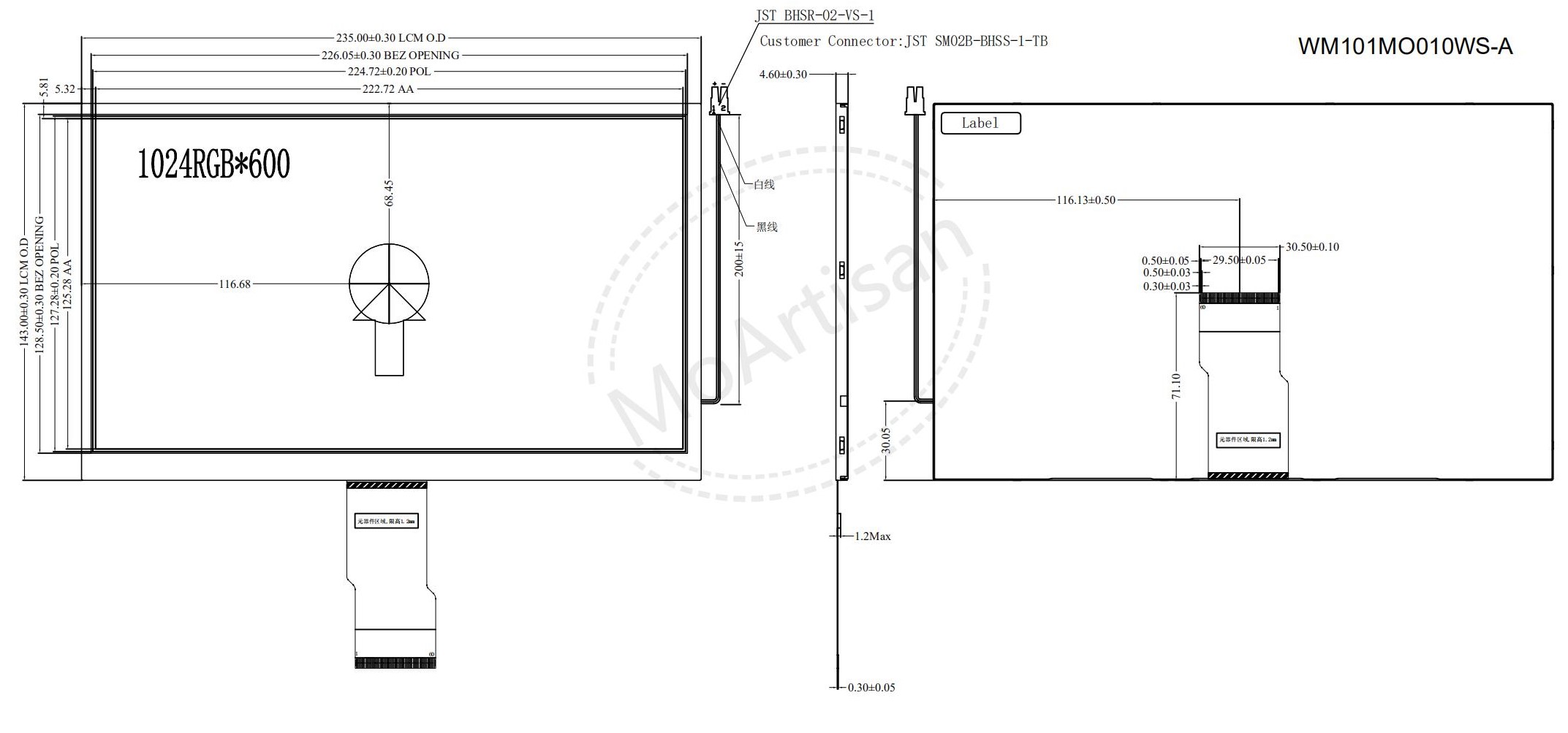

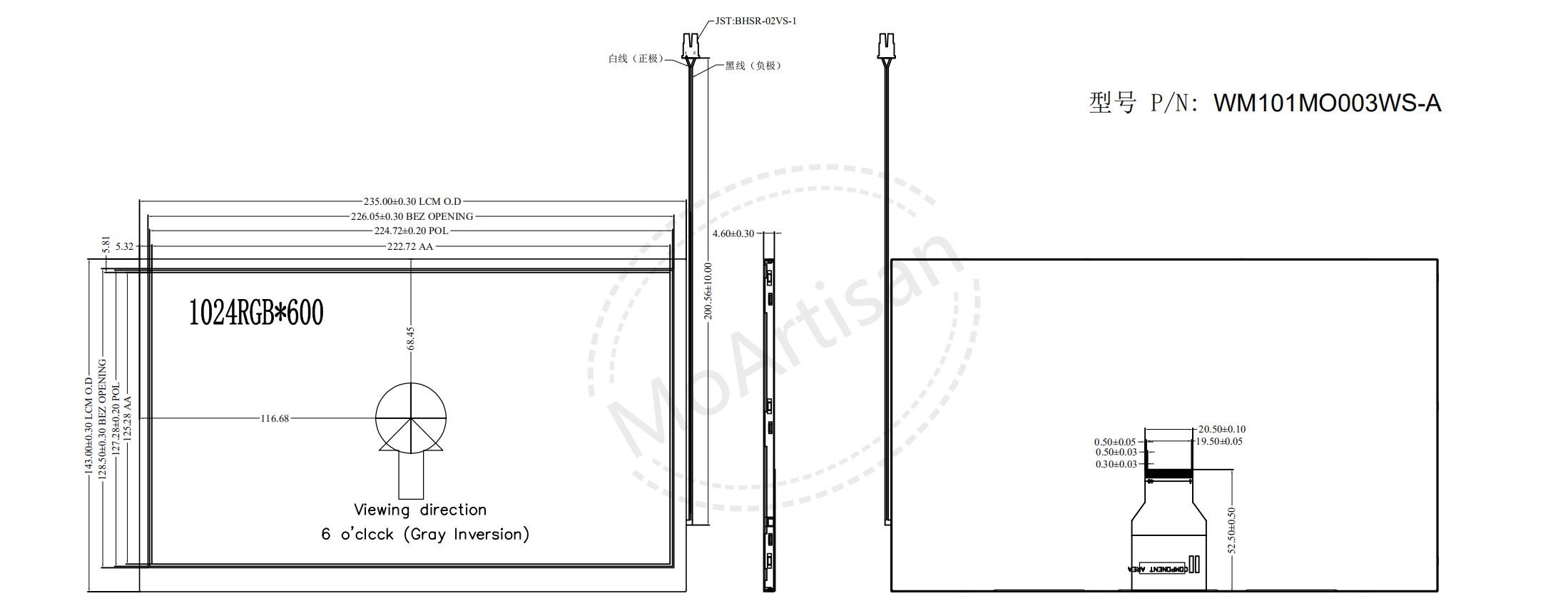

Production Drawings
WM101MO003WS-A and WM101MO010WS-A Introduction
-
10.1 (16:9) inch
diagonally measured active display area.
-
WSVGA (1024 horizontal by 600
vertical pixel) resolution.
-
TN LCD module with 40 Pin and 60 Pin for each.
-
600 nits and 450 nits brightness for each.
-
60 PIN FPC and 40 PIN FPC for each, LVDS interface.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
10.1
|

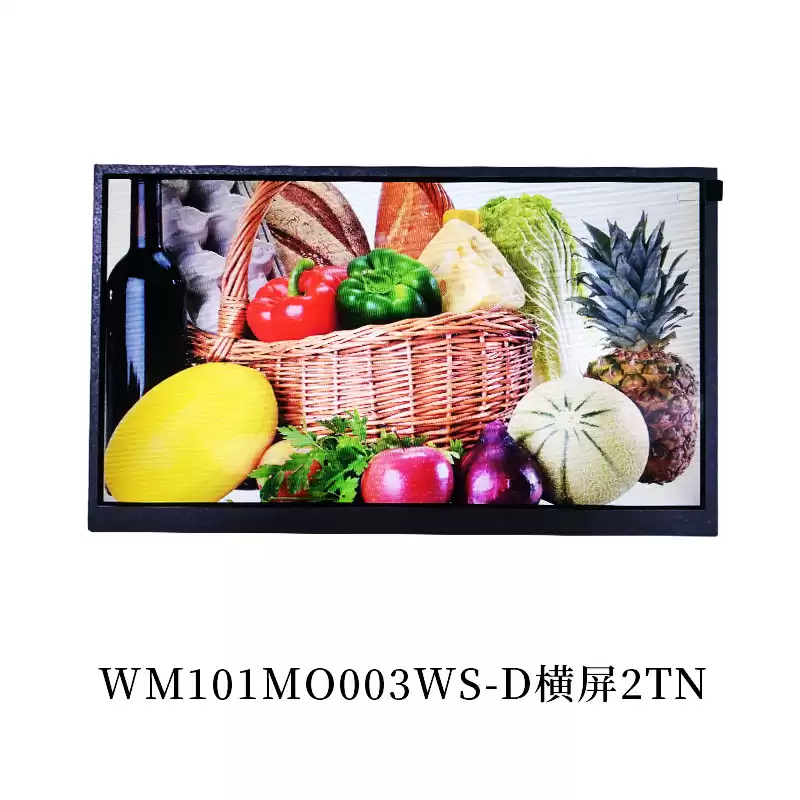

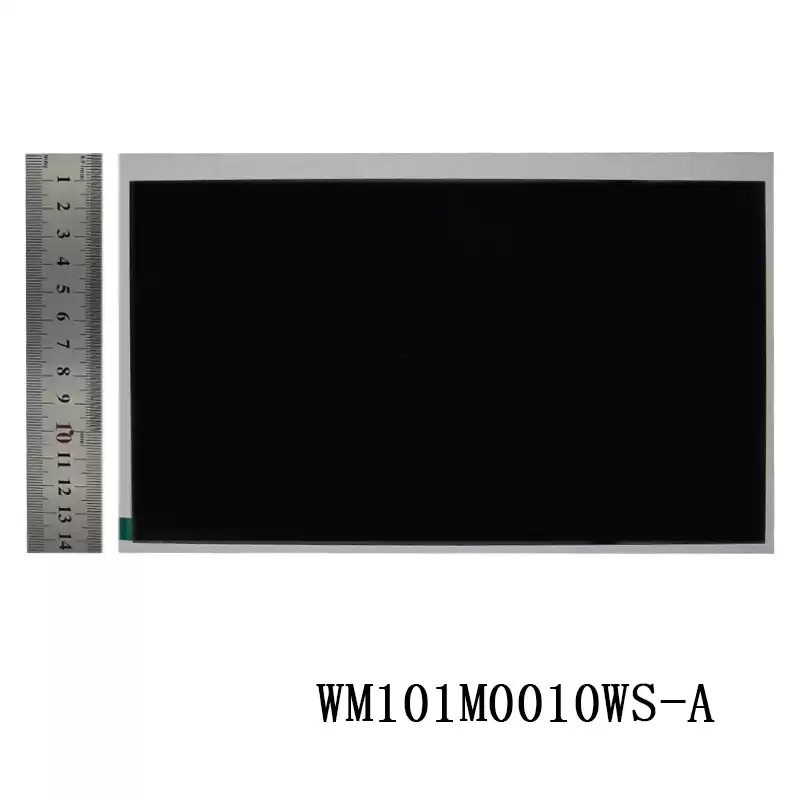

WSVGA, 1024RGB*600, TN, 6 O'clock, landscape view screen
|
235.0*143.0*4.6
|
14X3 LED
7X6
LED
(50K)
|
40 PIN FPC, 8-bit, LVDS;
60 Pin FPC,
8-bit LVDS.
|
600 nits/500
450 nits/500
|
Topa: -20~+70
Tstg: -30~+80
|
70/80/80/80
|
WM101MO003WS-A
WM101MO010WS-A
|
Production Applications
Mobile Terminal, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
FAQ:
What is the difference between WM101MO003WS-A and WM101MO010WS-A?
ANSWER:
Both are the same COG part TN cell but the difference in FPC interface and LED backlight.
