10.4 Inch IPS XGA LCD Screen 300 nits brightness

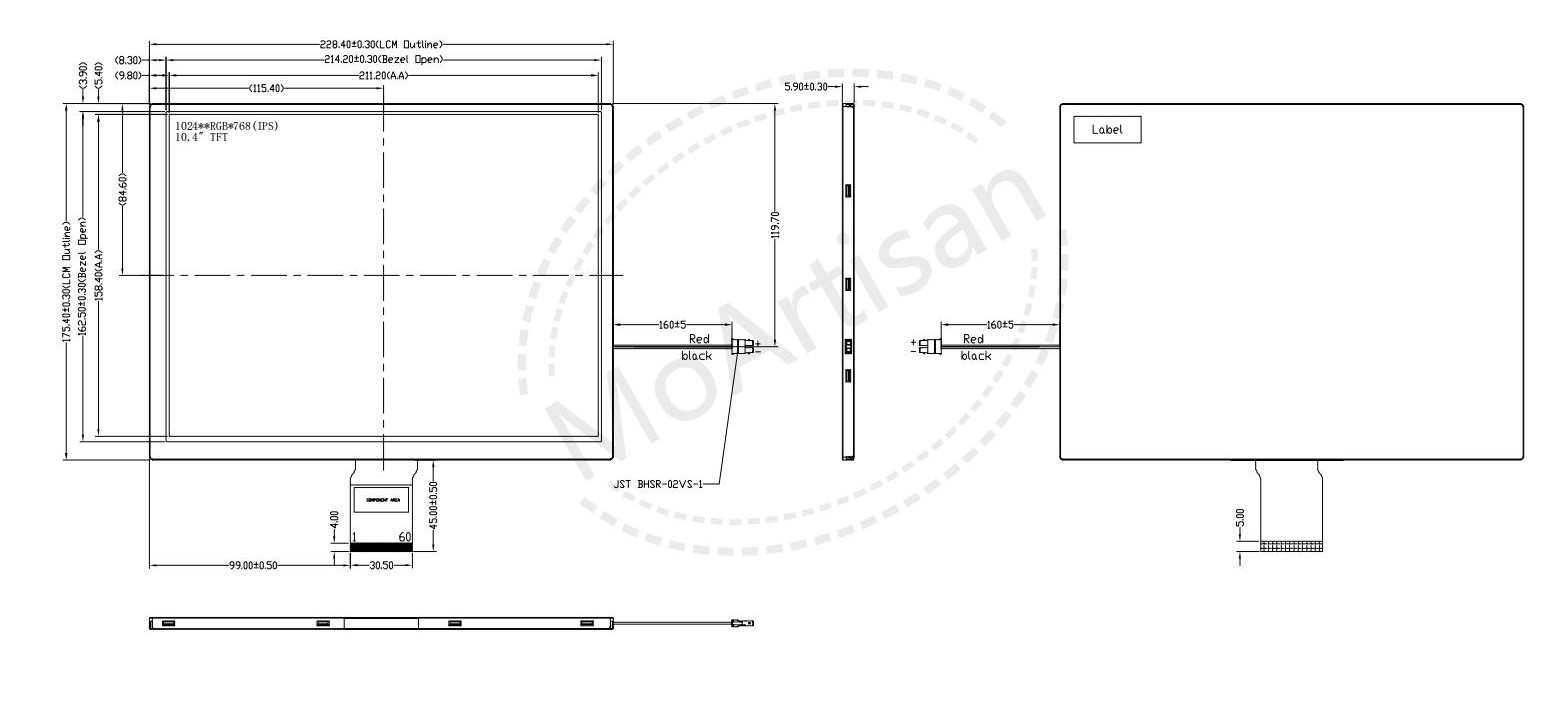

Production Drawings
WM104MO004XG-A Introduction
-
10.4 (4:3) inch
diagonally measured active display area.
-
XGA (1024 horizontal by 768 vertical pixel) resolution.
-
10.4 inch IPS XGA LCD module is similar as LSA40AT9001.
-
This module brightness is 300 nits.
-
60 PIN FPC, RGB interface.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
10.4
|
XGA, 1024RGB*768,
IPS, 4:3 Screen, Outline as CMI LSA40AT9001
|
228.4*175.4*5.9
|
12X3 LED (50K)
|
60 PIN FPC, 24-Bit, RGB
|
300nits/900
|
Topa: -30~+80
Tstg: -30~+80
|
85/85/85/85
|
WM104MO004XG-A
|
Production Applications
TFT LCD Monitor, Industrial applications, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
Notes:
This 10.4 Inch lcd module is a typical and traditional industrial application product.
This one is same as LSA40AT9001.
