10.4 Inch ips 1024(RGB)*768 LCD screen with PCAP

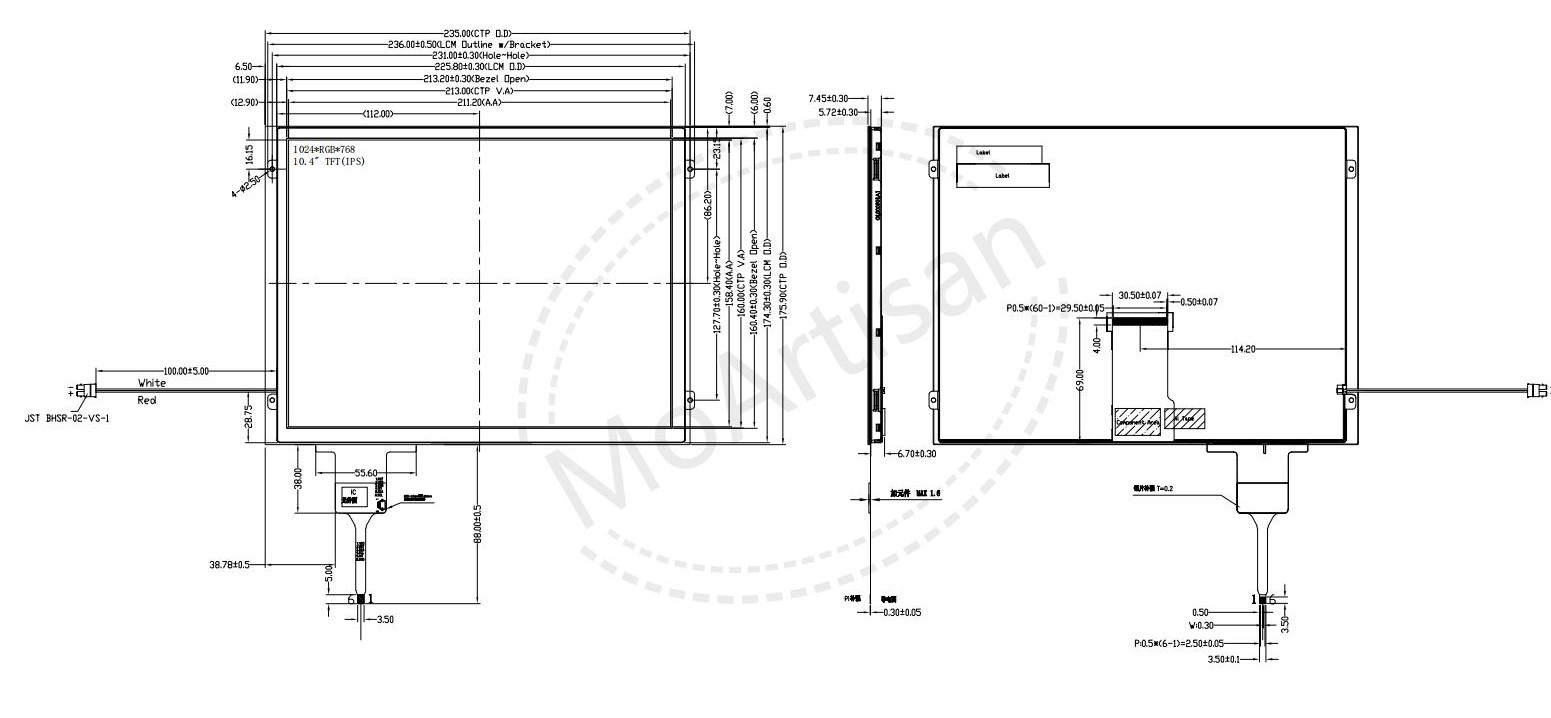

Production Drawings
WM104MC003XG-A Introduction
-
10.4 (4:3) inch
diagonally measured active display area.
-
XGA (1024 horizontal by 768 vertical pixel) resolution.
-
The lcm sueface brightness is 600 nits .
-
The lcm is laminated a PCAP moduel with OCA.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
10.4
|
XGA, 1024RGB*768,
IPS, 4:3 Screen, PCAP
|
235*175.9*7.45
|
8X4 LED (50K)
|
60 PIN Con, 6/8-Bit, LVDS
|
600 nits/900
|
Topa: -30~+80
Tstg: -30~+80
|
85/85/85/85
|
WM104MC003XG-A
|
Production Applications
TFT LCD Monitor, Industrial applications, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
Notes:
This is a high durable LCM with a Pcap.
