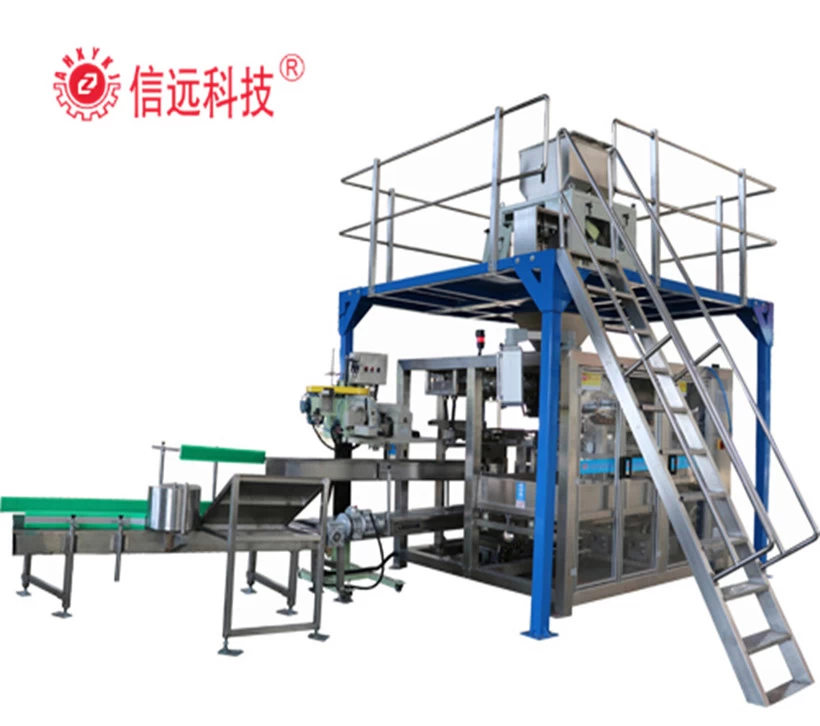

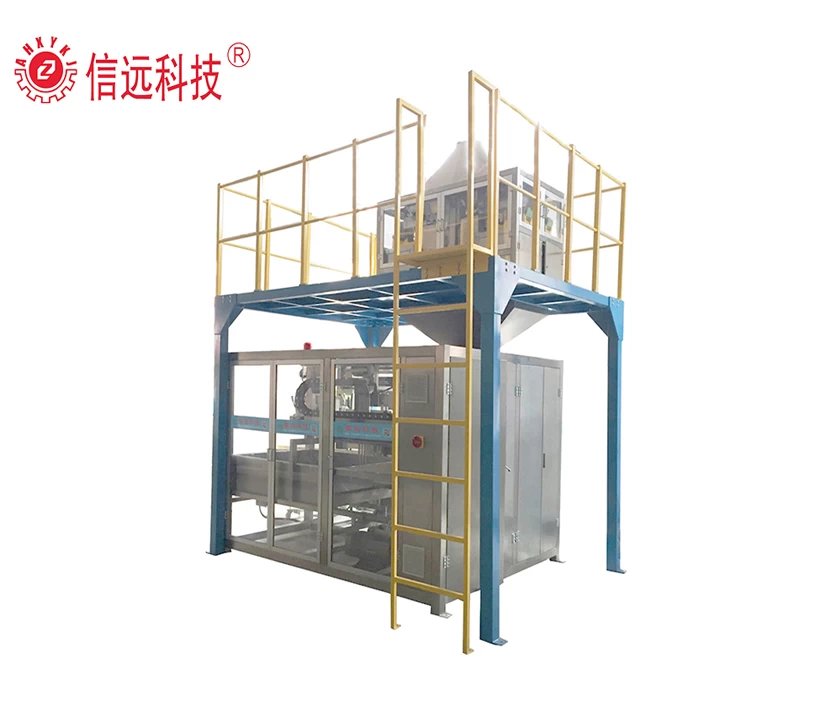

Fully automatic bagging machine is used for automatic weighing and packing for granule material into big bag from 10kg to 50kg. Animal feed packing machine made up of material silo, digital weigher, bag supplying unit, filling packing unit, conveying system and sewing system. Developed by our company to solve the problems of less available workers, higher labor cost and unstable manual operating quality for granule material big bag packing requirement. We supply also subsequent checker weight and robot palletizing system.

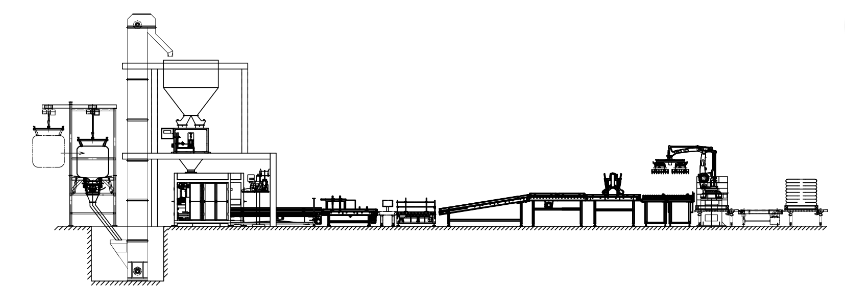

Unit configuration: material silo, digital weigher, bag supply system, packing system, conveying system and sewing system
◎Material: contact parts S.S 304 (or S.S 316L if need)
◎Electric parts brand: Siemens/Schneider/Omron/Delta/ABB etc
◎Packing speed: 8~14 bags/min
◎Filling range: 10kg~50kg
◎Applied material: grain, animal feed, NPK or compound fertilizer, chemical material etc.
Technical Data:
|
Model
|
XYG-600(fully-automatic
|
|
Bag size(mm)
|
L: 800~1000 W: 450~600
|
|
Bag material
|
Kraft bag, Woven bag, PE laminated bag
|
|
Sealing type
|
Straight sealing
|
|
Package range(kg)
|
10~50
|
|
Accuracy
|
±0.2% to± 0.3%
|
|
Speed(bags/hr)
|
500~800
|
|
Power rate(kw)
|
around 7.5
|
|
Power supply
|
AC 380V/50HZ
|
|
Compressed air(Mpa)
|
0.6~0.8
|
|
Noise
|
around 77dB
|
|
Environment Temp.
|
~20 ℃ to +40 ℃
|
After-sale service:
Free assignment
of special after-sales service personnel, arrived at the site to guide the
customer installation and commissioning, until successful, and responsible for
training operators, until the customer can operate their own production.
