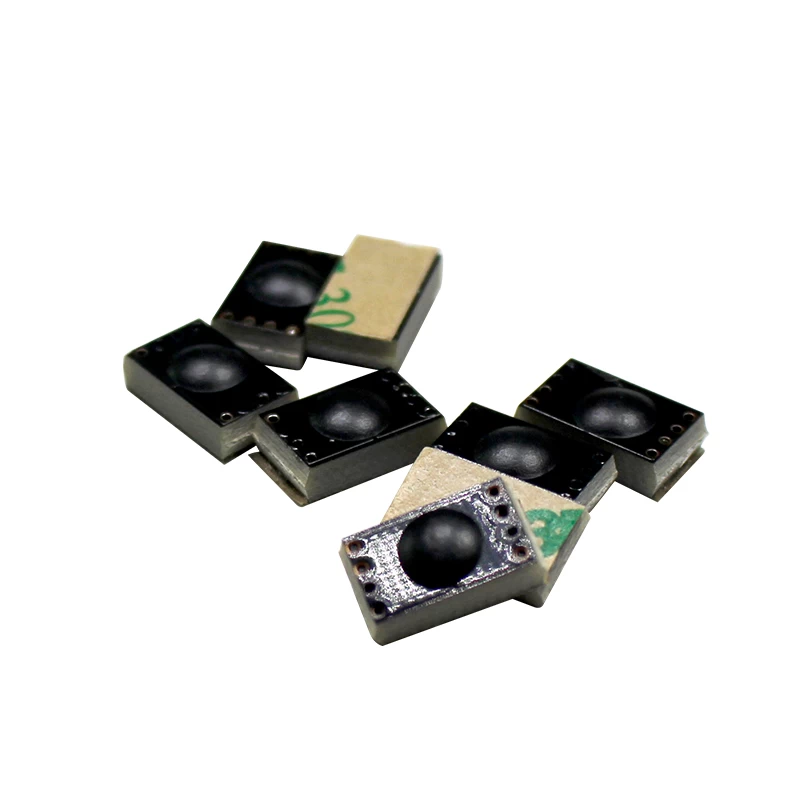

10*5MM Smallest RFID UHF On Metal Tools tag

It is widely used in precious metals management, e.g.bank asset management, data center asset management, IT asset management.




Advantage:

 Mounted on a metal surface for stable operation;
100% tested by the European Union's label compliance test system;
100% passed the memory write test;
Material and design are tested for reliability;
Widely verified and used by well-known domestic and international customers


ISO

EPC Class1 Gen2; ISO18000-6C

frequency

902-928MHz

Chip

NXP UCODE 8

memory

EPC 128bits

writable

yes rewritable

memory lead time

fifty years

Warranty

1year

Material

FR4

Color

black

Size

9.4mm*4.3*1.6mm

Temperature

-25C~ +85C

Storage temperature

-30 C~ +110 C

Save humidity

5%~95%

Adhesive

3M 300LSE

weight

~1g

package

500pcs/bag

Drop test

Hih 1Meter /200times

Alcohol test

95%Concentration alcohol test passed

Gasoline test

No92 test passed

High and low temperature alternating test

-40 degrees to +150 degrees 7 times high and low temperature alternating cycle, a total of 2 consecutive days passed the test

RoHS

yes

IP degree

IP65

Fixed RFID reader on metal surface

1.5Meter

Handheld reader on metal surface3

30CM

Polarization direction

Linear Polarization

Text

100% tested it before we send out



Application:


Tool management;
IT facility chassis management;
Metal container management;
Management of office equipment and facilities with metal casings indoors and outdoors;
Personnel inspection management;
Fixed asset management
