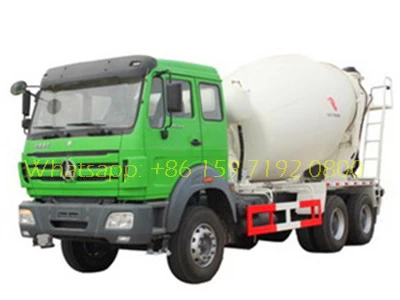

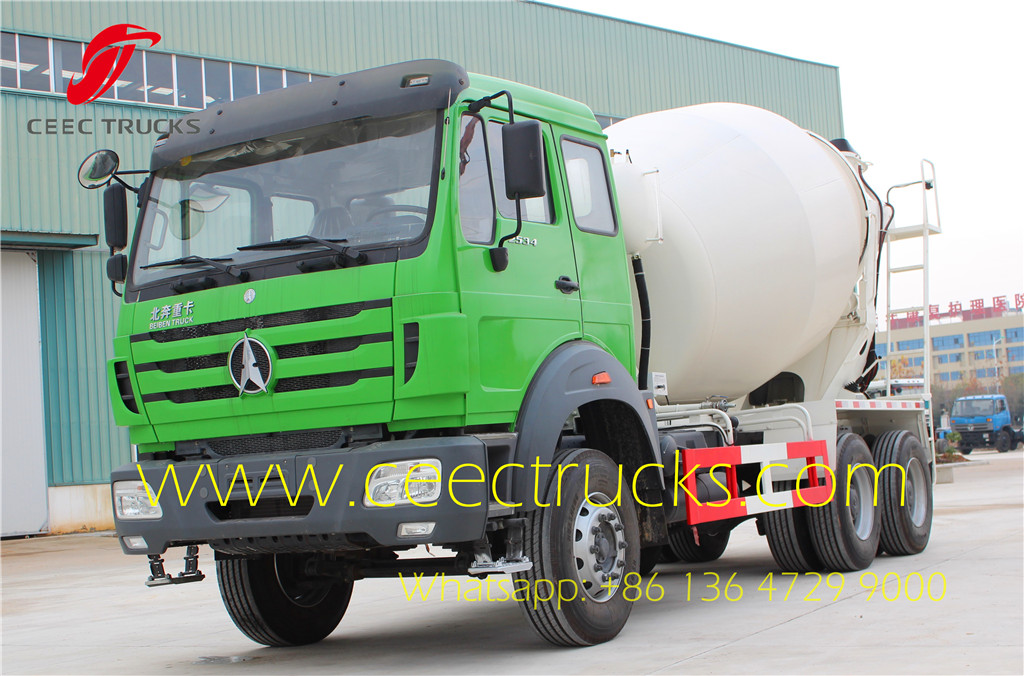

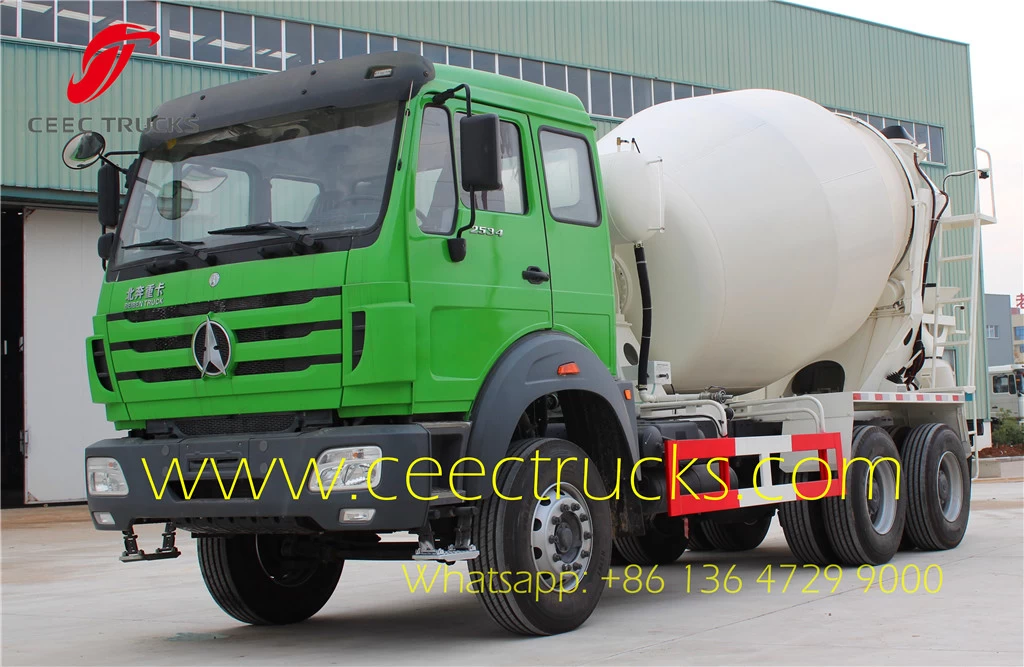

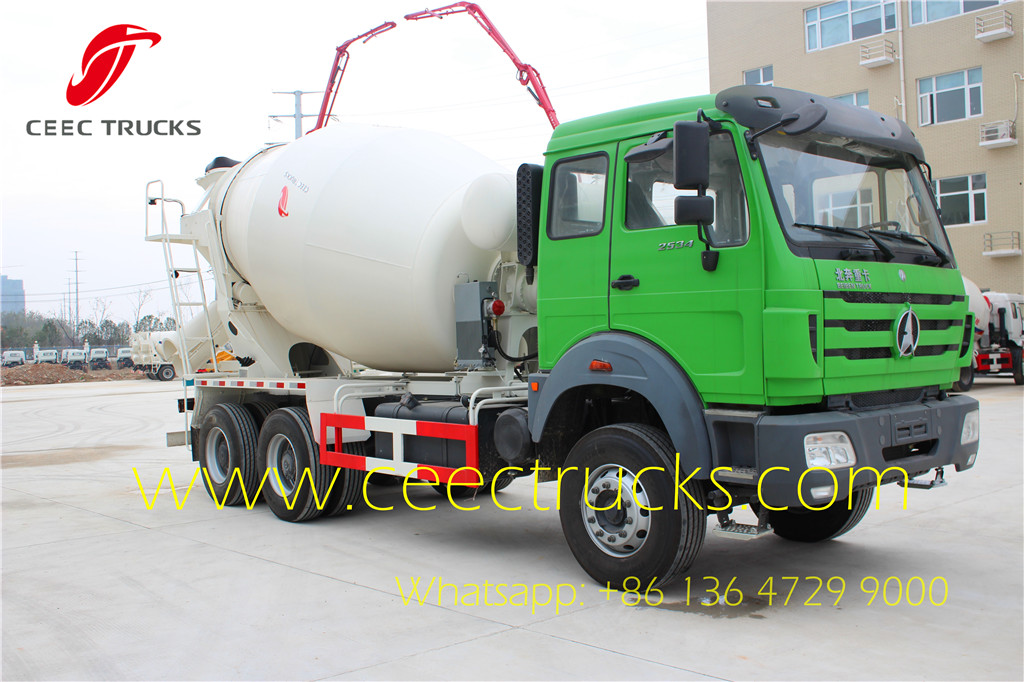

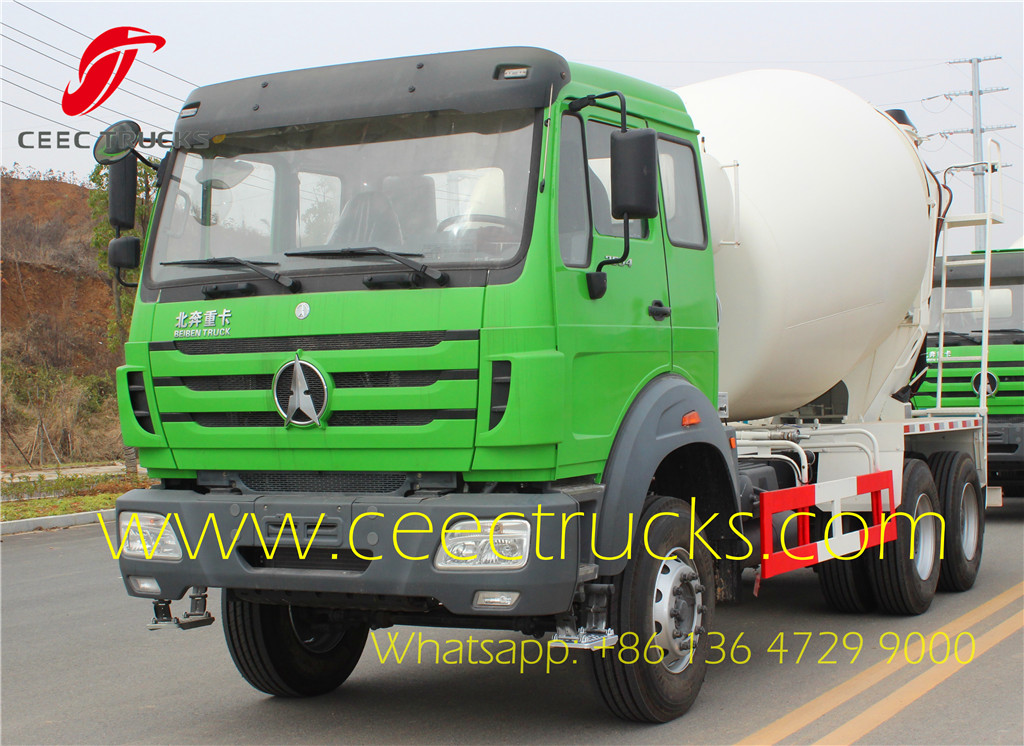

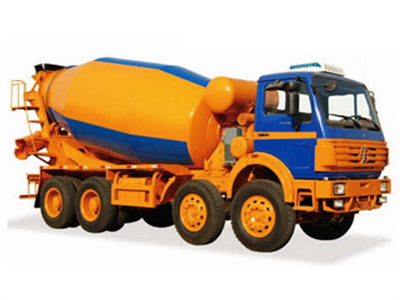

Beiben 2534, 2538 cement mixer truck
China best beiben 2534, 2538 cement mixer truck manufacturer can supply beiben 10CBM transit mixer truck, beiben 14 CBM cement mixer.
CEEC export Dubai beiben 10CBM concrete mixer truck use Beiben NG80B cabin, 2534 concrete mixer truck chassis, world famous weichai diesel 340 hp engine, fuller 9 shift transmission, 3800+1450 mm wheelbase, beiben 10 CBM mixer truck upper structure adopts Germany Rexroth, America EATON, Italy ARK, America Sauer brand Hydrulic Motor, Hydraulic Pump and Reducer.
Why customer prefer to choose CEEC produced beiben 2534 mixer trucks?

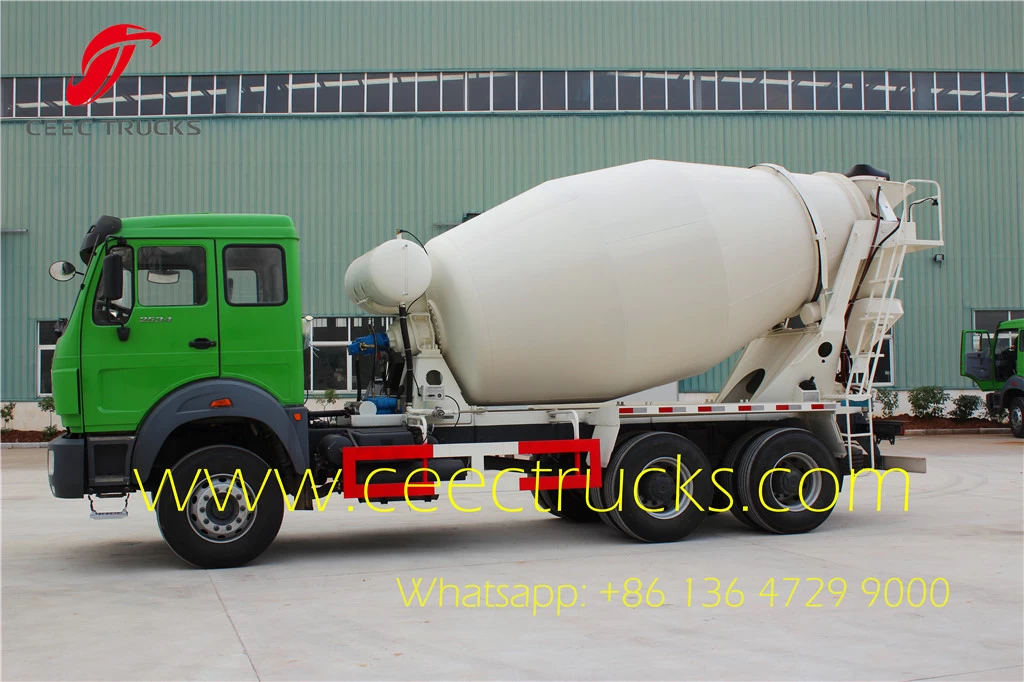

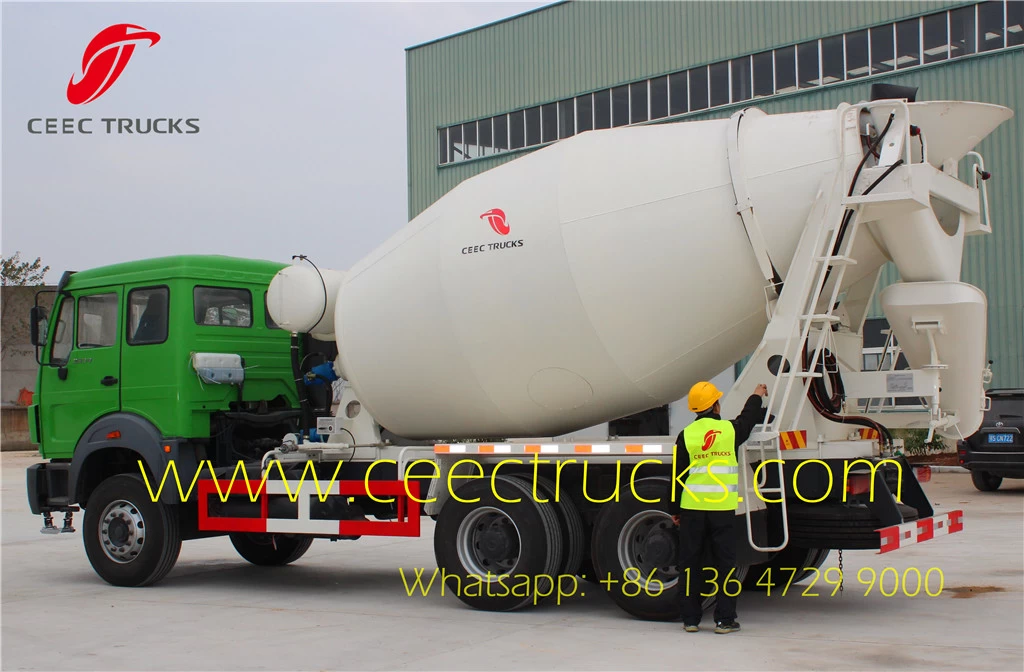

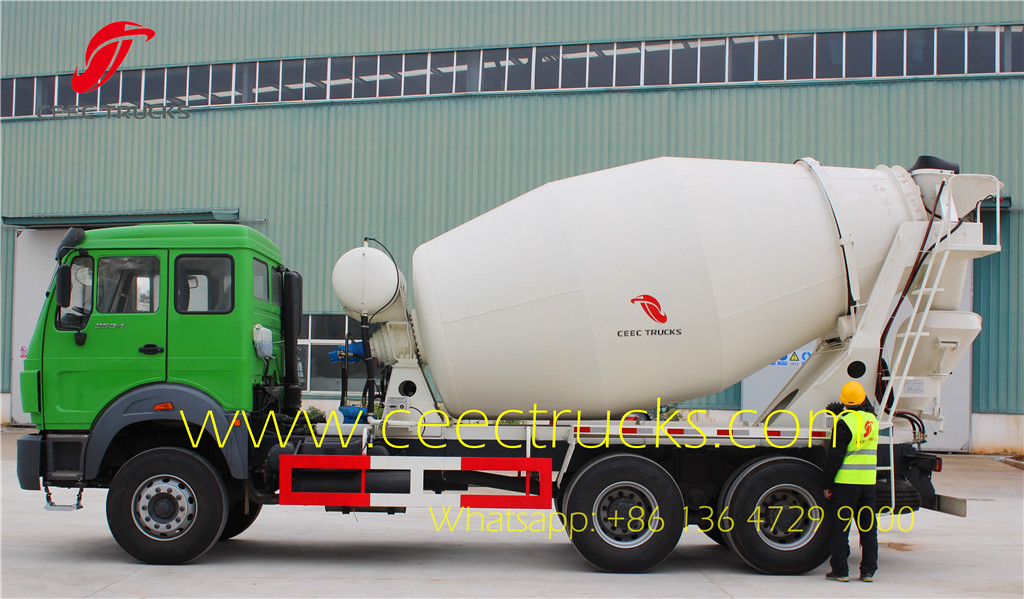

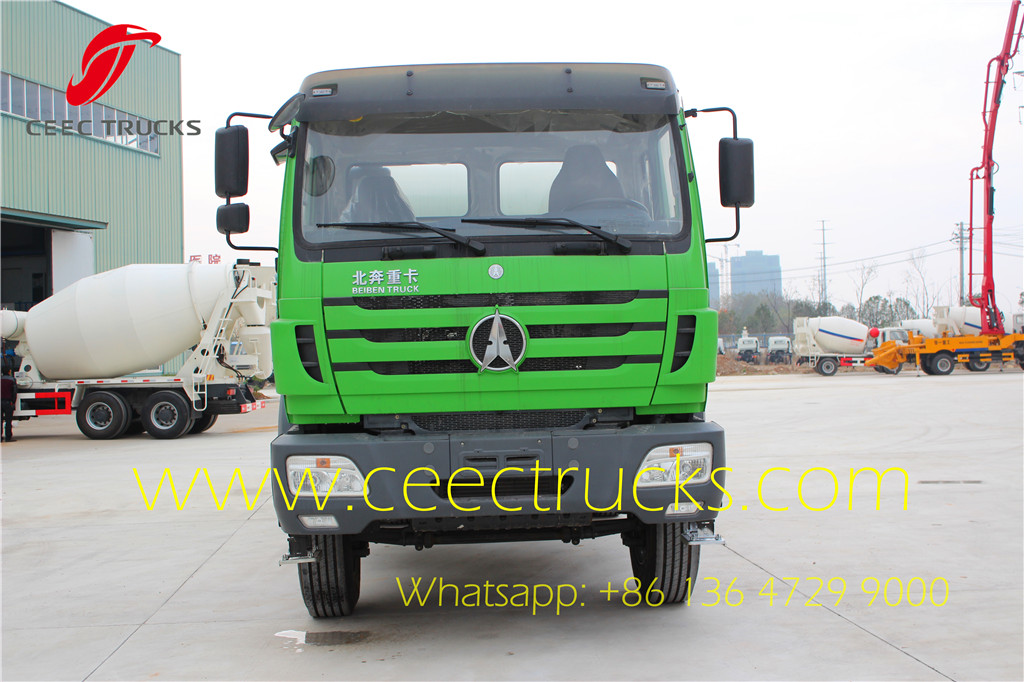

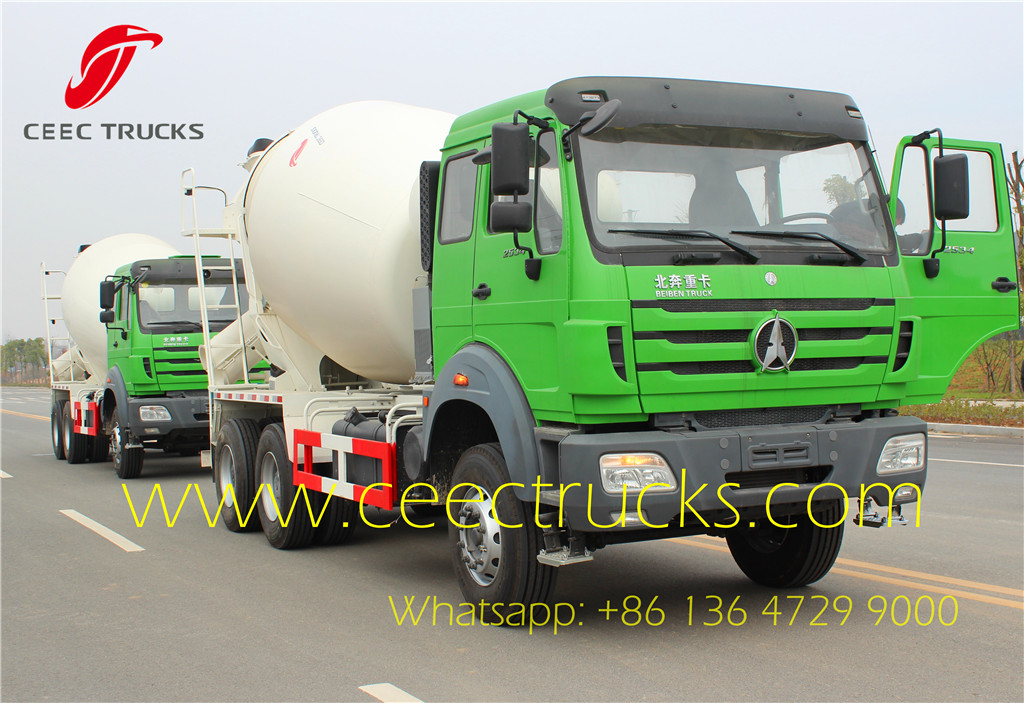

We produced 2016 newly beiben 10 CBM concrete mixer truck
â—† Benz technology World-class Beiben mixer truck Chassis, super power and Fuel efficiency, Reliability, Uptime
â—† Beiben 10 CBM transit mixer's hydraulic system adopts Germany Rexroth,America EATON, Italy ARK, America Sauer for good beiben concrete mixer truck performance
â—† Comfortable, spacious cabinwith heating and air conditioning, high-grade stereo and sleep area.
â—† The mixing drum is made from the special close grain high-hardness steel plate B520JJ which is producedby Shanghai Baosteel and its service life can last 8-10 years;
â—† Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;
â—† North benz 6*4 cement mixer truck use optimized design of mixing drum ensure the concrete residueratio is less than 1%;
â—† Rated mixing volume can be 8cbm, 10cbm, 12cbm, 14cbm, 16cbm for customer specific requirement.

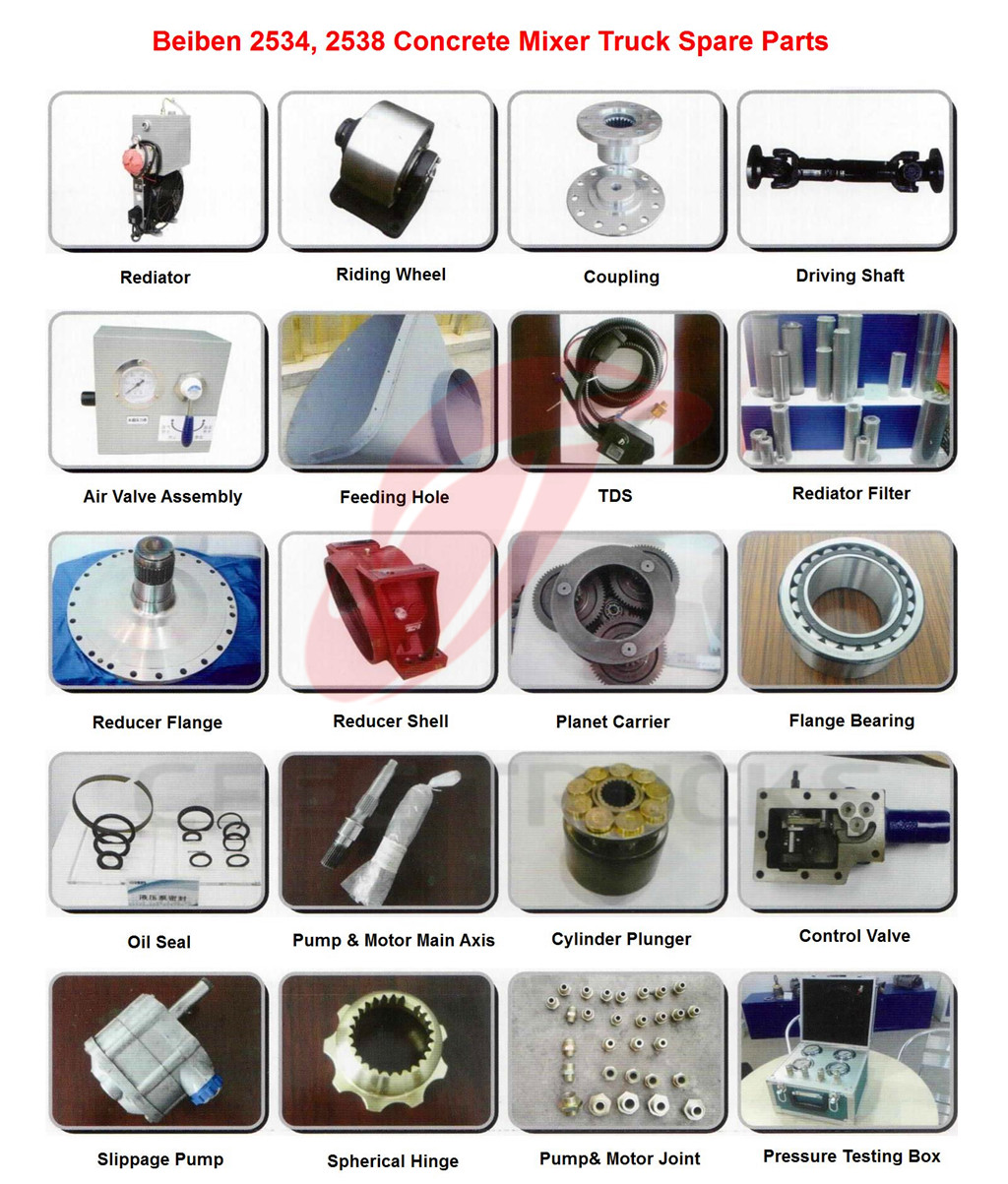

top beiben 10 CBM transit mixing truck spare parts
Similar Key Words: beiben 10 CBM cement mixer truck, north benz 2534 transit mixer, beiben 2538 mixer trucks, beiben 10 CBM concrete mixer truck
The best beiben 10CBM mixer truck supplier from china baotou beiben heavy duty trucks. The most professional beiben 6*4 concrete mixer truck work experience on beiben 2527,2628,2632,3630,2629,2634,2638 mixer trucks. Currently, we supply beiben LHD transit mixer truck with 2534 cabin, beiben RHD mixer truck with 2534 cabin.
|

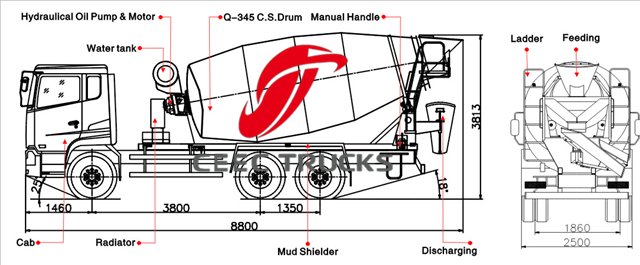

Beiben 2534 Concrete Mixer Truck BY
/6×4/3450+1450/Short Cab/LHD
|
|
Dimension
|
9300*2500*3900mm
|
|
Approaching angle/Departure
angle
|
26/20°
|
|
Overhang(front/rear)
|
1410/2640mm
|
|
Wheel base
|
3800+1450mm
|
|
Max speed
|
80km/h
|
|
Curb weight
|
13650kg
|
|
Loading capacity
|
11220kg
|
|
Slope climbing capability
|
Max.40%
|
|
Engine
|
Model
|
WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly
injection
|
|
Displacement
|
9.726L/Diesel
|
|
Stroke
|
126/130mm
|
|
Max. power
|
250/2200 (kw/rpm)
|
|
Max.torque
|
1350/1200-1600（Nm/rpm）
|
|
Emission stantard
|
Euroâ…¢
|
|
Fuel tanker capacity
|
300L
|
|
Clutch
|
∮430, Single dry frictional
disc，Hydraulic boosting
|
|
Gearbox
|
9T-160, mechanism,9 forward
gears,1 reverse gear, manual operated, with synchronizer
|
|
Gear ratio of gear box
|
12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00
R: 11.02
|
|
Suspension system
|
Front
|
Non-free standing leaf
spring,telescopic shock absorber with stablizer bar suspension , 10pcs
|
|
Rear
|
Non-free standing
stablization spring, balance suspension system, 13pcs
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted
automatically, double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing
on middle and rear wheels
|
|
Steering system
|
TAS85,whole circulation in
ball, hydraulic booster
|
|
Frame
|
Fish belly shape, variable
width, variable sections
|
|
Front axle (Mercedes
Technology)
|
Double-shoe pneumatic brake,
non-driving steering axle
|
|
Middle and Rear axle (Mercedes
Technology)
|
Double-shoe pneumatic brake,
ductile casting casing, with hub redactor, double reduction driving axle
|
|
Tyre
|
12.00R20 Radial
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|
Cabin
|
NG80B Long cabin with single
sleeper;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner
A/C
|
|
Main technical
parameters of Beiben concrete mixer
|
|
Drum performance parameter
|
Geometric Volume m3
|
15.5 m3
|
|
Effective Volume m3
|
10 m3
|
|
Filling Ratio %
|
64.5%
|
|
Gradient of the Drum °
|
15°
|
|
Filling speed m3/min
|
≥3
|
|
Discharging Speed m3/min
|
≥2
|
|
Surplus Ration %
|
<1%
|
|
Range of Slump mm
|
20～300
|
|

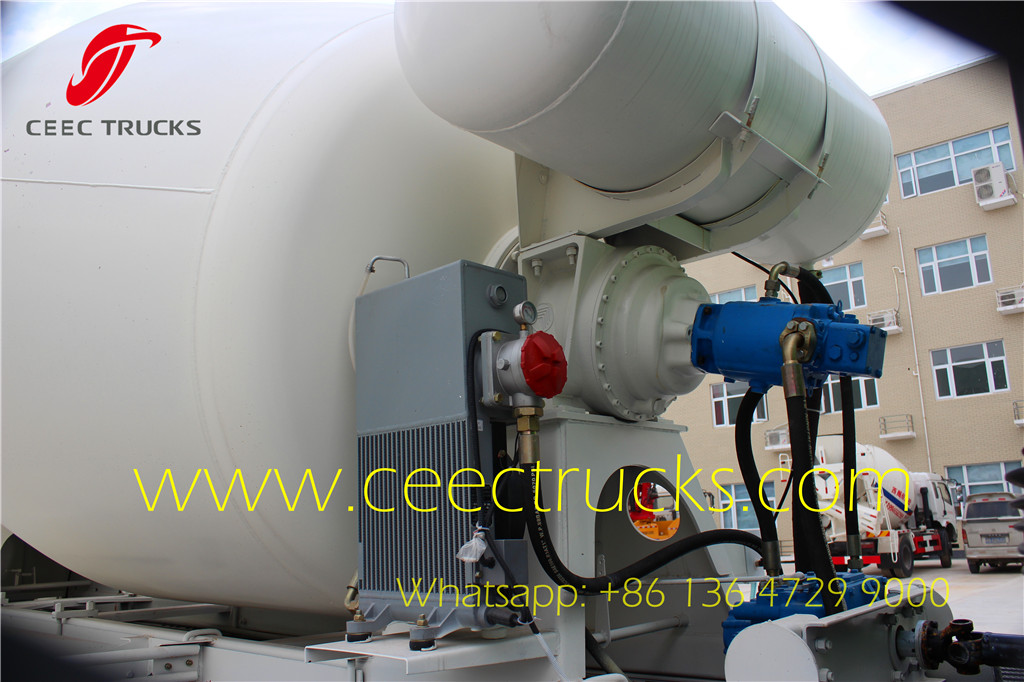

Hydraulic
System
|
Pump
|
Eaton 54 (ACA542337R)
|
|
Motor
|
Eaton 54 (HHD542337R)
|
|
Gear Box
|
PMB6sp
|
|
Water supply system
|
Volume of water tank
|
400L
|
|
Water supply type
|
Air pressure Type
|

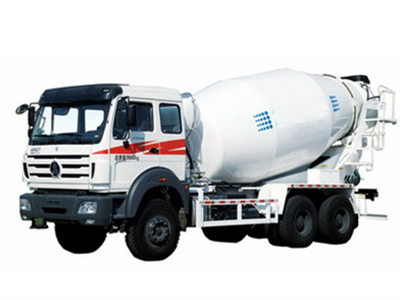

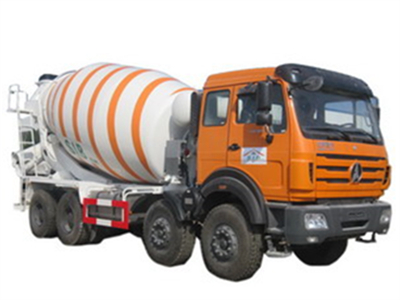

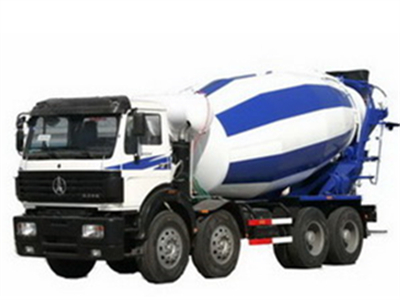

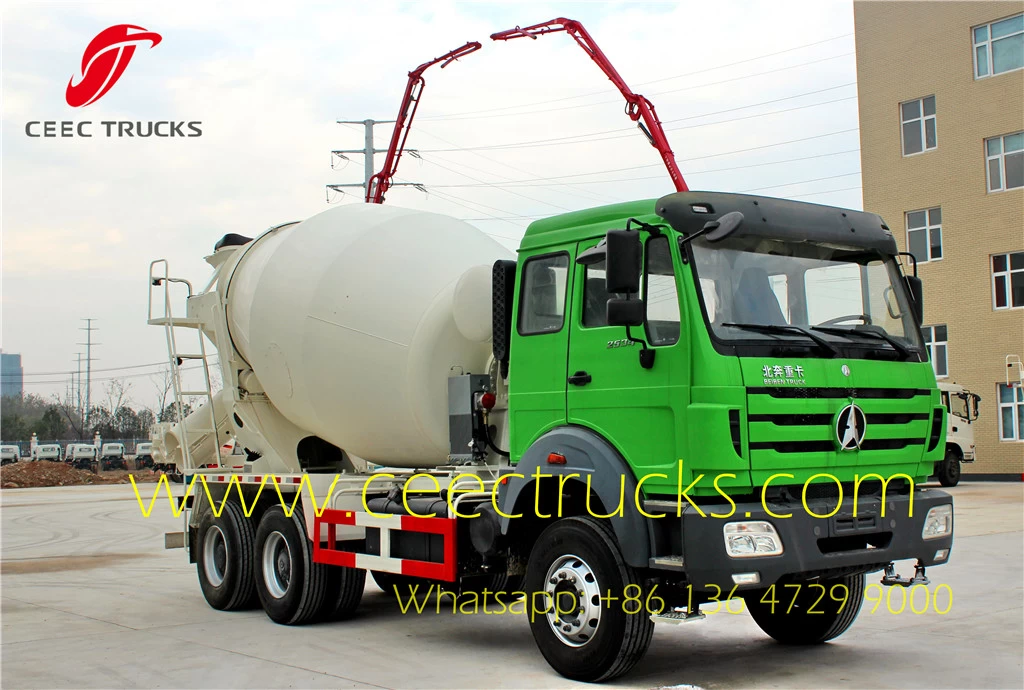

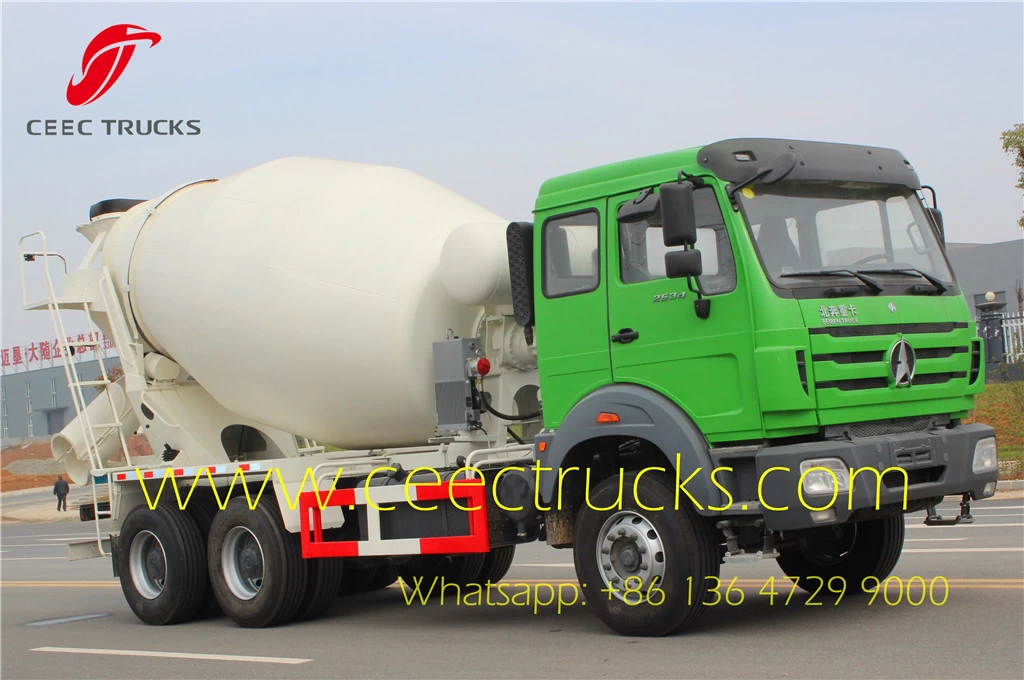

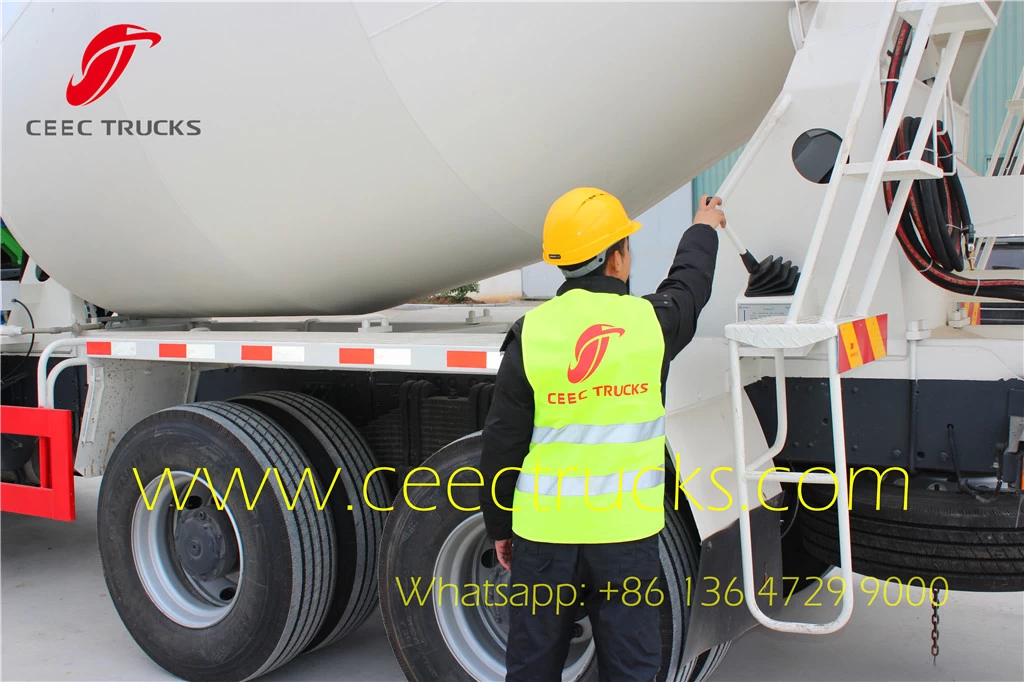

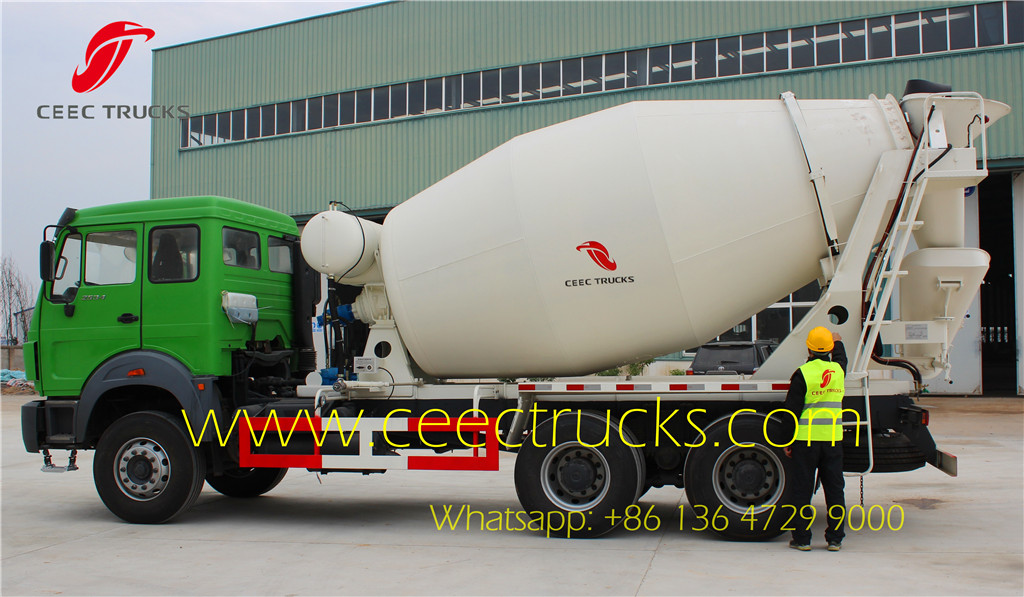

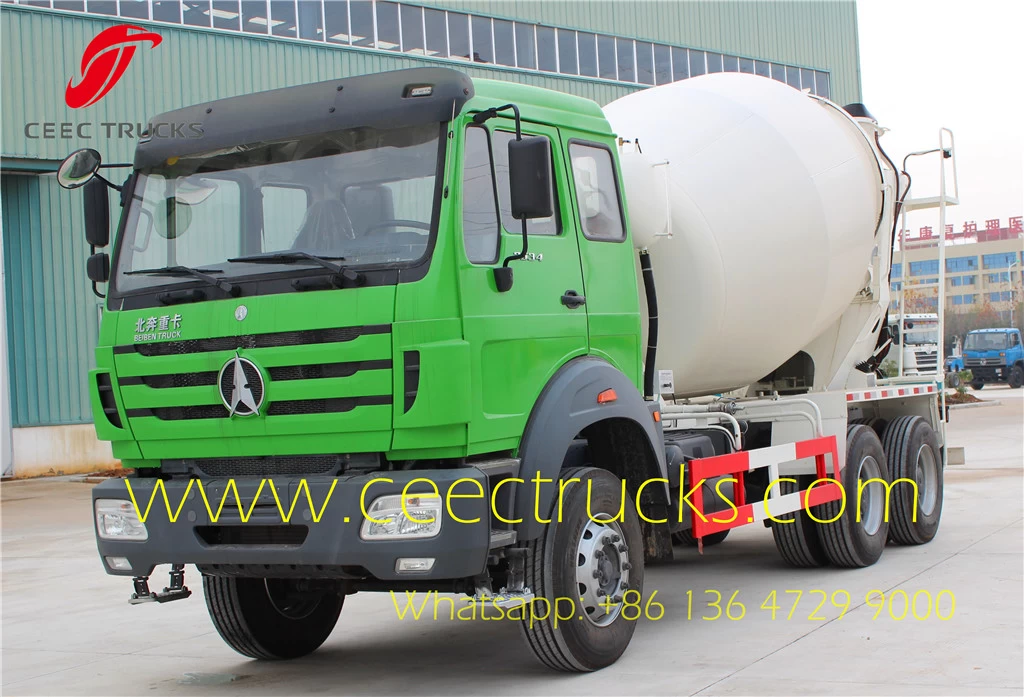

Beiben Transit mixer trucks on sale
