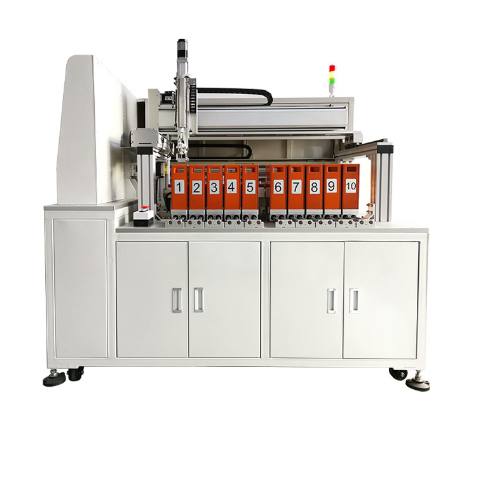

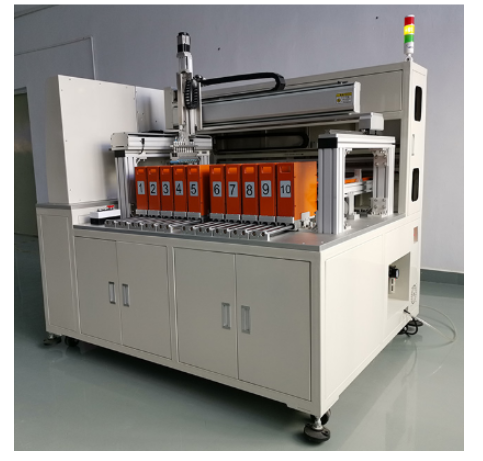

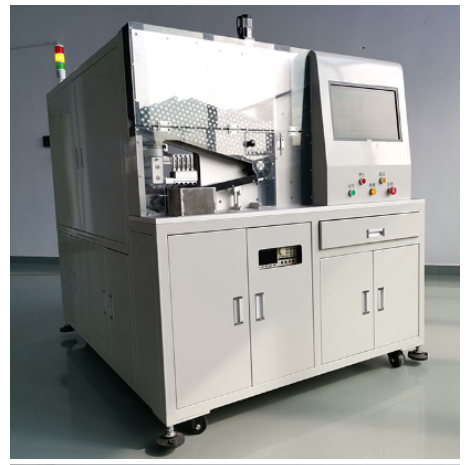

10 Channel Cylindrical Battery Sorting And Collecting Machine
Introduction:
The integrated sorting and collecting machine is to add the automatic collecting function on the basis of the sorting machine, which greatly saves the manual collecting time.
Product advantages:
1. Automatic sorting the voltage and internal resistance of 18650 and polymer battery.
2. The upper and lower limits of voltage can be set by voltage sorting.
3. The accuracy is high speed and fast, and the imported voltage internal resistance tester is used.
4. Professional control system; stable and reliable; high-grade driver.
5. Imported guide rail, plane speed and smoothness are enough to ensure smoothness.
6. High efficiency, productivity: 6000pcs/h. One machine can replace 5 labors.
Features:
1.Professional Control System Stable and reliable high-end drive sizing
2.The device can be set according to the internal resistance voltage value，
Delivery of lithium batter to designated channels.

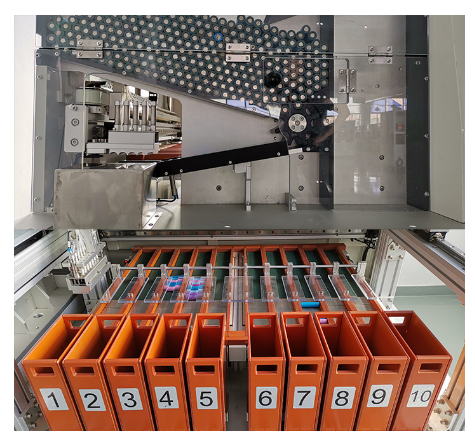

3.Integration of automatic feeding and collecting，the cores are arranged neatly, increase of efficiency.
4.Full material alarm function.
Specification:
|
Voltage
|
AC220V,50Hz
|
|
Compressed Air
|
0.4-0.8Mpa
|
|
Internal Resistance
|
Hioki3561 or HK3561
|
|
Measurement of Internal Resistance
|
Range:0-80mΩ
Accurace:± 0.5% rdg
Resolving power: 0.1mΩ
|
|
Size(L x W x H)
|
1400x1700x1500mm
|
|
Sorting Speed
|
60-70PPM
|
|
Receiving box
|
10PCS
|
|
Control Mode
|
PLC+PC(IPC)
|
Equipment Configuration:
|
Serial No.
|
Spare Parts
|
Brand
|
|
1
|
Air Cylinder
|
SMC、CKD
|
|
2
|
Solenoid Valve
|
SMC
|
|
3
|
Linear Guide Rail
|
TPI
|
|
4
|
Electric Relay
|
OMRON
|
|
5
|
PLC
|
TouchWin
|
|
6
|
Inductorium
|
OMRON、SUNX
|
|
7
|
Button
|
Goncon
|
|
9
|
Switch
|
MingWei
|
|
10
|
Tester
|
Hioki356
|
