TOPSORT plastic color sorter integrates advanced visible light sorting technologies.
Through the analysis of the visible light color and shape of the material, it can efficiently identify all kinds of plastics of different colors and ensure that the plastics are efficiently recycled and reused.
The design of every detail of the product fully considers the user's usage habits, makes operation and maintenance simple and convenient.

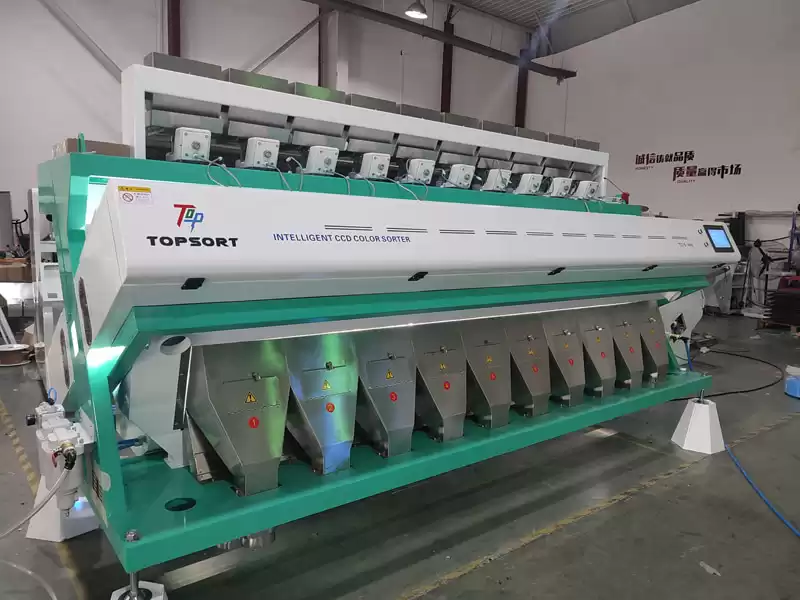

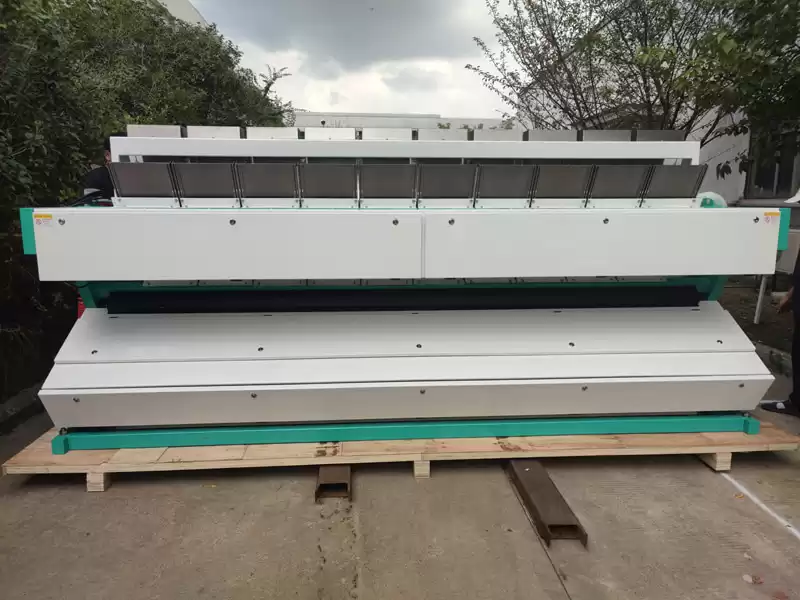

TOPSORT 10 Chutes Plastic Color Sorter Real Picture Show
Color Sorter Machine Strengths
1. Massive database with storage of unlimited mode can achieve multiple function of one machine.
2. Optical Color Sorting With High Resolution 5400 Pixel CCD Camera, High Reliability And Long Life LED Light Source;
3. Efficient And Stable Software System, Intelligent Algorism, User Friendly Interface;
4. Better Sorting Accuracy , Lower Carryover, And Bigger Production Capacity;
5. Stable, Reliable, Ultra-Fast Mass Data Processing;
6. Rice Sorting With Expert Sorting Solution Realizes One Key Debugging
7. Remote Debugging, Diagnosing And Maintenance
Sorting Sulotions For Plastic Flakes
Why Choose TOPSORT Color Sorter Machine
1. Over 20 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 100 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.

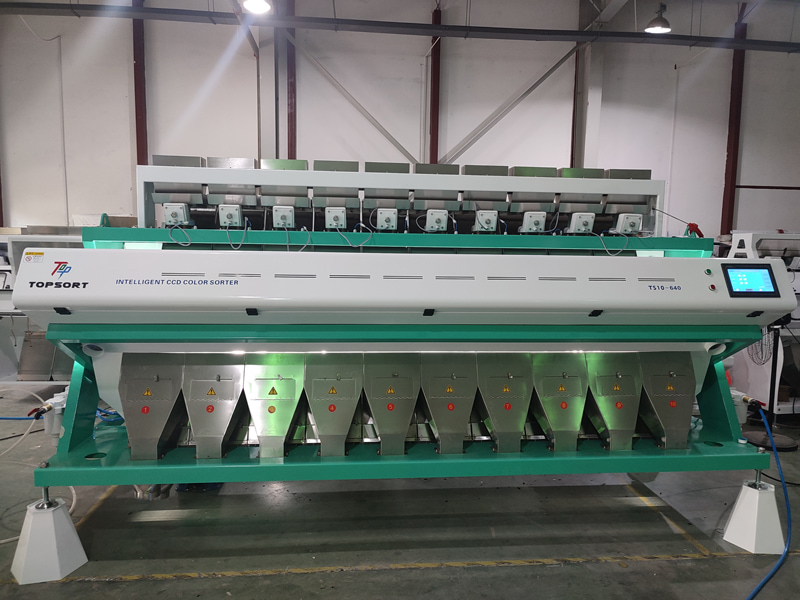

More Color Sorter Models You Can Choose
Plastic Color Sorter Technical Parameters
| Model |
Power(KW) |
Capacity (T/H) |
Sorting accuracy |
Power vottage (V/HZ) |
Air pressure (Mpa) |
Air consumption (M3/MIN) |
Dimensions (MM) |
Weight(KGS) |
| TS-32 |
0.5 |
0.1-0.2 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<0.5 |
420*1100*1820 |
100
|
| TS1 |
0.8 |
0.2-0.4 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<1.0 |
880*1504*1760 |
300
|
| TS2 |
1.3 |
0.4-0.6 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<2.0 |
1314*1504*1760 |
400 |
| TS3 |
1.9 |
0.6-0.8 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<3.0 |
1650*1504*1760 |
500 |
| TS4 |
2.4 |
0.8-1 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<4.0 |
1986*1504*1760 |
650 |
| TS5 |
3.0 |
1-1.2 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<5.0 |
2322*1504*1760 |
800 |
| TS6 |
3.6 |
1.2-1.6 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<5.5 |
2658*1504*1760 |
1000 |
| TS7 |
4.1 |
1.4-1.8 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<6.0 |
2994*1504*1760 |
1200 |
| TS8 |
4.7 |
1.6-2 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<6.5 |
3330*1504*1760 |
1400 |
| TS10 |
5.8 |
2.5-3 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<8.0 |
3666*1504*1760 |
1800 |
| BSC-300 |
2.0 |
0.2-0.4 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<1.0 |
2330*960*1630 |
430 |
| BSC-600 |
3.5 |
0.4-0.6 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<2.0 |
2330*1260*1630 |
550 |
| BSC-1200 |
7.0 |
0.8-1 |
≥99.99% |
220V/50HZ/60HZ |
0.6-0.8 |
<4.0 |
3240*1860*1630 |
1200 |

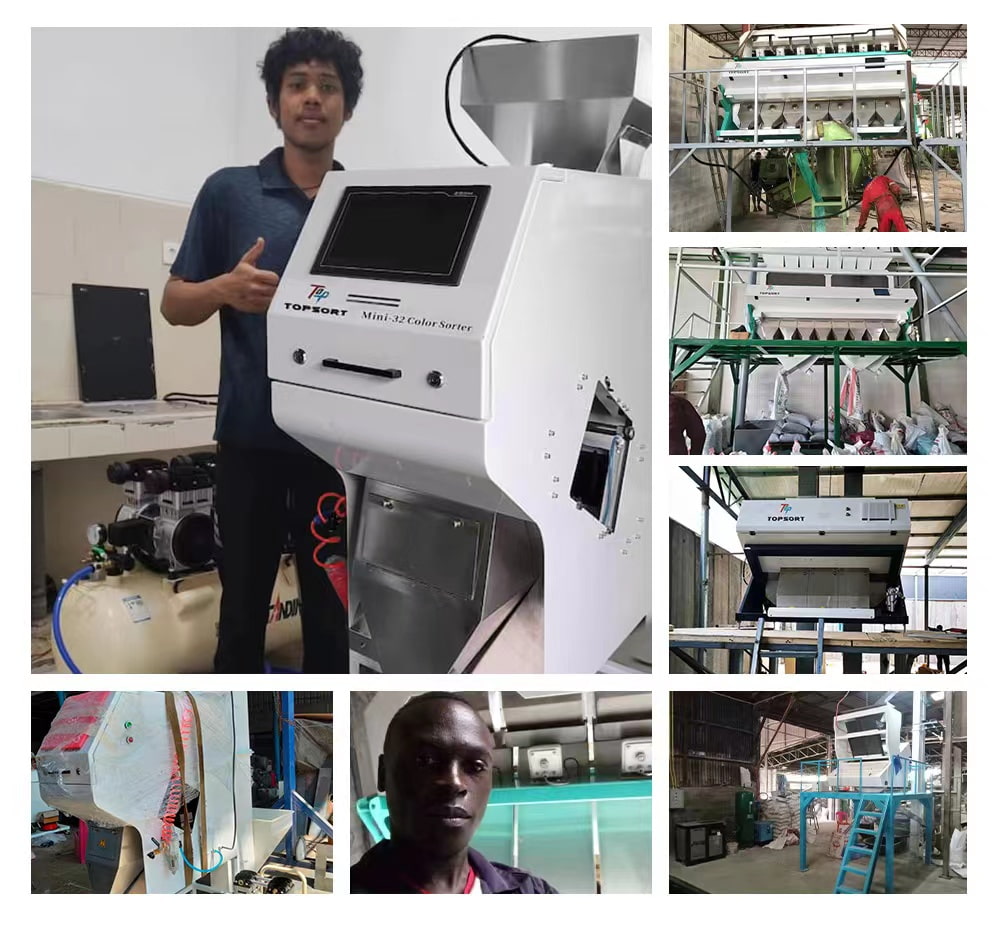

Customer Cases
Customer Concerns
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
