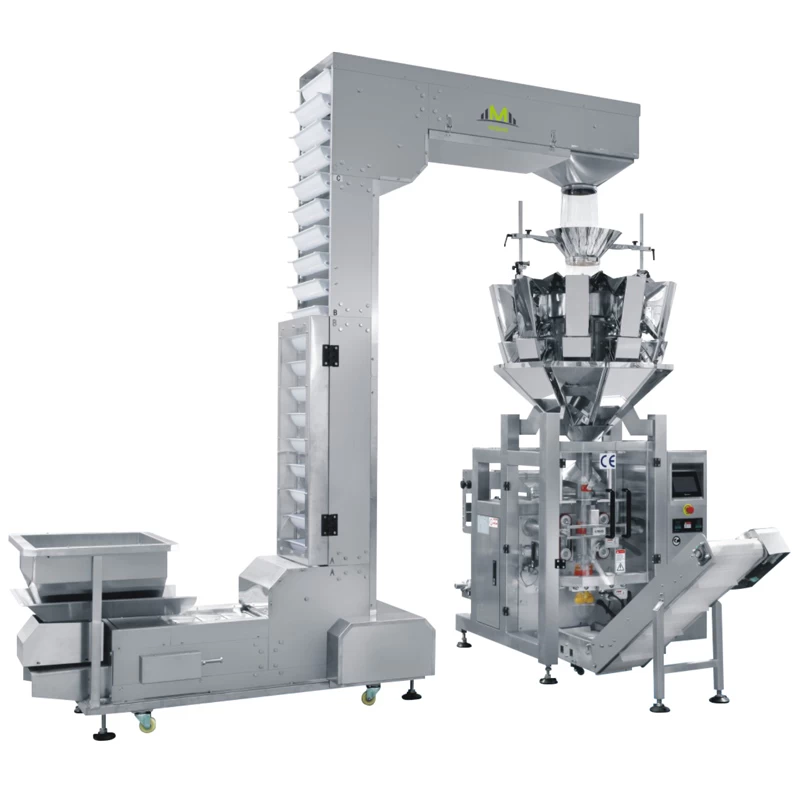

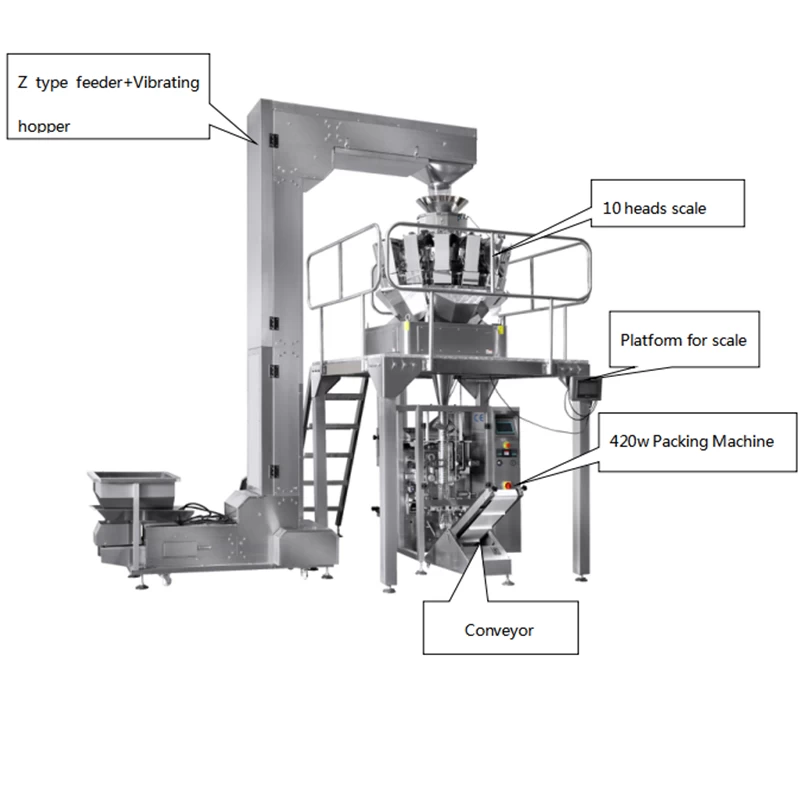

10 Head scale big particles grain powder packing machine
Customized And OEM Service Available
Details introduced
1.This 10 Head scale big particles grain Powder Packing Machine PLC control, stable and reliable dual-axis high-precision output and color touch screen, bag-making, metering, filling, printing and cutting can be completed at one time.
2. This Sachet Packing Machine Independent circuit box for pneumatic control and power control.The noise is low and the circuit is more stable.
3. Double belt servo motor pull film: the pull film resistance is small, the bag-making molding is good, the appearance is beautiful, the belt is durable.
4. Particle Grain Powder Packing Machine External film mechanism: packaging film installation is easier.
5. Adjust bag deviation only through touch screen control.It's very simple.
6. Closed mechanism to prevent powder from entering the machine.
Technical parameters
|
Model
|
MZH-420
|
|
Bag Length
|
50-300mm
|
|
Bag Width
|
100-200mm
|
|
Roll Film Width
|
420mm max.
|
|
Air Consumption
|
0.3m³/min 1.0Mps
|
|
Voltage
|
220V/50/60Hz
|
|
Power
|
3.2KW
|
|
Machine Size
|
1080(L)×1300(W)×1400(H)mm
|
|
Machine weight
|
600Kgs
|
