10 Inch Android 10.1 Industrial Rugged Tablet PC

10 Inch Rugged Panel PC, MTK MT6771 (2.0GHZ) Soldered on board, Android 10.1, 1xRS232, 2x airline plug reserved.



10 Inch Android 10.1 MTK MT6771 (2.0GHZ) Industrial Rugged Tablet PC

Product Introduction

Yanyuetech TPC-10A 10 Inch Industrial Rugged Tablet PC is easy to view each information wherever indoors or outdoors. Also, the 10-inch screen size is perfect to carry. Yanyuetech offers the right devices for the right people, such as architecture workers, engineers, electricity workers.



Specifications Optional Configurations
CPU MTK MT6771 2.0GHZ
Memory 4G Optional 2G/6G/8G
Hard Disk 64G Optional 16G/32G/128G
Operating system Android 10
Battery 10000mAh, 3.8v high voltage lithium battery, removable, 10h battery life (1080P+50% brightness)
Camera 5MP/GC5025 front, 13MP/OV13855 rear with flash (optional 2MP front, 8MP rear)
2G/3G/4G GSM, WCDMA, TD-SCDMA,CDMA2000, LTE-FDD, LTE-TDD
Power Supply DC interface 5V/3A (optional aerial plug interface 5V/3A)
Display Resolution 800*1280, 10" IPS LCD, 16:10 vertical screen (optional 1200*1920, 10" IPS LCD, 16:10 vertical screen)
Brightness 450cd/㎡(Optional 1000cd/㎡(800*1280)、800cd/㎡(1200*1920)
Touch Screen 5 point/10 point touch (optional capacitive pen, wet hand touch, glove touch)
Cover Glass Corning Gorilla 3rd generation glass, hardness 7H (optional AG anti-glare coating, increased light transmission coating)
Interface Dual speaker 1.2W/8Ω Aluminium film, IP67 waterproof speaker; Dual analogue MIC, IP67 waterproof rating
1*Type-A USB2.0, 1*Type-C USB2.0 (support charging/OTG cable/to network port)
 1*RJ45, 100Mbps
Audio-video interface 1*3.5mm audio interface; 1*Mini HDMI
Air plug 2*7pin air plug reserved (optional CAN/USB/GPIO/RS232/charging DC etc.)
POGO Pin 1*12pin, USB and DC rechargeable
Extension
12pin POGO PIN, convertible to USB and DC charging
Expansion Card 1*SIM card slot, 1*TF card slot (up to 256GB expansion support)
WIFI  WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G Dual-band WIFI
Bluetooth Bluetooth 4.0 (BLE) class1 Transmission range: 10m
GPS  MT6631 GPS+BD (optional U-BLOX M8N, high accuracy differential positioning module (RTK antenna))
Module Function NFC: 13.56MHZ, support 14443A/14443B/15693 etc. protocols
(Optional low frequency RFID: 125KHz RFID; UHF RFID: PR9200 (1.5/2.5/5m), R2000 (8-10m); 2D scanning
head: Zebra SE4710/4750, Honeywell N3680; CAN bus module, ID card reader module, fingerprint module)
Accessory  adapter (5V/3A, Class 6 energy efficiency), hand strap (optional charging dock, car charging cradle, car mount, Type-C OTG cable)
Dimensions 277.48*182.74*21.5mm
Installation Mode Recessed screw mount;Recessed hook mounting; VISA wall mount



Product Features

■support Android 10.1

■1xRS232, 2x airline plug reserved.

■Removable battery

■12pin POGO PIN, convertible to USB and DC charging

■Standard WIFI and Bluetooth 4.0

■IP65 for the whole machine

■Optional CCC/CE/RHoS/UN38.3/MSDS/Air Sea Freight Identification/IEC62133/GMS/Explosion-proof US Military Standard / National Military Standard / IP Rating



8inch Rugged Panel PC10 Inch Rugged Tablet PCRugged Tablet PC

                        Rugged Tablet PC





Work and Environment
Working Temperature -10~50℃(Optional -20~60℃) Storage Temperature -30~70℃ Environmental Humidity 0~90% air humidity, no condensation
 IP Rating Resistant IP65 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
Certifications meet relevant industry and market access requirements and specifications (optional CCC/CE/RHoS/UN38.3/MSDS/Air Marine Identification/IEC62133/GMS/
(Explosion-proof US Military Standard / National Military Standard / IP Rating)
Drop Resistant   1.2m wooden floor free fall at any angle

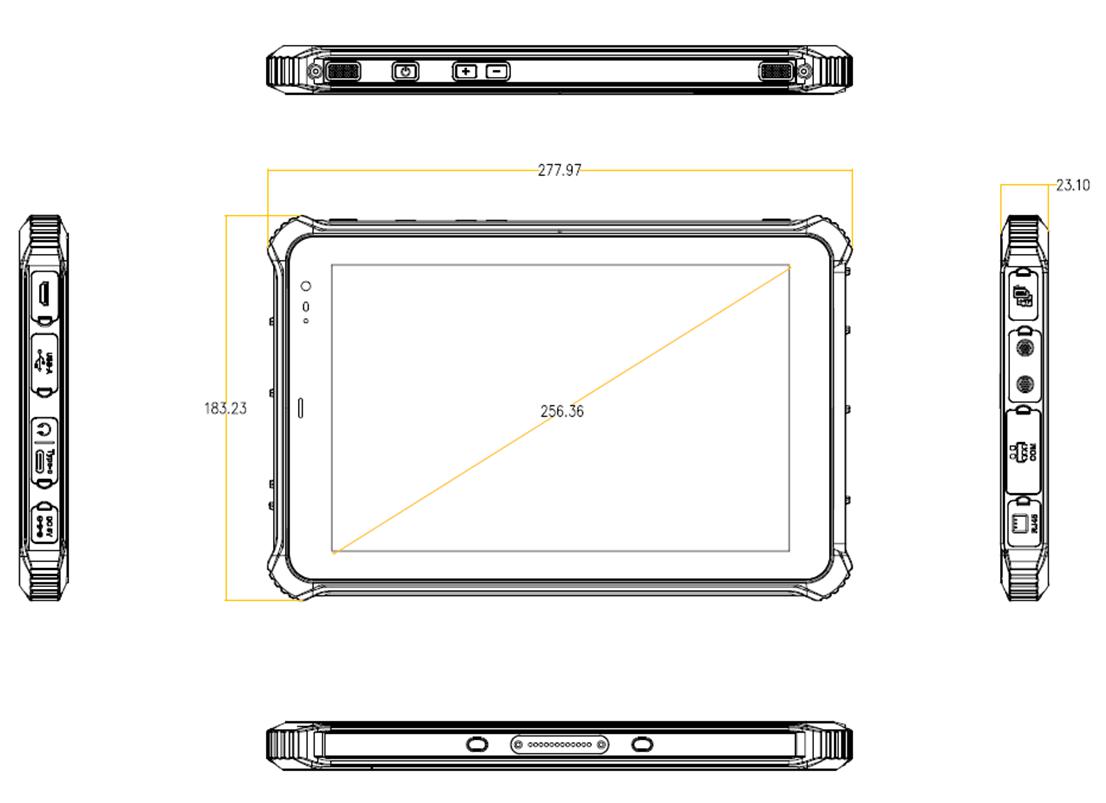

Product Installation Dimension Diagram



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
