10 Inch Android 9 RK3399 (1.8GHZ) Industrial Rugged Tablet PC

10 Inch Rugged Panel PC, RK3399 (1.8GHZ) Soldered on board, Android 9, 1xRS232



10 Inch Android 9 RK3399 (1.8GHZ) Industrial Rugged Tablet PC

Product Introduction

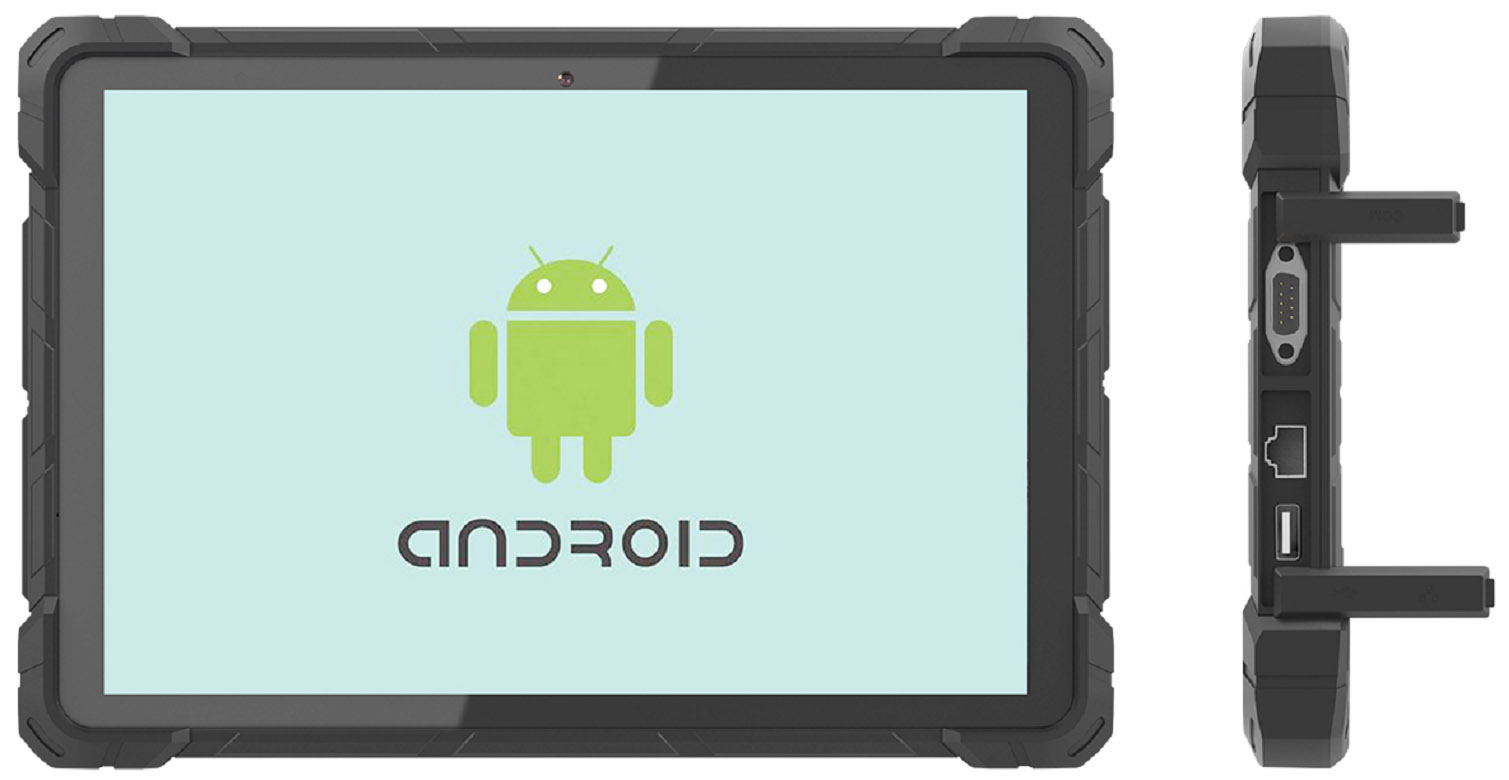

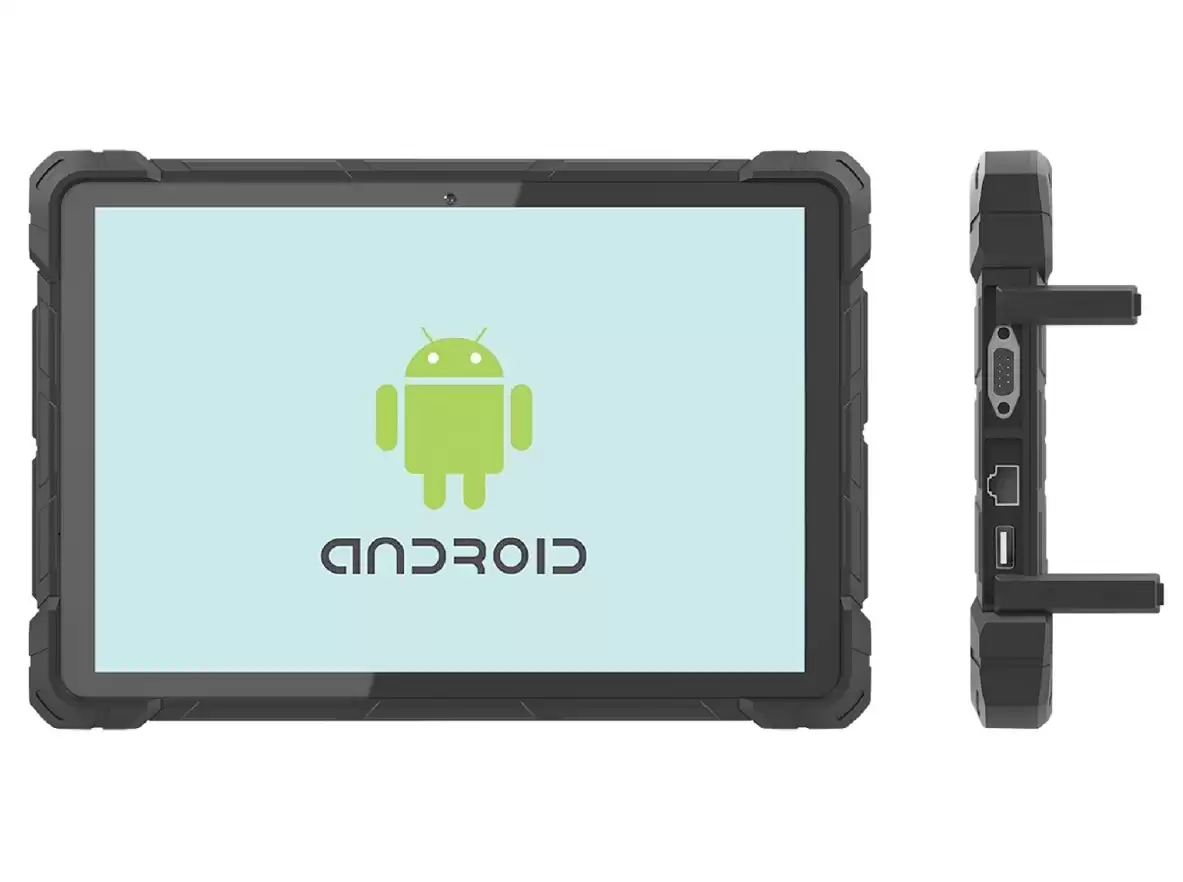

Yanyuetech TPC-RK3399 10 Inch Industrial Rugged Tablet PC is easy to view each information wherever indoors or outdoors. Also, the 10-inch screen size is perfect to carry. Yanyuetech offers the right devices for the right people, such as architecture workers, engineers, electricity workers.




System Physical Standard Configuration:
Type Details Descriptions
Product Form Form Factor IP67 Rugged Tablet PC
Dimensions 280×184×26.5mm
Weight 1.2KG
LCD Screen Size 10.1"
Screen Resolution 1200×1920 (IPS+FHD+300ANSI)  (Standrd)
800×1280 (IPS+HD+500ANSI)  (Optional, For MOQ order)
TP Touch Module  G+G Multi-Touch
Battery  Type Rechargeable lithium polymer
Capacity 12000mAh/3.7V
Working Time Over 8 hours (FHD local video display)
System Hardware Configuration:
Type Details Descriptions
CPU Type RK3399  Dual-core Cortex-A72 + Quad-core Cortex-A53
Speed Up to 1.8GHz
GPU Type Mali-T864 GPU
Memory Capacity 4GB
Storage eMMC 64GB
SSD /
SATA 2.5“ HDD /
Camera Front  2M
Rear  5M
Speaker Built-in 8Ω/1W with water proof
Micphone Built-in Yes
G-sensor Built-in Yes
Network Connections:
Type Details Descriptions
WIFI WIFI Module: Broadcom AP6255/AP6256 WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
Bluetooth BT Module: Broadcom AP6255/AP6256 Bluetooth4.0
3G/4G LTE Optional Optional with external small PCBA
QR code Scanners Optional Optional
NFC Optional Optional
GPS BD2/GPS Optional
Fingerprinter Capacitive fingerprint sensor Optional
Ethernet Network RJ-45 1000Mbps Gigabit Lan
Interface Configuration:
Type Details Descriptions
USB Interface USB3.0 ×1pc
USB2.0 ×2pcs (USB2.0 TypeA×1 + Micro USB2.0 (Debug port)×1)
SD / TF Card reader TF Card reader ×1pc (up to 128GB)
SIM  Card Slot SIM Slot for 3G/4G LTE Optional
Audio Jack  3.5mm standard ×1pc
HDMI Micro HDMI 1.4 ×1pc
Video output through HDMI Up to 4K
COM Port DB9 (RS232) ×1pc
Button Switch:
Type Details Descriptions
Power On/Off ×1pc
Volume Down/UP ×1pc
CMOS Reset Reset by Short Press /
Main Accessories:
Type Details Descriptions
Power adapter DC 12V/3A ×1pc
User's Manual User's Manual ×1pc
Handle Straps Optional Optional
Extension Docking USB2.0×1pc ; DC IN × 1pc Optional
Software Configuration:
 Type Details Descriptions
Wake up on Lan Wake up on Lan by RJ45 /
PXE Preboot Execution Environment /
Operating System Android 9.0 or above Yes
Linux Test by end user
Environment:
Temperature Operation Temperature -10oC ~ 55oC (1080p or 4K local video display)
Storage Temperature -20oC ~ 70oC  (Restore to Operation Temperature 2hr before use)
Humidity Oprating Humidity 35% ~ 80% relative humidity, Non-condensing
Storage Humidity 20% ~ 93% relative humidity, Non-condensing
Certification:
IP67 IP67 Certification Yes
Other Other Optional





Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
