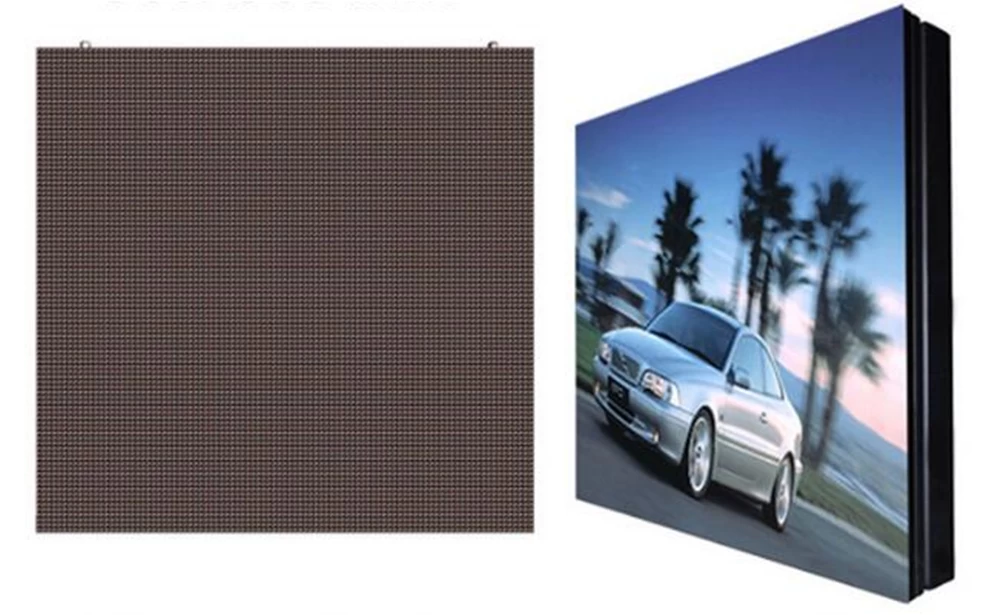

10 mm Outdoor Advertising LED Display SMD3535 LED Screen

◆Product size can be customized◆
Brightness is adjustable，Display speed is adjustable
Letter font and letter size are adjustable
Housing material is Aluminium alloy and housing color is black
Default function is text letter, time and date;temperature

Facebook Twitter Pinterest LinkedIn 分享
Detail Description:

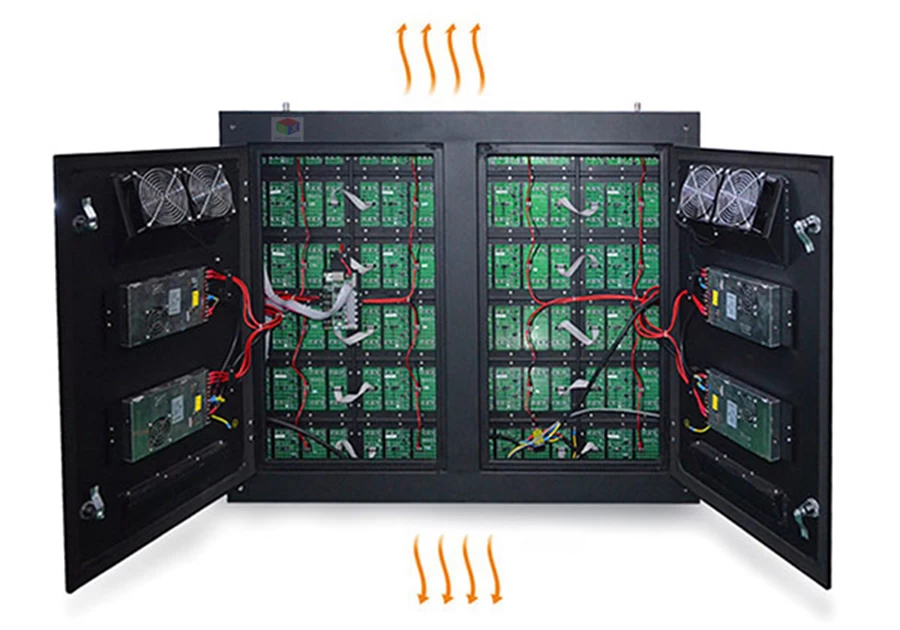

5V 40A power source, 1 pc supports 7pcs P10 outdoor LED module;
Spare parts provided based on quantity;
Each cabinet uses 1 pc receiving card to make sure high refresh rate.

Application:

Outdoor LED billboard is used for highway advertising.

【Feature & Function】

                                      Model :     CX-PH10 RGB09B


LED Module model
  color 1R1G1B
LED Type SMD3535
Module Resolution W 32 x H 16
Module Size (mm) W 320 x H 160
Driving Method 1/2 scan
   LED  display parameter
voltage 220V or 110V  ± 10%
Material outdoor iron waterproof  ( IP 65 )
Cabinet Size （mm) W 960 x H 960 MM (38X38 Inch)
Cabinet Resolution (pixel) W96 x H 96
power Consumption Max (w/set） 1000 Watt
Brightness ( CD/㎡） ≥6500
Net Weight (kg) 45 kg
Viewing Angle 120° / 70°
Theoretic LED Working Life More than 100000 hours
control method network port control ( WIFI ,USB optional)
display function Date,Text, picture, logo ,  video.
