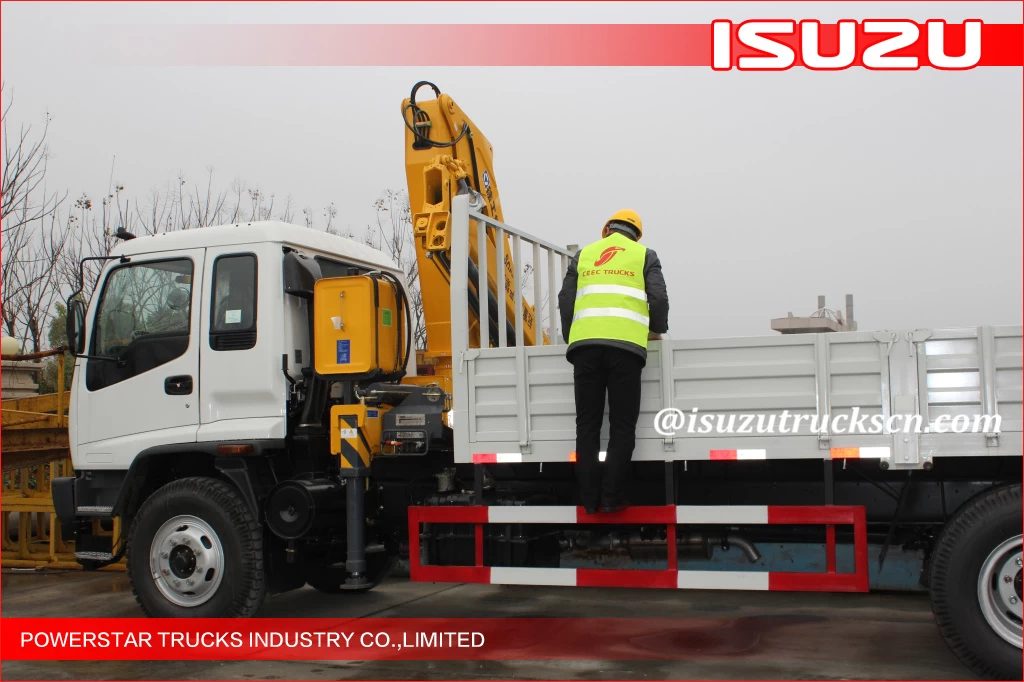

10 Ton FTR FVR ISUZU Telescopic Boom Truck Mounted Crane
ISUZU 10 Ton Telescopic Boom Truck Mounted Crane, 13.5m Max Reach
- Name: Telescopic boom crane, Telescoping boom crane, Hydraulic truck crane
- Max Lifting Capacity: 10 ton
- Max Lifting Moment: 25 T.M
- Max Oil Flow of Hydraulic System: 100 L/min
- Max.Lifting height: 13.5meters
- Brand: XCMG
- Crane Weight: 3955 kg
- Oil Tank Capacity: 160 L
- Feature: Safety transportion, driven by hydraulic, move fast, The raise and down are driven by wire rope, telescopic boom coupling technology
- Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.
Description:
Telescopic boom crane SQ10SK3Q-II is lifting capacity is 10tons moment is 25 T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model
|
SQ10SK3Q-II
|
Unit
|
Max Lifting Capacity
|
10000
|
kg
|
Max Lifting Moment
|
25
|
T.M
|
Recommend Power
|
30
|
kw
|
Max Oil Flow of Hydraulic System
|
100
|
L/min
|
Max Pressure of Hydraulic System
|
26
|
MPa
|
Oil Tank Capacity
|
160
|
L
|
Rotation Angle
|
All Rotation
|
Crane Weight
|
3955
|
kg
|
Installation Space
|
1200
|
mm
|
Choice of Chassis
|
ISUZU
|
SQ10SK3Q-II Lifting capability diagram
|
Working radius (m)
|
2.5
|
4.5
|
7
|
9
|
12
|
Lifting capacity (kg)
|
10000
|
5556
|
3000
|
2000
|
1400
|
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
Stabilizer leg
|
Spread
|
Fixed
|
2179mm
|
Single extension
|
2256-3556mm
|
Double extension
|
2212-4752mm
|
