Dual 5V 12V power supply 60W
Description:
Dual 5V 12V power supply is the dual output 5V 6A 12V 3A power supply,and widely used to the stage lights and other industrial equipments.
Features:
1, Dual 5V 12V power supplies;
2, 60W dual output power source with wide range of AC input voltage;
3, 5V 6A 12V 3A power supplies with Overload, short circuit, over voltage protections.
|
Parameter
|
|
Item No.
|
K06-U60D5+12
|
|
CH1
|
CH2
|
|
Output
|
Output Voltage
|
+5V
|
+12V
|
|
Rated Current
|
6A
|
3A
|
|
Current Range
|
0-6A
|
0-3A
|
|
Rated power
|
66W
|
|
Ripple
|
100mVp-p
|
200mVp-p
|
|
Adjustable output range
|
±10%
|
|
|
Output Accuracy
|
±2%
|
±4%
|
|
Line Regulation
|
±1%
|
±4%
|
|
Load Regulation
|
±1%
|
±4%
|
|
Set up,Rise,Keep up time
|
800ms,30ms,16ms/115VAC, 300ms,30ms,50ms/230VAC
|
|
Input
|
Input Voltage range
|
100~264V AC
|
|
Input current
|
1A/115V,0.5A/230V AC
|
|
Input frequency
|
47~63Hz
|
|
Efficiency
|
83% @ 220V AC
|
|
Inrush current
|
COLD START 20A/230VAC,10A@115VAC
|
|
Leakage Current
|
<0.35mA/240VAC
|
|
Protection
|
Over load protection
|
105~200%,Hiccup protection, automatic recovery.
|
|
Output over voltage
|
CH1:7-10V
|
|
Environment
|
Working Temp.,Humidity
|
-20~50℃，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
GB4943,EN60950-1
|
|
Pressure
|
I/P-O/P:1.8KV;I/P-FG:1.8KV;O/P-FG:0.5KV AC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
EN55032 EN55015
|
|
Others
|
Dimension
|
129×98×38mm
|
|
Weight
|
0.4Kg
|
|
Notes
|
1. All parameters 220VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. RippleTest:30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 20% to 100% load change measured, other load is fixed at 60% of the load;
|

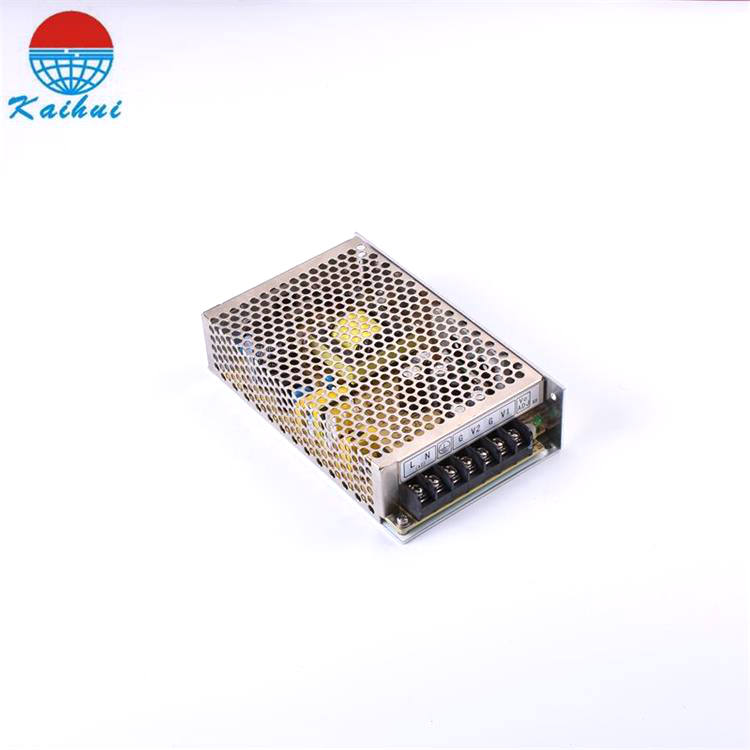

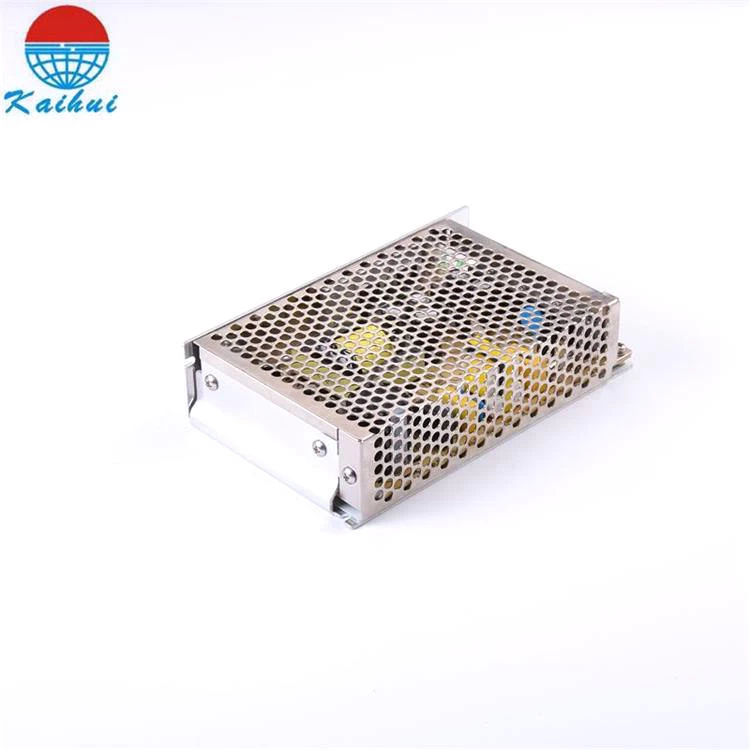

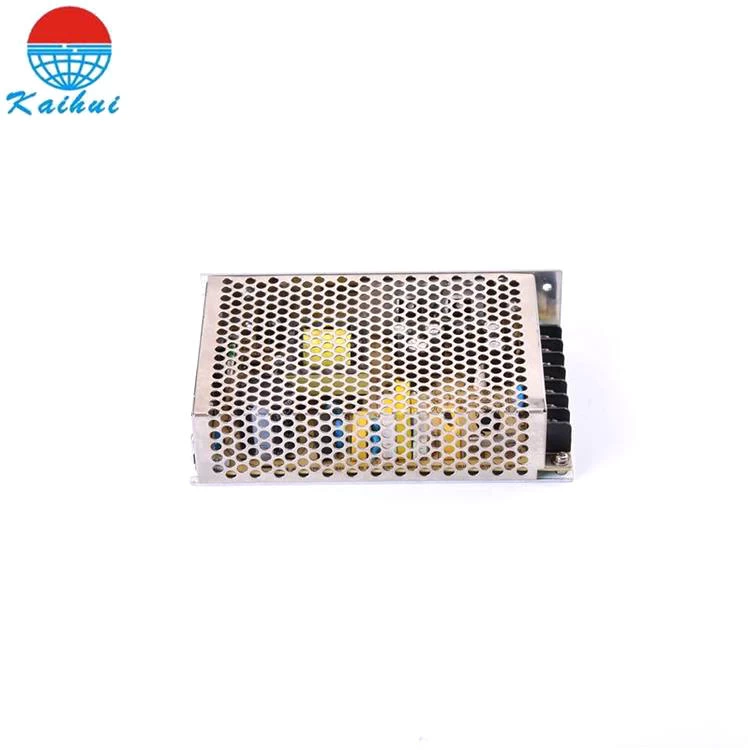

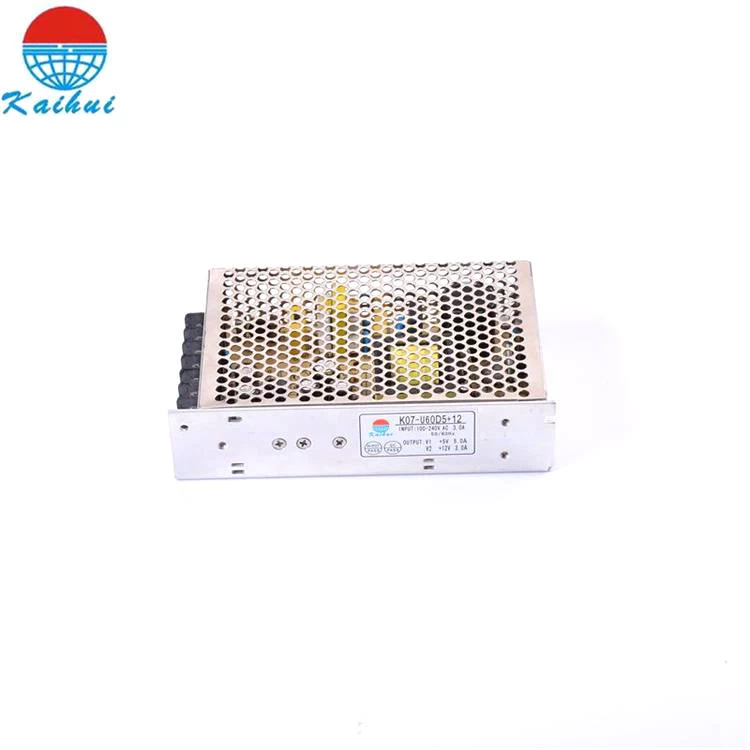

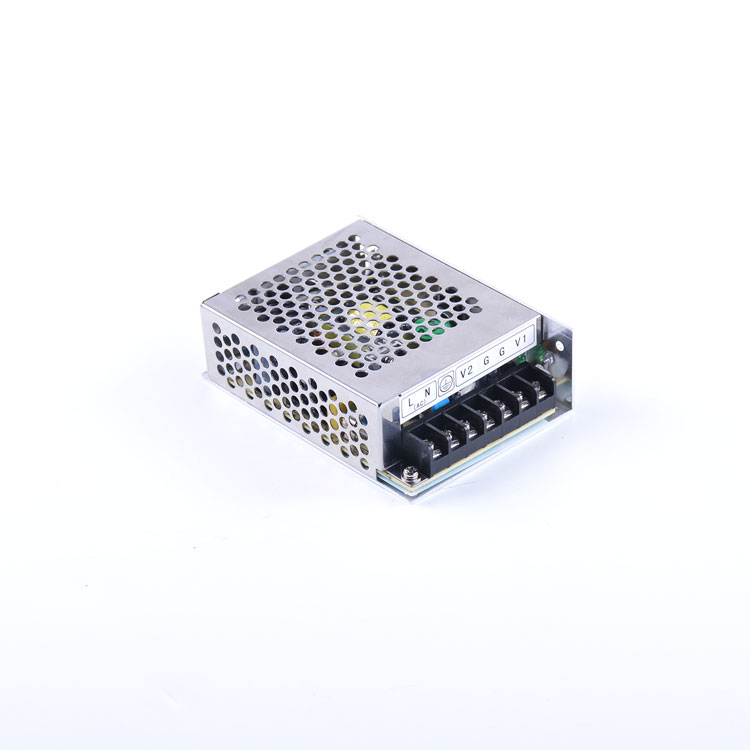

Product picture:
