100-240VAC Input Single Output 12V 24V 28V 36V 48V 200W Switching Power Supply
Description:
The KPSP200 series power supply is 200W single output open frame switching power supply,and the 200W open frame SMPS is high PF factor from 90% to 95%.Also with cover is ok.At present it is widely used to the led lights and Medical and Health equipments.
Features:
1,200W Switching power supply with High efficiency, low temperature rise;
2, 24V 200W SMPS with Built-in filters, low output noise;
3, 36V PSU 200W with Wide range of AC input voltage;
4, 200W SMPS with Short circuit, overload, over-temp. protection;
5,200W Switching power s Used in LED light,CCTV camera etc.
Parameter
|
|
Item No
|
KPSP200-12
|
KPSP200-24
|
KPSP200-36
|
KPSP200-48
|
|
Output
|
Output Voltage
|
+12V
|
+24V
|
+36V
|
+48V
|
|
Rated Current
|
16.7A
|
8.4A
|
5.6A
|
4.2A
|
|
Current Range
|
0-16.7A
|
0-8.4A
|
0-5.6A
|
0-4.2A
|
|
Rated Power(with cooling fan)
|
200.4W
|
201.6W
|
201.6W
|
201.6W
|
|
Rated power(without cooling fan)
|
140W
|
140W
|
150W
|
150W
|
|
Ripple
|
150mVp-p
|
200mVp-p
|
300mVp-p
|
300mVp-p
|
|
Adjustable Output Range
|
11.4-12.6V
|
22.8-25.2V
|
34.2-37.8V
|
45.6-50.4V
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
800ms, 30ms, 16ms/115VAC 300ms, 30ms, 50ms/230VAC
|
|
Input
|
Input Voltage Range
|
88~264V AC,100~370VDC
|
|
Input Current
|
0.4A/115V,0.2A/230V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
78%
|
84%
|
84%
|
85%
|
|
Inrush Current
|
30A@230V
|
|
Leakage Current
|
<0.3mA@240V
|
|
Protection
|
Over Load Protection
|
105~150%,Hiccup,automatic recovery
|
|
Over temp. Protection
|
when TS1 position>105 degree,it will be protected,then automatic recovery.
|
|
Environment
|
Working Temp.,Humidity
|
-20~70℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943,EN60950
|
|
Withstand Voltage
|
I/P-O/P:3kv,I/P-FG:1.8KV,O/P-FG:0.6KV DC 1min
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
GB9254,EN55022 CLASS B
|
|
Others
|
Dimension
|
101.6*50.8*30mm(L*W*H)
|
|
Weight
|
0.2kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

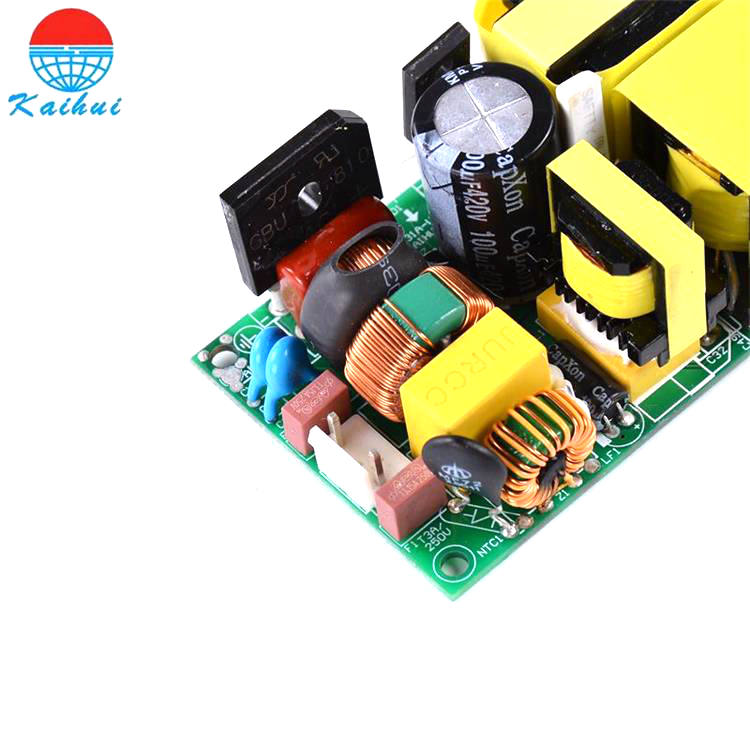

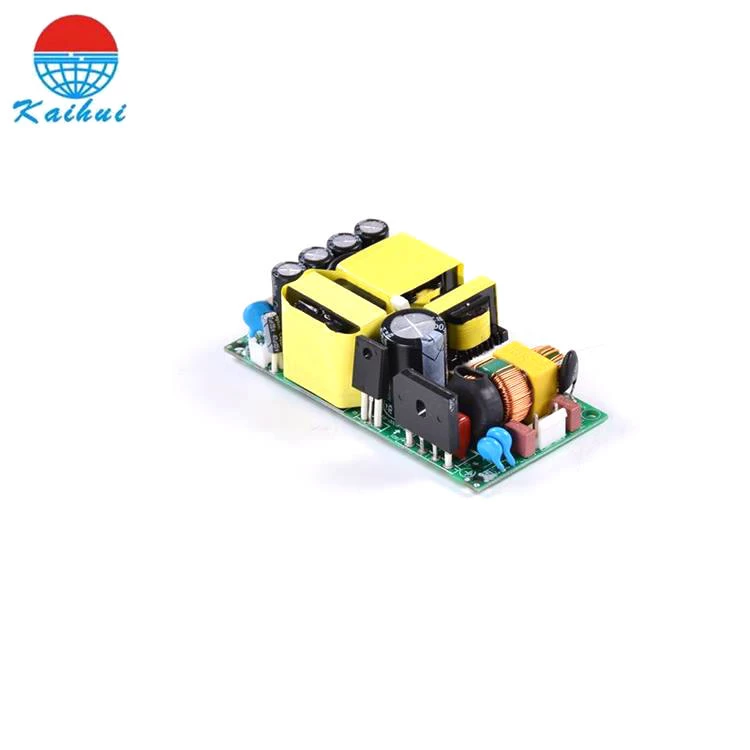

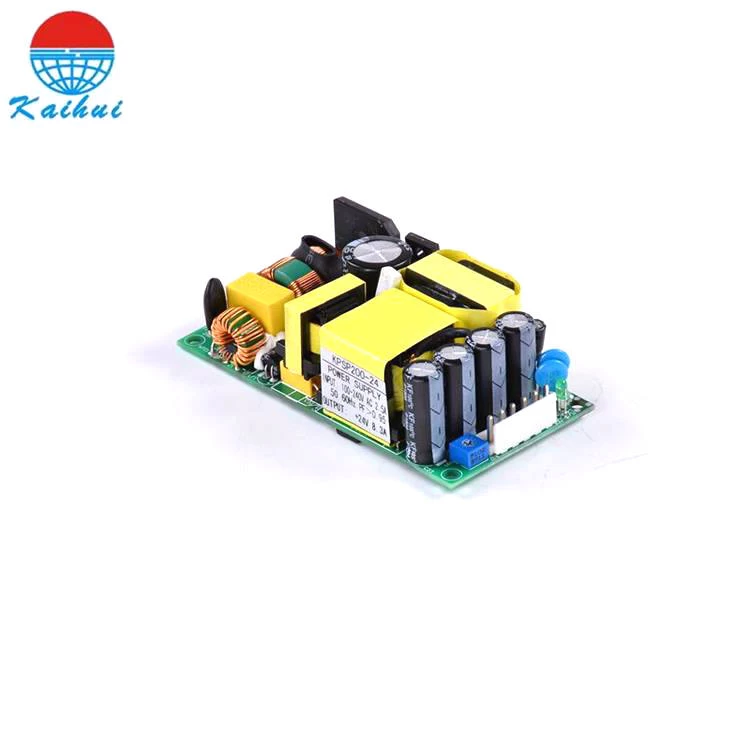

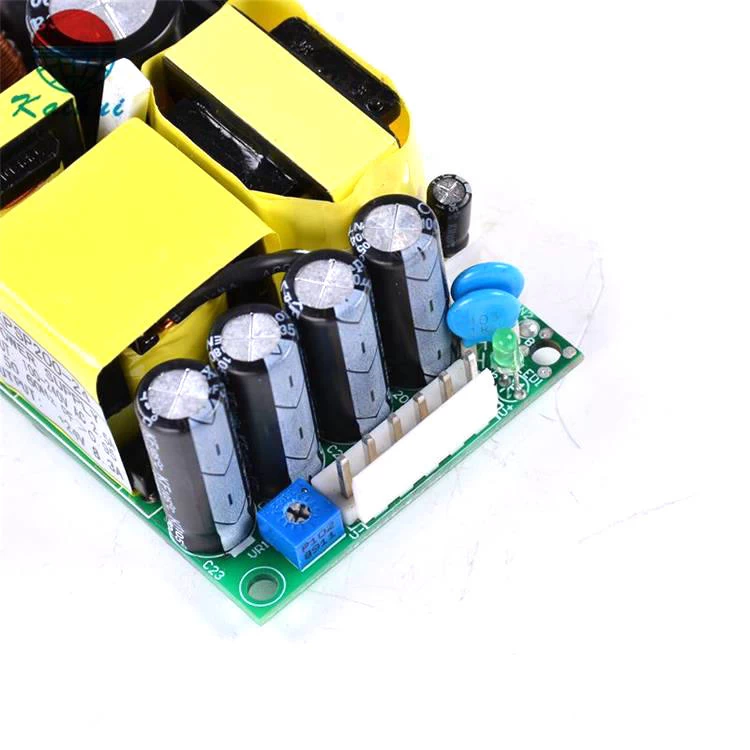

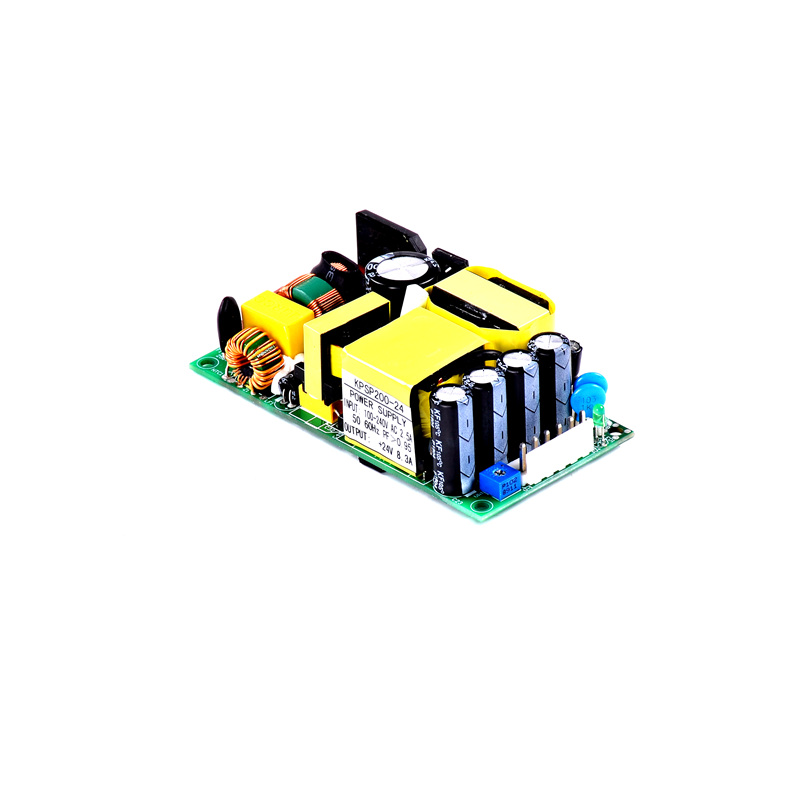

Product picture:
