36V 400W open frame switching power supply for stage lights
Description:
K18-UP400S series 36V 400W switching power supply is 100-240vac input voltage and open frame 48VDC single output open frame switching power supply, high quanlity,it is used in electronic LED driver and stage lighting field etc.
Features:
1, 400W high efficiency 36V 11A switching power supply;
2, Wide range of AC input voltage,36V 400W single output power supply open frame;
3, Over load, short circuit,over voltage and over temperature protection;
4, 400W open frame power supply used in stage lighting and robot.
Parameter
|
|
Item NO
|
K18-UP400S12
|
K18-UP400S24
|
K18-UP400S36
|
K18-UP400S48
|
|
Output
|
Output Voltage
|
+12V
|
+24V
|
+36V
|
+48V
|
|
Rated Current
|
30A
|
16.7A
|
11A
|
8.3A
|
|
Current Range
|
0-30A
|
0-16.7A
|
0-11A
|
0-8.3A
|
|
Rated Power
|
360W
|
400.8W
|
396W
|
398.4W
|
|
Ripple & Noise
|
240mVp-p
|
240mVp-p
|
360mVp-p
|
480mVp-p
|
|
Adjustable Output Range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms, 50ms, 20ms
|
|
Input
|
Input Voltage Range
|
90-264V AC,110-360V DC
|
|
Input Current
|
5A/115V,2.2A/230V
|
|
Input Frequency
|
47-63Hz
|
|
Power Factor
|
>0.95
|
|
Efficiency @230Vac
|
89%
|
90%
|
92%
|
92%
|
|
Inrush Current
|
30A@230V
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over Load Protection
|
105~150% Type:Hiccup Reset:automatic recover
|
|
Short Circuit Protection
|
Type:Hiccup Reset: automatic recover
|
|
Over Temp., protection
|
Cover temp.>105℃，output closed,automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-10~50℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943 EN60950
|
|
Withstand Voltage
|
I/P-O/P:1.5KV; I/P-FG：1.5KV；O/P-FG:0.5KV DC 1min
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
GB9254 EN55022 CLASS B EN61000-3-2
|
|
Others
|
Dimension
|
127*82*45mm(L*W*H)
|
|
Weight
|
0.5kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

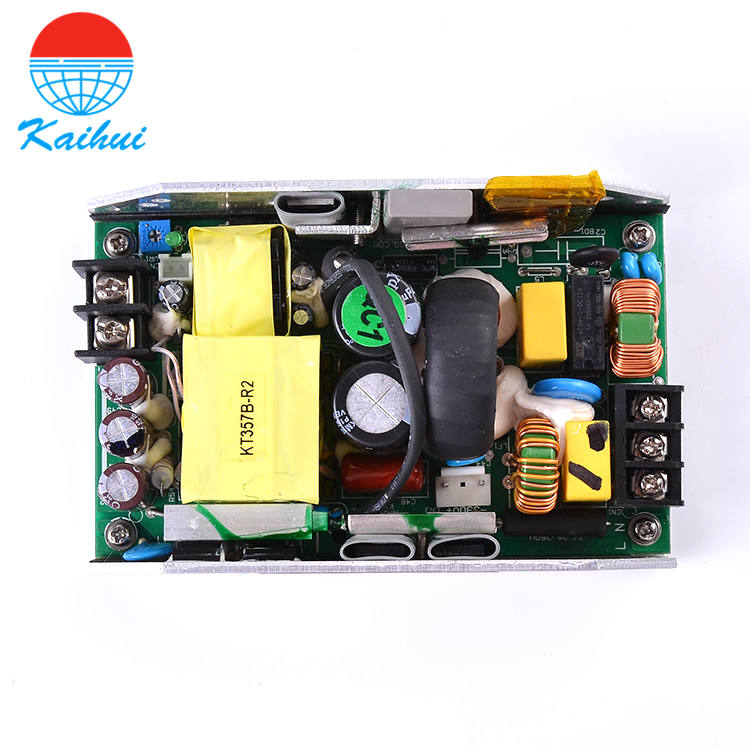

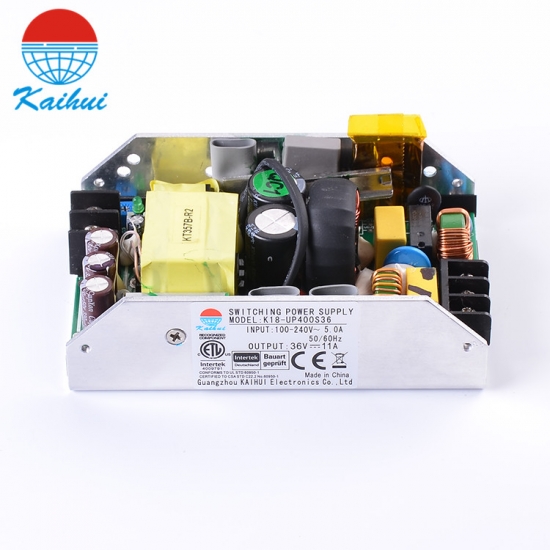

Product picture:
