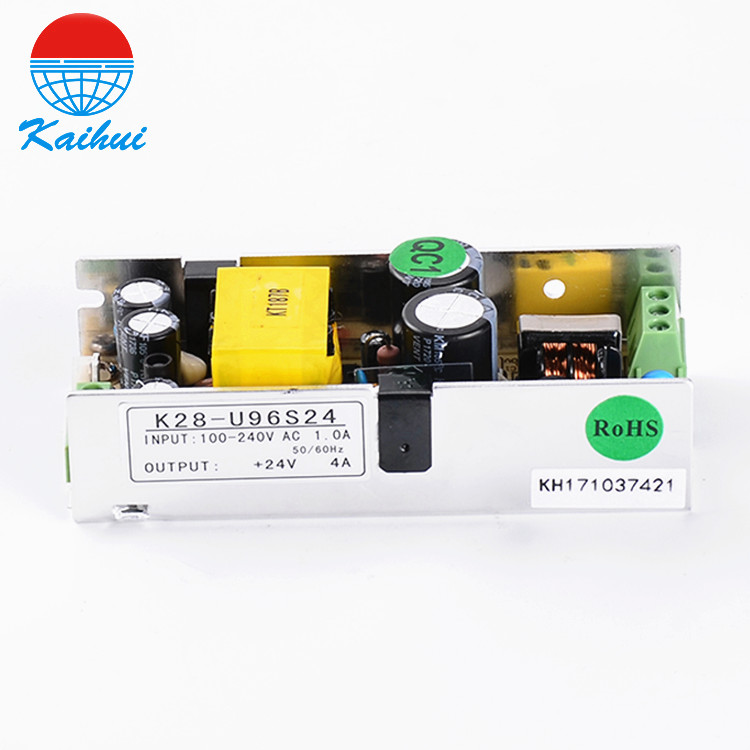

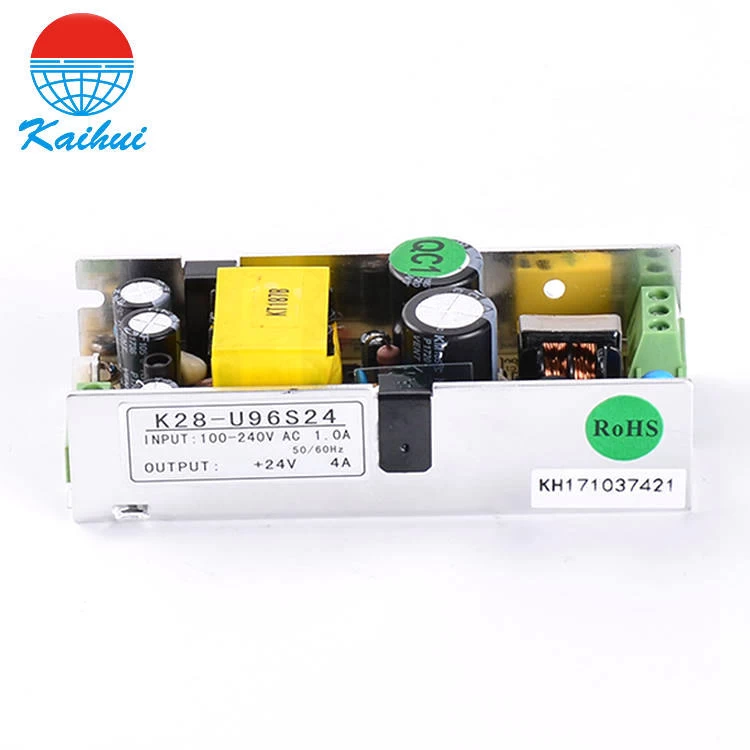

100-240VAC input water purifiers power source 96W

Parameter

            Item NO

K28-U96S12

K28-U96S24

K28-U96S36

K28-U96S48

Output

Output Voltage

+12V

+24V

+36V

+48V

Rated Current

8A

4A

2.8A

2.1A

Current Range

0-8A

0-4A

0-2.8A

0-2.1A

Rated Power

96W

96W

100W

100W

Ripple

120mVp-p

120mVp-p

200mVp-p

200mVp-p

Adjustable Output Range

±10%

Output Accuracy

±1%

Line Regulation

±0.5%

Load Regulation

±0.5%

Set up,Rise,Keep up time

500ms, 50ms, 20ms

Input

Input Voltage Range

90~264V AC;110~360V DC

Input Current

0.6A/115V;0.3A/230V

Input Frequency

47~63Hz

Efficiency

>84%@220VAC

Inrush Current

30A@230V

Leakage Current

<0.35mA@240V

Protection

Over Load Protection

105~150%, TYPE:HICCUP RESET:AUTO RECOVER

Short Circuit Protection

TYPE:HICCUP RESET:AUTO RECOVER

Over Voltage protection

  15~18V;          30-33V;                 42-45V;                   54-60V

Environment

Working Temp.,Humidity

-20~50℃,10~90% RH，No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.,Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES

Safety&EMC Standards

Safety Standards

GB4943,EN60950

Withstand Voltage

I/P-O/P,I/P-FG:1.5KV,O/P-FG:0.5KV DC 1min

Insulation Resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC Standards

GB9254,EN55022 CLASS B

Others

Dimension

105*44*27mm

Weight

0.2kg

Notes

1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;

2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;

3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;

4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5. Load regulation: the measured output load from 0 to 100% load change measured.
