100-265vac dimmer switch for led downlights with CE ROHS listed

The SMT-M3 dali dimmer is DALI Signal with 1 output channel ,could work on Current Consumption:25mA±10% .


  • Certificationce,rohs
  • Size86*86*40mm
  • Dimming modedali dimmer
  • Input Voltage100-265vac

100-265vac dimmer switch for led downlights with CE ROHS listed


The SMT-M3 dali dimmer is dimmer switch for led downlights which could easy to install and easy to use.It's could work with our dali dimmable led driver very well.


1.Technical Parameters:


Power Supply :Provided by DALI Bus

Output Signal:DALI Signal

Static power:<0.5W

Current Consumption:25mA±10%

Output channel:1 channel

Product dimension:L86*W86*H38mm

Packing size:L116*W110*H51.5mm

Working temperature:-20℃-60℃

Net weight:170g

Gross weight:228g

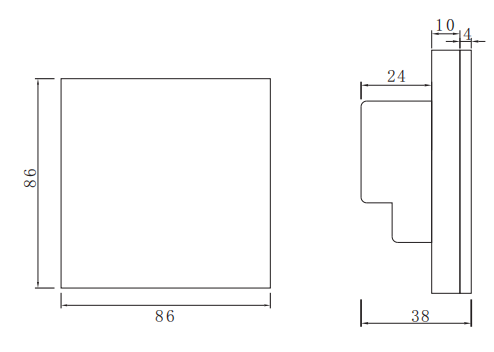

2.Product Size


dimmer switch for led downlights

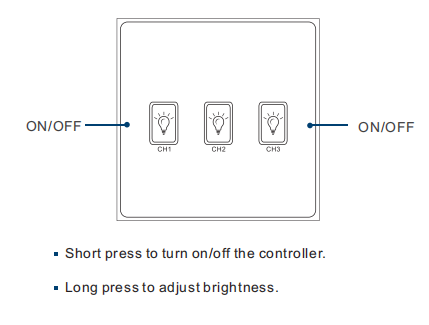

3.Funtion Description:


dimmer switch for led downlights

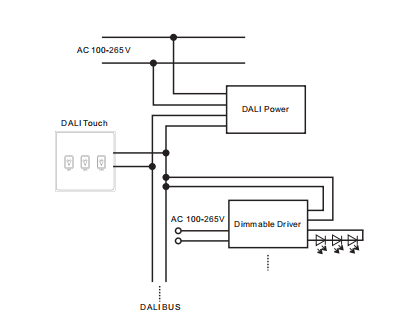

4.Typical Application:


dimmer switch for led downlights


Fine:Set the minimum brightness using the set-screw(Fine)

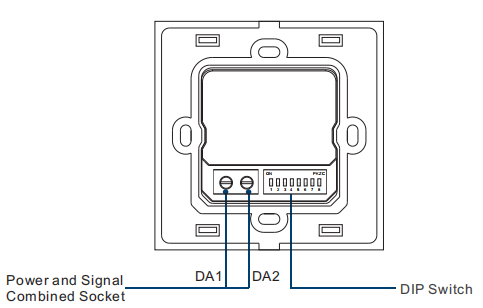

5.Interface Introduction


dimmer switch for led downlights


6.DIP Switch Operation


dimmer switch for led downlights

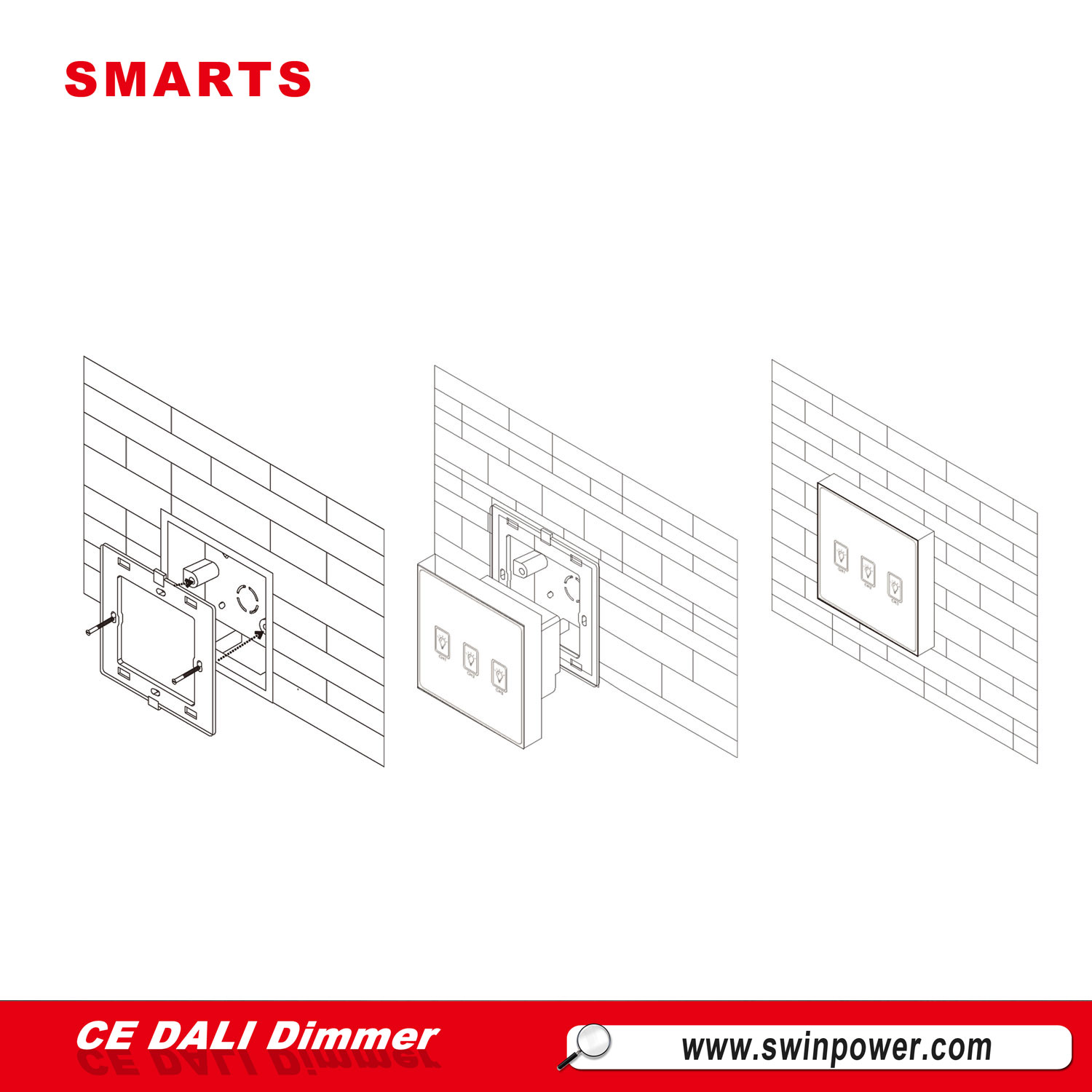

7.Installation Instruction:


dimmer switch for led downlights


Can you please confirm lead time?

Lead time for sample order takes about 7 working days. It takes about 12-15 working days for production order. It depends on the quantities.
