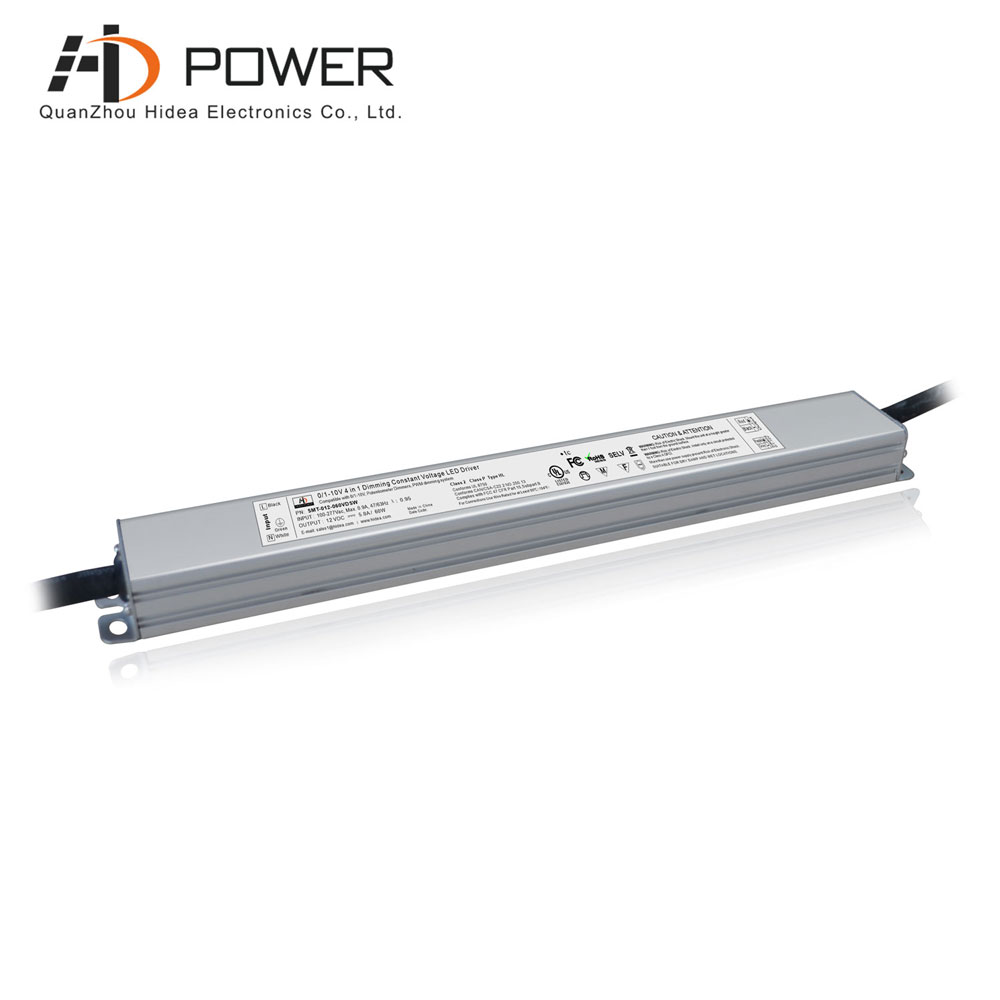

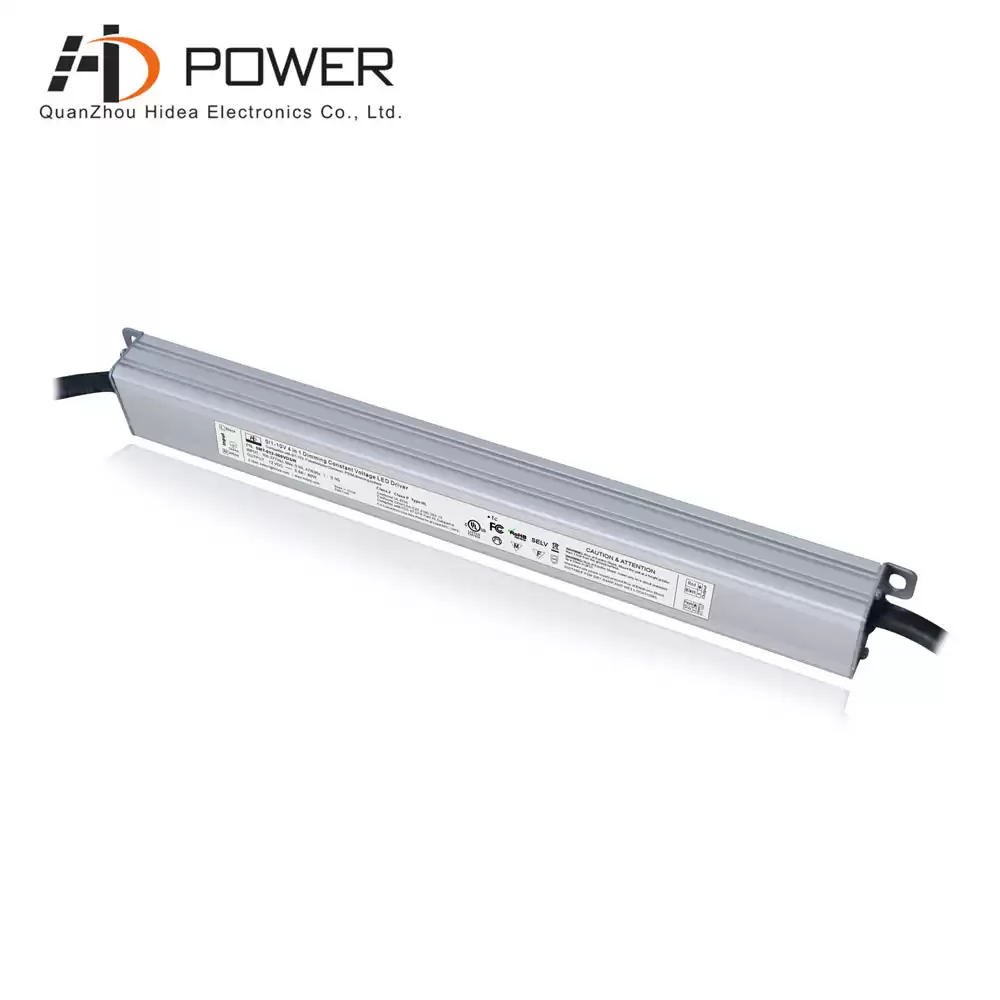

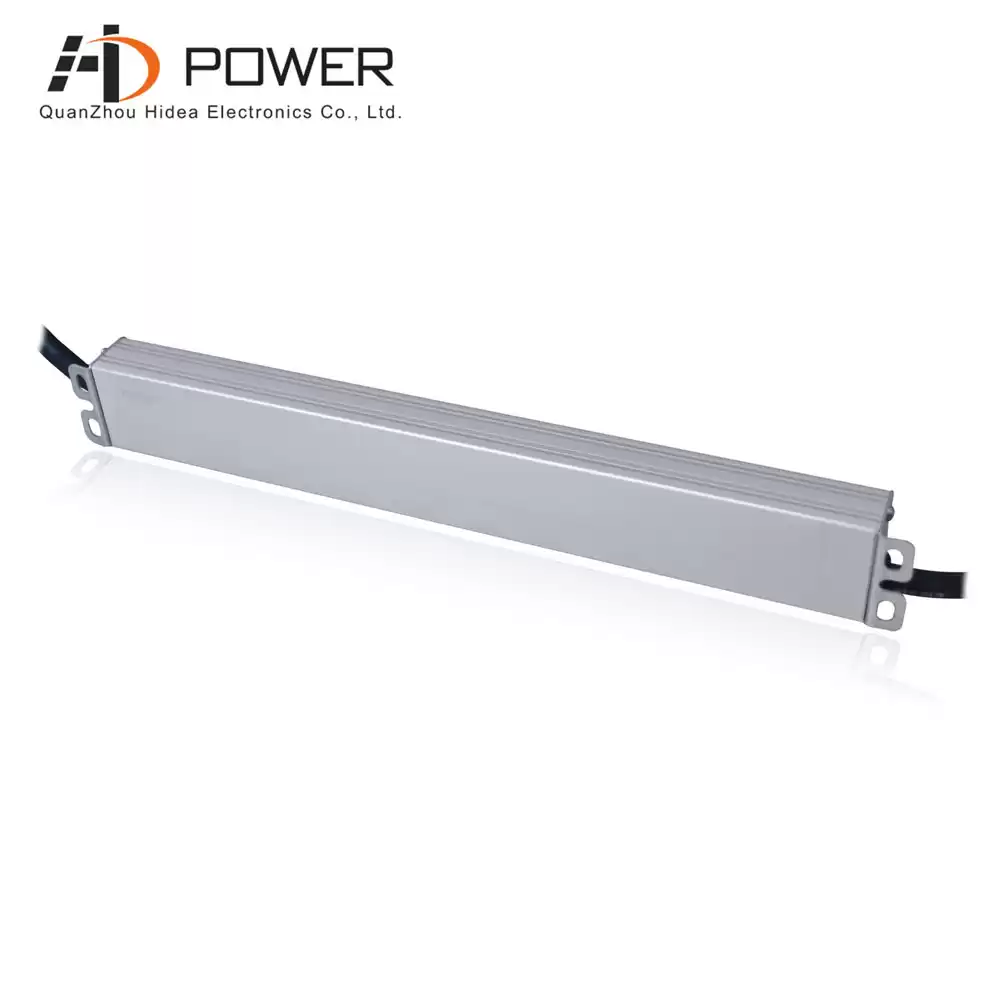

100-277vac 24v 60w constant voltage 0 10v dimmable outdoor led driver for outdoor
Hideapowrtech constant voltage 60W dimmable LED driver has a PFC function, and the work efficiency is as high as 86% waterproof level IP67. It is suitable for outdoor LED lighting projects. It has 7 years warranty.
Label
Specification
|
model
|
SMT-012-060VDSW
|
SMT-024-060VDSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
5.0Amp
|
2.5Amp
|
|
Rated power
|
60W
|
60W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.99@120VAC 0.95@277VAC
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
Full Load Efficiency(Typ.)
|
84%@120VAC ,86%@277VAC
|
83%@120VAC ,85%@277VAC
|
|
AC Current(Typ.)
|
0.9A
|
|
Inrush Current(Typ.)
|
11A,50%,1ms@120VAC; 27A,50%,960us@277V
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level
|
|
Others
|
Weight
|
0.45Kg
|
|
Size
|
300*32*20mm (L*W*H)
|
|
packing
|
330*270*160mm/ 30pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
|
|
Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|

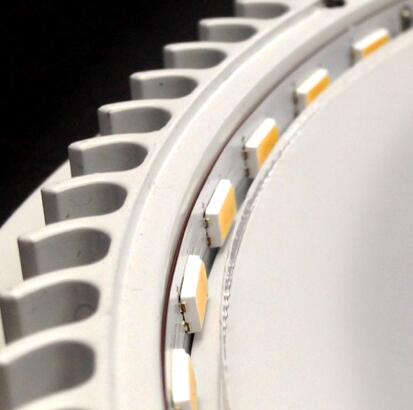

Compatible Light Type
UL listed led driver 12v 60w 0-10v dimmable got UL class 2, class P and type HL standard, 7 years warranty, PMW output freqency about 800HZ, . It also operates well with SpekLED FlexLine Series of flexible and semi-rigid LED light engines.
Related Products
|

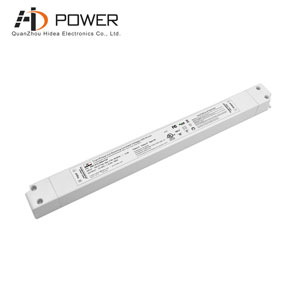

 60W triac dimmable led driver constant voltage work mode, which has a short circuit/overload/over -temperature protection function, which is in line with global safety lighting rules, plastic shell design, suitable for indoor lighting project installation
