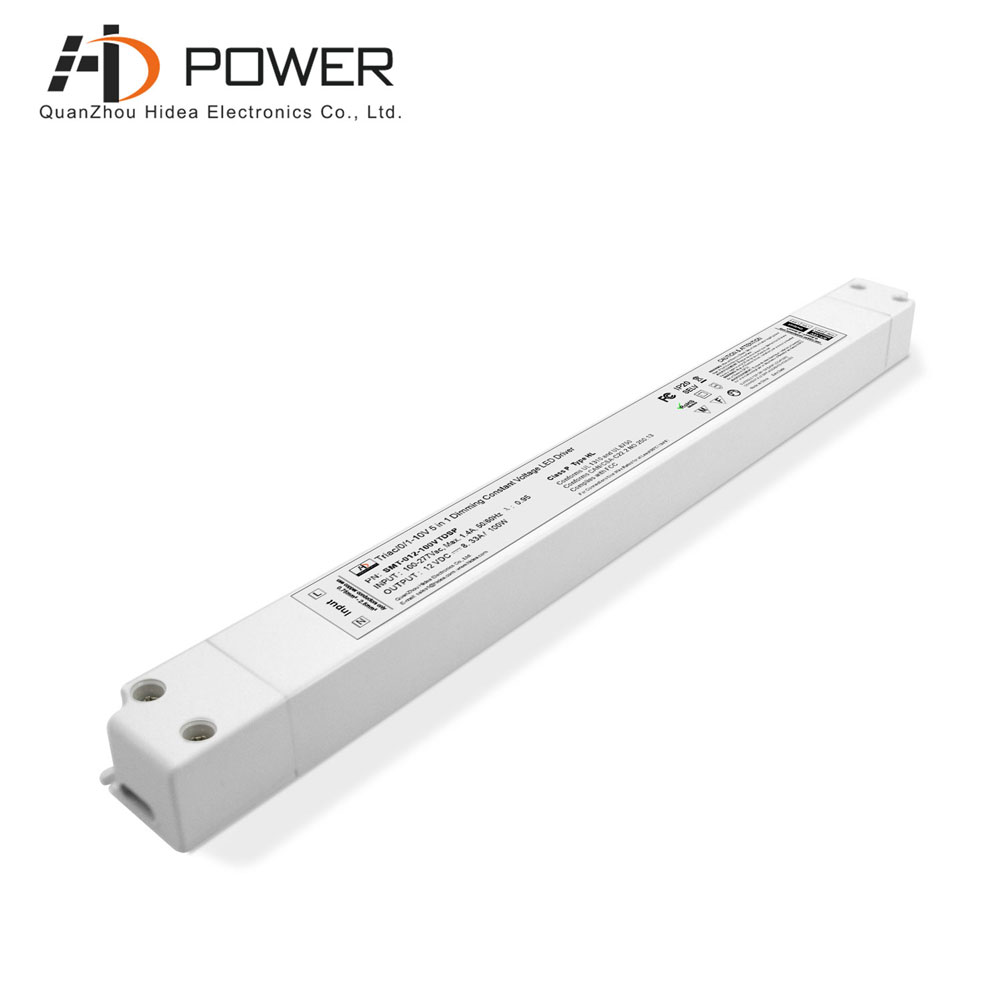

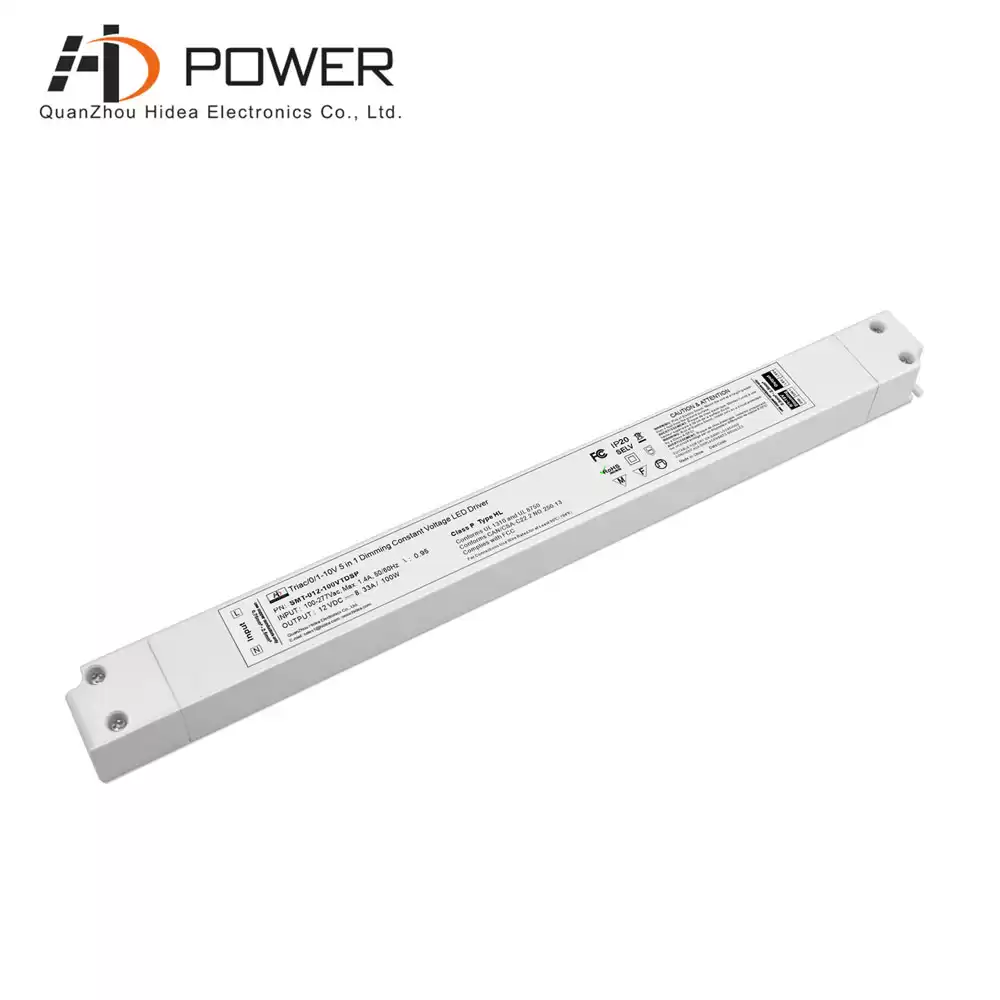

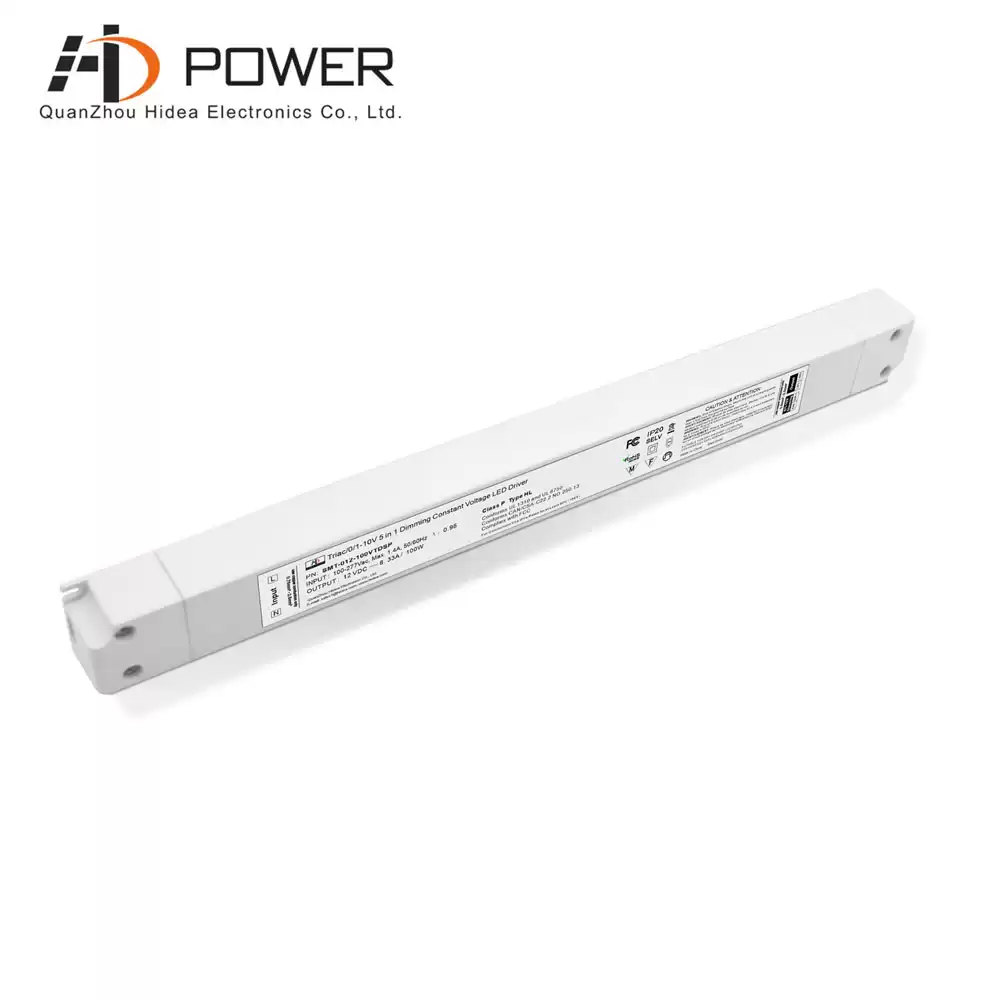

100-277vac triac & 0 10v constant voltage 24v 150w dimmable led strip light driver
hideapowertech Ultra slim triac & 0 10v dimmable 150W led power supply constant voltage working mode waterproof level ip20, ultra-low load requirements, able to work perfectly under 10~100% load
Specification
|
model
|
SMT-012-150VTDSP
|
SMT-024-150VTDSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
12.5Amp
|
6.25Amp
|
|
Rated power
|
150W
|
150W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
Power Factor ( Typ.)
|
0.95@120VAC 0.98@277VAC
|
|
Full Load Efficiency(Typ.)
|
91%@120VAC 95%@277VAC
|
92%@120VAC 96%@277VAC
|
|
AC Current(Typ.)
|
1.90A
|
|
Inrush Current(Typ.)
|
59.2A/212us@50%Ipeak
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:3.75KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
0.65Kg
|
|
Size
|
368*30*22.5mm (L*W*H)
|
|
packing
|
50PCS/CTN Carton size: 350*330*145mm
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
The 150W 12V led power supply under the VTDSP series can be used with various dimming dimmers to achieve smooth and flicker-free dimming. The effect is better when matched with e-conolight LED downlight 150W.
