Introduction

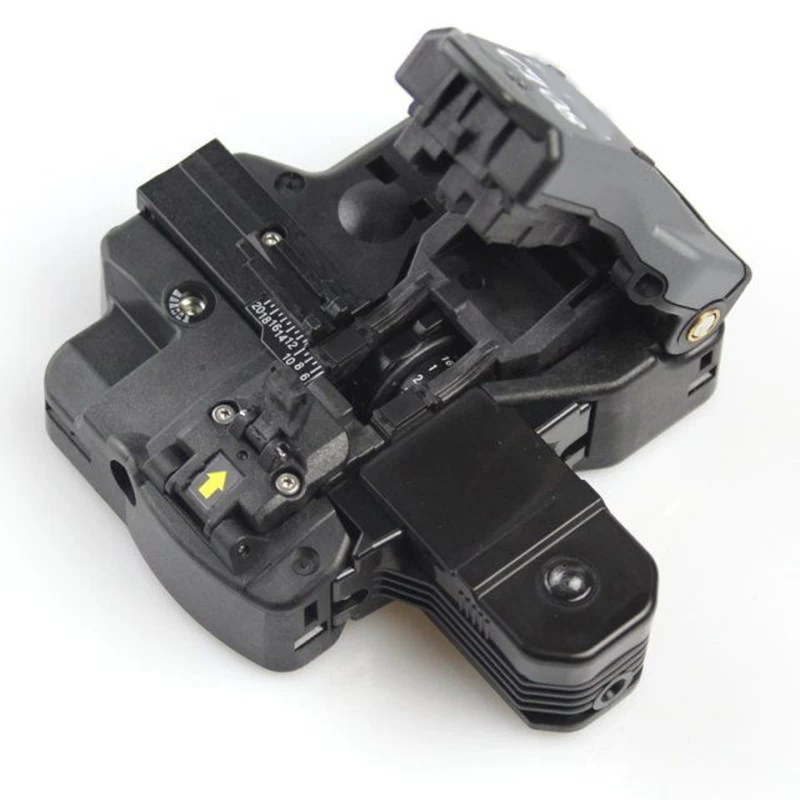

The new model features a dial that can be turned to change the position of the disk-type cleaving blade without the need for tools such as wrenches.

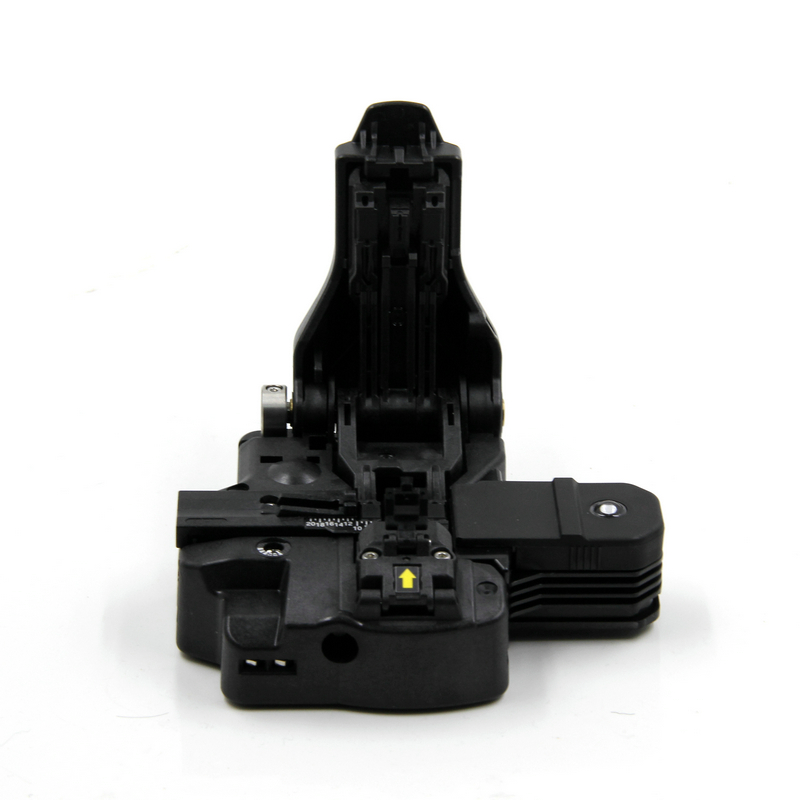

In addition, the opening angle of the lever positioned on the top surface of the cleaver has been expanded to 90 degrees or more, facilitating the setting of optical fiber in the cleaving unit. An interconnected mechanism has been adopted that reciprocates the disk-type cleaving blade by opening and closing the lever to enable completion of cleaving in a single operation. The new cleaver offers greatly improved work efficiency compared to conventional models.
Features
-
Dedicated for singel Fiber Cleaving.
-
Fiber Clamps and cleaving blade replaceable by user.
-
No too necessary for blade rotation.
-
Wide lever opening allows easy fiber placement.
-
Simple and Single-step operation.
Application
-

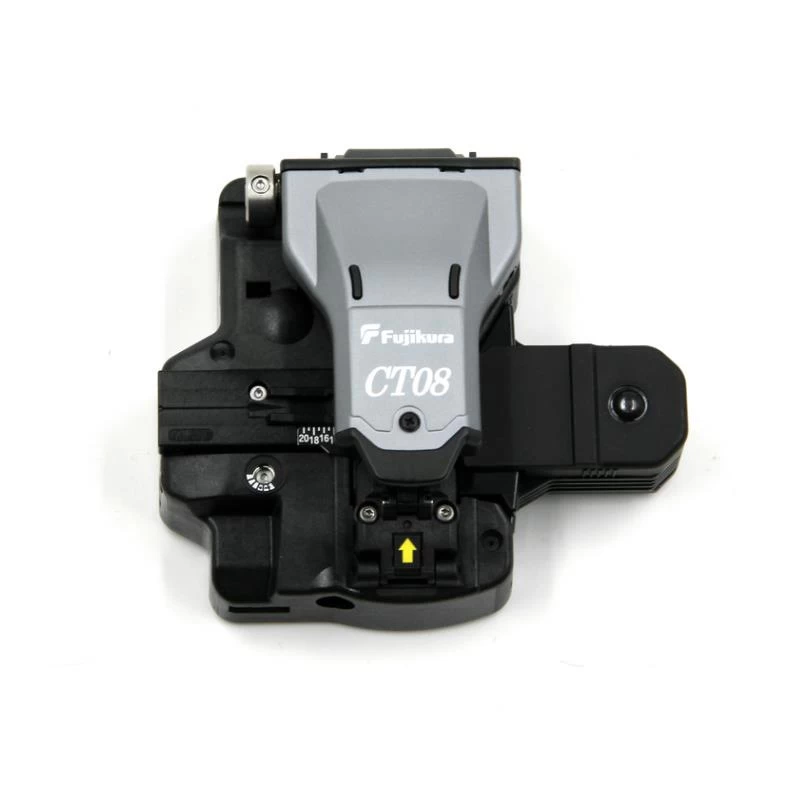

New High Precision Fiber Cleaver CT08/New Original Fiber Optic Cleaver
-
Used for Single Fiber Cleaving
-
Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency
-
Prevents Double Scoring of the Fibers
-
Has Superior Blade Height and Rotational Adjustment
-
Available With Automatic Fiber Scrap Collection
Specifications
|
Number of fibersr
|
Single Fiber
|
|
Blade Life time
|
48000 times
|
|
Cladding Diameter
|
125um
|
|
Coating Diameter
|
160 μm to 900 μm
|
|
Weight
|
185g
|
