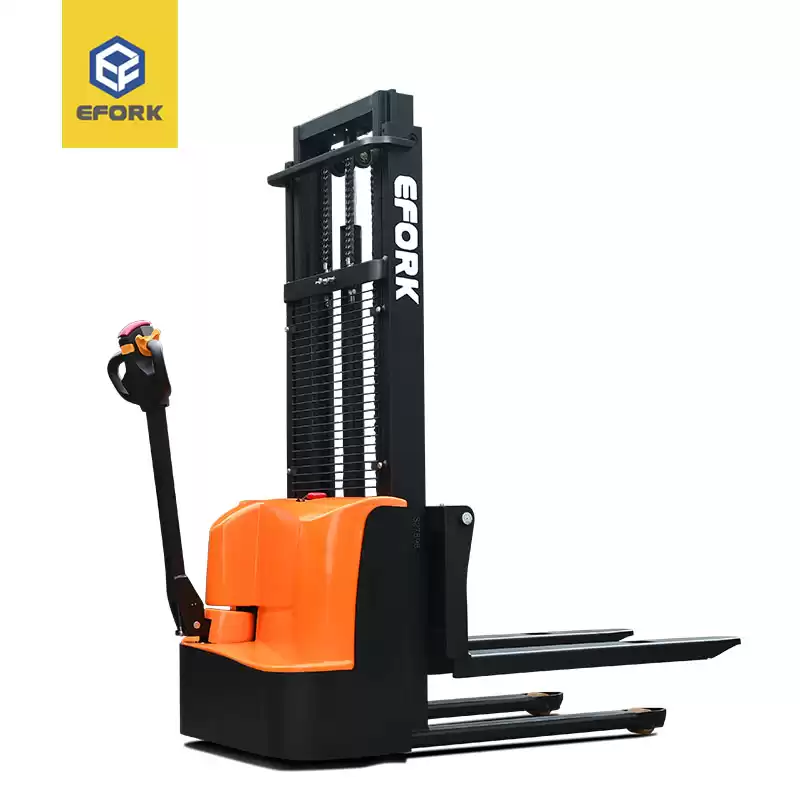

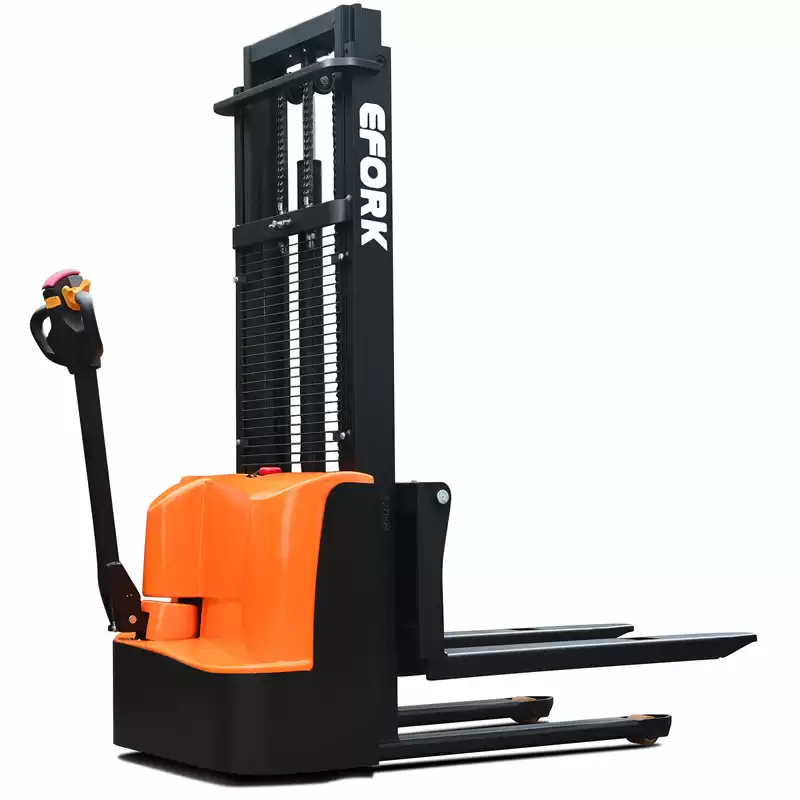

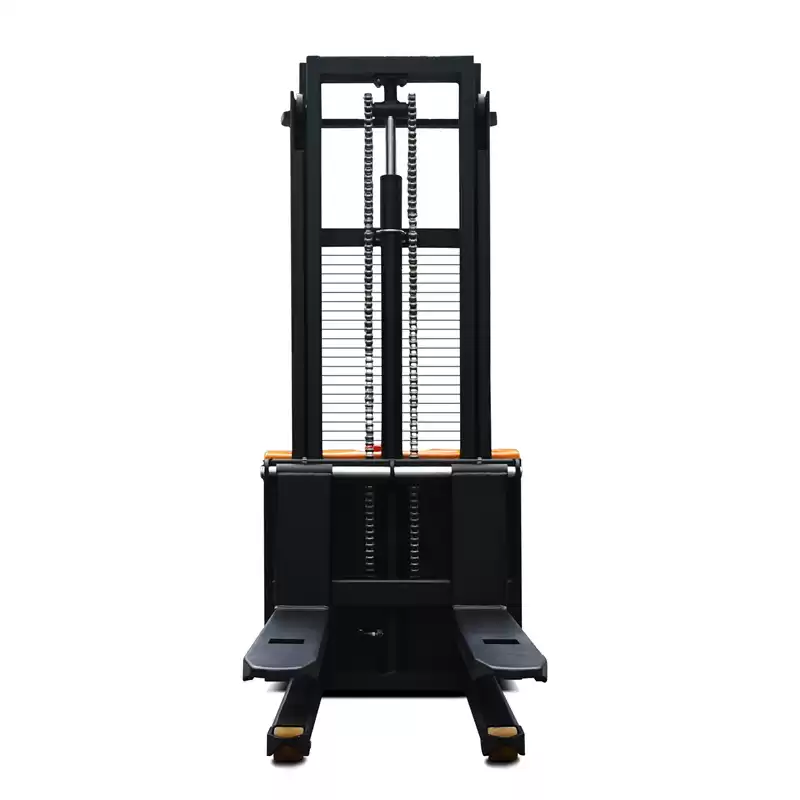

Product Name:1000-1500kg Walkie semi Electric Pallet Stacker
EFORK CDD10C/15C series electric pallet stacker are compact&light weight for applied in narrow sites.
DC drive motor and reliable Curtis control system assure its supreme performance which will improve your work efficiency ever.What's more, the build-in designed charger simplify operation.
Capacity:1000/1500 Kg
Lifting height:1600-3000 mm
Product Advantage:
●Short distance handling;
●Short distance stacking;
●Ideal tools for loading, unloading and handling cargo in warehouses, supermarkets, workshops, and homes.
Specifications:
|
Name
|
Walkie Full Electric Stacker（24V）
|
|
Model No.
|
|
CDD10C-16
|
CDD10C-25
|
CDD10C-30
|
CDD15C-16
|
CDD15C-25
|
CDD15C-35
|
|
Load Capacity
|
Kg
|
1000
|
1000
|
1000
|
1500
|
1500
|
1500
|
|
Max lifting height
|
H（mm）
|
1600
|
2500
|
3000
|
1600
|
2500
|
3500
|
|
Load center
|
C（mm）
|
500
|
500
|
500
|
500
|
500
|
500
|
|
Wheel Type
|
|
Pu solid tire
|
|
Fork size
|
mm
|
1150X160
|
1150X160
|
|
Fork outer distance
|
mm
|
680
|
680
|
680
|
680
|
680
|
680
|
|
Overall length
|
L（mm）
|
1785
|
1785
|
1785
|
1785
|
1785
|
1785
|
|
Overall width
|
S（mm）
|
800
|
800
|
800
|
800
|
800
|
800
|
|
Height--Mast Lowered
|
H1（mm）
|
2075
|
1825
|
2075
|
2075
|
1830
|
2330
|
|
Maximum height when fork is lifting
|
H2（mm）
|
2075
|
3033
|
3533
|
2075
|
3037
|
4037
|
|
Min. Fork height
|
h1（mm）
|
85
|
85
|
85
|
85
|
85
|
85
|
|
Turning radius
|
W（mm）
|
1380
|
1380
|
1380
|
1380
|
1380
|
1380
|
|
The front wheels to the fork end distance
|
（mm）
|
430
|
430
|
430
|
430
|
430
|
430
|
|
wheelbase
|
(mm)
|
1199
|
1199
|
1199
|
1199
|
1199
|
1199
|
|
Min. stacking aisle 1000*1000 pallet
|
mm
|
2155
|
2155
|
2155
|
2155
|
2155
|
2155
|
|
Max. Walking Speed
|
Km/h
|
3.5/4
|
3.5/4
|
3.5/4
|
3.5/4
|
3.5/4
|
3.5/4
|
|
Grade ability
|
%
|
3/6
|
3/6
|
3/6
|
3/6
|
3/6
|
3/6
|
|
Total Weight
|
Kg
|
506
|
546
|
566
|
596
|
666
|
700
|
|
Driving wheel
|
mm
|
Ø210*70
|
|
Front wheel
|
mm
|
Ø80*70
|
|
Balance wheel
|
mm
|
Ø125*50
|
|
Battery capacity
|
V/Ah
|
2*12/80
|
|
Driving motor
|
Kw
|
0.75
|
|
Lifting motor
|
Kw
|
2.2
|
|
Walking Adjustable Type
|
|
Holzer type accelerator
|
