10,000L Nigeria Isuzu High
pressure industrial cleaning Vehicle

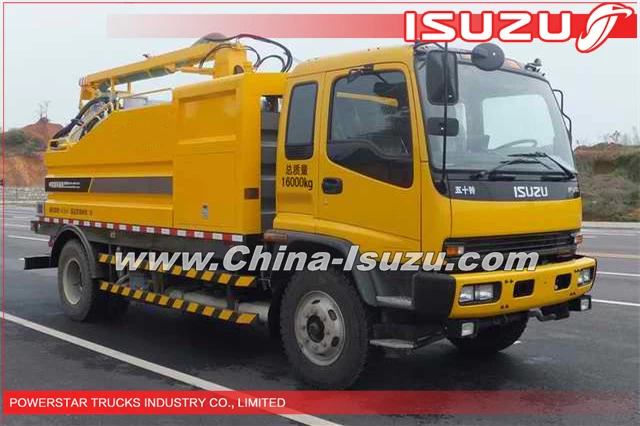

Isuzu high pressure
sewer jetting truck works by flushing and thrusting actions of high pressurized
water which is transmitted to the clogged sewer line with a high pressure water
hose and a sewer jetting nozzle. Destroying with high pressured water jet,
remaining waste material is either naturally eliminated by sewer flow or
carried to the manhole opening for collecting with a vacuum loader (suction
truck). All its duty is keeping municipal sewers, sanitary and storm sewer
lines, laterals, and drainage lines clean and frees flowing.
Areas of
Application and Use
◆ Hydrodynamic sewer and pipeline cleaning of
diameters from 200 to 1100 mm
◆ Tanker size: 3000 L up to 15,000 Liters
◆ English control panel is
simple and easy to use
◆ Carbon Steel,
Stainless Steel, and Aluminum Tanks Available
◆ Hydrodynamic drain line cleaning.
◆ High pressure surface cleaning.
◆ High pressure industrial cleaning.
Main specifications:
|
Model
|
PT5140GQX
|
|
Driving
Type
|
4x2 (Left
hand drive)
|
|
Wheelbase
|
4500mm
|
|
Engine
|
139 kw (190hp)
|
|
Tyre
|
9.00-20
|
|
Water
Tank
|
Capacity
|
10,000 L
|
|
Material
|
Q345weathering
steel
|
|
Shell thickness
|
4mm
|
|
Water level protection
|
1, Too high; 2,
Too low; 3, No water
|
|
High
pressure water pump
|
Pump type
|
As
option
Three-plunger
pump, PRATISSOLI brand, Italy top brand
|
|
Flow
|
122 L/min
|
|
Max working pressure
|
Pressure can be
freely adjusted between0-160 bar
|
|
Safety devices
|
1, Low water
level protection
2, Water
particles protection
|
|
Hose
Reel
|
Jetting hose
|
Inner diameter
3/4", length 80m. With 3/4"BSP-F coupling on both ends, which
allows hose direction changing.
|
|
Horizontal rotation
|
160°
|
|
Parts
|
3/4"
rotation shaft, 3/4" high
pressure ball valve
|
|
Reel control
|
By the control
unit on the panel on the hose reel
|
|
Hose retract & wind
|
Hydraulic
operated, with adjustable speed
|
|
Color
|
As option
|
