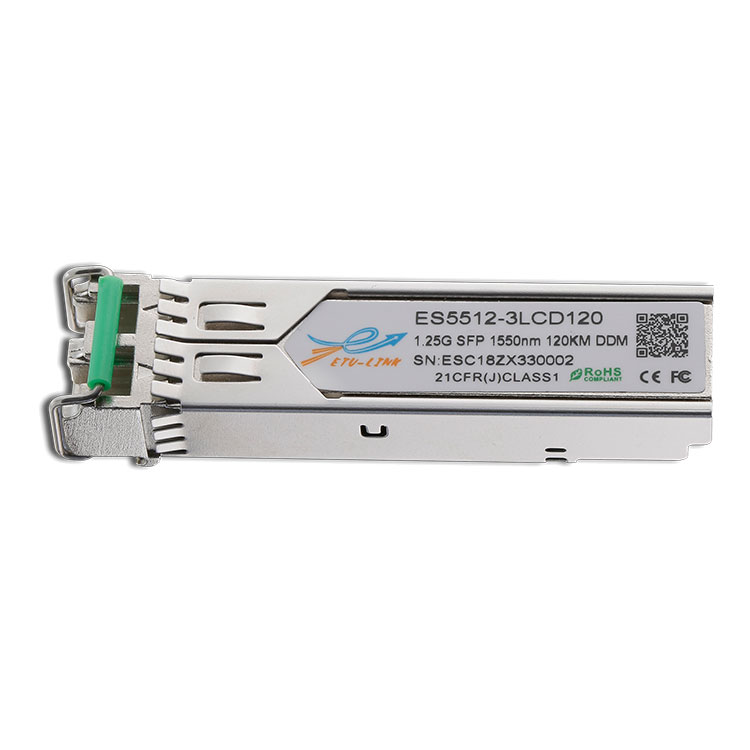

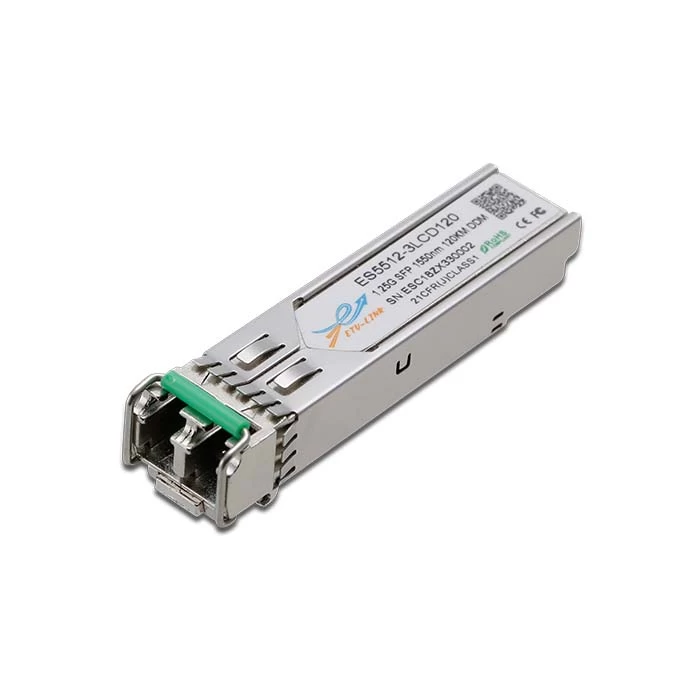

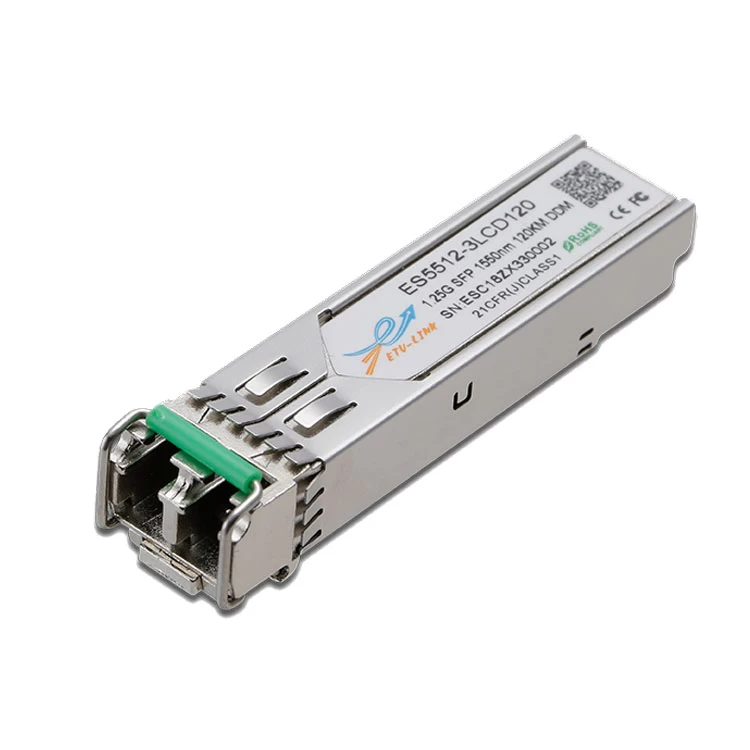

ES5512-3LCD120
1.25Gbps
SFP Optical Transceiver, 120KM Reach
Features
Data-rate of 1.25Gbps operation
1550nm DFB laser and APD photodetector for 120KM transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard : 0 to +70°C
Extended : -20 to +85°C
Industrial : -40 to +85°
Applications
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Description
The SFP transceivers are high performance, cost effective
modules supporting data-rate of 1.25Gbps and 120KM transmission distance with
SMF.
The
transceiver consists of three sections: a DFB laser transmitter, a APD
photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control
unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source
Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
