Chassis
|

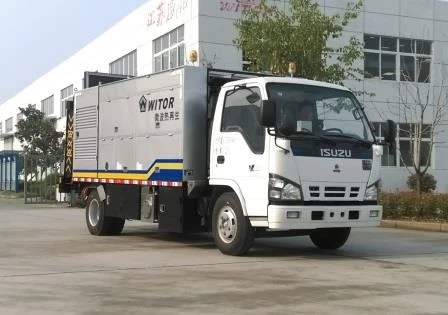

ISUZU NKR NQP
|
Dimension (mm)
|
6980x2120x3090 (L*W*H)
|
Voltage/power of generator set
|
220V/380V, power 30Kw, fuel efficiency 258.4g/Kw.h
|
Heating drum
|
500Kg/drum, output 4 t/h, rotating speed 12-15rpm
|
Heating mode
|
RIELLO diesel burner, fuel consumption: 4.5~10kg/h
|
Bucket capacity (Kg)
|
250kg (based on the density 1.8t/m3)
|
Hopper measurement
|
S weighing sensor, measuring range 500Kg, total error ±0.03%R.O
|
Loading time
|
15S, heating 5min, mixing 2min
|
Asphalt tank capacity (L)
|
1000L, heating duration 1-2h, heating temperature 150°C controllable
|
Heating mode of asphalt tank
|
Conduction oil heating with diesel burner, fuel consumption 4.5~10kg/h
|
Heating rate/heat insulation effect: 15°C/h, temp. drop ≤ 3°C/hour
|
Asphalt measurement
|
Weighing hopper capacity 25Kg, sensor range 100Kg, total error ±0.03%R.O
|
Conduction oil capacity
|
296L
|
Emulsified asphalt capacity
|
960L
|
Powder measurement
|
Hopper capacity 35Kg, sensor range 100Kg, total error ±0.03%R.O
|
Cyclone & wet dust collector
|
1100-1558m3/h
Dust collection capacity: 1,100-1,558m3/h
|
Mixing temperature (°C)
|
100-160°C |
Mixing method
|
Forced mixing with double horizontal axis at the power 11Kw
|
Unit oil consumption (Kg/t mixture)
|
3.5~6.5
|
Working process
|
Preheating heating drum – feeding – drying – mixing – discharge
|
Electrical control
|
Auto heating under constant temperature, LED digital temperature display, microcomputer central control and manual control, fault diagnosis
|
